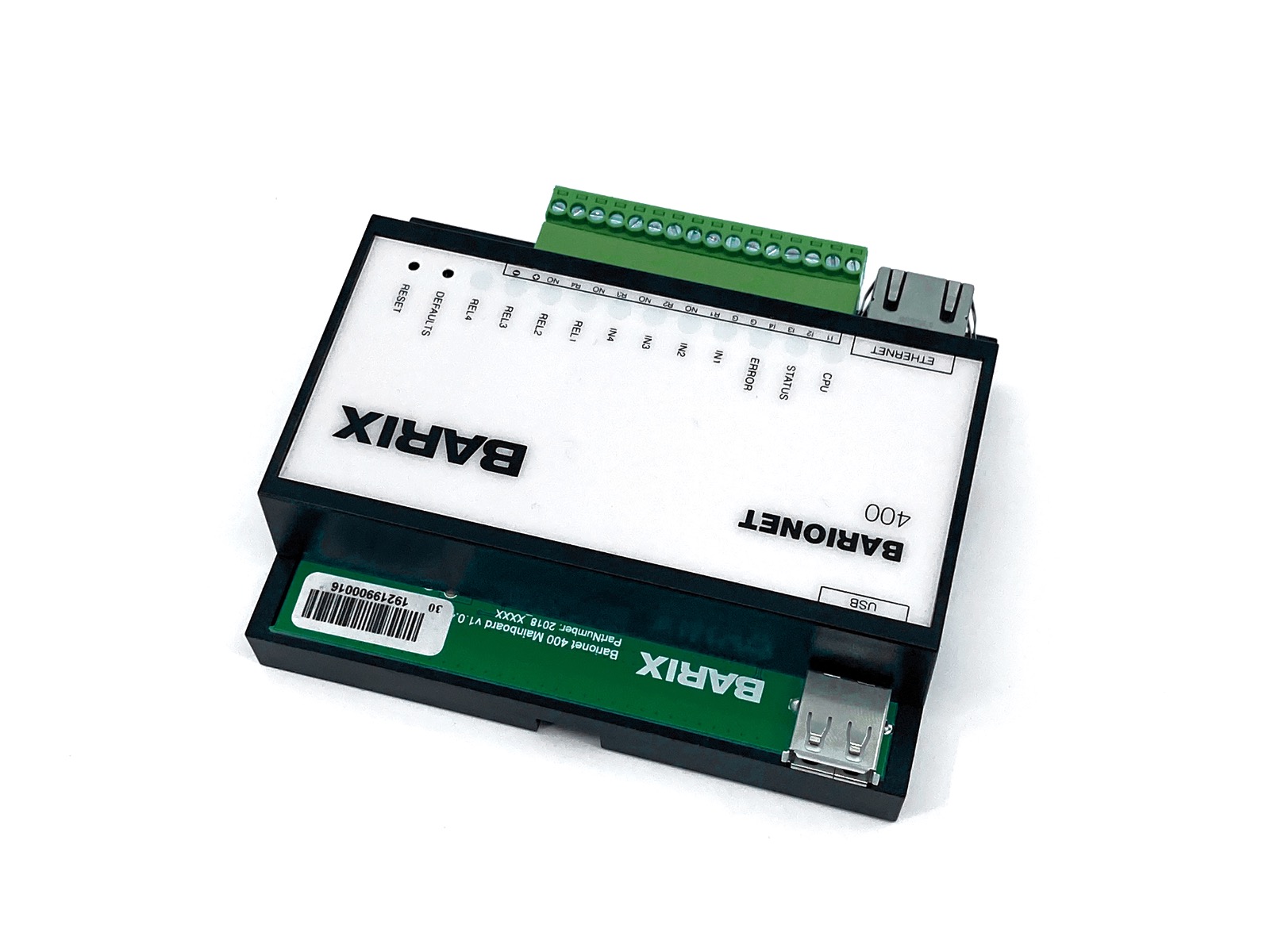

Barionet 400

Universal, programmable I/O device server

Barionet 400 is a fully programmable I/O device server of Barix, based on Linux/Lede/OpenWRT. The device features a wide range of interfaces such as USB, digital Inputs, Relays. It is IPv4 or IPv6 capable. Supporting multiple communication protocols, the Barionet can be used in multiple applications such as automation building control, public transport and many more. Barix Products are developed in Switzerland and manufactured to the highest standards.

device-image
Operation System

Linux / Lede / OpenWRT



Network / WiFi Interfaces

1 x Ethernet (RJ45) Interface

IPv4, IPv6 capable

10/100 fdx/hdx, auto negotiation

WiFi 802.11 b/g/n, 2.4 GHz

TCP/IP, UDP, ICMP, DHCP, CGI, HTTP, SNMP

I/O Interface

4 x Relay Outputs (30VDC, 0.5A)

4 x Digital Inputs (dry contacts)



USB Interface

1 x USB Host (Type A) Interface



OEM Options

RTC Real Time Clock

CPUs / Memory

MediaTek MT7620N

64MB SDRAM

16MB Flash



User Interface

Web interface for control / configuration

10 x Multicolor LED Status indicators

Reset & Factory Defaults Button



Power Requirements

Single 9-30V DC supply voltage, 2.5 Watt (without attached USB devices) or

IEEE 802.3af PoE

MTBF

> 950’000h



Measurement

4.05” x 3.35” x 1.22” /

103mm x 85mm x 31mm



Weight

160g



Warranty

Two years

  • 2019.9257P
    BARIONET 400 NO PSU
