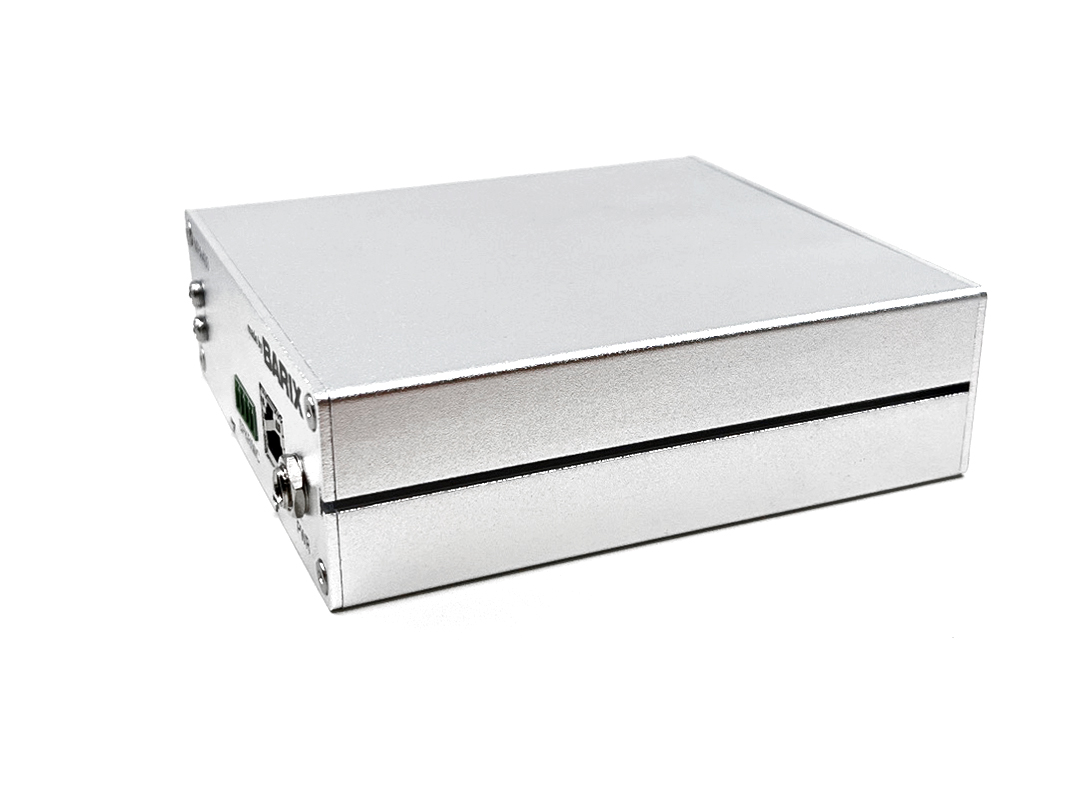

Exstreamer MPA400

IP Audio Decoder and Amplifier with up to 40W RMS @ 4Ohm Speaker Output

The Exstreamer MPA400 feeds 2 – 8 Ohm Speakers and turns them into an extensive Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps are supported. The codec supports PCM, AACplus, MP3, OPUS, G.711, G.722 that can be served over HTTP and RTP protocols. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command. The MPA400 is a solid metal device, easily installed. All PoE standards are supported (up to 4PPoE) to feed the built-in 40W full digital class-D audio amplifier meeting different speaker requirements.If PoE is not an option, an external power supply can be deployed too. The device offers a modern and user-friendly web interface for its configuration. REST API to interface with third party applications is also available.

device-image



Operation System

  • Embedded Linux based on Yocto

Network Interfaces

  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation

Protocols

  • TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD, NTP, DHCP, DNS
  • Singlewire Informacast compatibility – requires extra license
  • Syn-Apps Revolution compatibility

CPU / Memory

  • Barix IPAM400 Processor Module
  • Quad-Core ARM Cortex™ -A7
  • 256MB DDR3 SDRAM
  • 16MB SPI Flash
  • 8GB uSD-Card Flash

User Interface

  • Web interface for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button

Audio Formats

  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
  • AAC-HE (AAC, AAC plus, AAC plus V2)
  • PCM linear 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
  • G.711
  • G.722
  • Opus
  • WAV
  • OGG Vorbis

Audio Interface

  • Speaker Output on Screw Connector
  • 2 – 8 Ohm Speaker Impedance
  • 3.5mm TRS headphone connector on the front panel
  • Microphone Input 3.3VDC Bias on Screw Conn.

Power Requirements

  • 24VDC, 50W maximum on 5.5×2.1mm barrel connector (positive polarity), screw locked
  • PoE: IEEE 802.3af / 802.3at / 802.3bt type 1-2

MTBF

  • > 200’000h


Measurement / Mechanics

  • 108x38x125mm (4.25×1.5×4.92 inch)


Weight

  • 350g


Warranty

  • 2 years

Exstreamer MPA400 (made in Europe)

2020.9317P Exstreamer MPA400 PoE Package

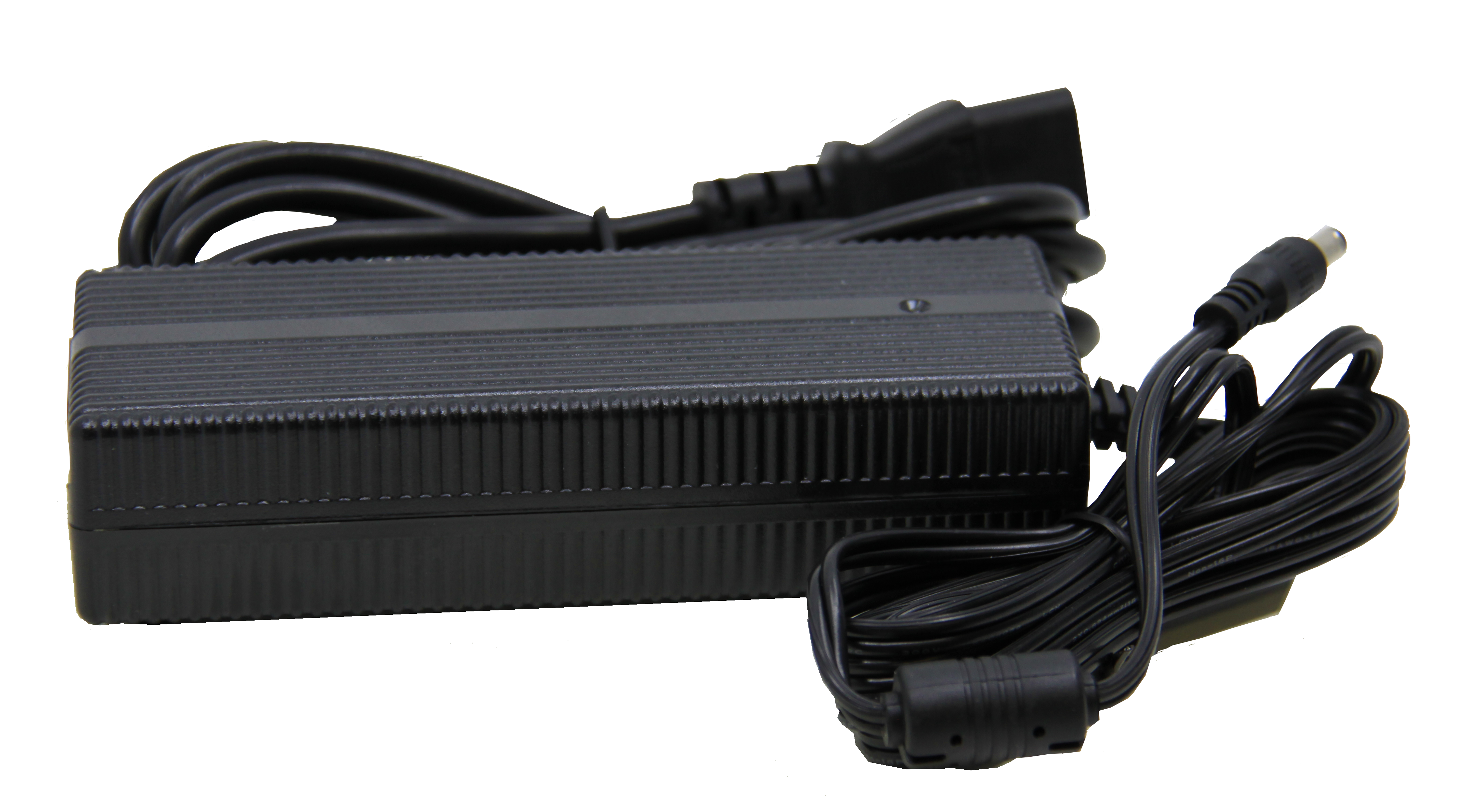

2022.2114P Power Supply Exstreamer MPA400(24V_3.5)*Optional

2006.9072 Wall mount bracket Measure: 116/30/29mm *Optional

2007.9082 19” Rack mount shelf – for up to 4 devices



Exstreamer MPA400 Informacast (made in Europe)

2020.9325P Exstreamer MPA400 Informacast Package

2019.3160 InformaCast License (must be ordered with device)

2022.2114P Power Supply Exstreamer MPA400(24V_3.5A)*Optional

2006.9072 Wall mount bracket Measure: 116/30/29mm *Optional

2007.9082 19” Rack mount shelf – for up to 4 devices
