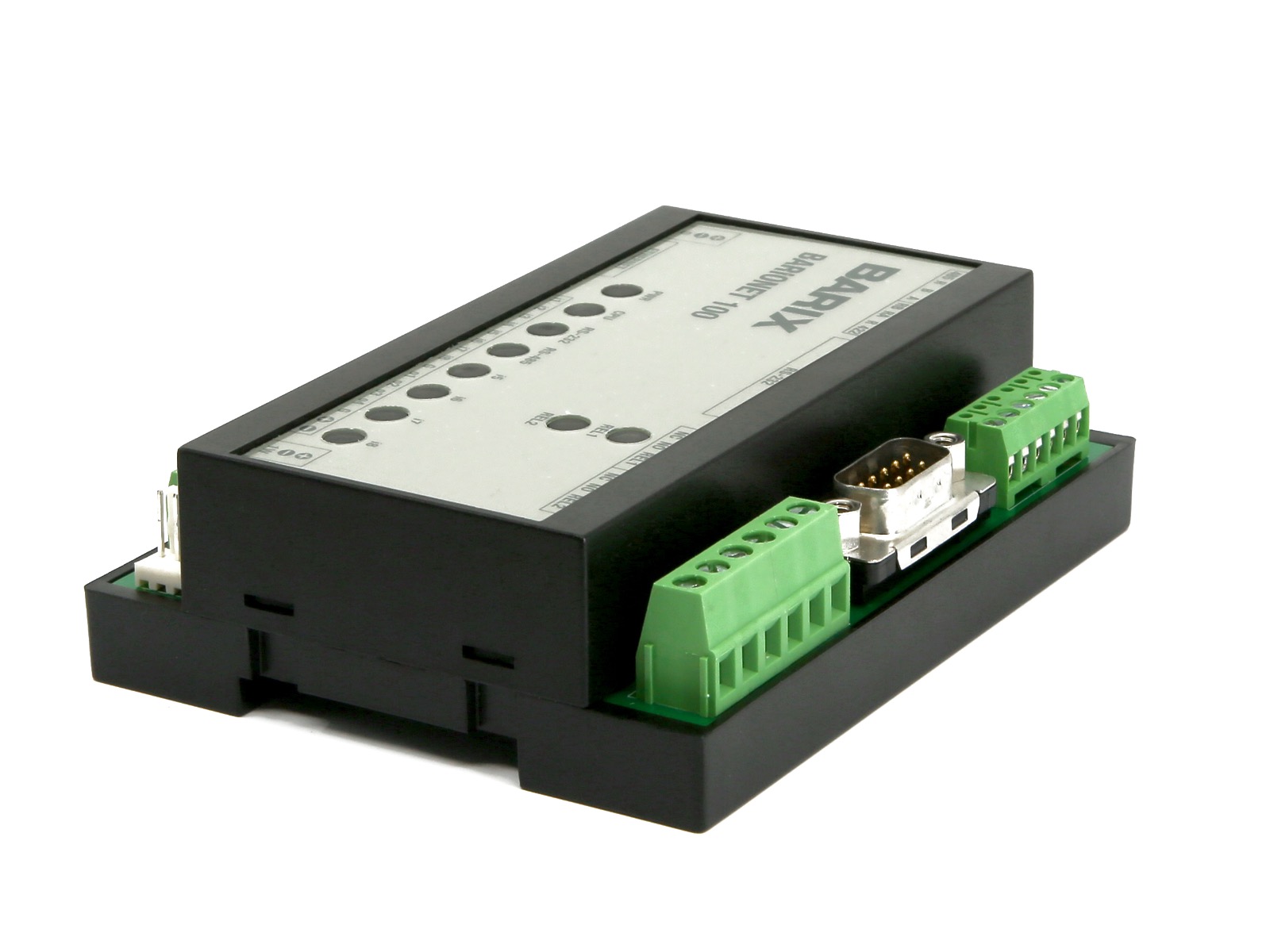

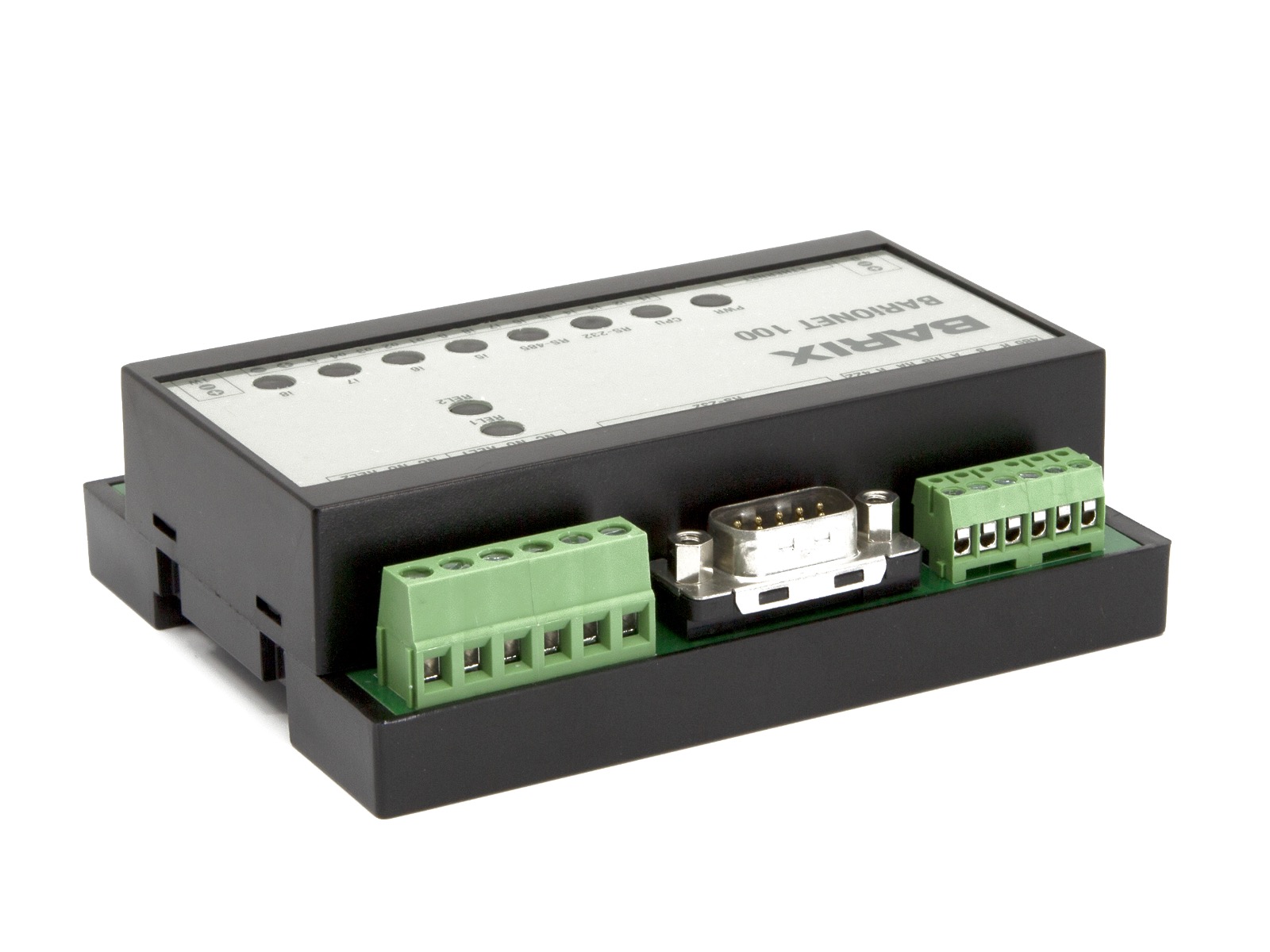

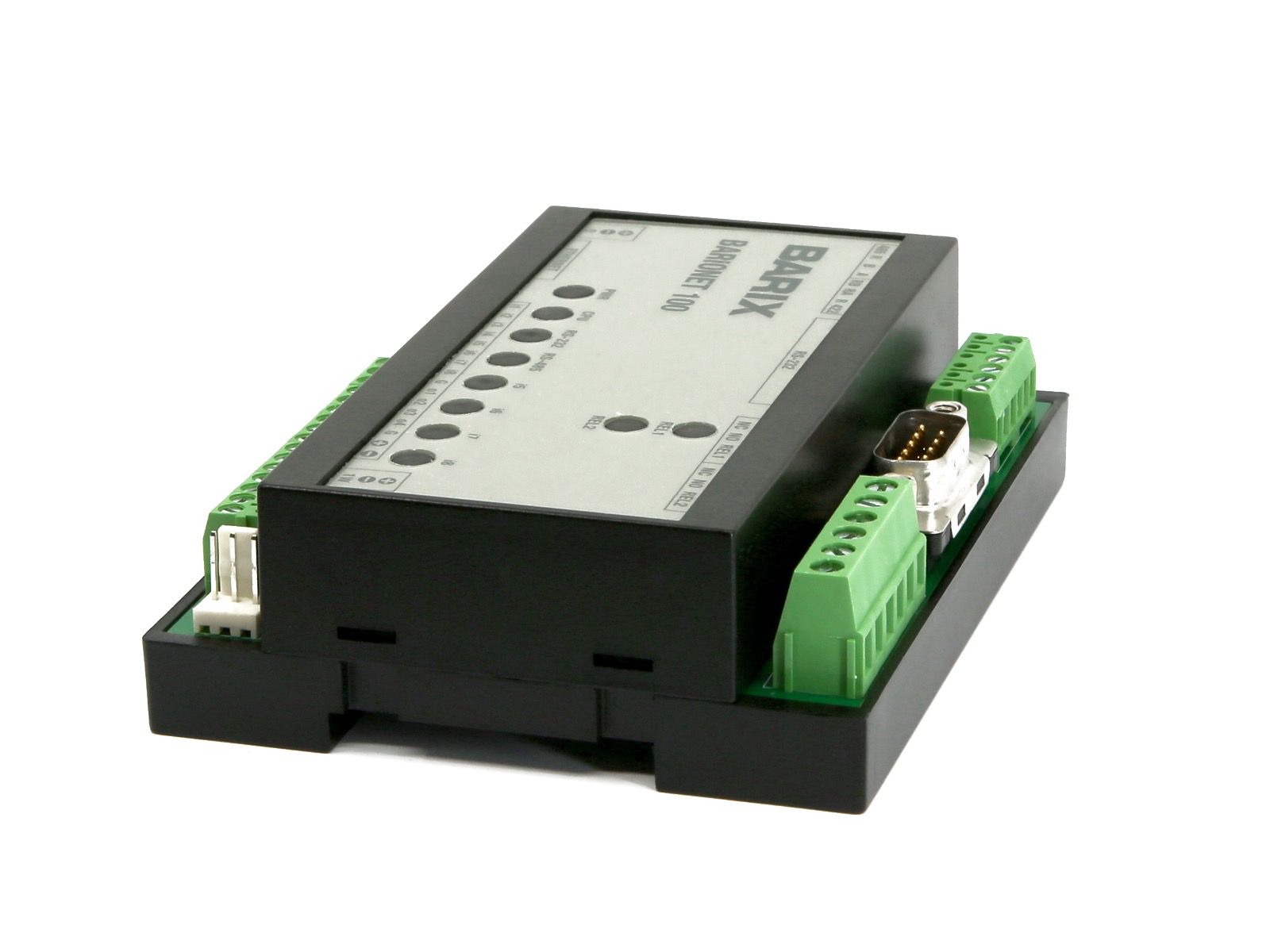

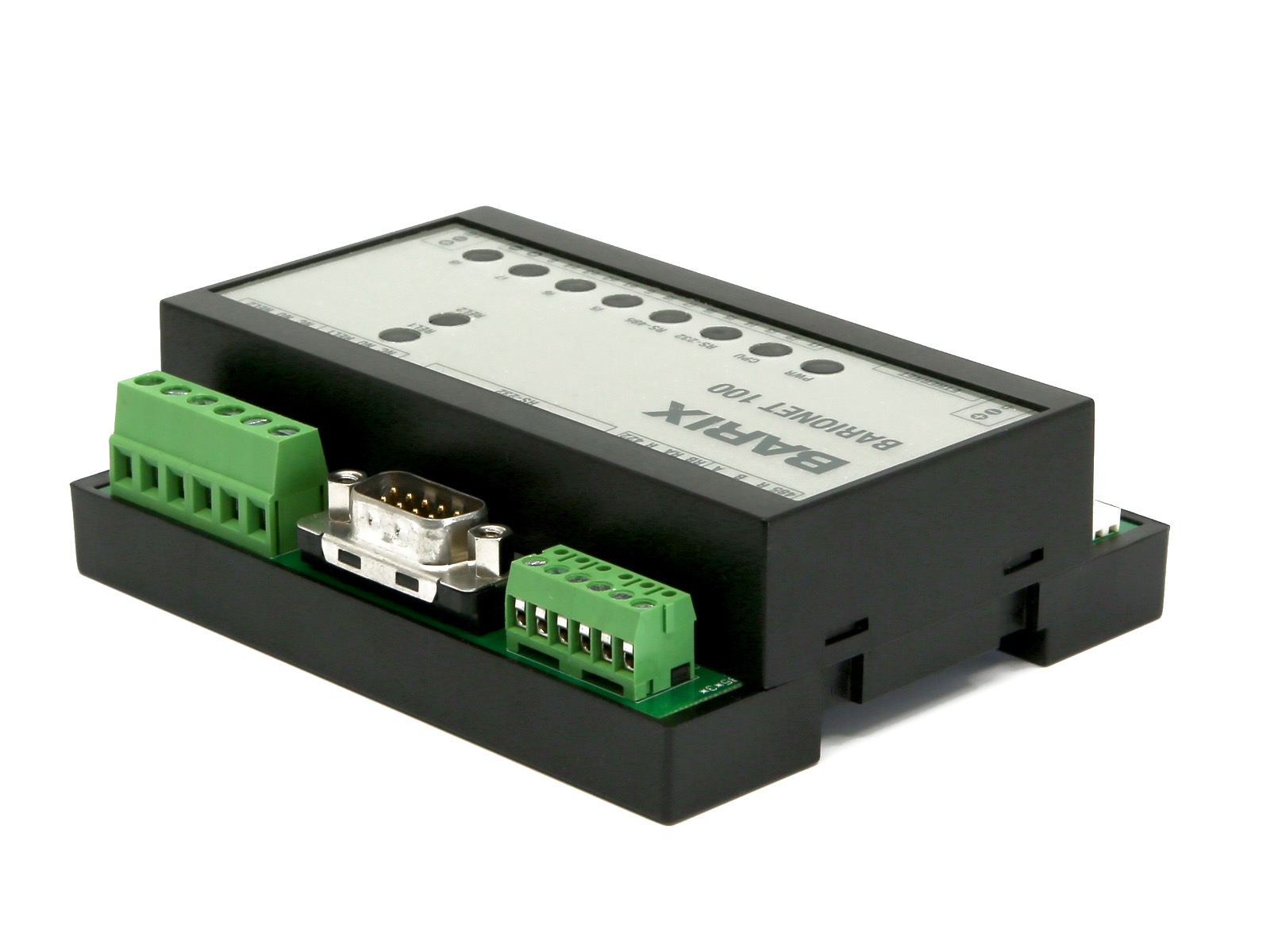

Barionet 100

Two serial ports, 2 relay and 4 digital outputs, 4 digital and 4 digital + analog inputs and Dallas 1-wire support, UL listed

Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, analog and digital I/O, Relays and Dallas 1-wire support. UL listed.

I/O Interfaces

2 relay outputs (240 VAC 5 A)

4 digital inputs (0..12 V), configurable pullups

4 universal inputs (analog 0..5/10 V or digital 0..12 V) with configurable pullups

4 digital outputs (open collector, 24 V 0.1 A)

2 Barix extension bus connectors with Dallas 1-Wire® capability

Serial Interfaces

1 RS-232 * (DSub-9 male, RX/TX only)

1 RS-422/485 * (2/4-wire)

* 600..19’200 Baud, 7/8 bit, Odd/Even/No par



Network Interface

RJ45 10/100 Mbit Ethernet (Autodetect)

TCP/IP, UDP, ICMP, DHCP, AutoIP, IPzator™, XML, SOAP, Modbus/TCP, SNMP, CGI, HTTP web server for control, status and configuration







Misc

8+2 LED status indicators



Power input

9..30 VDC, 4 Watt max.



Case

high quality plastic, 160 g, , DIN-rail mount.

4.13“ x 3.34“ x 1.1”, 105 mm x 85 mm x 31 mm



MTBF

Min. 205 000h acc. to MIL217F at 25°C

ambient temperature



User Interface

browser based (integrated webserver),

serial port or ethernet control AP

Barionet 100 (Made in China)

2003.9014 Barionet 100 NoPSU Package

2003.9032 Barionet 100 NoPSU Package (OEM Package)
