Simple Paging

Make Public Address Announcements over your network.

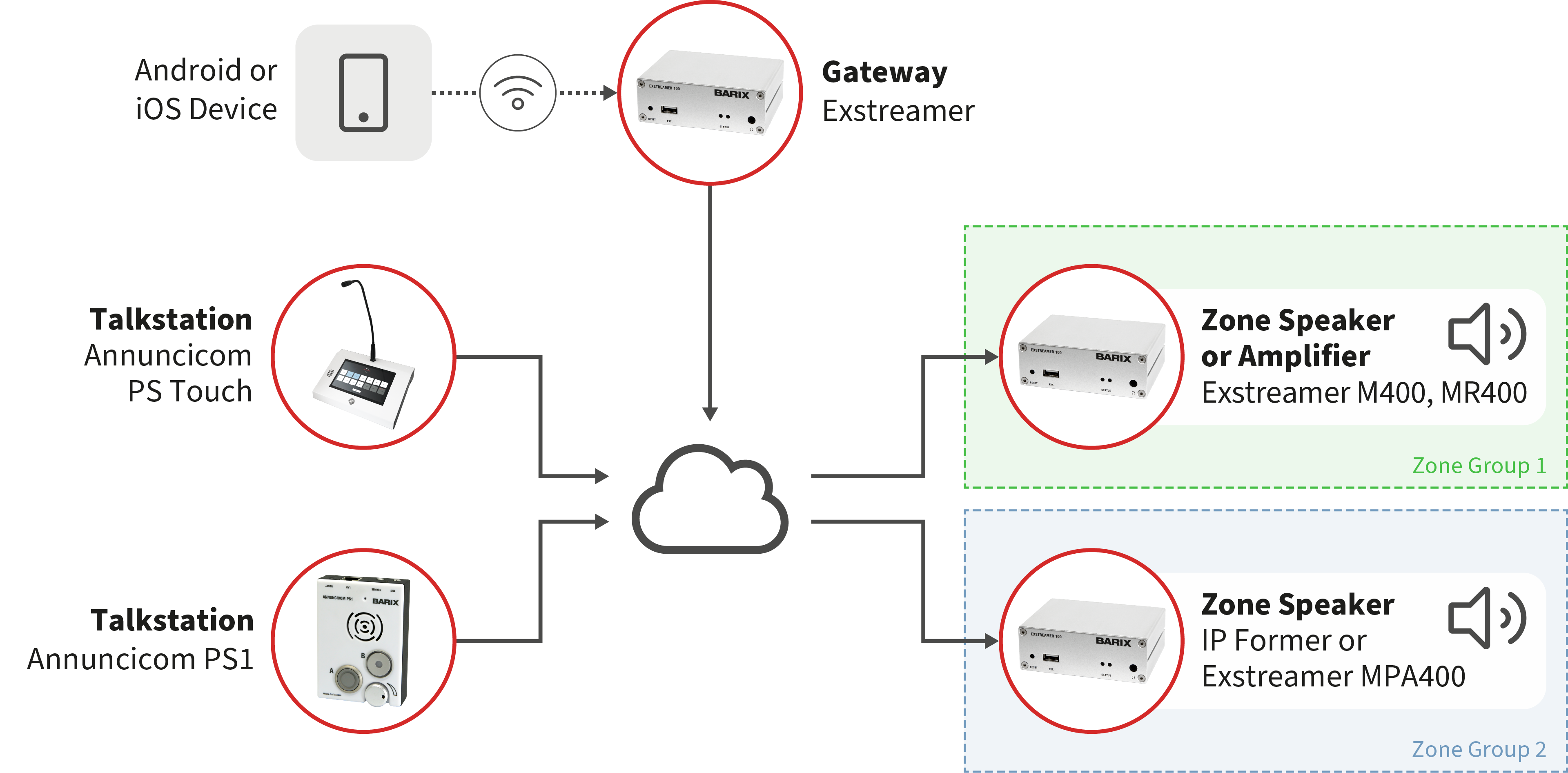

Simple Paging is a professional Barix solution designed to implement a complete paging system within your enterprise. The architecture, facilitated by Simple Paging Firmware, supports a master-slave model with an extended interface for displaying and managing all connected devices, groups, and zones. Installation can be easily accomplished on the existing network without the need for proprietary servers. Barix offers the Annuncicom PS1 and PS Touch as ideal master stations for Simple Paging. A key feature of the Barix Simple Paging solution is the Simple Paging App, which allows users to make public announcements from smartphones. The app is available for download from the App Store or Google Play, and an additional password can be configured to secure the WiFi connection between the mobile phone and the router. Barix Simple Paging supports two announcement levels (normal paging and emergency notification), along with background music. Additionally, a 'pre-gong' chime can be enabled in the setup to indicate voice announcements.

  • Make announcements from paging station or smartphones
  • Superior audio quality
  • Multi-zone system with busy/offline indication per zone
  • Make announcements selectively into one, some or all zones.
  • Low power and no maintenance cost, no PC or server needed
  • Easily add zones and paging stations as you expand the system
  • Mobile paging restricted to authorized users
  • Multiple Paging Station
  • Paging Station indicate when Zones are busy with announcements
  • Supports simultaneous paging to independent targets
  • Dynamic status indication to make maintenance easy
  • Modular and easily expandable
  • Supports zoned Background Music playback via multicast for low network traffic
  • Supports multiple mobile paging configurations: one set of Groups for the Principal, another for Security!
  • A variety of hardware end points to suit each area in a facility
  • Independent volume setting for each Paging Zone

Devices Available for Simple Paging

Simple Paging Annuncicom 60

Paging gateway, small zone device and Intercom device

  • MP3, Ogg Vorbis, G.711, G.722, PCM
  • Shoutcast/Icecast source capability
  • Mic/speaker connection
  • Amplified output 5W (8 Ohm)
  • Contact closure input
  • Power over Ethernet (PoE)

Ordering numbers for Annuncicom 60

2012.9120 Annuncicom 60

2006.9072 Wall mount bracket

2007.9082 19’’ Rack mount shelf (for up to 4 devices)

Simple Paging Annuncicom PS1

IP Intercom and paging master station

  • Built-in speaker and microphone
  • Built in encoder and decoder
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Target/Function Buttons
  • Power over Ethernet (PoE)

Ordering numbers for Annuncicom PS1

2012.9118 Annuncicom PS1 INTL packageDevice only – Desktop stand with screws and rubber feet

2012.9117 Annuncicom PS1 Accessory KitPackage contents
– Guiding bracket for gooseneck mic
– Mini-jack gooseneck microphone

Simple Paging Annuncicom PS Touch

Advanced IP Intercom and paging master station with security and redundancy

  • TCP/IP, RTP, UDP, ICMP, DHCP, SNMP
  • 5-Watt output speaker
  • AACplus, MP3, Ogg Vorbis, G.711, G.722, PCM Decoding
  • XLR microphone connector with 13 Volt bias voltage
  • Power over Ethernet (PoE)
  • 14 Softtouch Zone Selectors & 1 Hardware Paging Button

Ordering numbers for Annuncicom PS Touch

2020.9305P Annuncicom PS Touch Simple Paging

2022.9361P Annuncicom PS Touch 400 Package

2021.9353p Annuncicom PS Touch 400 OEM

Simple Paging Exstreamer 100, 110, 120 (Exstreamer 105 OBSOLETE)

IP Audio decoders for broadcast, interner radio and VoIP applications

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Line Level Output (Stereo)
  • RS-232 Serial Port
  • Optional: Relay Output, IR receiver and Display
  • MicroSD or USB Flash Interface

Ordering numbers for Exstreamer 100, 110, 120 (Exstreamer 105 OBSOLETE)

Exstreamer 100 (Made in China)

2005.9051 Extreamer 100 EU Package

2005.9052 Extreamer 100 US Package

2006.9056 Extreamer 100 NoPSU Package

2006.9057 Extreamer 100 UK Package

Exstreamer 105 (Made in China) OBSOLETE

2011.9109P Extreamer 105 EU Package OBSOLETE

2011.9110P Extreamer 105 US Package OBSOLETE

2011.9111P Exstreamer 105 NoPSU Package OBSOLETE

Exstreamer 105 (Made in China) OBSOLETE

2011.9112P Extreamer 105 UK Package OBSOLETE

Exstreamer 110 (Made in China)

2007.9079 Extreamer 110 EU Package

2007.9080 Extreamer 110 US Package

2007.9083 Extreamer 110 UK Package

2008.9087 Extreamer 110 NoPSU Package

Exstreamer 120 (Made in China)

2010.9100P Extreamer 120 EU Package

2010.9101 Extreamer 120 US Package

2010.9102 Extreamer 120 UK Package

2010.9103 Extreamer 120 NoSPU Package



2006.9072 Wall Mounting Bracket

2007.9082 Barix 19″ Rack mount

2006.9054 Cable Set Audio

2003.9017 IR Kit (Reciever + Remote)

Simple Paging Exstreamer 200, 205

IP Audio decoders that plays out via a built-in amplifier to 8 Ohm speakers

  • G.711, uLaw, aLaw, PCM Encoding
  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Amplified Output 2x25W (8 Ohm)
  • IR interface
  • MicroSD or USB Flash Interface

Ordering numbers for Exstreamer 200, 205

2006.9055 Exstreamer 200 EU/US package

2011.9113P Exstreamer 205 EU/US package

2006.9054 Cable Set Audio

2003.9017 IR Kit (Receiver + Remote)

2006.9072 Wall Mounting Bracket

2007.9082 Barix 19’’ Rack mount

Simple Paging Exstreamer P5

PoE powered IP speaker to make any 8 Ohm speaker IP capable

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Amplified Output 5W (8 Ohm)
  • RS-485 and IR port for local control
  • Powered over Ethernet (PoE)

Ordering numbers for Exstreamer P5

2010.9104 Exstreamer P5 PoE package

Simple Paging ICGraph

Customized communication interfaces

  • Build user interfaces
  • Easy to configure
  • Java based
  • Free to use

Ordering numbers for ICGraph

Simple Paging Paging Gateway M400

Bridges Smartphones, Computer and Tablet with Analog and IP Paging Systems

  • L-R Line Out on RCA Connectors (unbalanced)
  • Multi-level message priority
  • G.711 over RTP

Ordering numbers for Paging Gateway M400

2021.9347P Paging Gateway M400 EU Package

2021.9348P Paging Gateway M400 US Package

2021.9349P Paging Gateway M400 UK Package

2021.9350P Paging Gateway M400 NoPSU Package
