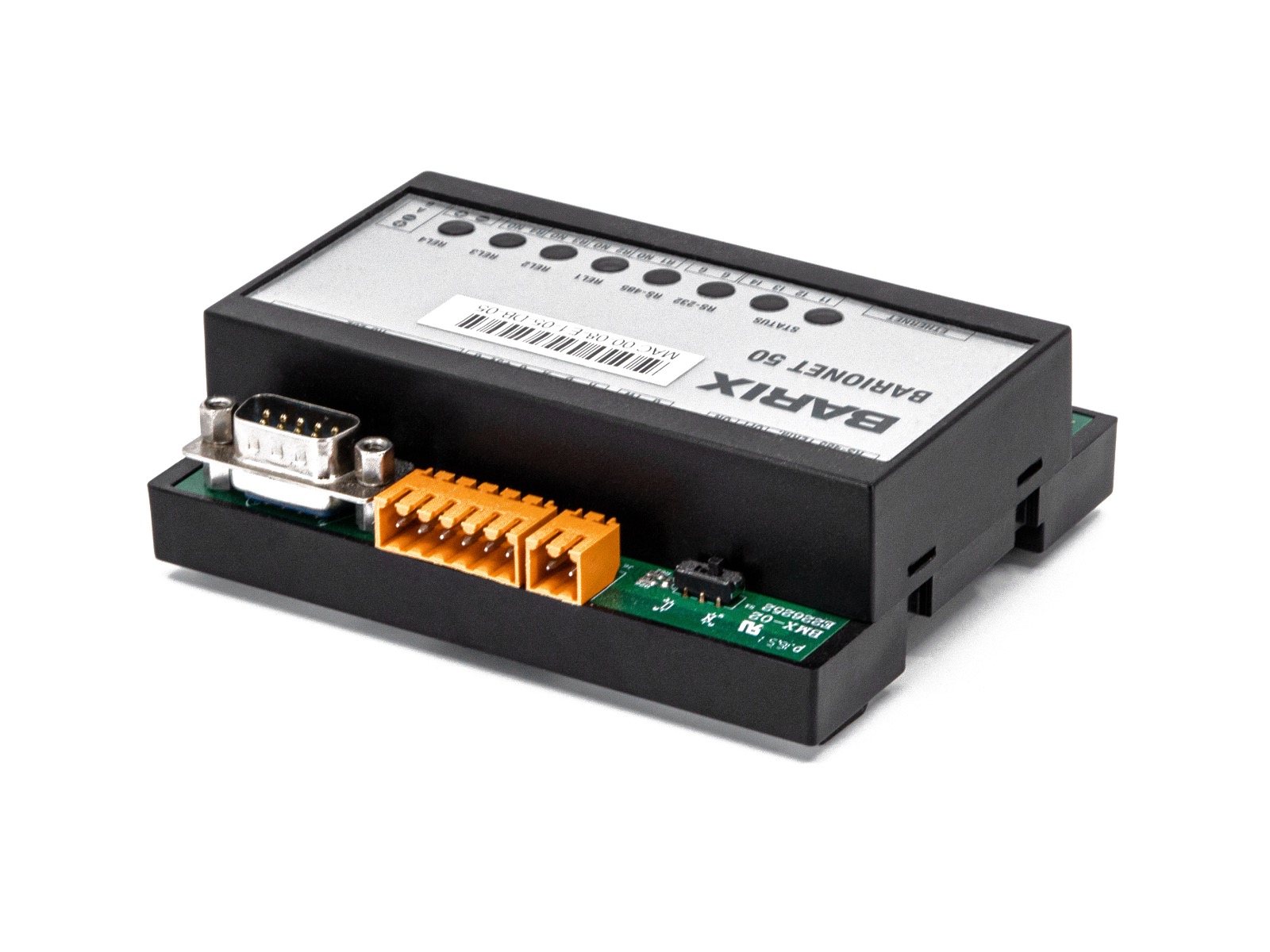

Barionet 50

Two serial ports, 4 digital inputs, 4 relay outputs and Dallas 1-wire support

Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, digital I/O and Dallas 1-wire support.

I/O Interfaces

On detachable screw terminal blocks:

4 relay outputs (30 VDC, 0.5 A)

4 digital inputs (dry contacts)

Dallas 1-Wire® interface

Serial Interfaces

RS-232 (DSub-9 male, 5-wire RXD, TXD, RTS, CTS, GND), RS-485 on detachable screw terminal block as well as on 4 pin extension connector, both with serial speeds from 300 bps to 230 kbps (asynchronous)



Network Interface

RJ45 10/100 Mbit Ethernet (Autodetect)



Supported protocols

TCP/IP, UDP, ICMP, IGMP, AutoIP, IPzator™, DHCP, CGI, HTTP web server for control, status and configuration

API

Modbus/TCP, SNMP, CGI, UDP/TCP based ASCII protocol



Misc

8 LED status indicators

Extension connector (4 pin: power and RS-485)



Power input

9..30 VDC, 4 Watt max.



Case

high quality plastic, 135 g,, DIN-rail mount.

4.13“ x 3.34“ x 1.25“, 105 mm x 85 mm x 31 mm



MTBF

Min. 233 000h acc. to MIL217F at 25°C ambient temperature

  • 2008.9091
