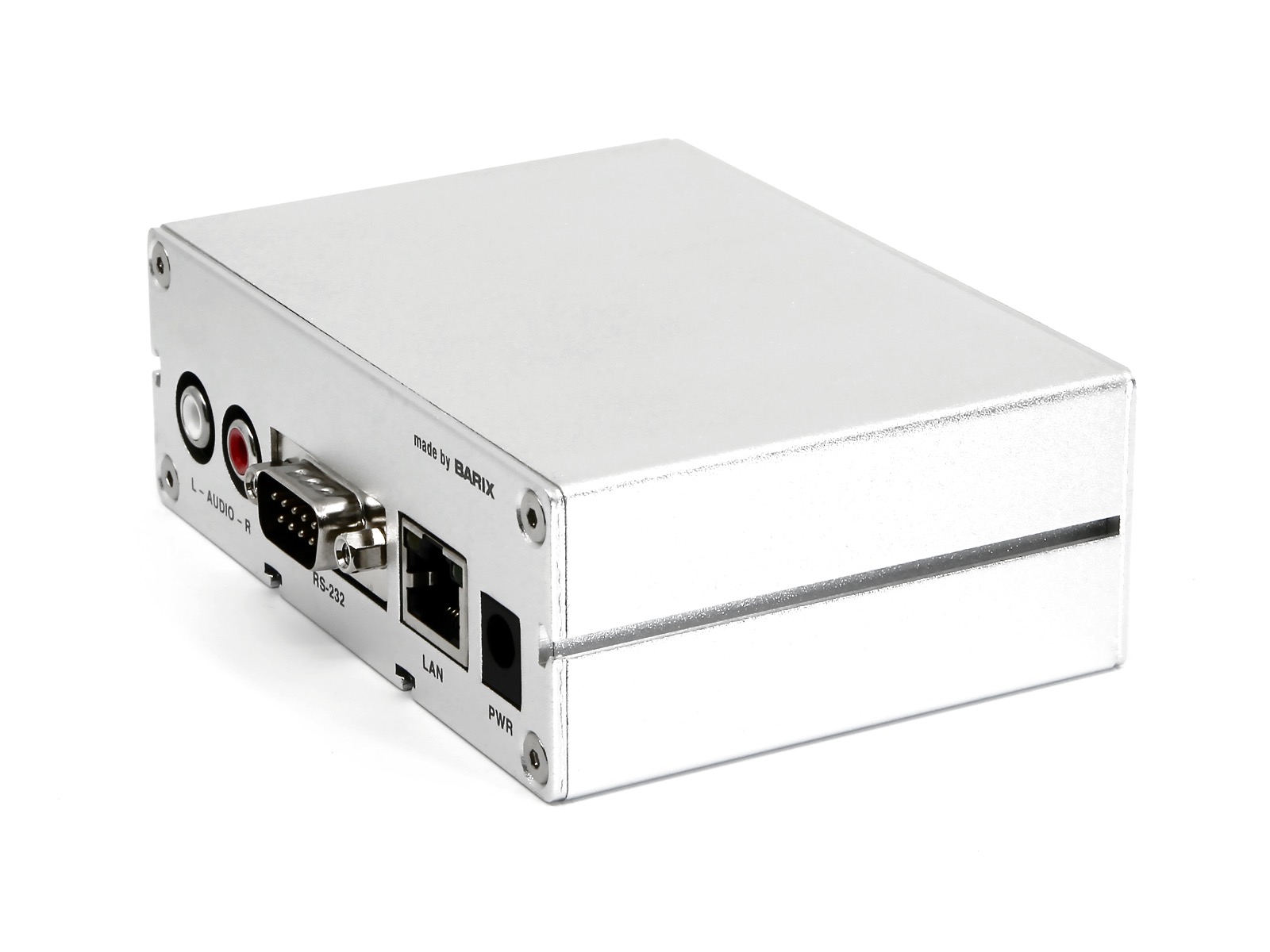

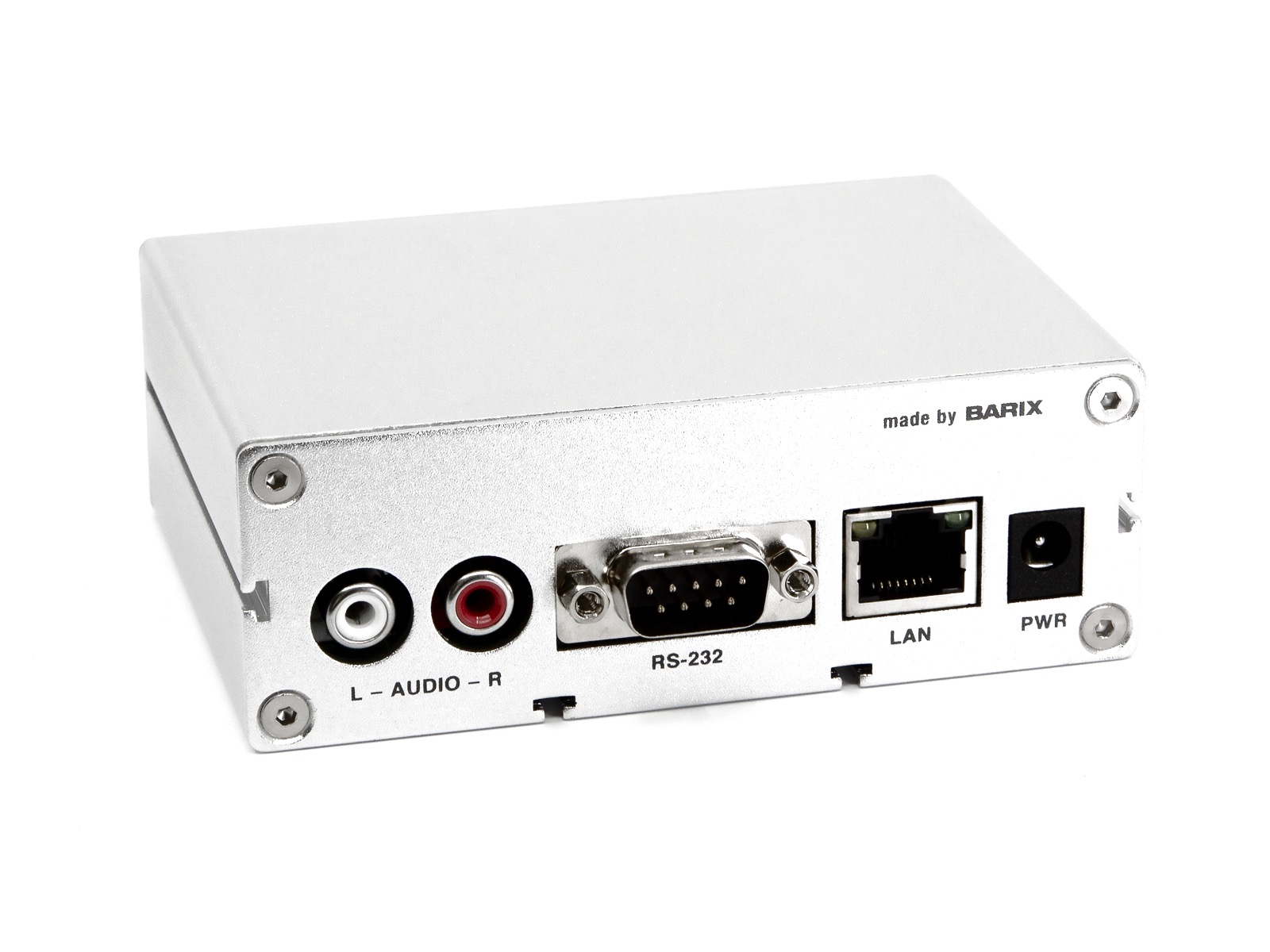

Exstreamer 100, 105, 110, 120

IP Audio decoder with USB/Micro SD flash interface and serial port. Support of Internet Radio (AACplus, MP3, shoutcast, TCP streaming) and VoIP (SIP, RTP) codecs and protocols

The Exstreamer 1xx family of products decode IP Audio streams and play out the received Audio signal to amplifiers. Supporting a large number of protocols, encoding methods and application specific firmware, the products can be used for Broadcast, Internet Radio, as well as VoIP applications. Control and local storage interfaces are device specific to match different use cases.

device-image
Electrical

9 to 30 VDC, 12 to 24 VAC, 6 Watt max.

2.1mm barrel connector



Ethernet

10/100Mbps auto,

RJ-45 connector with integrated Link/Activity LED

Protocols: TCP/IP, UDP, RTP, SIP, DHCP,





Analog Output

Line level output, 40..60 Ohm output impedance on RCA and 1/8″ headphone jack. Output level software controllable

Full scale output voltage: 5.6 dBu, 4 Vpp

Frequency response (-3dB) 19Hz ..22kHz *

Dynamic range 87 dB

SNR/THD -87 dB, <0.05%



Audio formats

MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.

AAC, AAC plus, AAC-HE (AAC plus V2)

WMA (up to version 9), Ogg Vorbis

PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz

G.711, uLaw, aLaw (sample rates same as PCM)

Discrete I/O

1 NO relay contact, 24V 0.5A (110&120 models only)



RS-232 Interface

300..230’400 Baud asynchronous, tunneling or local control

Display

Backlit LCD, 2×16 chars (110&120 models only)



IR Interface

IR via serial port, built-in IR receiver (110&120 models only)

IR remote control included with Exstreamer 110 & 120

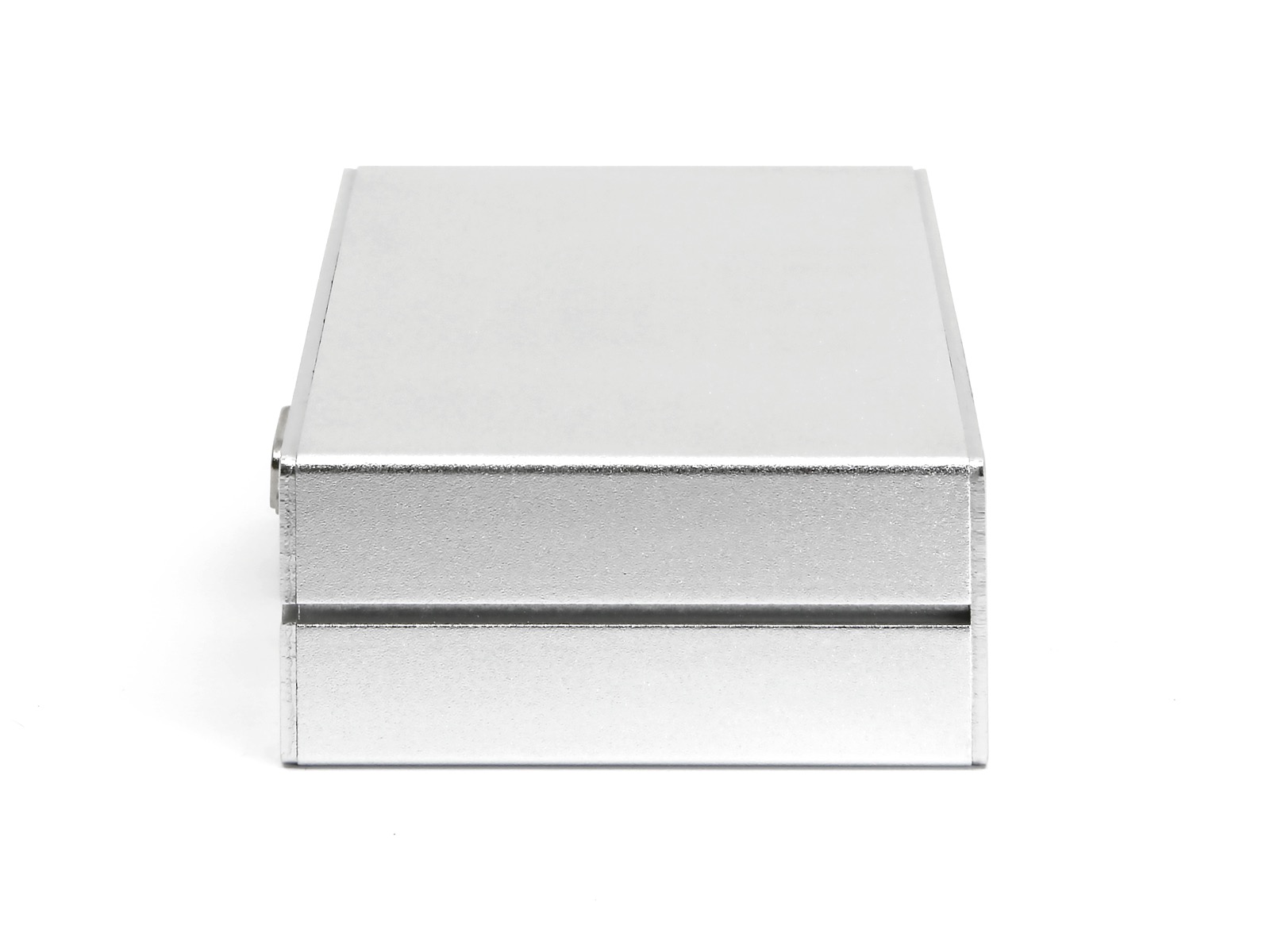

Mechanical

Aluminum case, 250g, rack and wall mountable using accessories

Dimensions (W x H x D)

108x38x78.7mm (4.25×1.5×3.1 inch)



Model comparison

Model 100 Memory USB, IR use kit

Model 105 Memory MicroSD, IR use kit

Model 110 Display 2×16, Memory USB, Relay

Model 120 Display 2×16, Memory MicroSD, Relay



MTBF

Calculated acc. MIL217F at 25°C

Exstreamer 100 min. 480 000h

Exstreamer 105 min. 460 000h

Exstreamer 110 min. 450 000h

Exstreamer 120 min. 430 000h



* depends on used codec, best results @48kHz PCM

** high quality A/D supports only certain sample rates

Exstreamer 100 (Made in China)

2005.9051 Extreamer 100 EU Package

2005.9052 Extreamer 100 US Package

2006.9056 Extreamer 100 NoPSU Package

2006.9057 Extreamer 100 UK Package

Exstreamer 105 (Made in China)

2011.9109P Extreamer 105 EU Package

2011.9110P Extreamer 105 US Package

2011.9112 Extreamer 105 UK Package

2011.9111P Exstreamer 105 NoPSU Package

Exstreamer 110 (Made in China)

2007.9079 Extreamer 110 EU Package

2007.9080 Extreamer 110 US Package

2007.9083 Extreamer 110 UK Package

2008.9087 Extreamer 110 NoPSU Package

Exstreamer 120 (Made in China)

2010.9100P Extreamer 120 EU Package

2010.9101 Extreamer 120 US Package

2010.9102 Extreamer 120 UK Package

2010.9103 Extreamer 120 NoSPU Package
