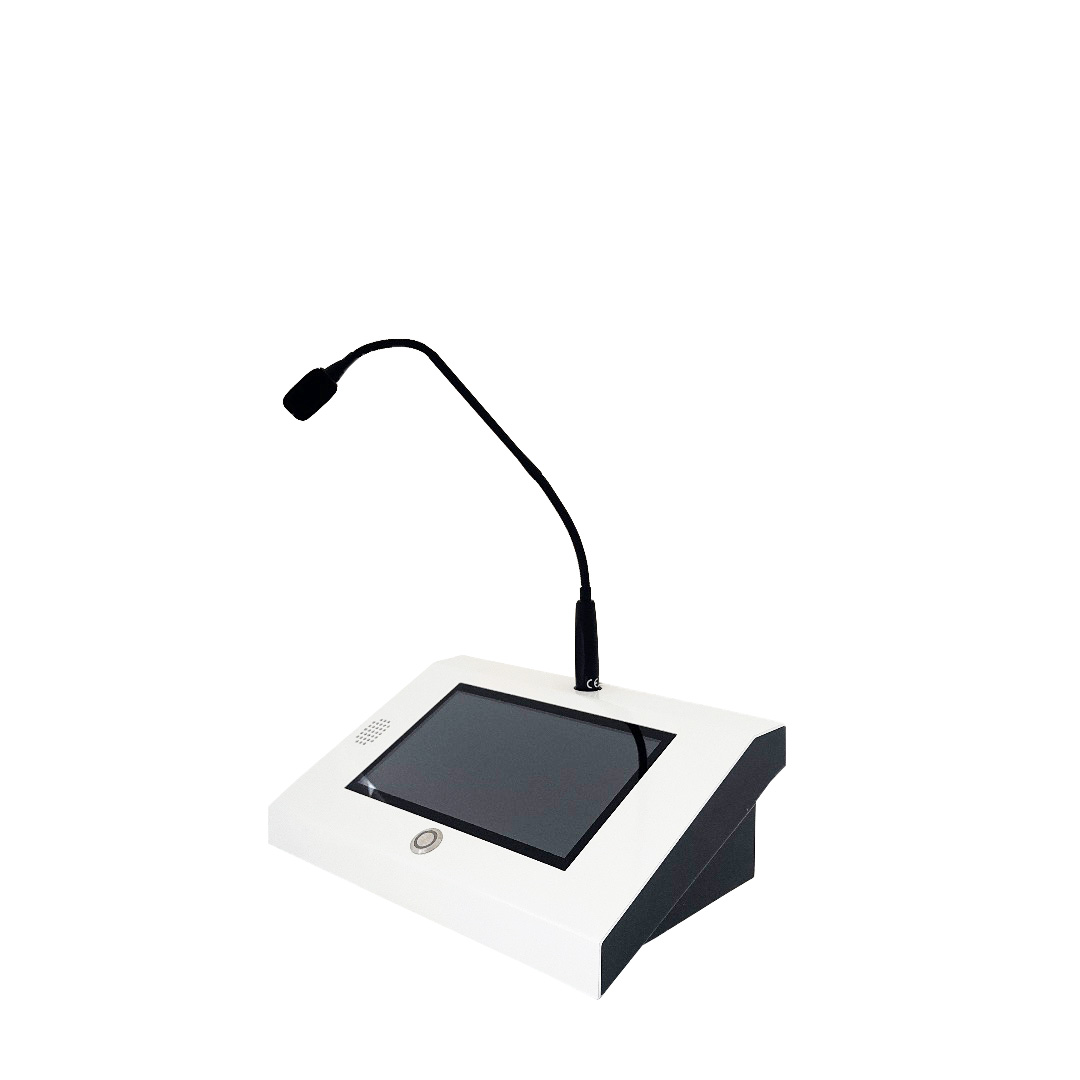

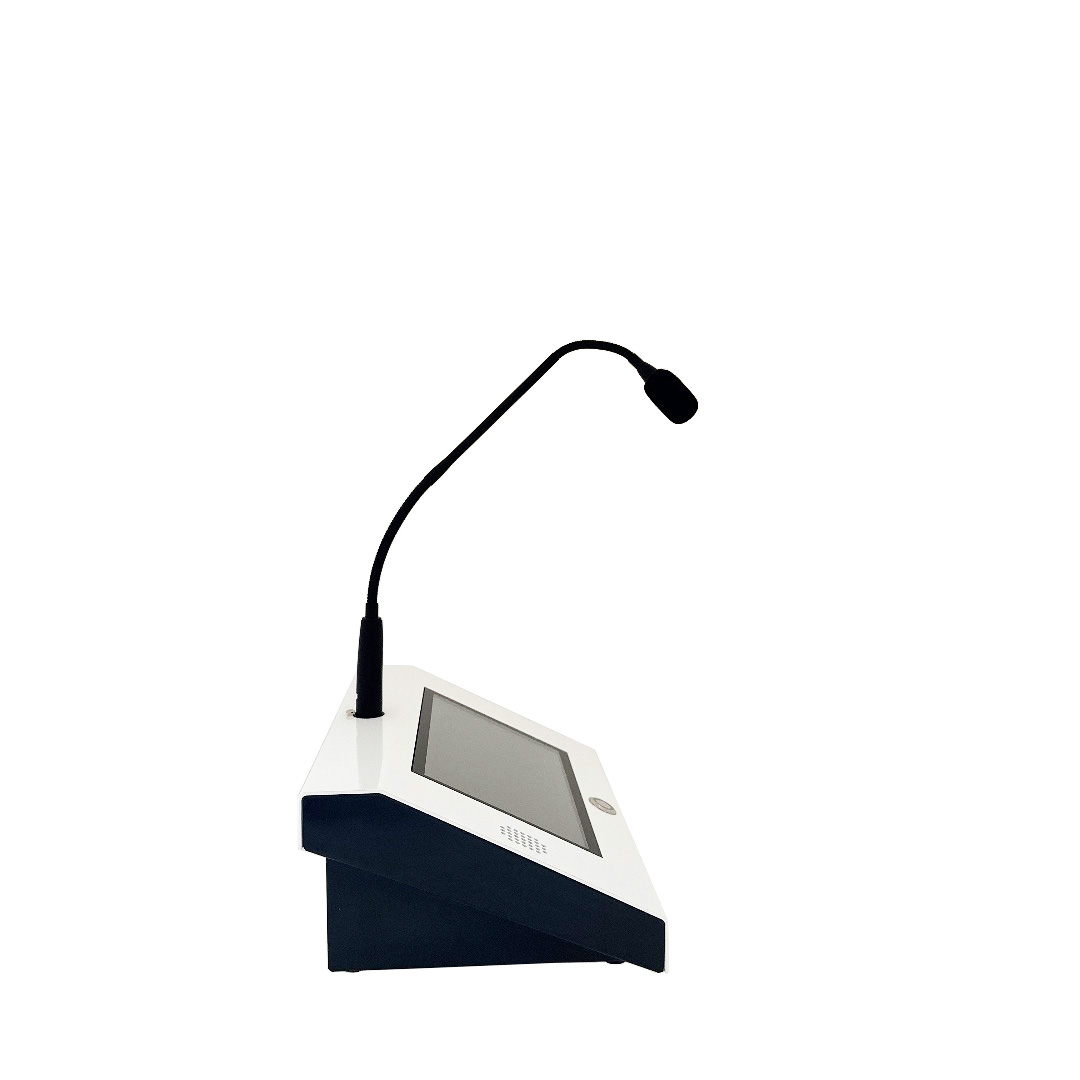

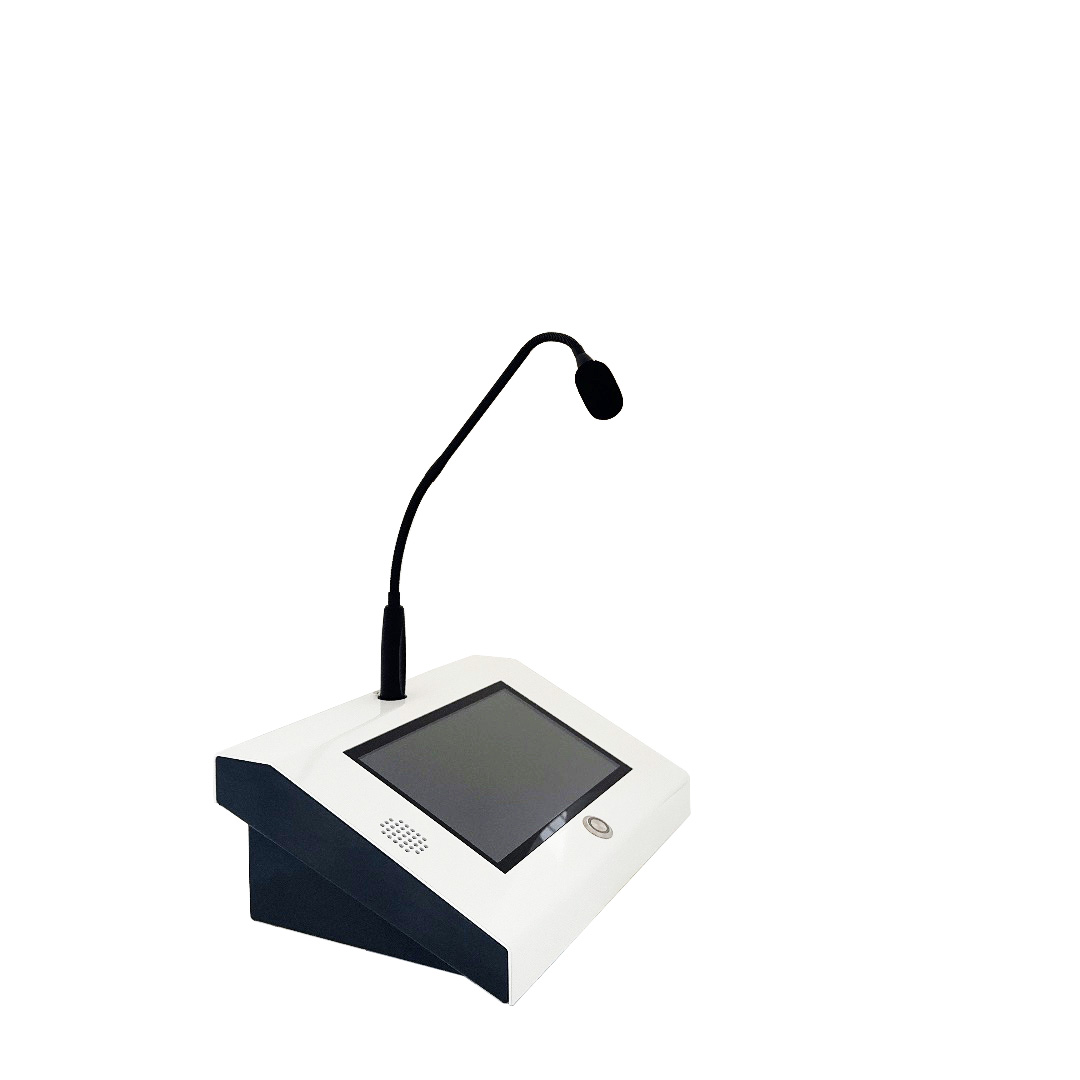

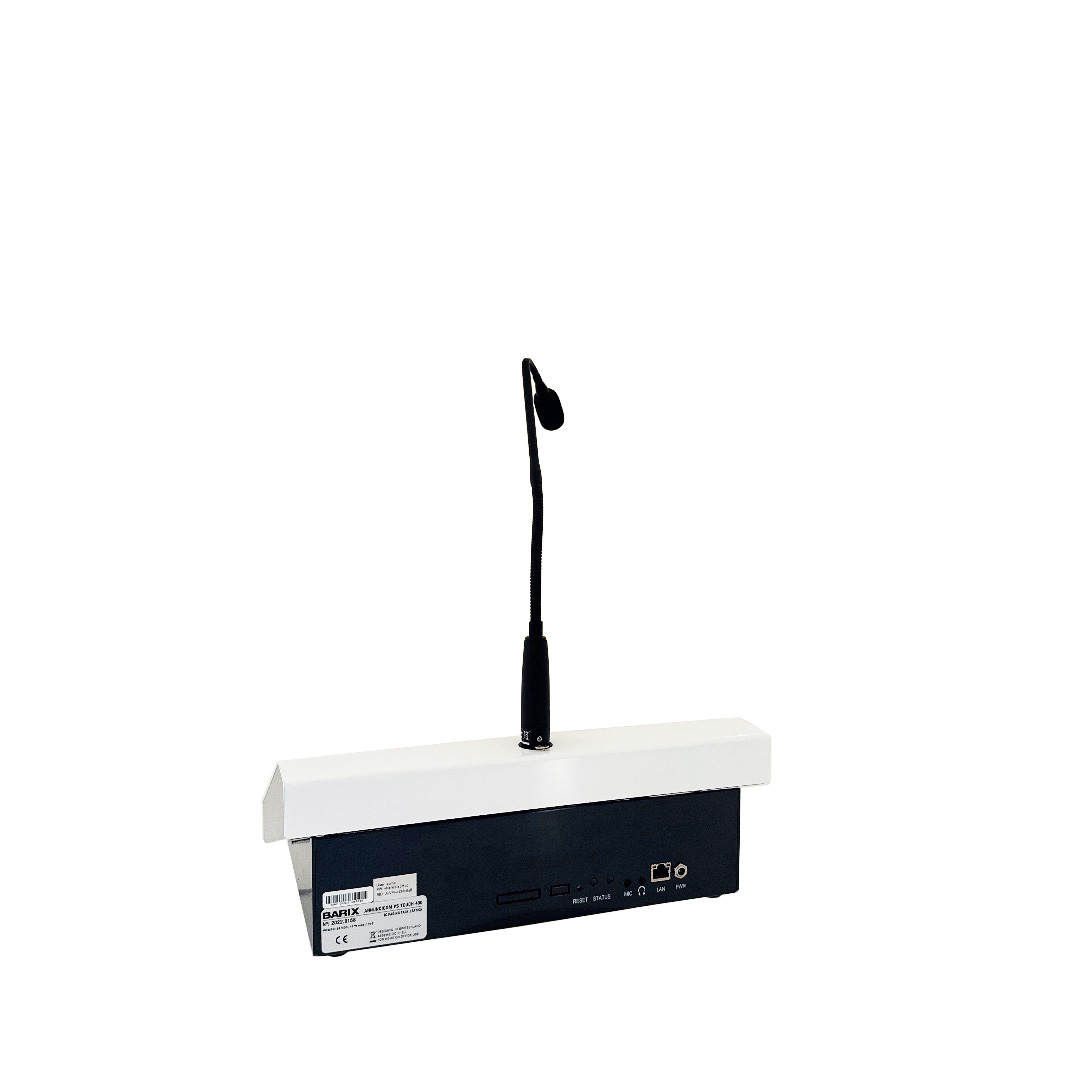

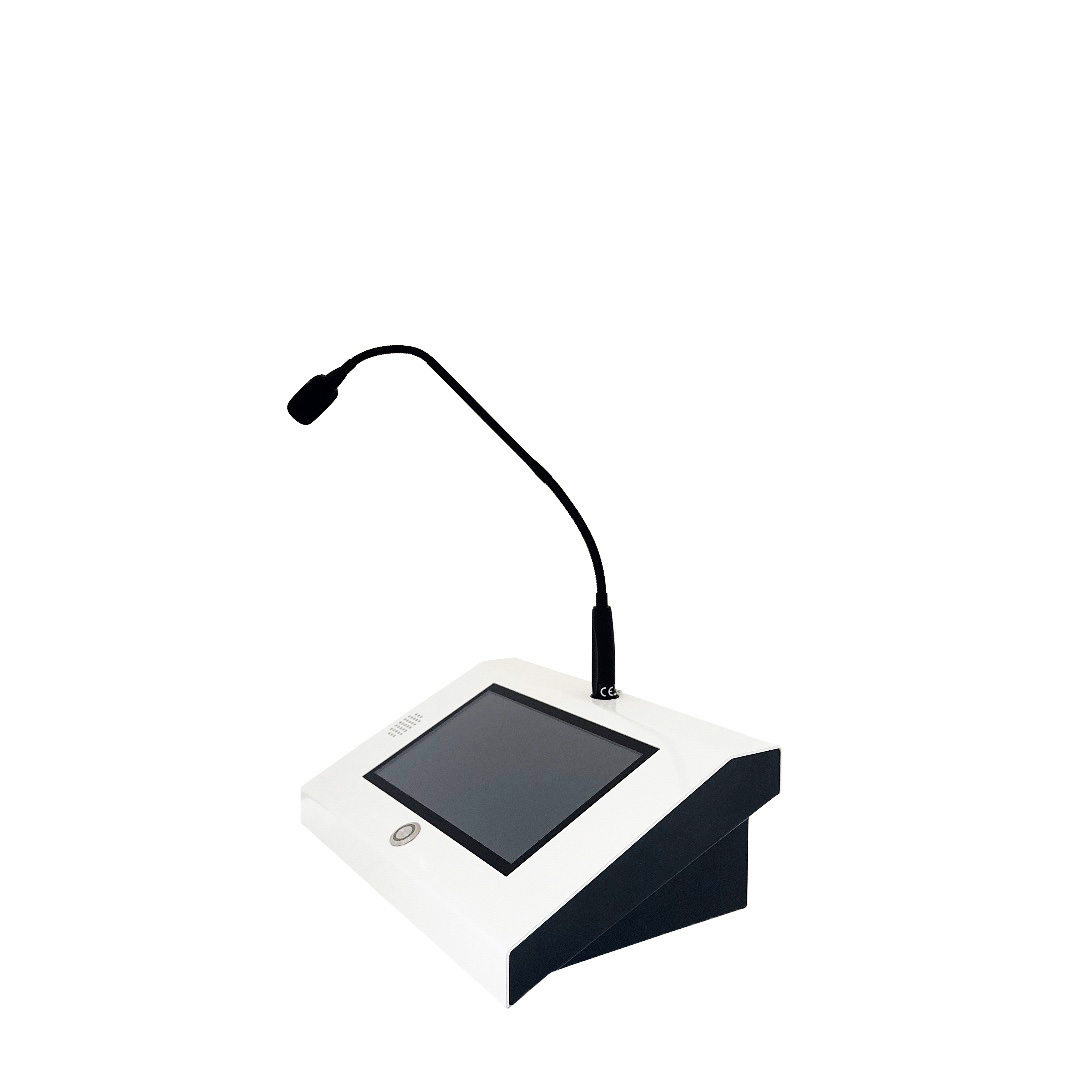

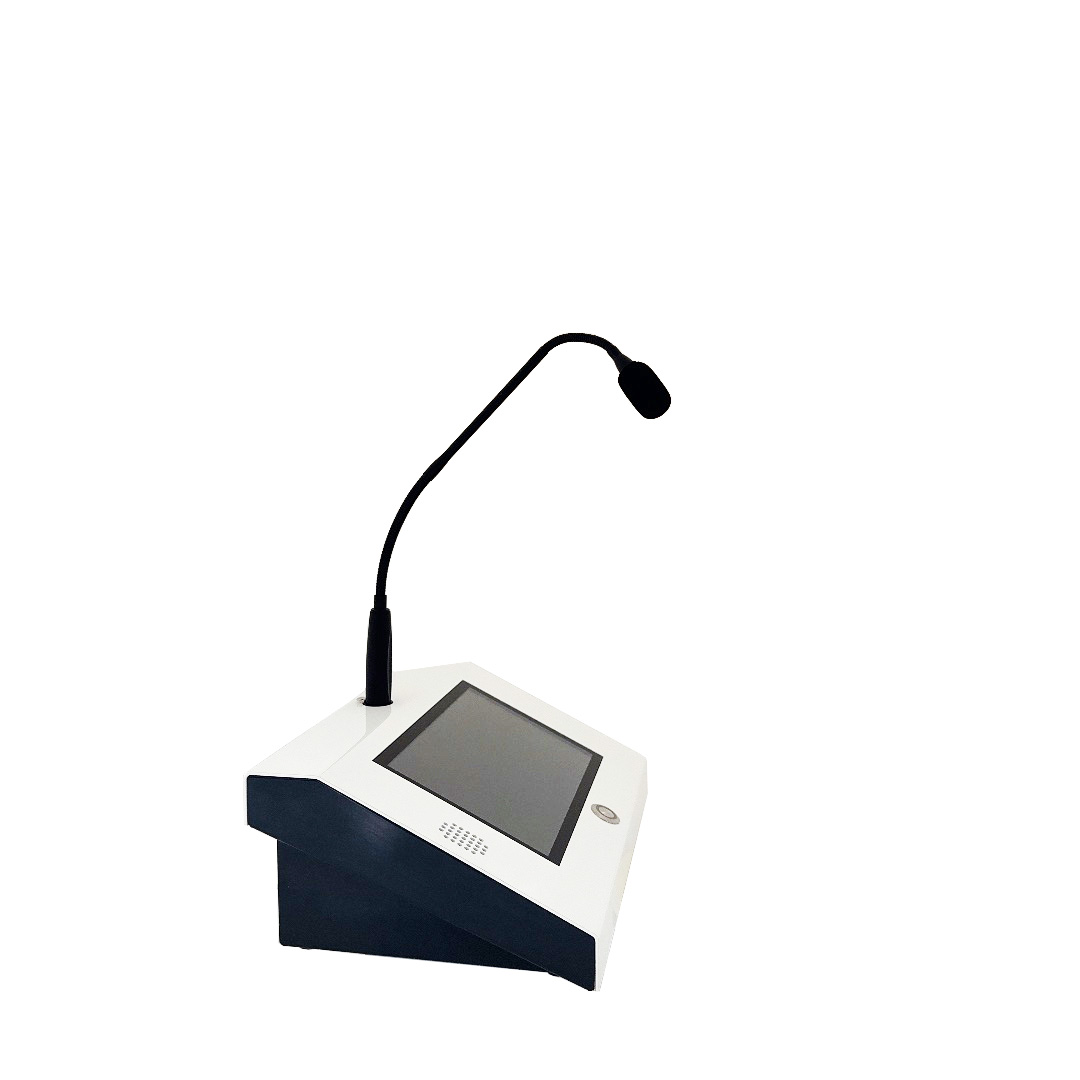

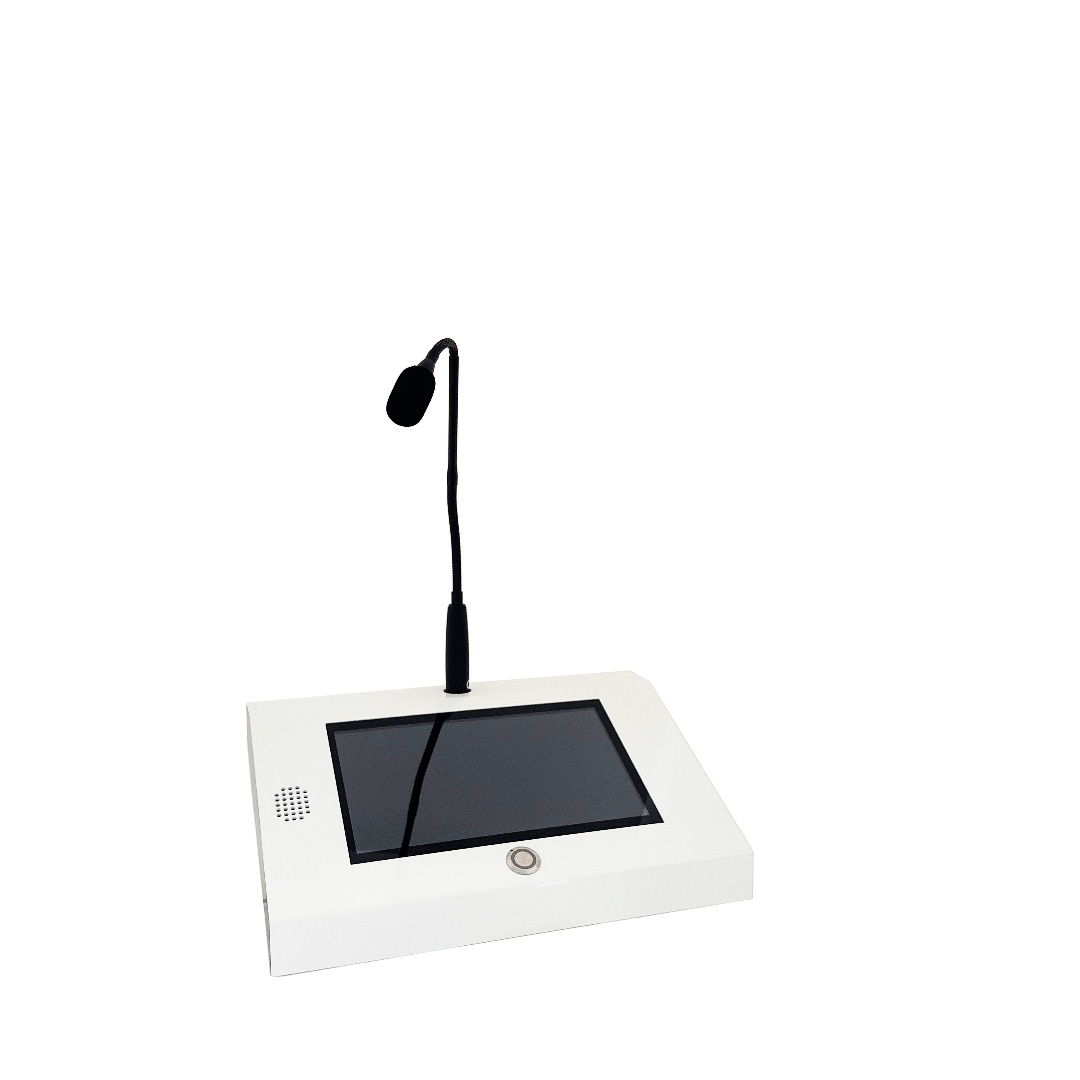

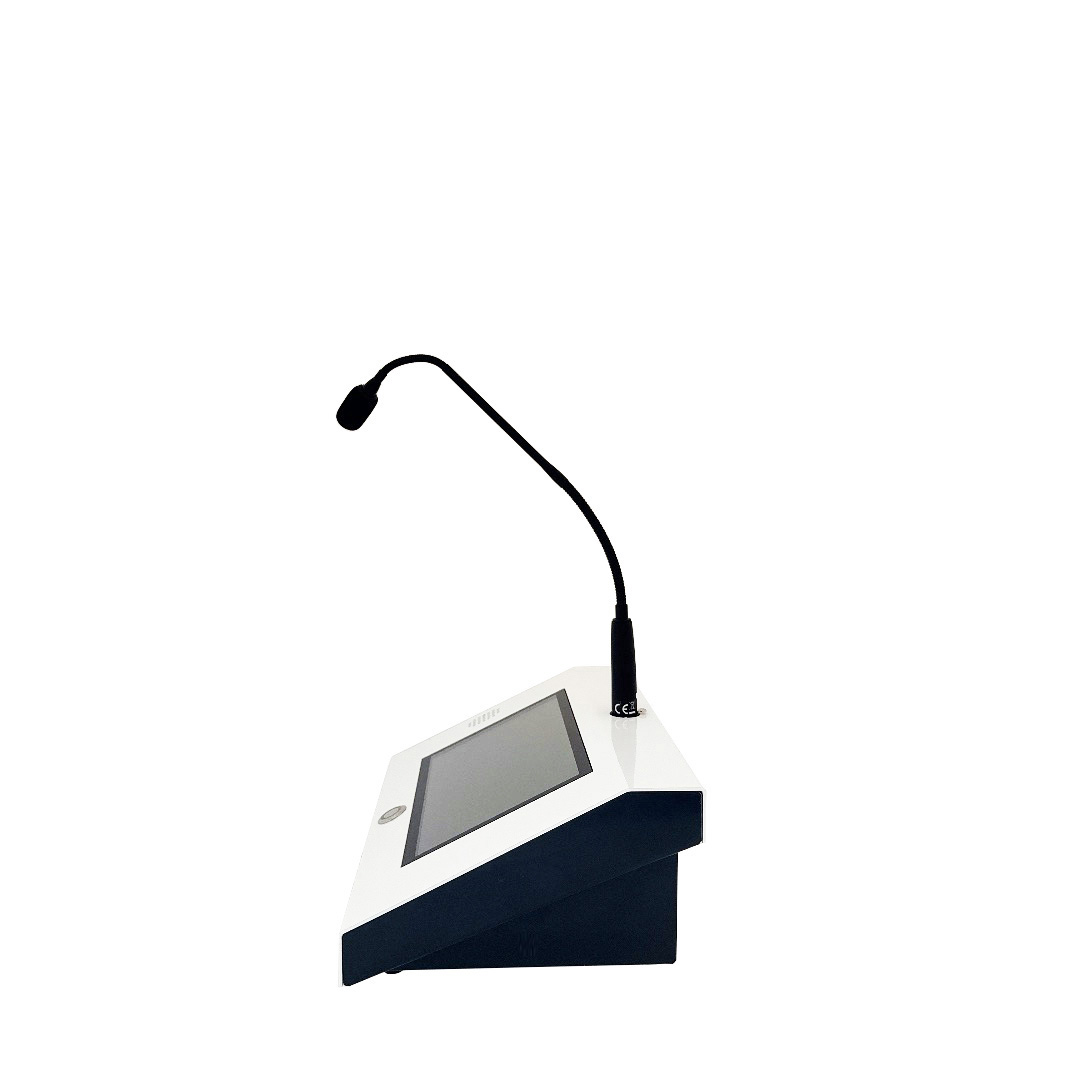

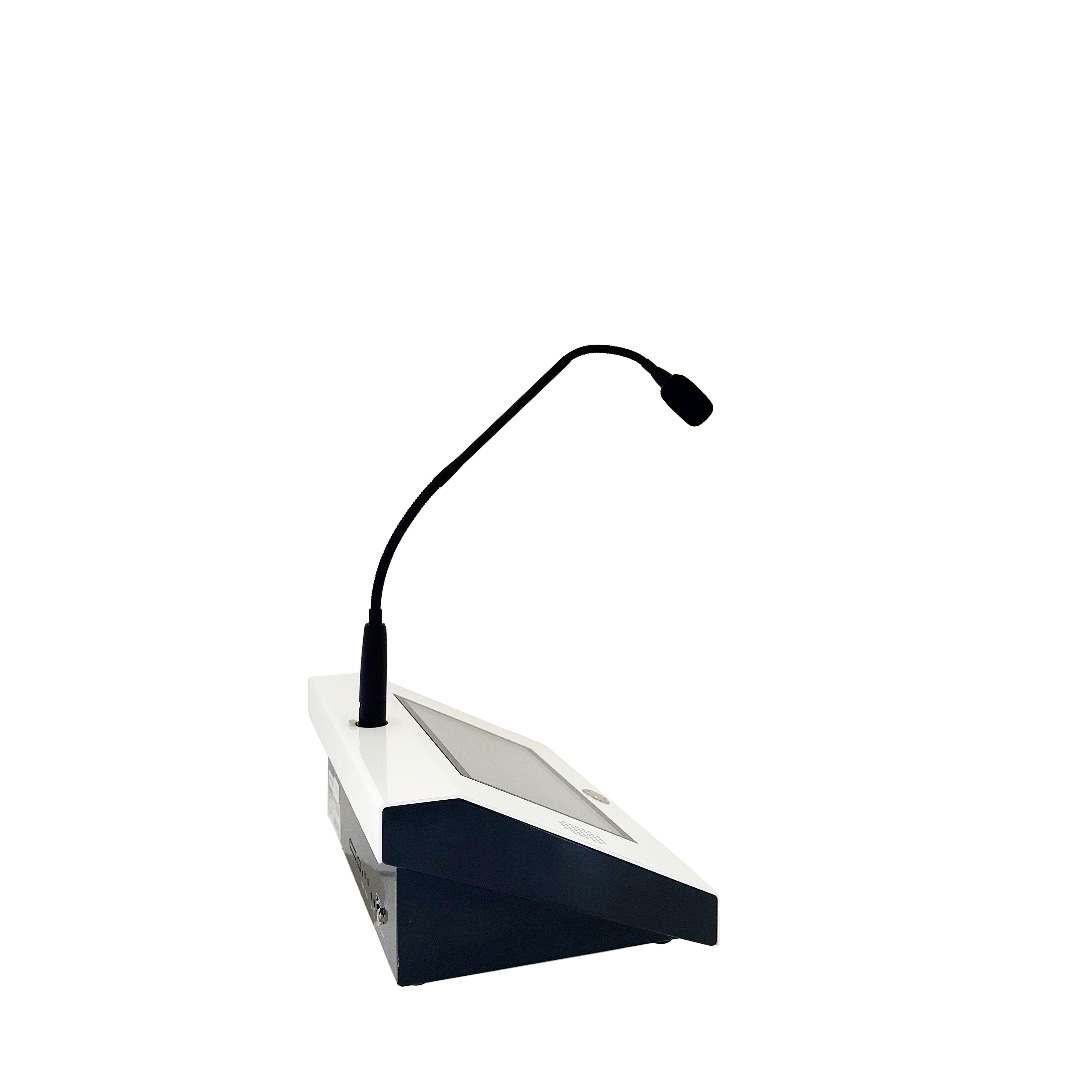

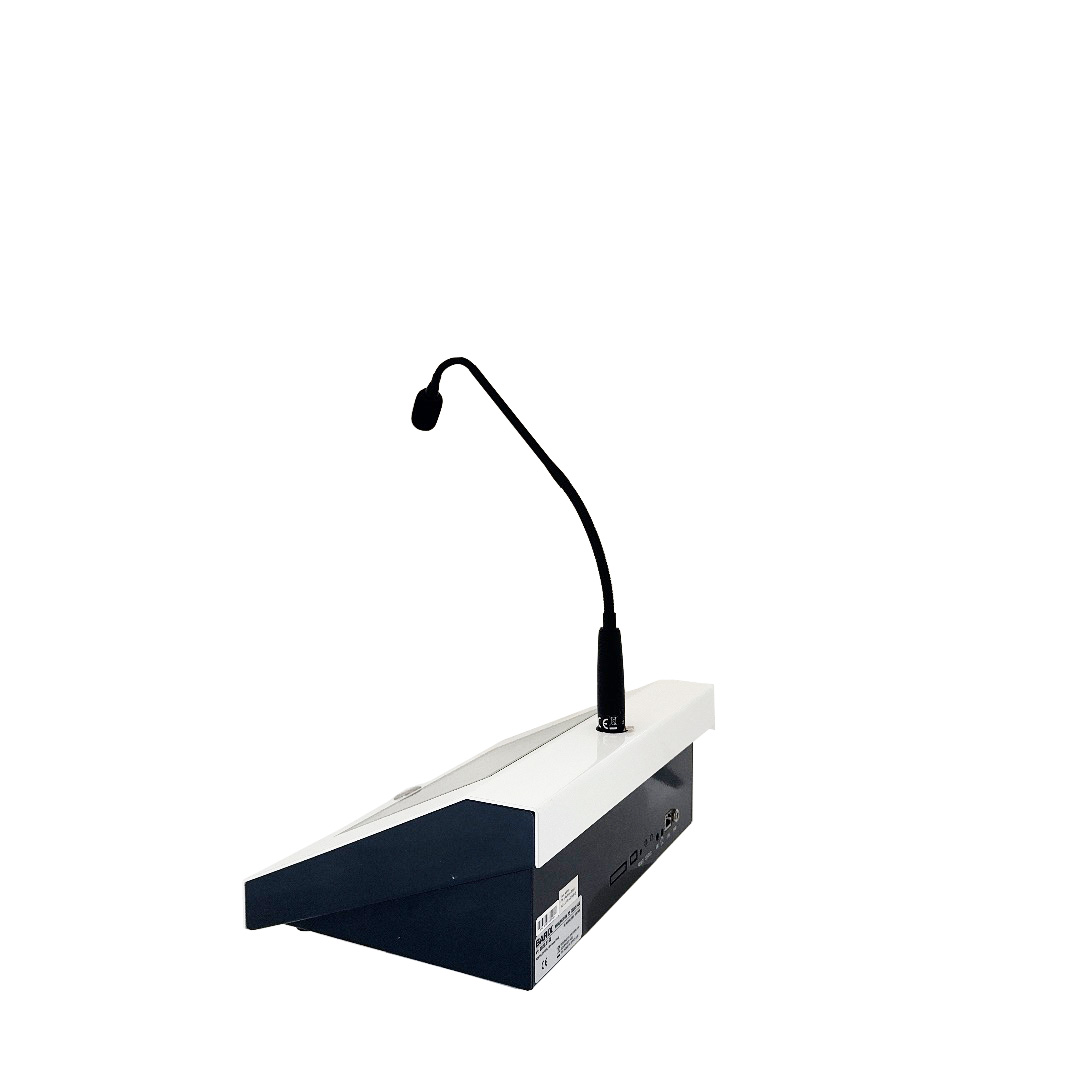

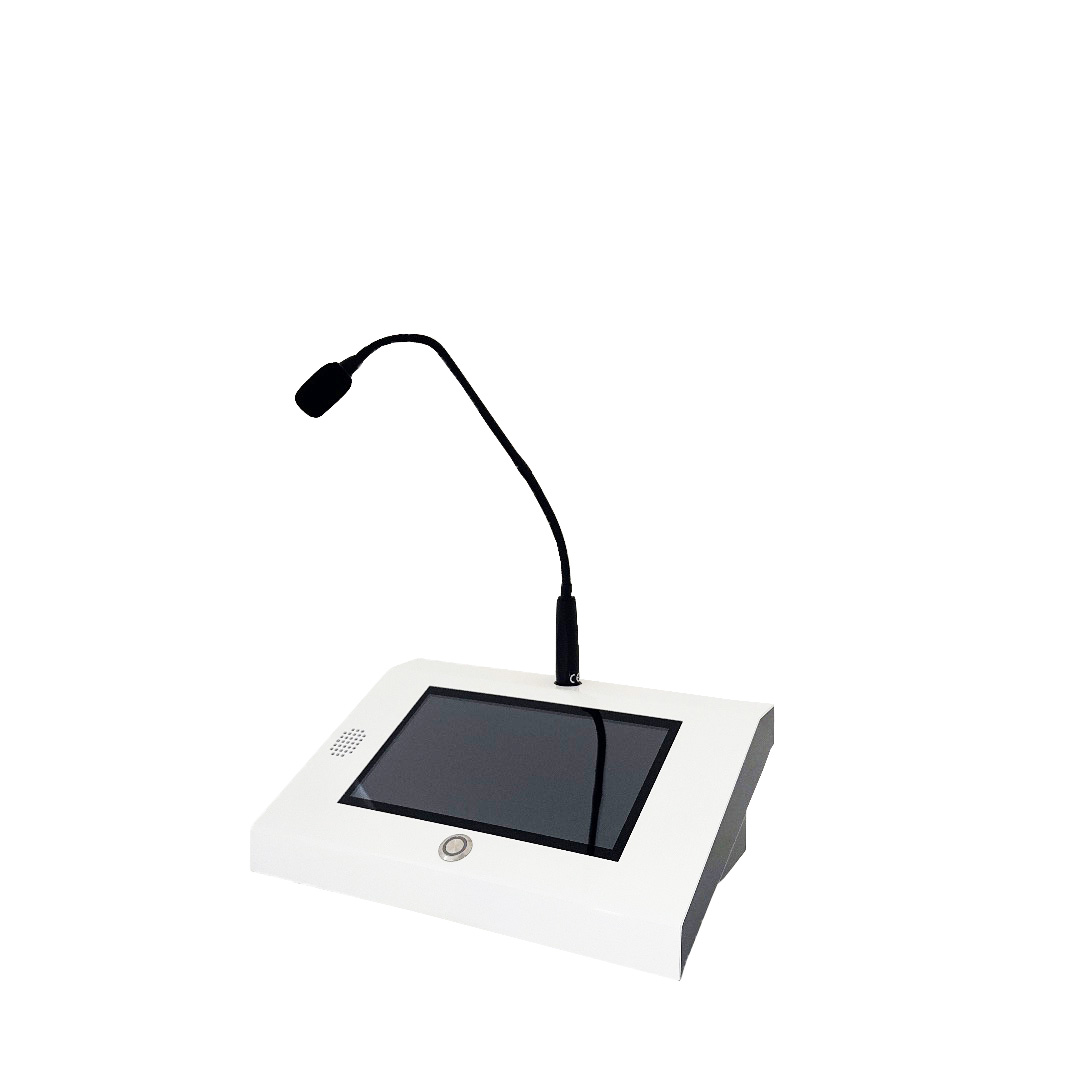

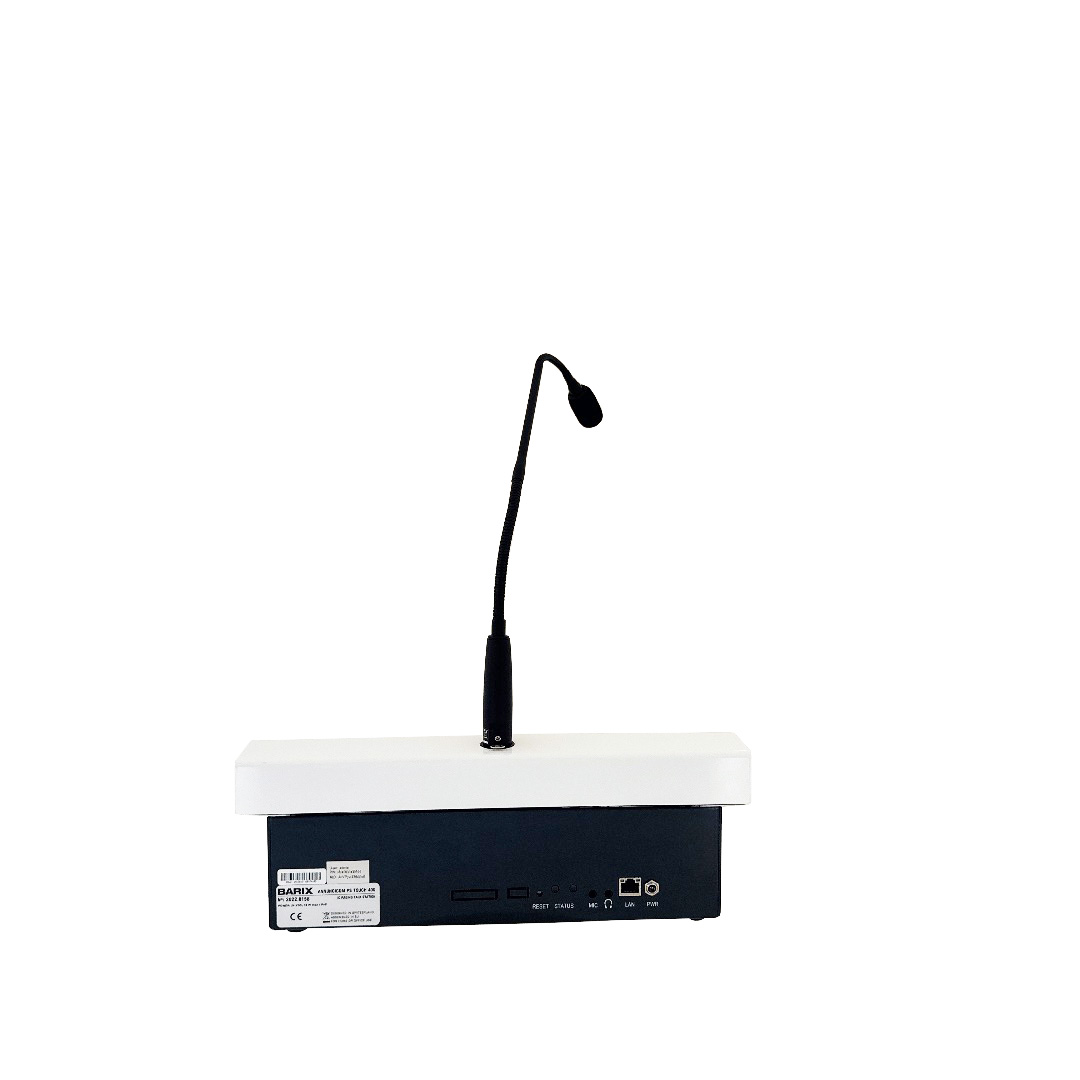

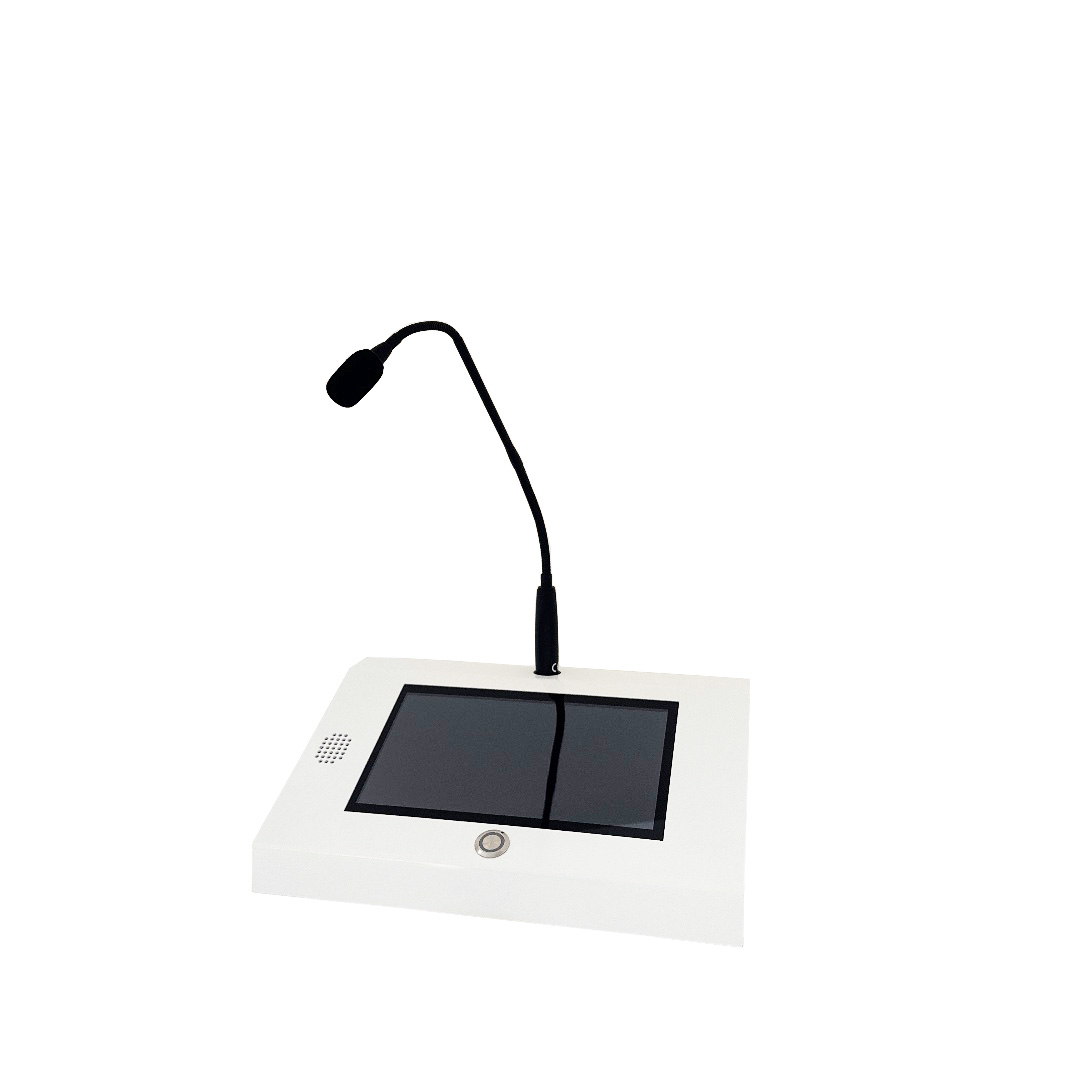

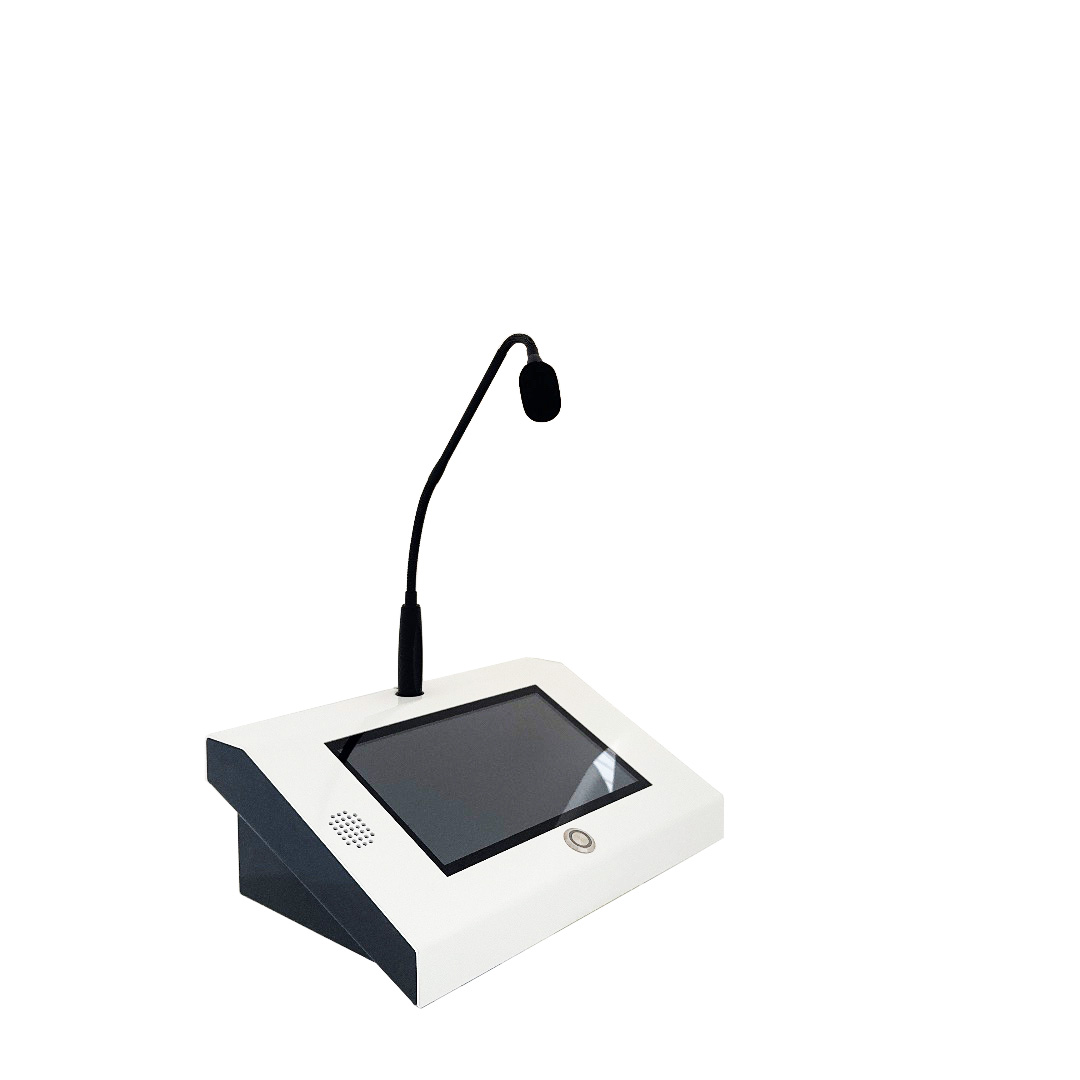

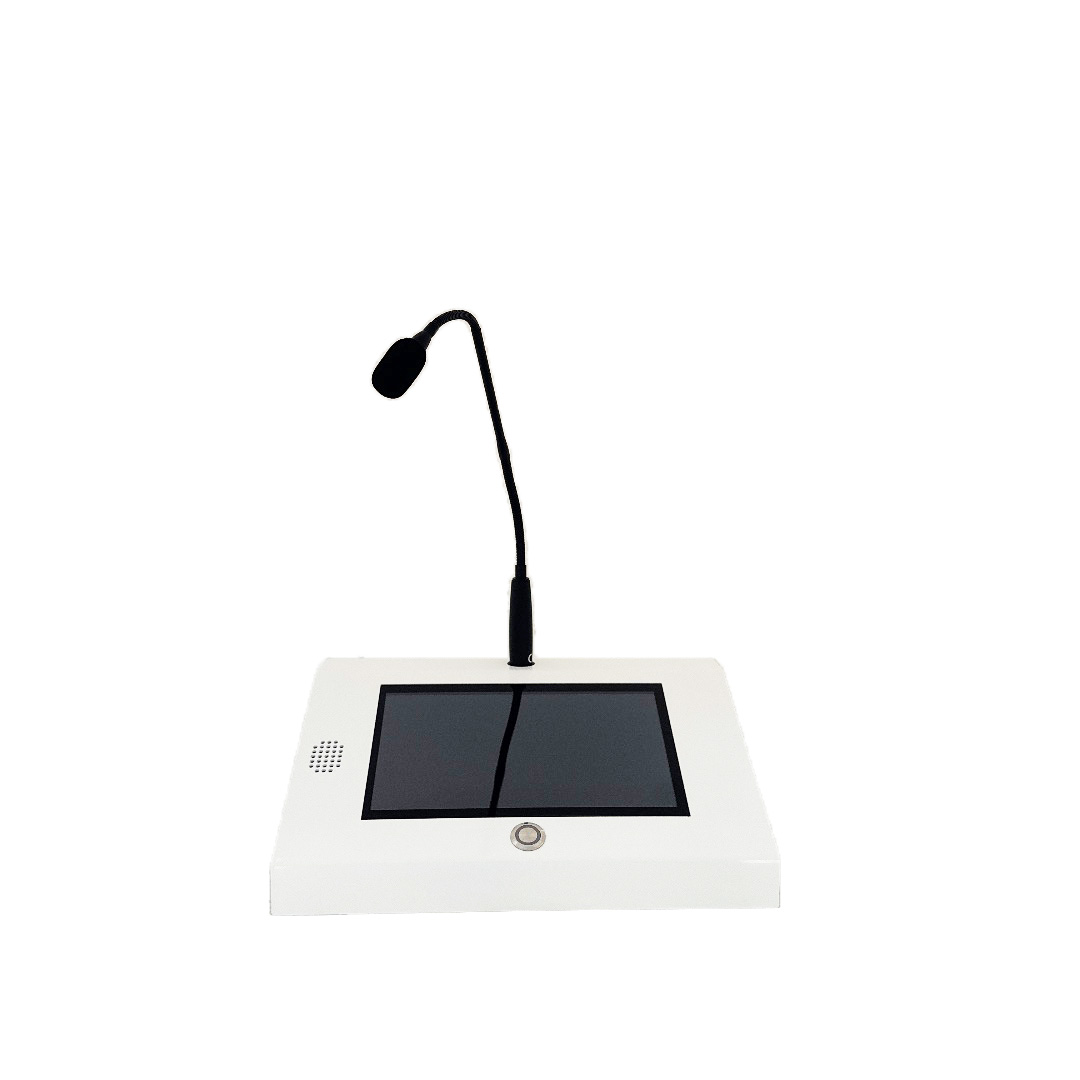

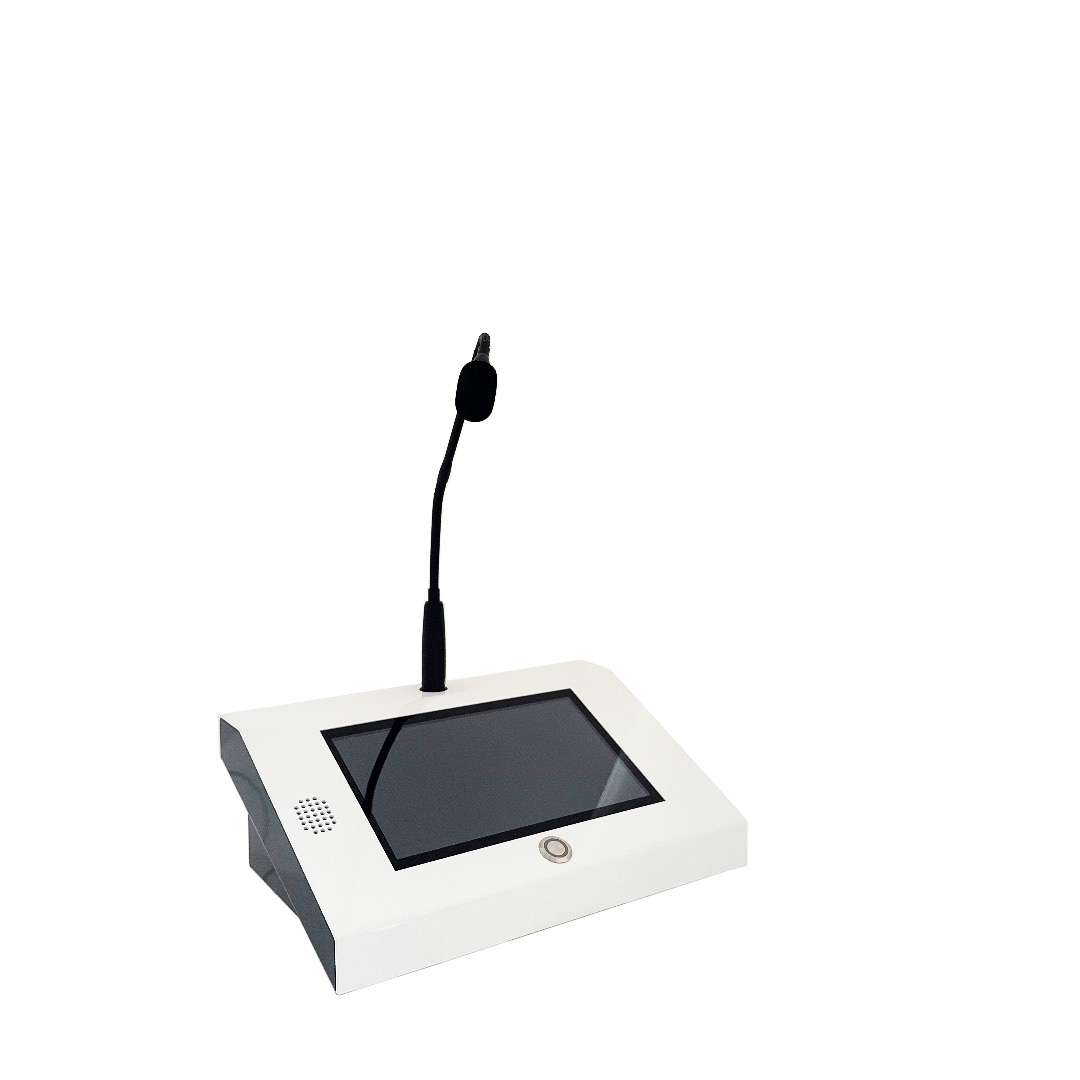

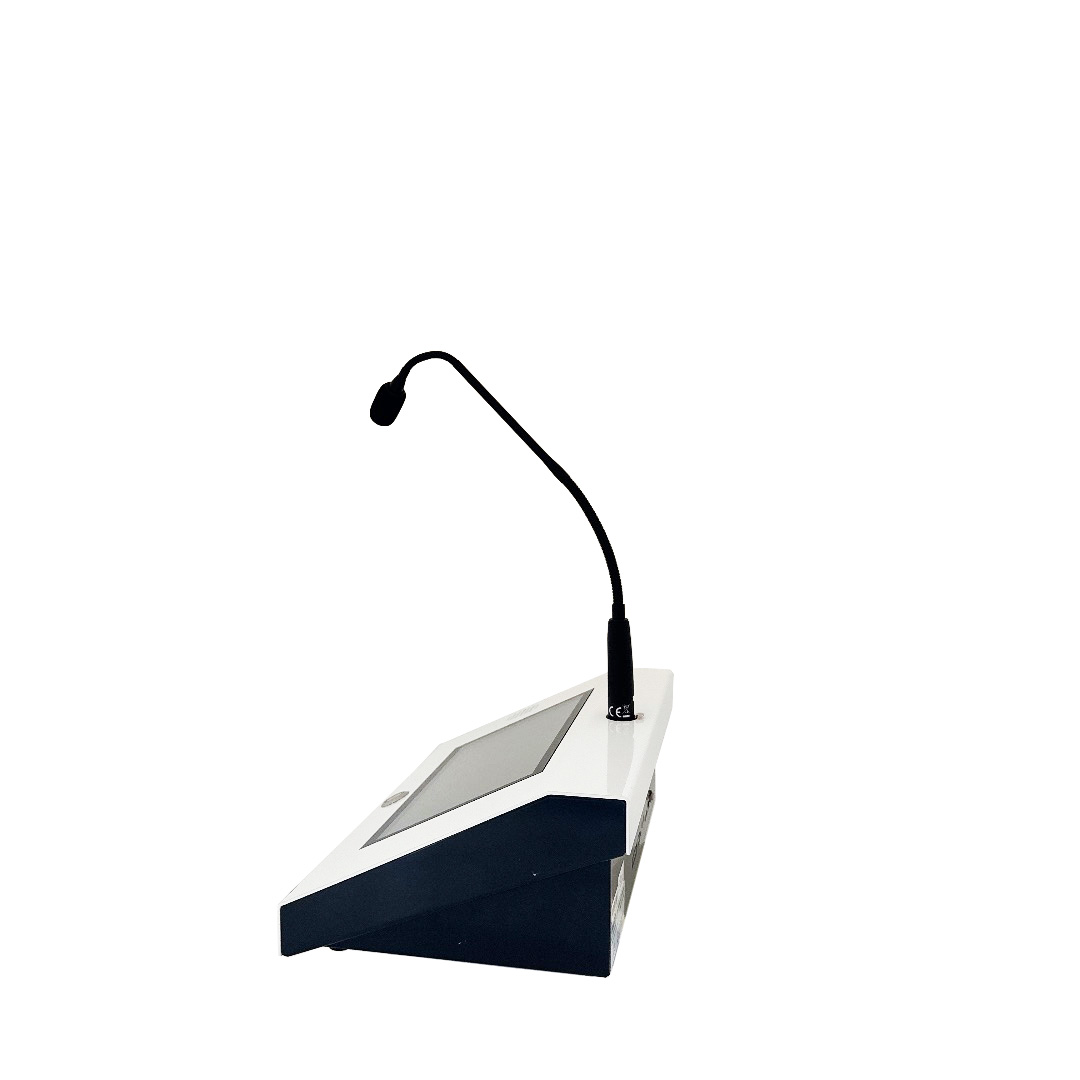

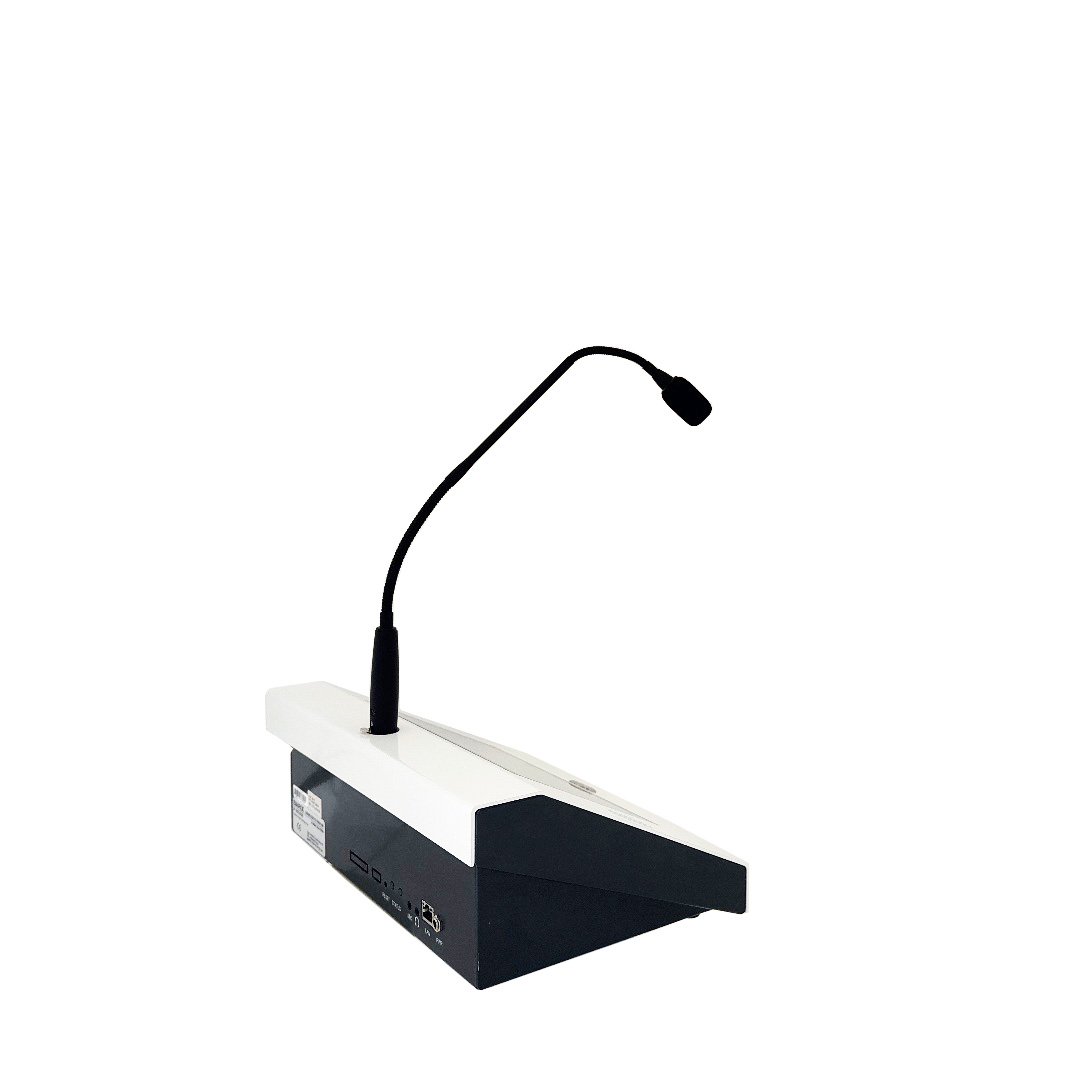

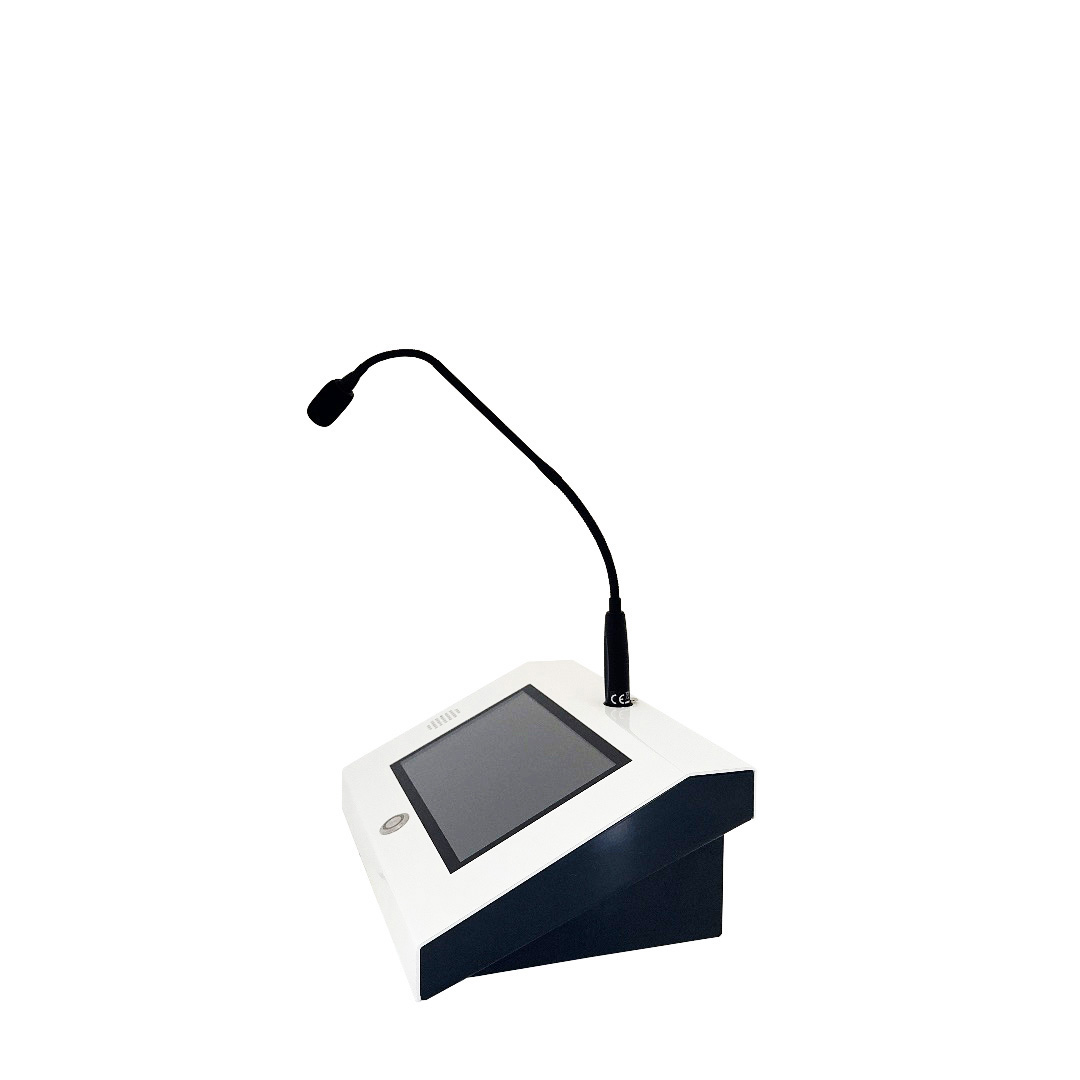

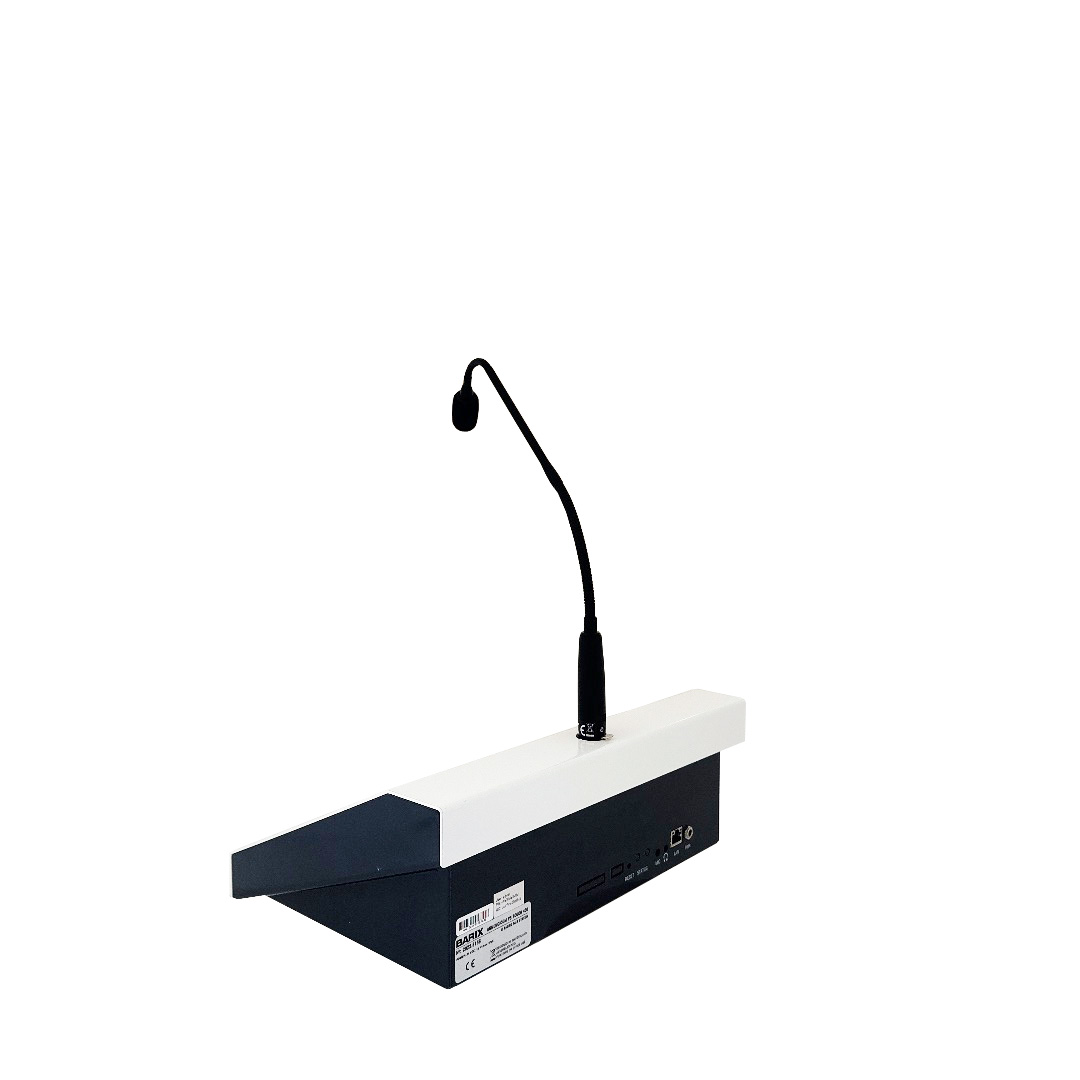

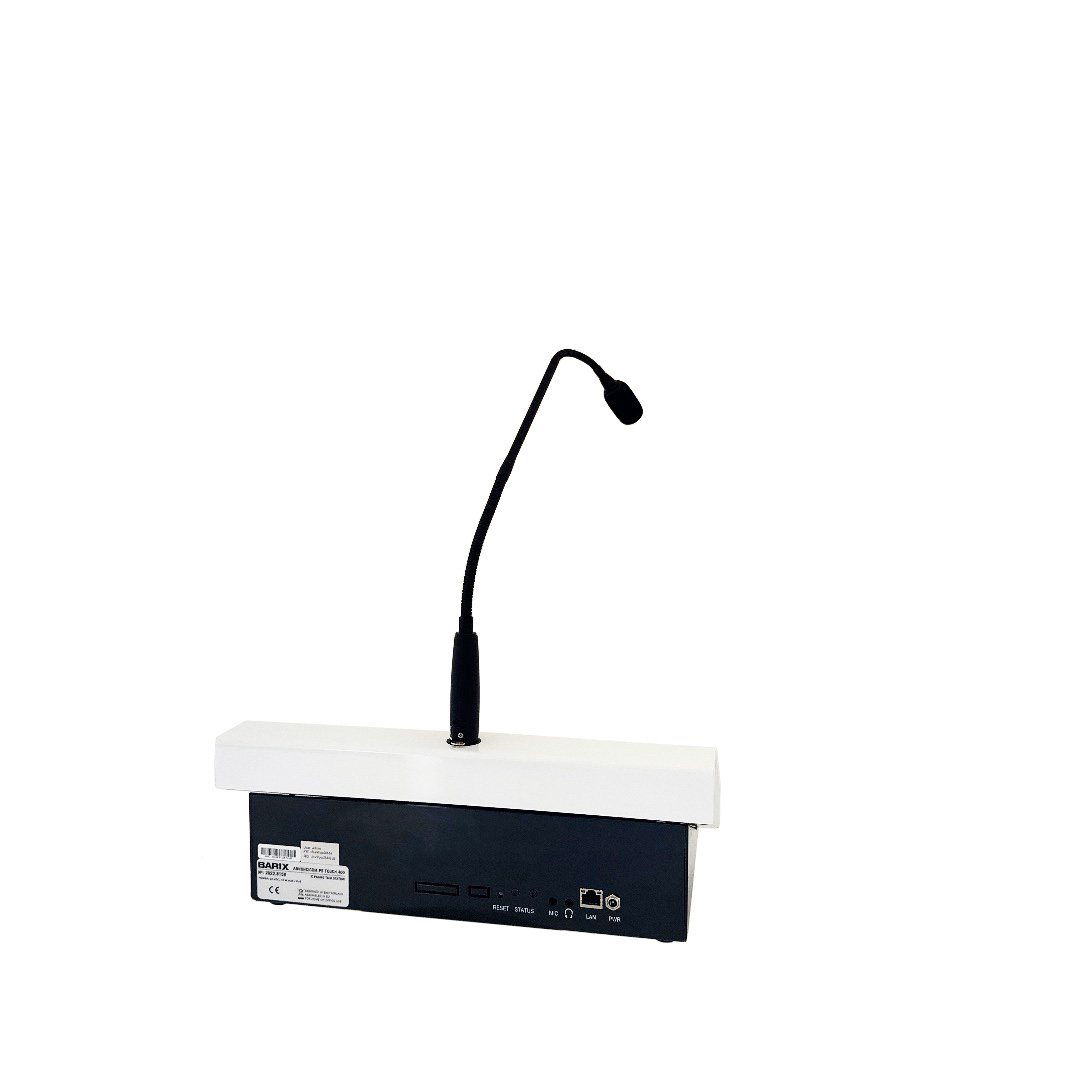

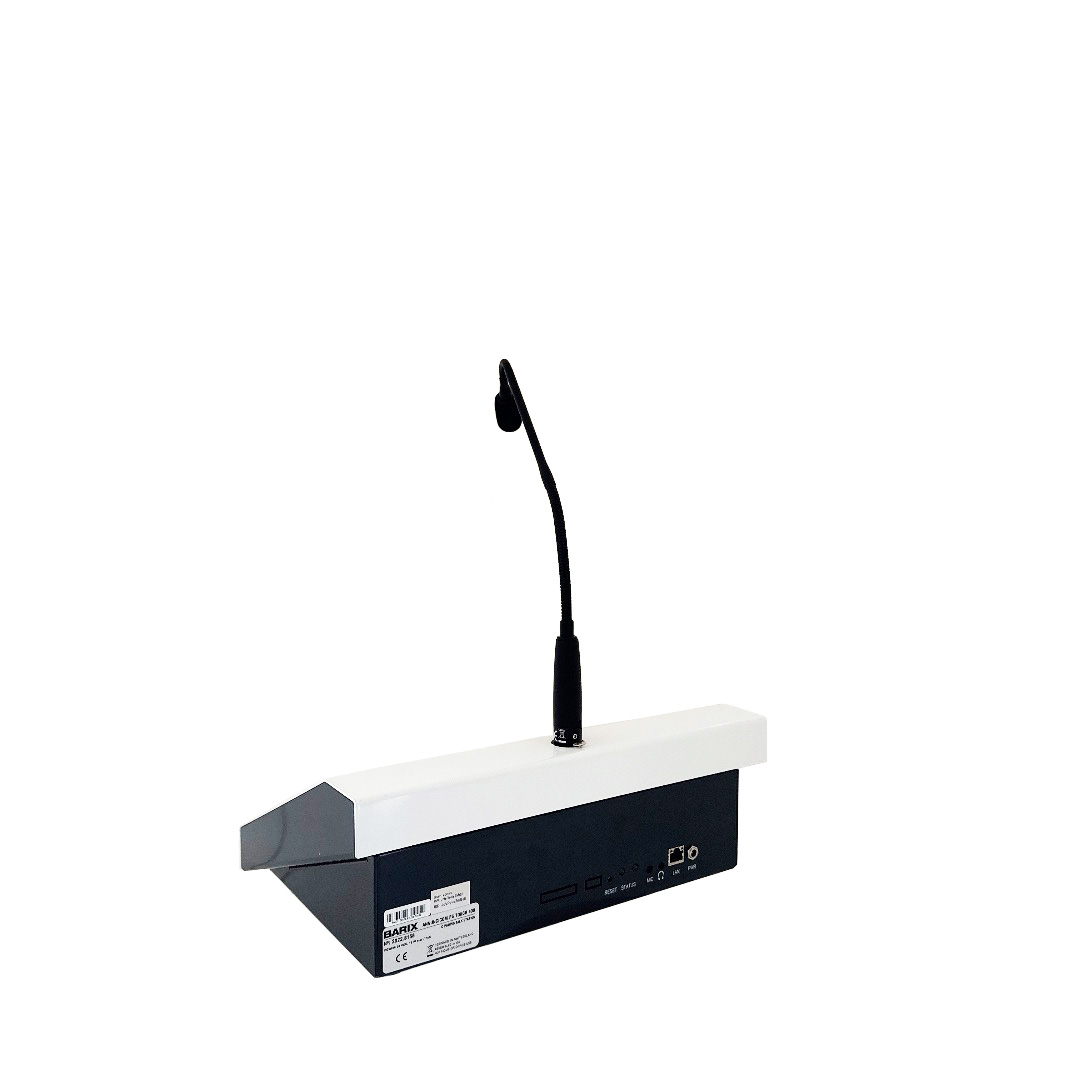

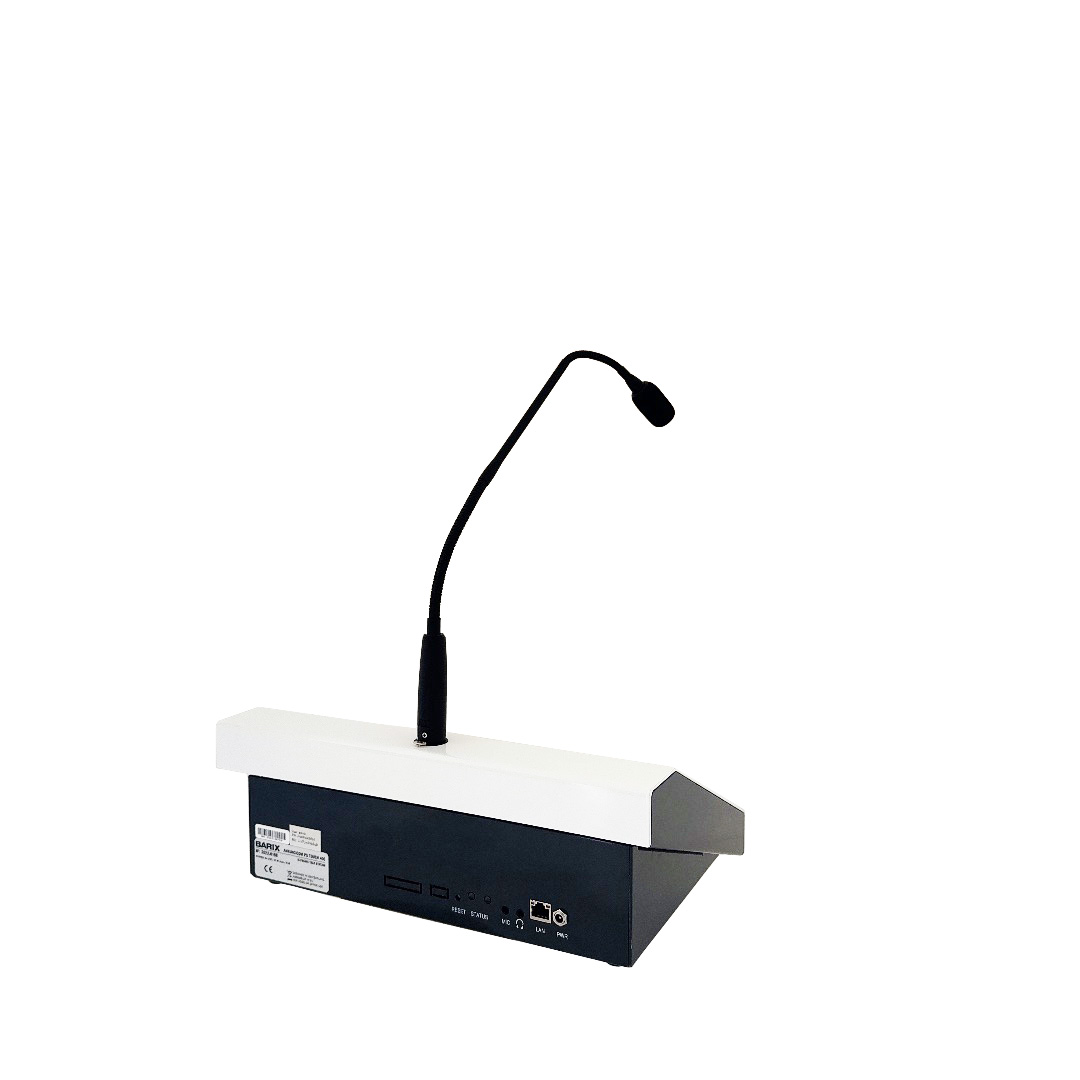

Click to view the device in 360

Annuncicom PS Touch

Desktop IP Intercom and paging master station, PoE capable, large compatibility.

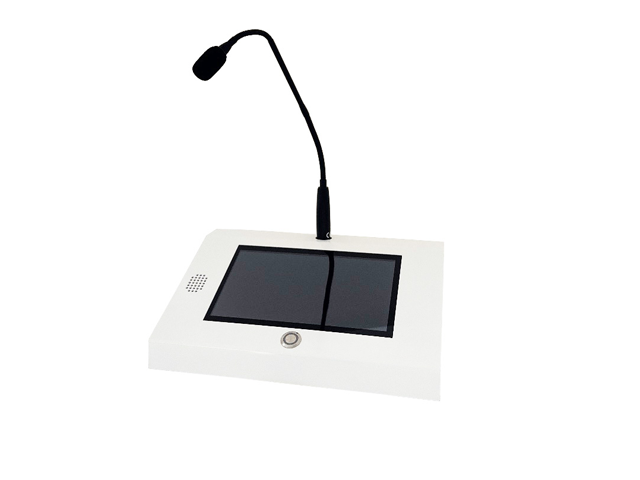

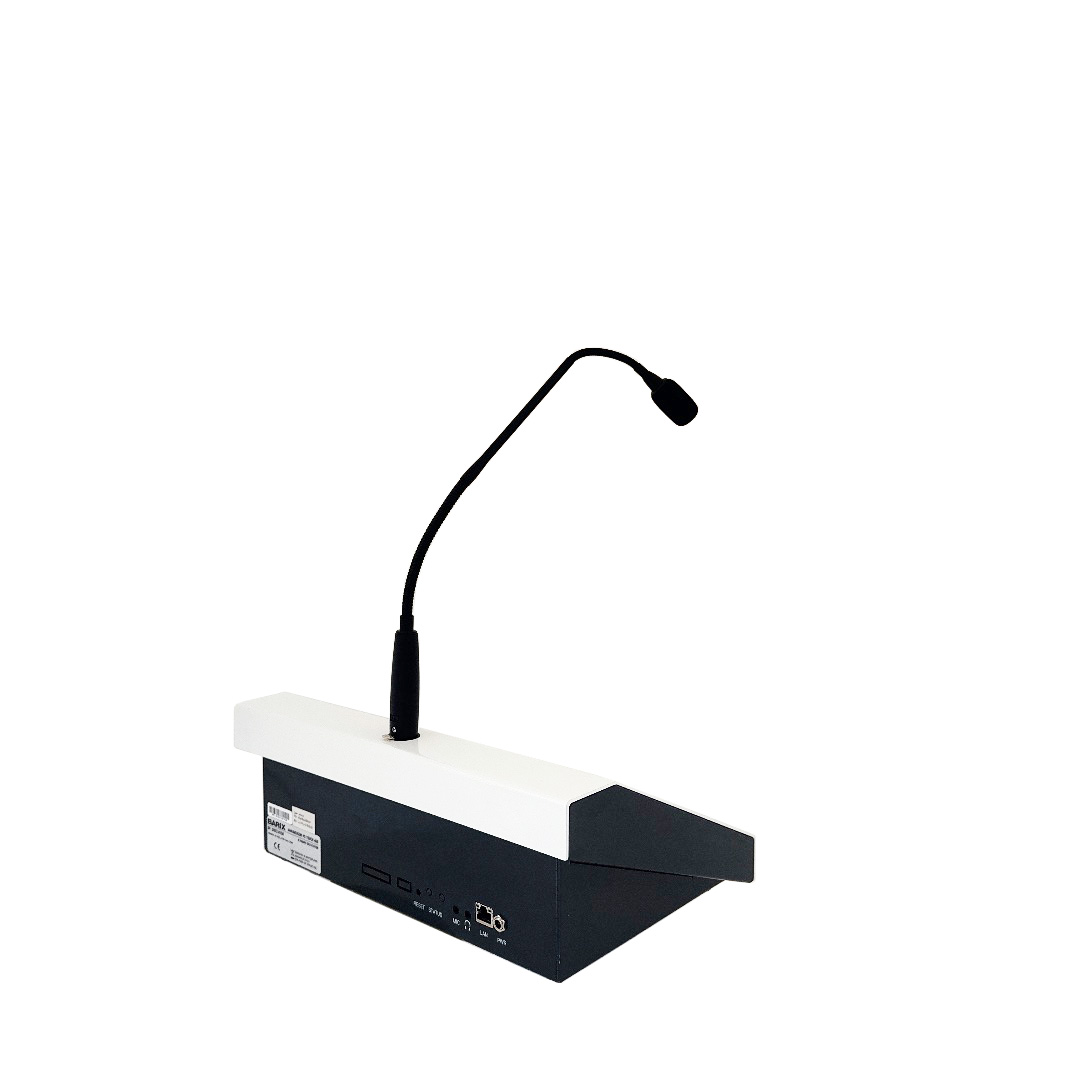

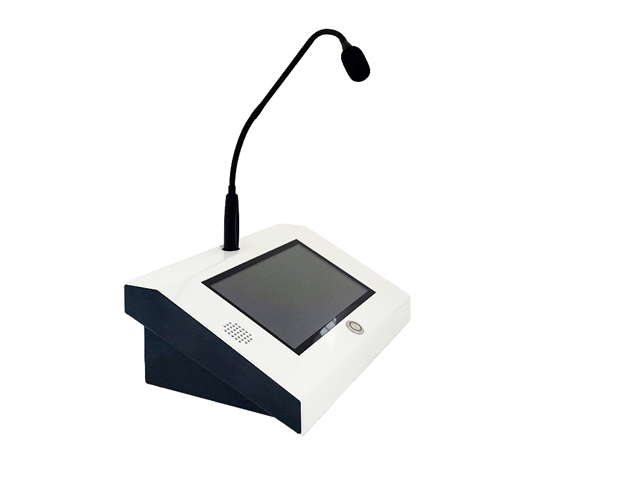

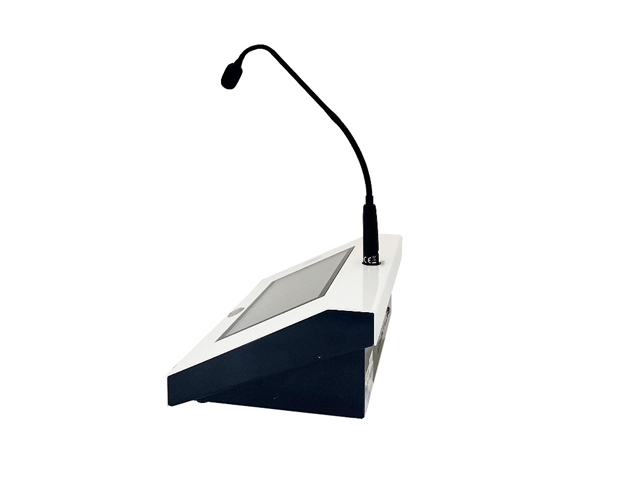

The Barix Paging Station Annucicom PS Touch is a universal, TCP/IP connected intercom station for use in IP Intercom, Paging and VoIP applications. The PS Touch directly connects to the network via a 10/100Mbps network connection, and is powered over the network interface (PoE, 802.3af standard). The station can be used as a master station for IP based intercom and paging systems, which can be built without any central servers or PCs. The PS Touch is equipped with a touch screen display, an XLR connected professional gooseneck microphone and a built-in speaker. Optional flash memory for stored messages and announcements is available. It replaces the PS 16 (see discontinuance notice). Annuncicom PS Touch is delivered with Barix Simple Paging or IC Paging master station firmware.

device-image



Power Supply Input

  • Powered over the network interface (PoE, 802.3af standard).

1 Ethernet Interfaces

  • RJ45 10/100 auto detect, IPv4, IPv6
  • TCP/IP, RTP, UDP, ICMP, DHCP, SNMP

Audio Input

  • XLR microphone connector with 13 Volt bias voltage

Audio output

  • 5-Watt output speaker

Touch Screen

  • 10.1” size
  • Touch type: capacitive
  • 1024×600 pixel resolution
  • backlight LED >30,000 hours
  • > 1 million touches

Barix solution support

  • Supports Barix Simple Paging
  • IC Paging on request at order
  • SIP on request

HW/SW environment

  • Barix IPAM302
  • Simple Paging firmware preinstalled

User Interface

  • Web interface for control, status and configuration

Case

  • Metal
  • ~350x250x150mm (13.8×9.8×5.9 inch) without microphone
  • 2500g

MTBF

  • 30’000 hours

Warranty

  • Two years

Annuncicom PS Touch (Made in Europe)

2020.9305P Annuncicom PS Touch Simple Paging

2022.9361P Annuncicom PS Touch 400 Package (IC Paging)

2021.9353P Annuncicom PS Touch 400 OEM
