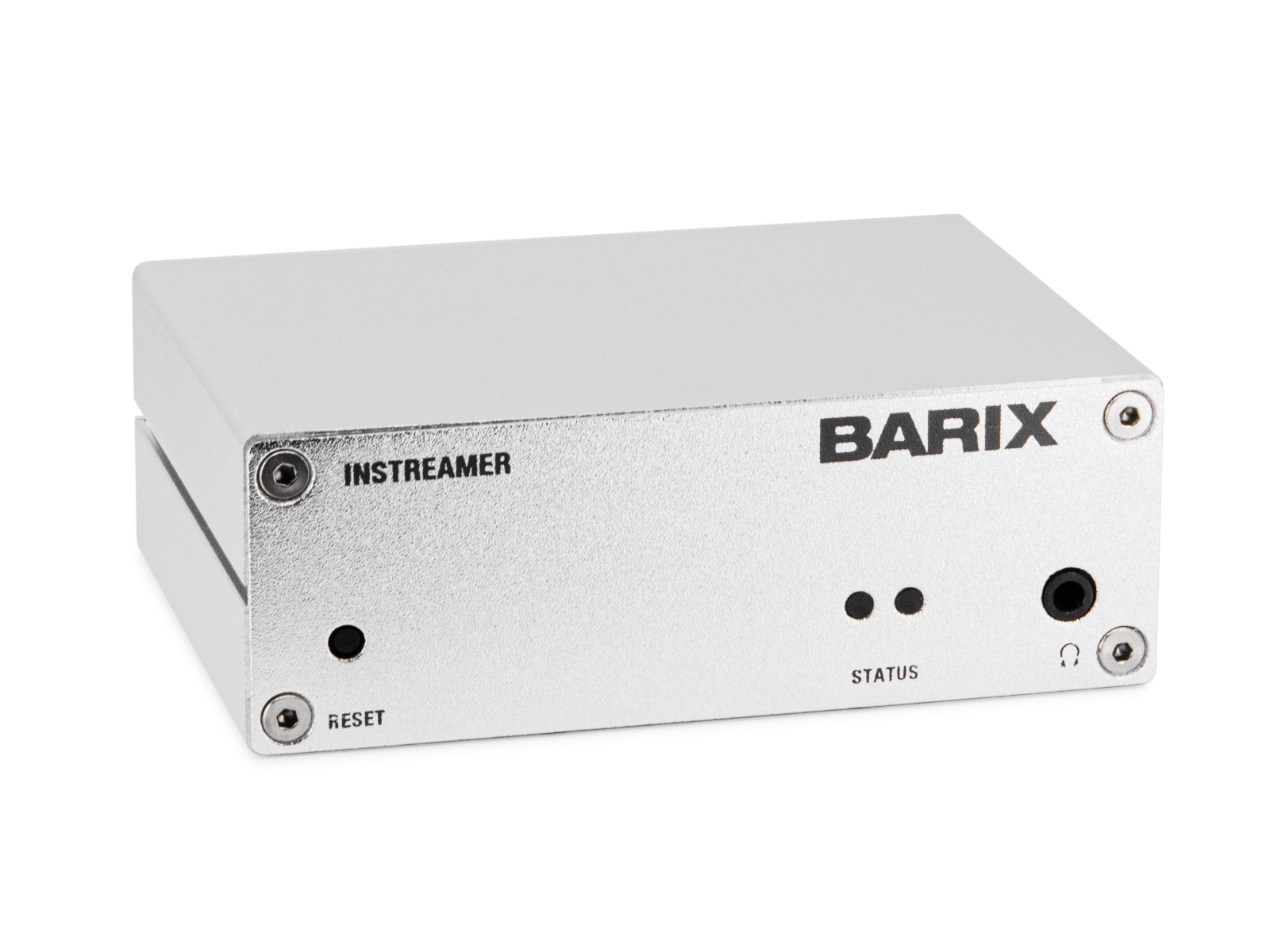

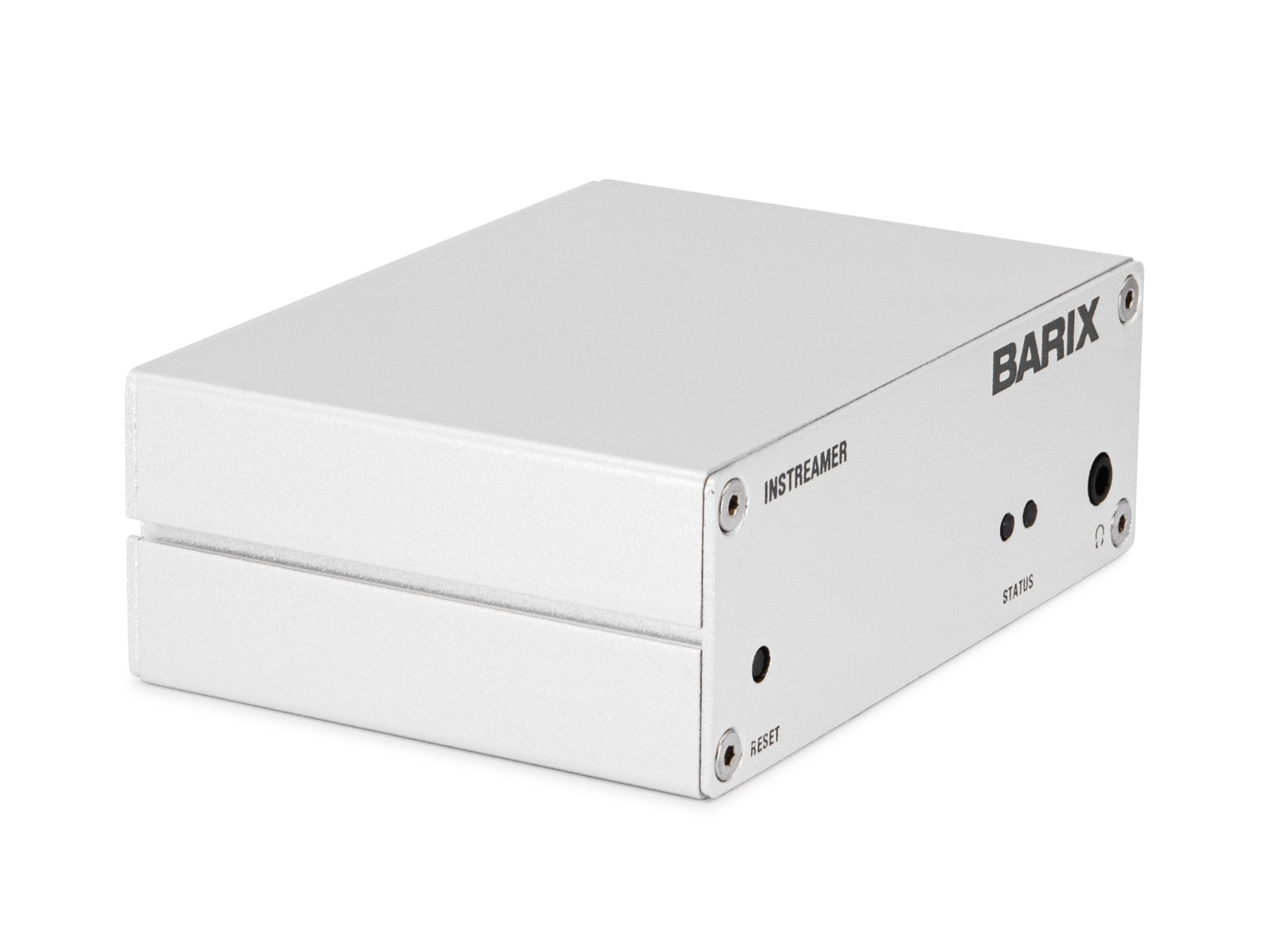

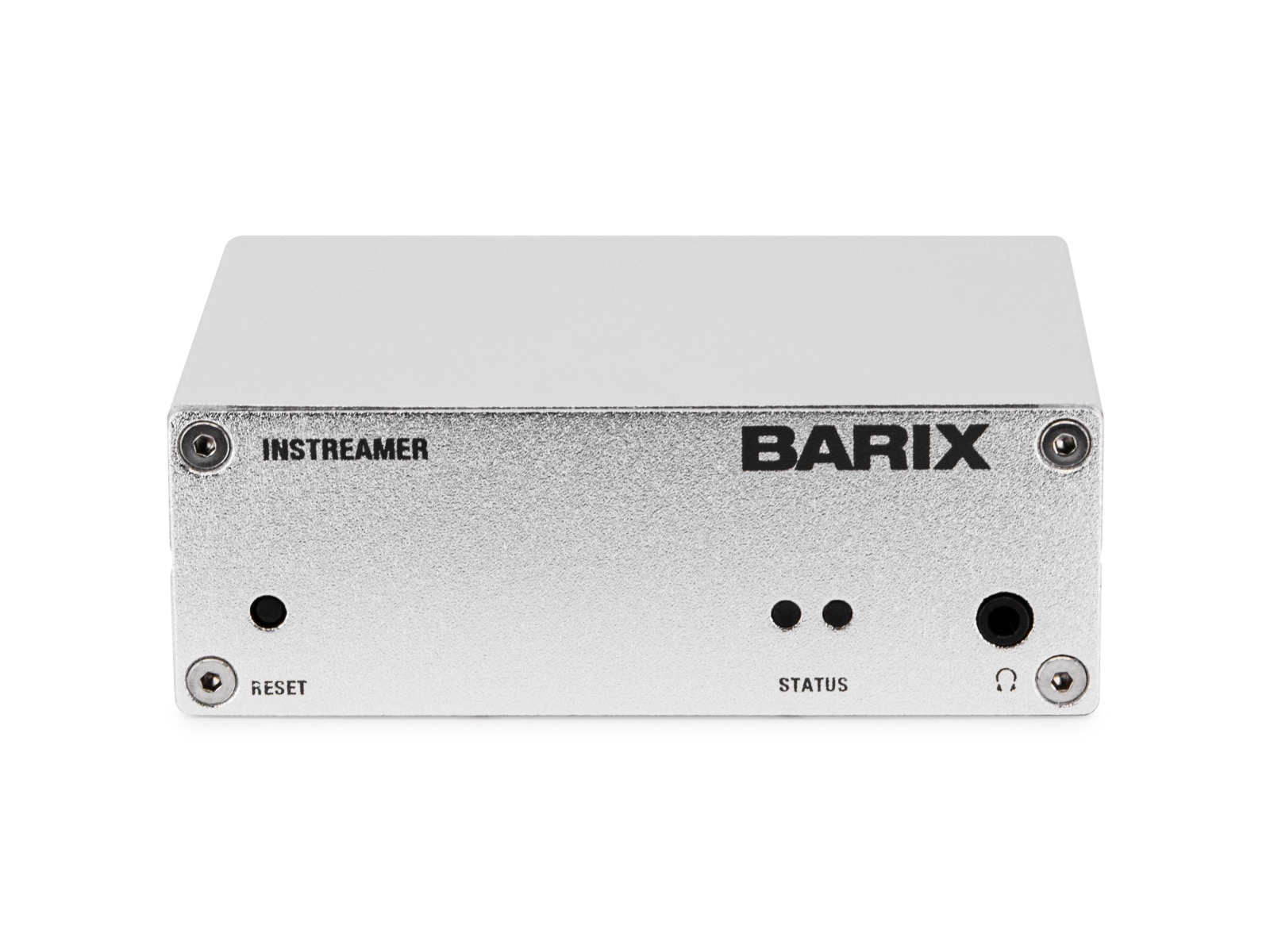

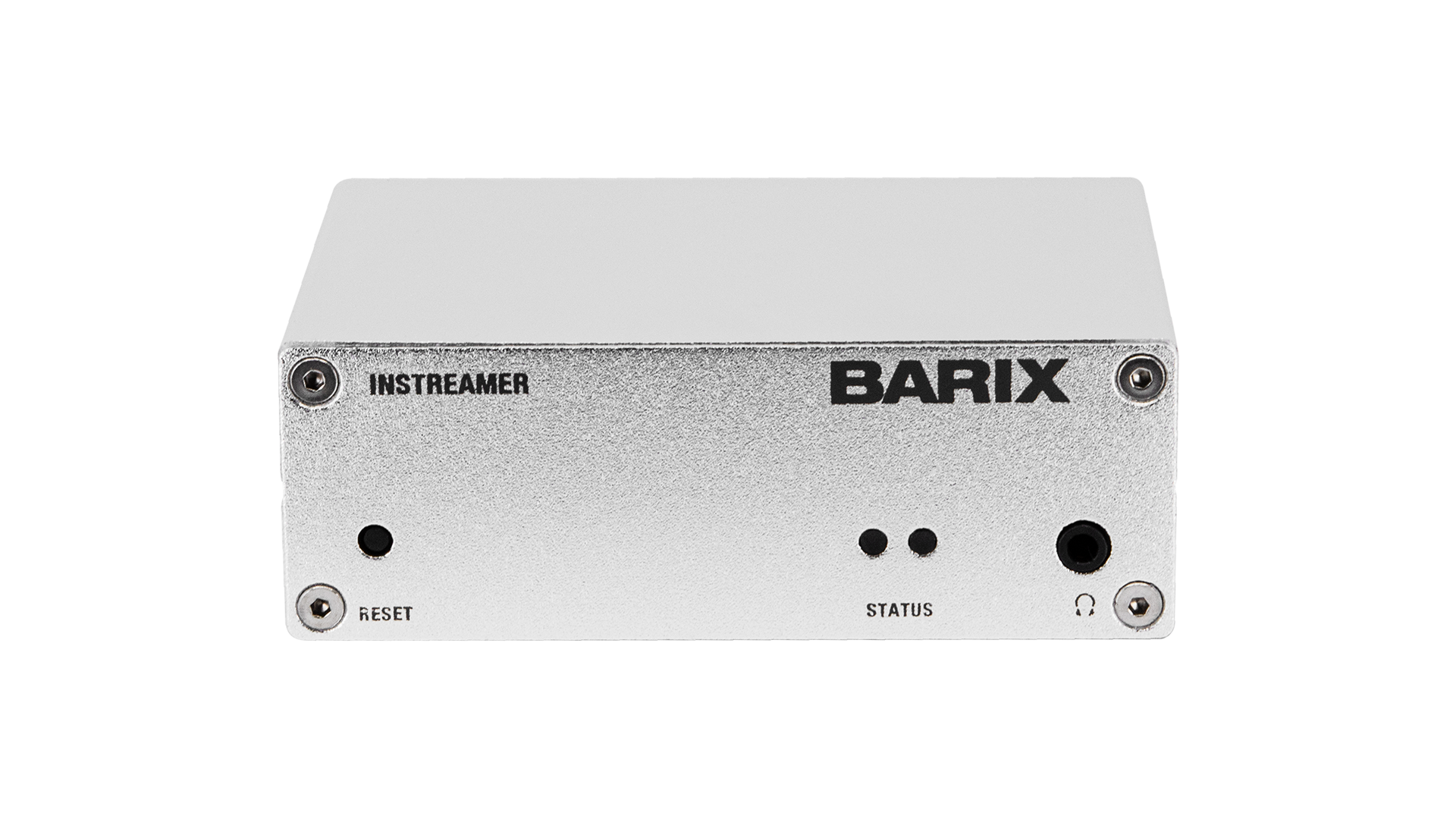

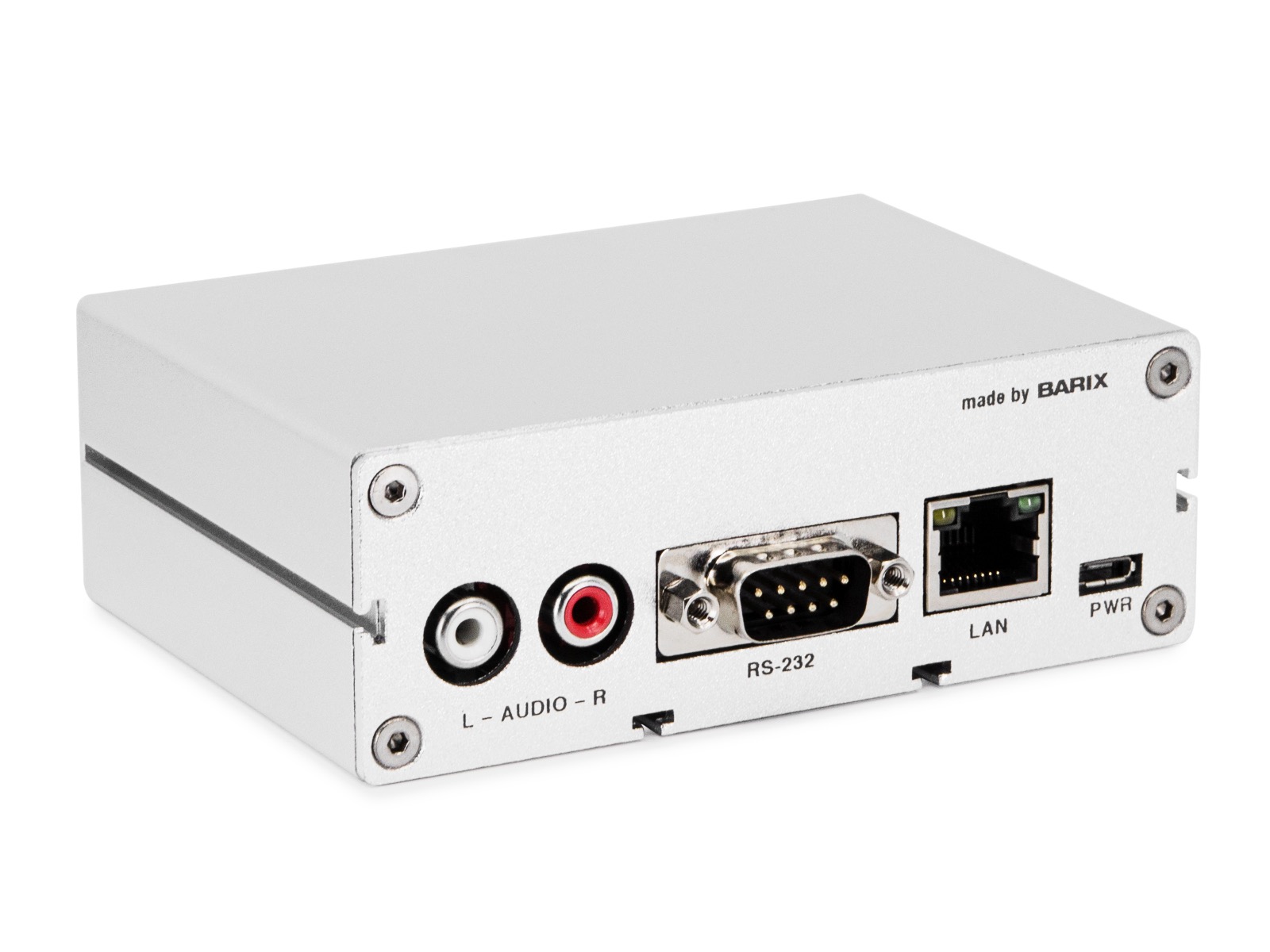

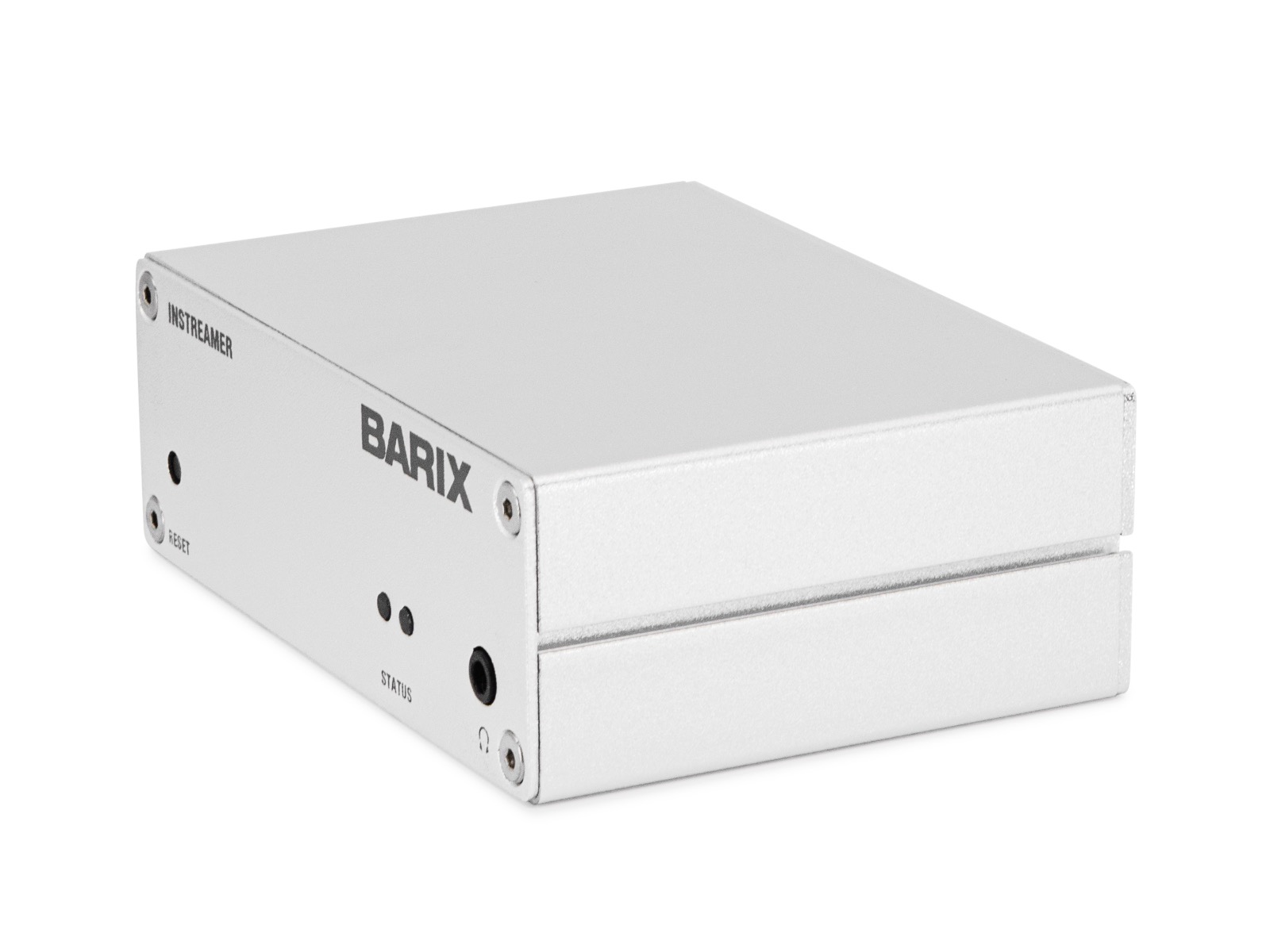

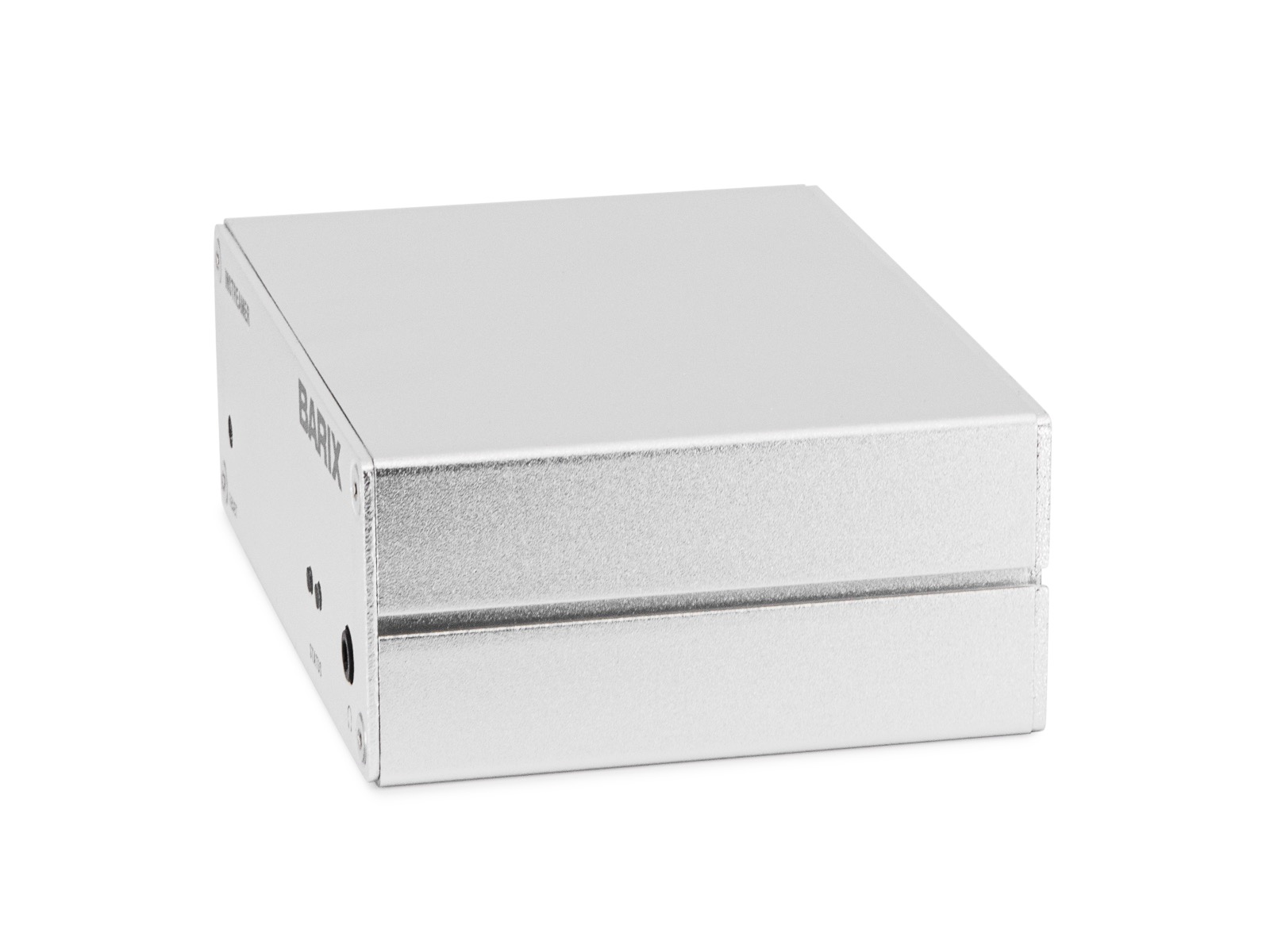

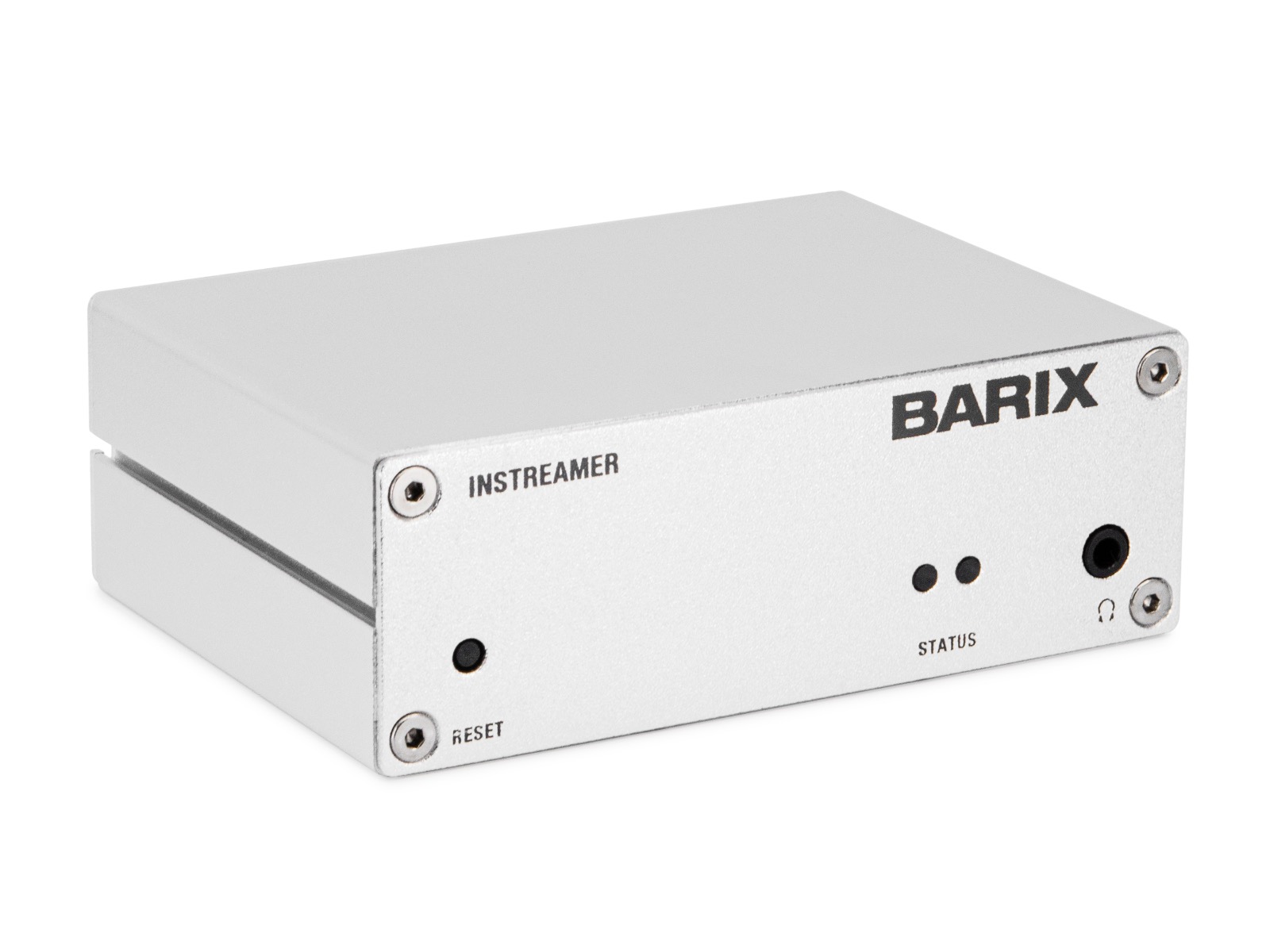

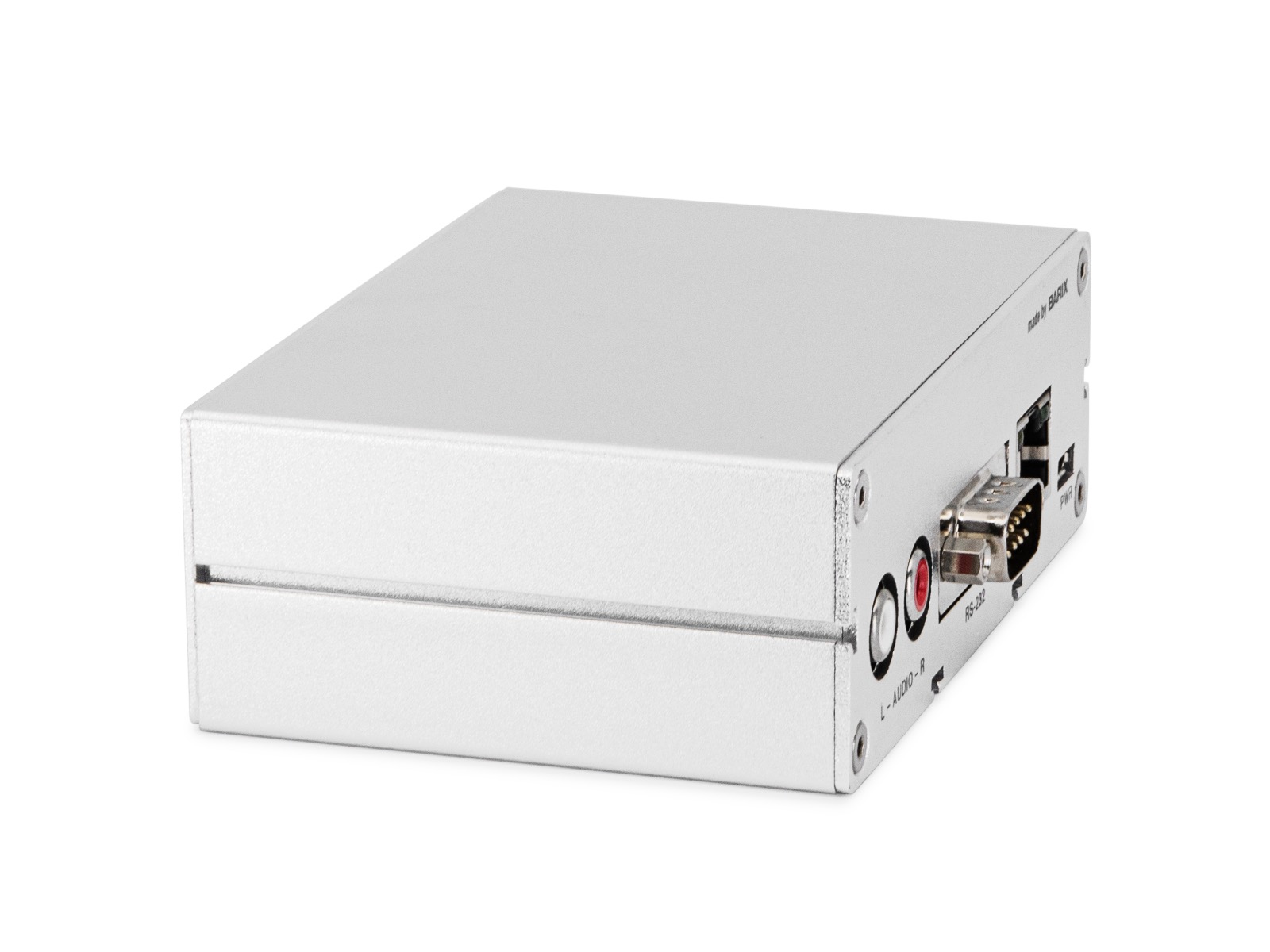

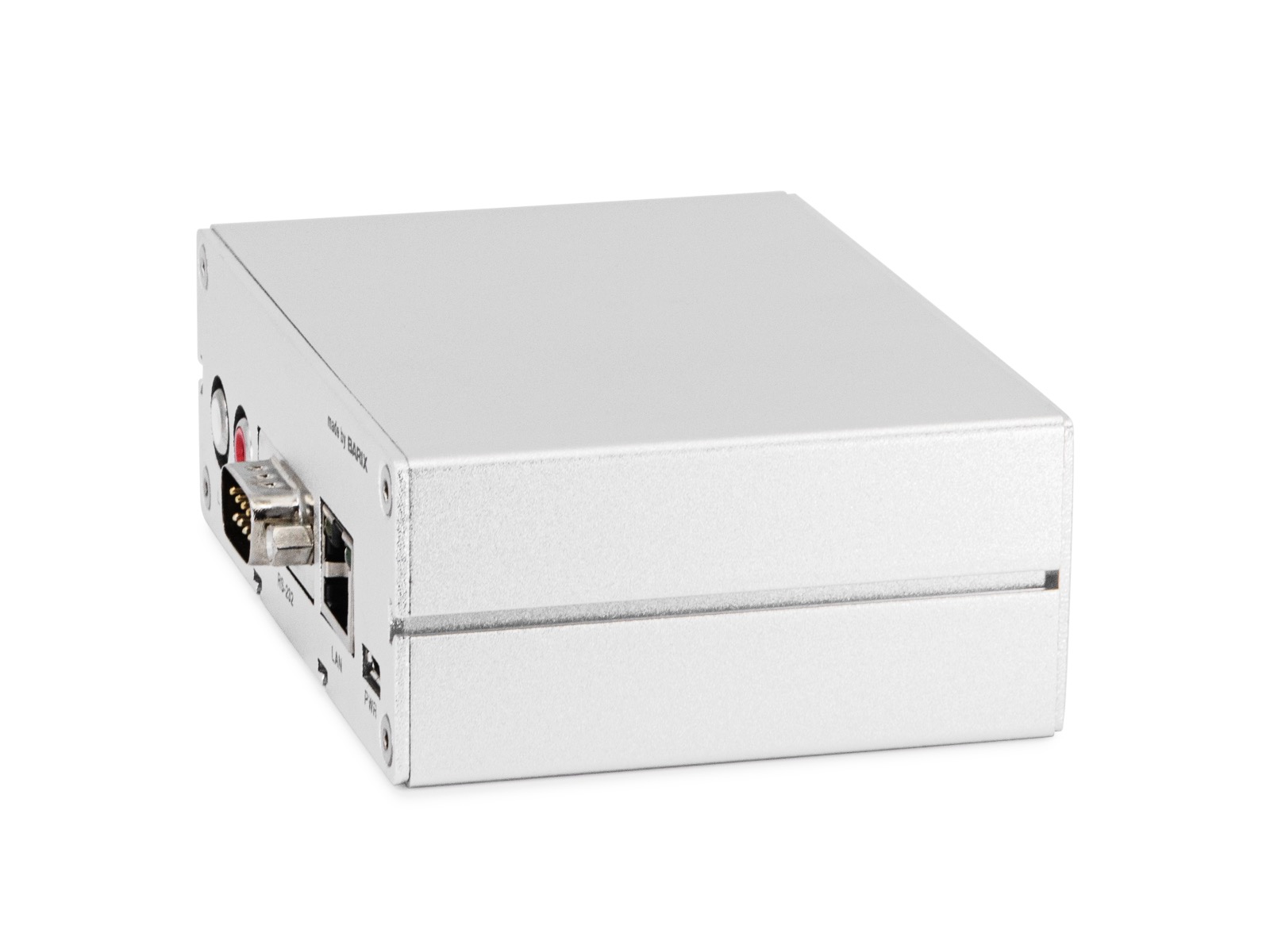

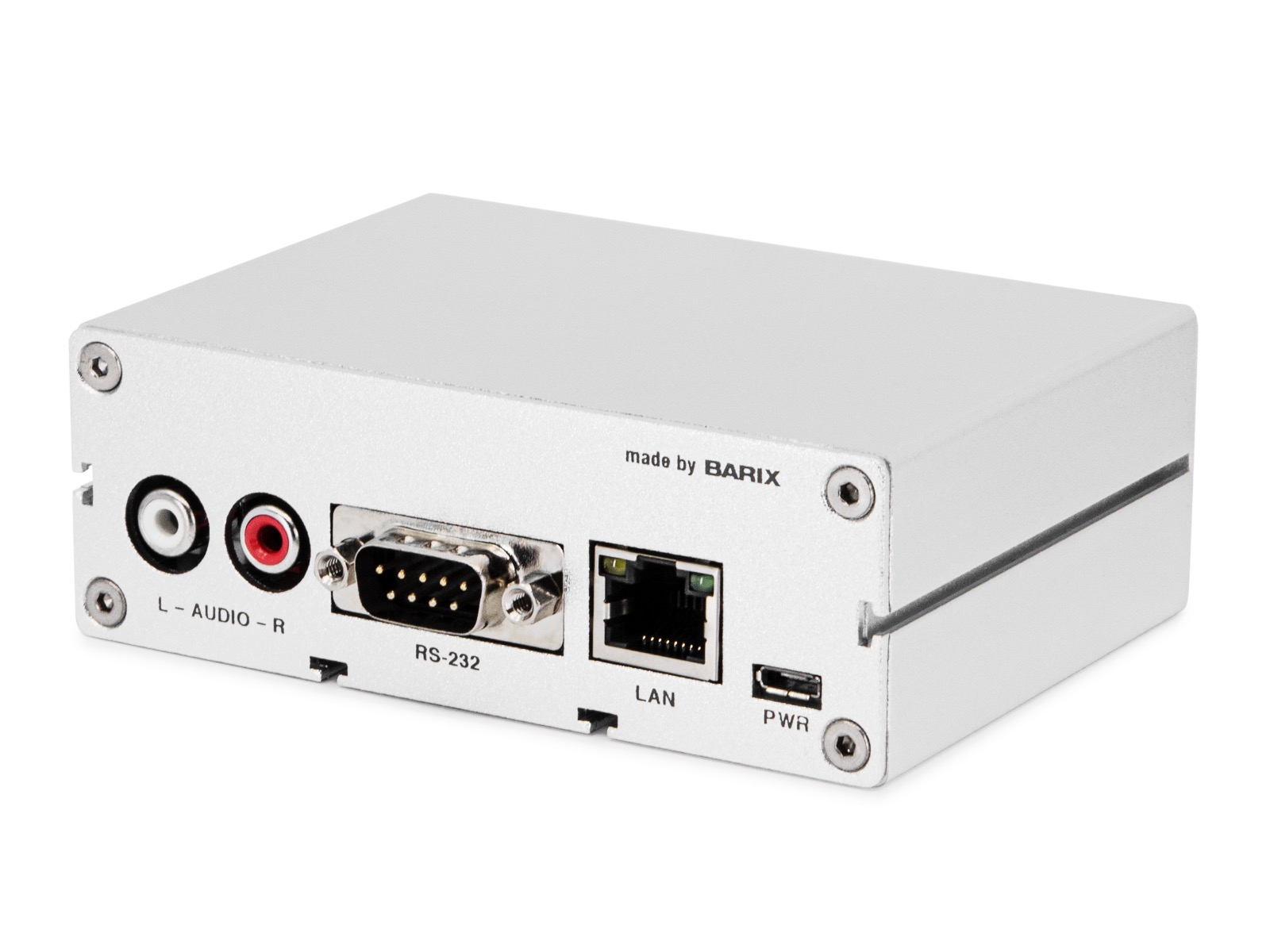

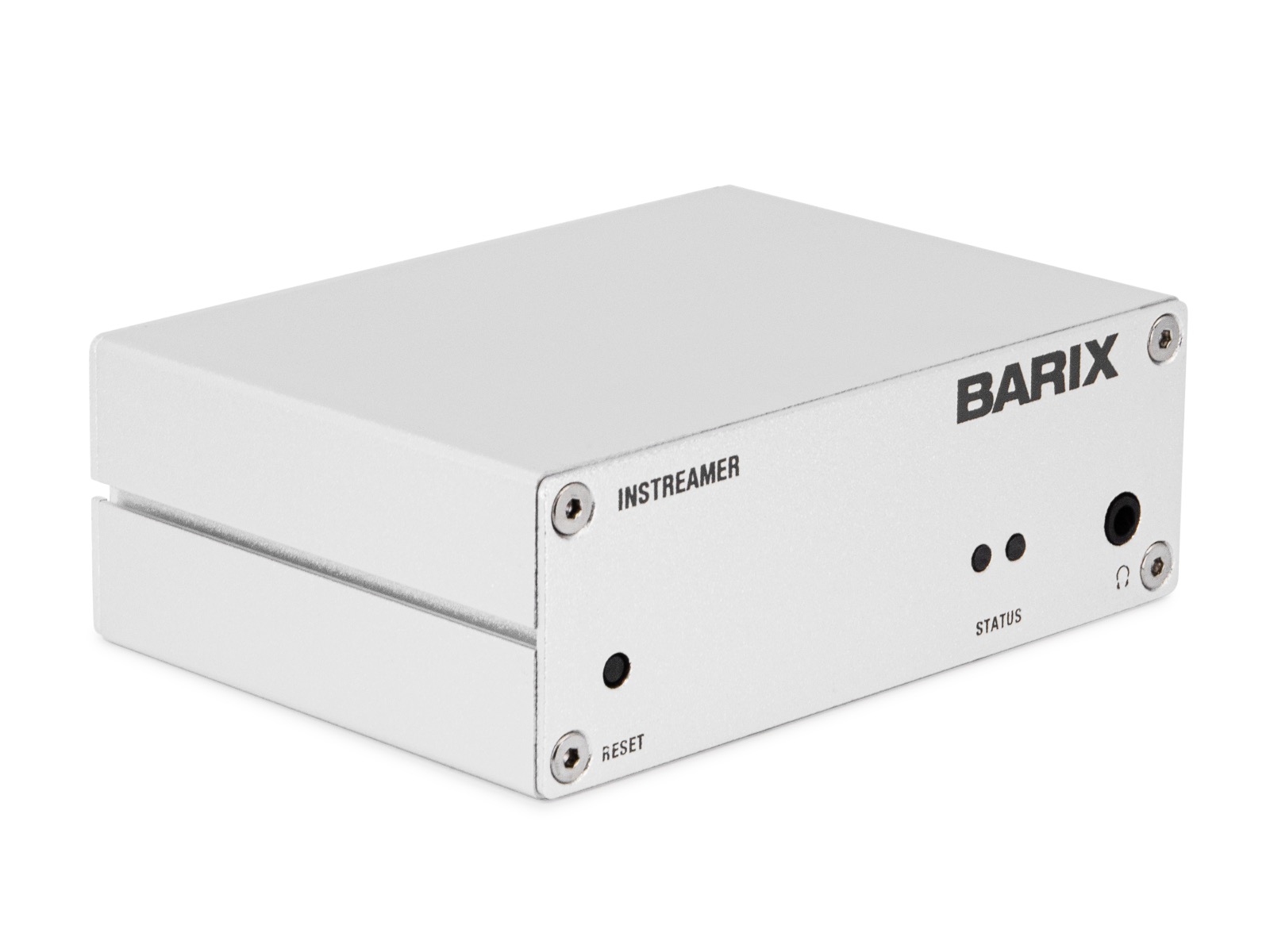

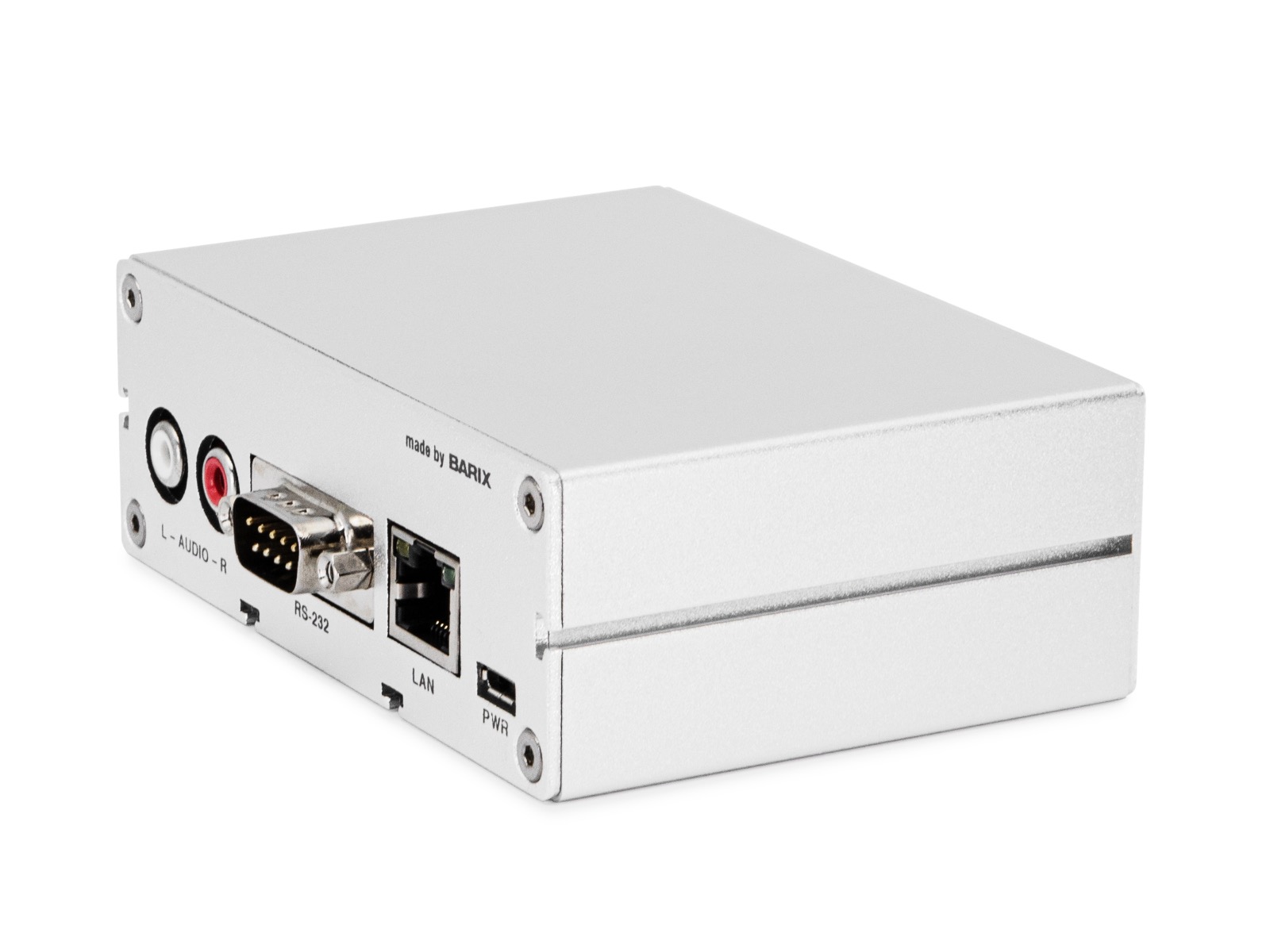

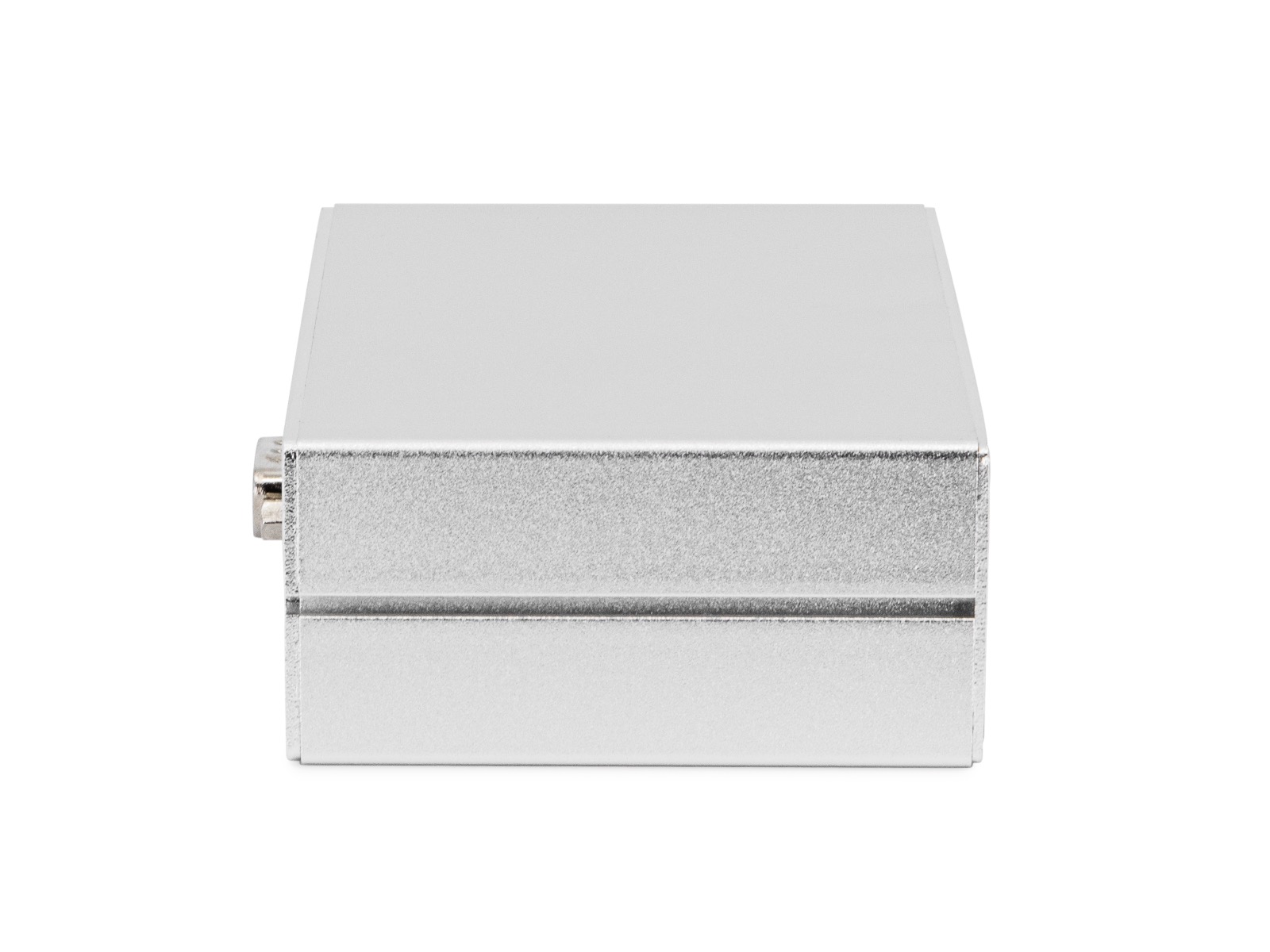

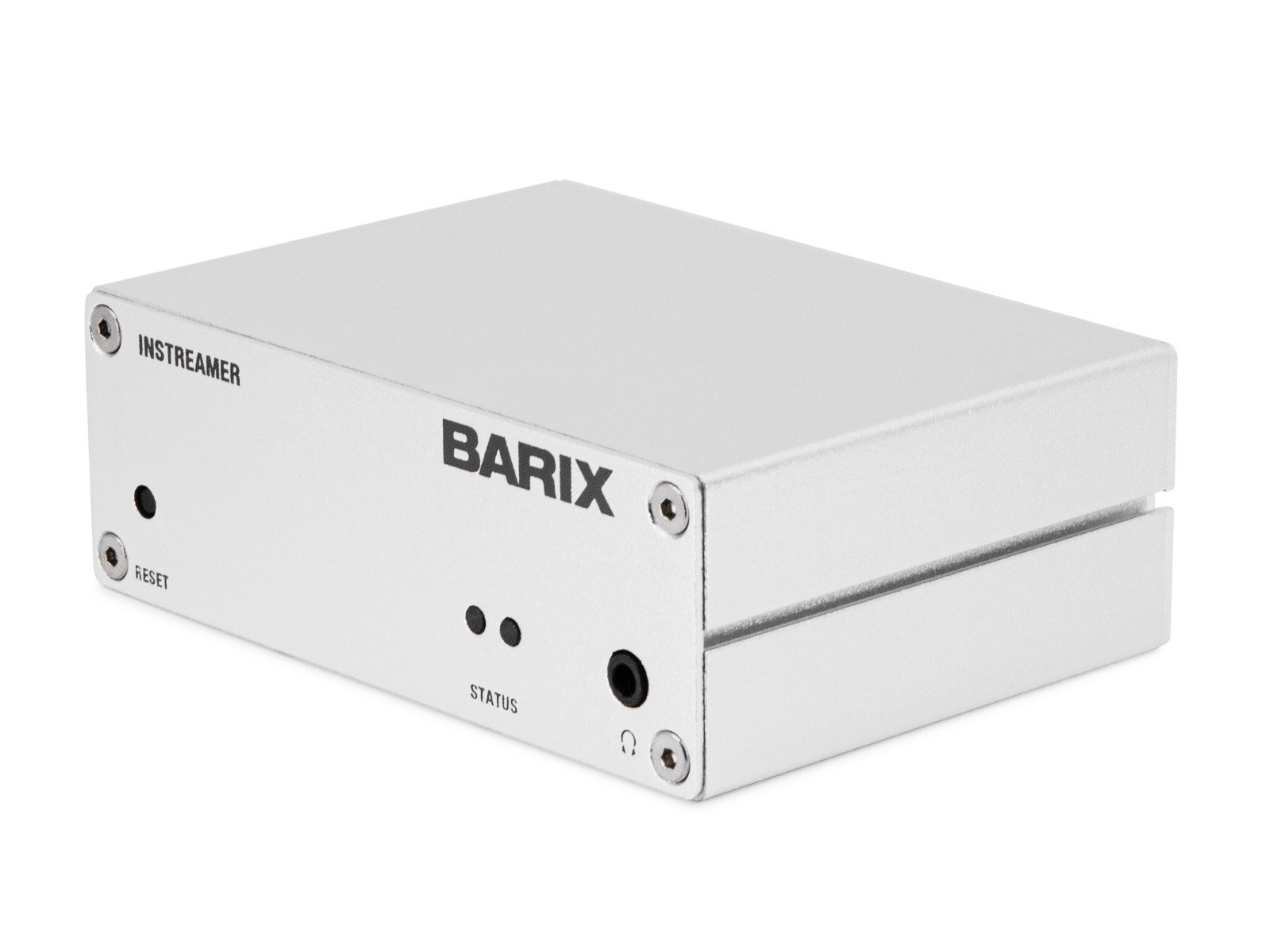

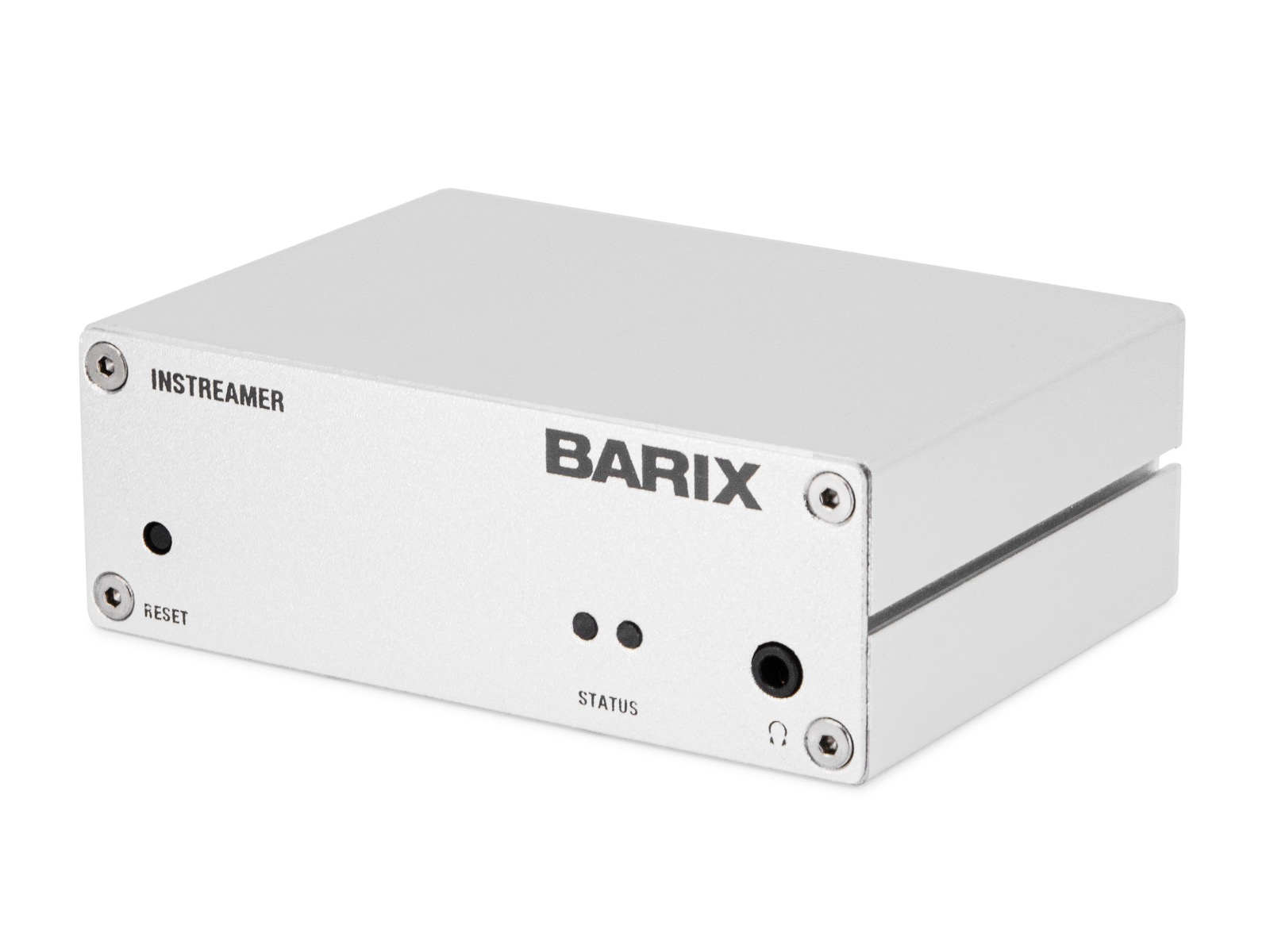

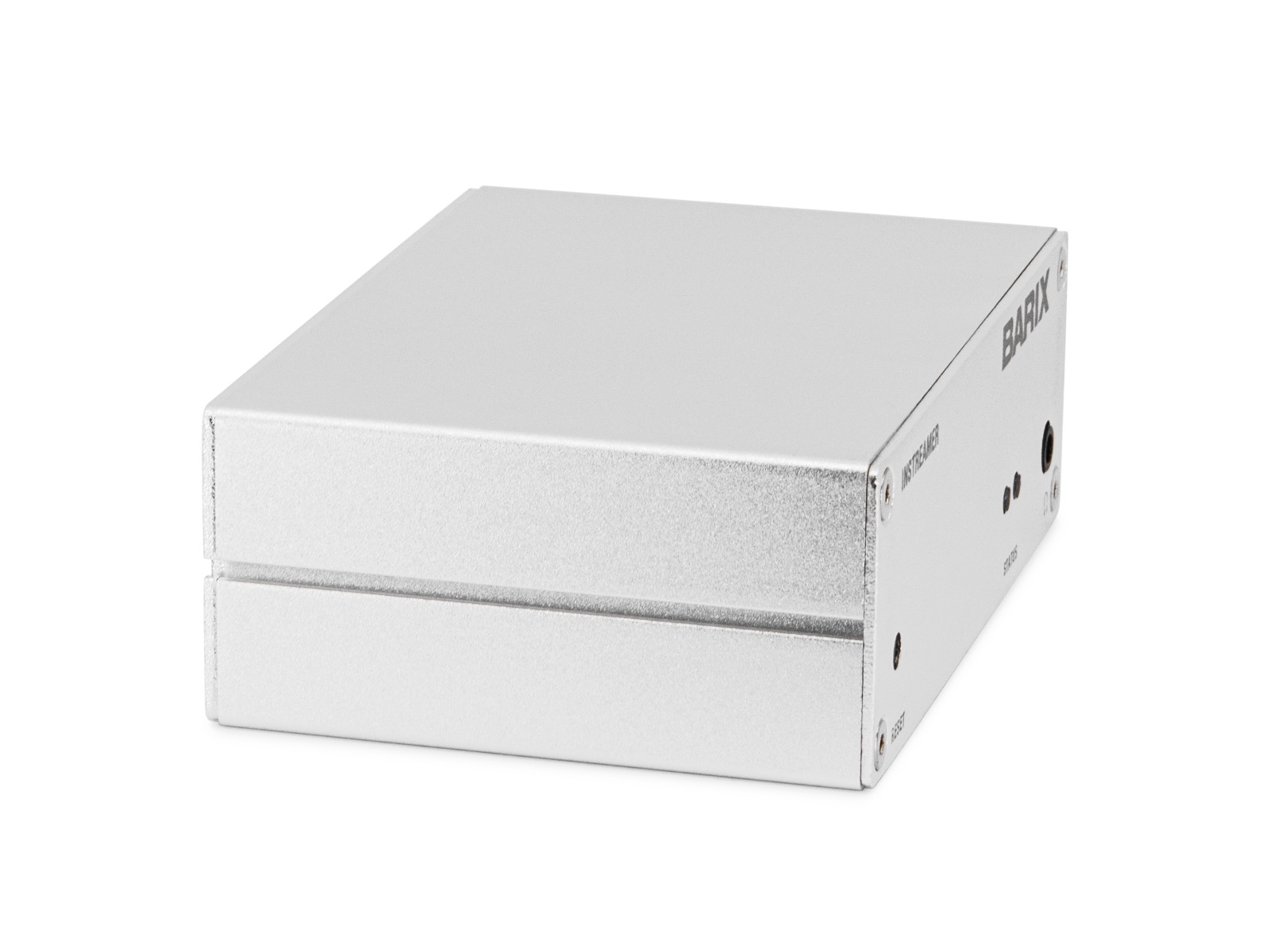

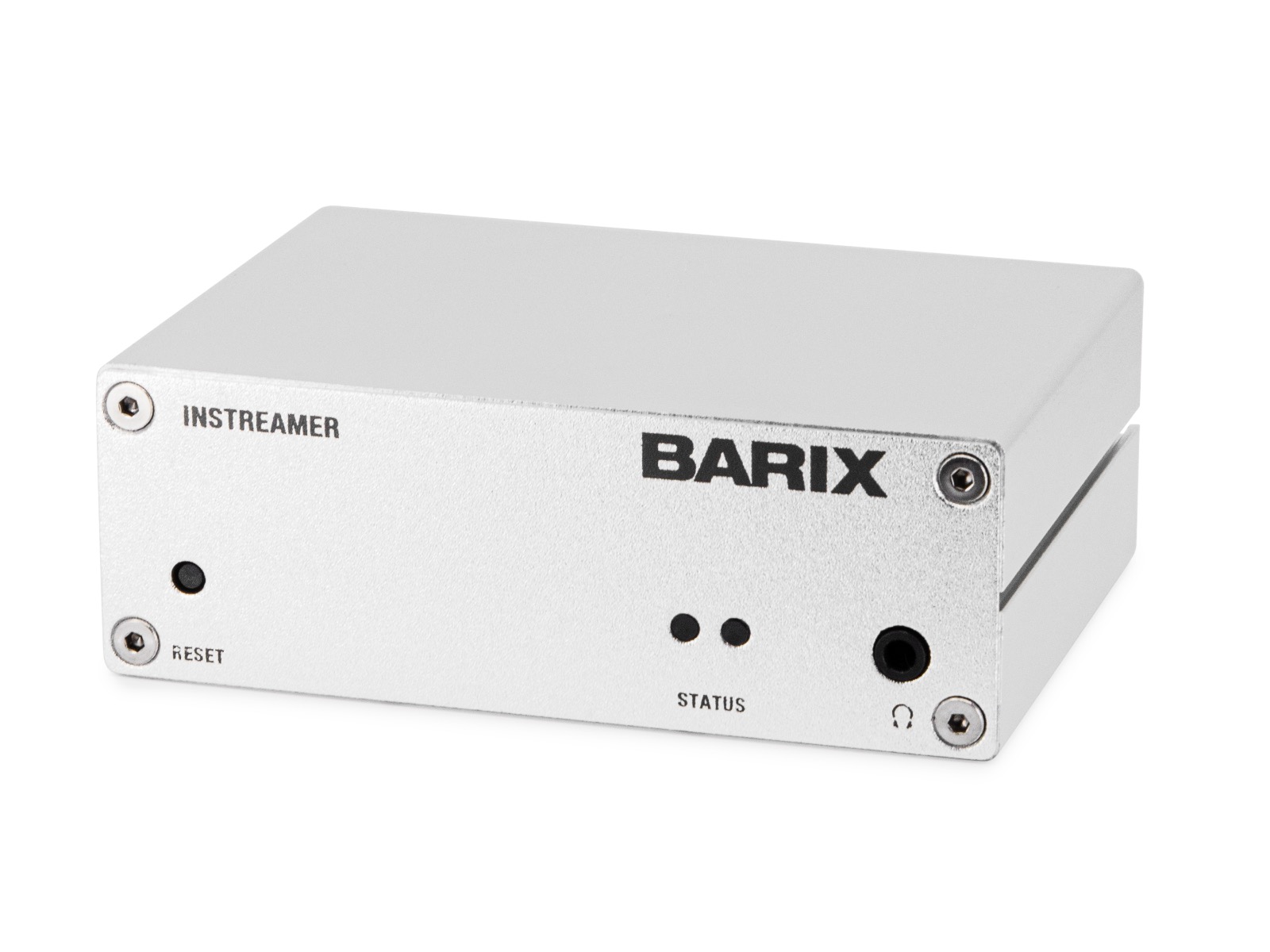

Instreamer ICE

AAC+ / MP3 Audio over IP encoder with line level analog input (stereo) and integrated Icecast server

The Instreamer ICE encodes analog audio into AAC+ or MP3 for streaming to an Icecast internet radio streaming service in the cloud. The Instreamer ICE also has an Icecast server built in and is able to feed up to 100 web radio listeners directly without the requirement to subscribe to an internet radio service provider.



device-image

Power Supply Input

External power adaptor, 100-240VAC, 10W

Male connector: 5,5 x 2,1 mm
Ethernet Interfaces

RJ45 10/100 auto detect, IPv4, IPv6

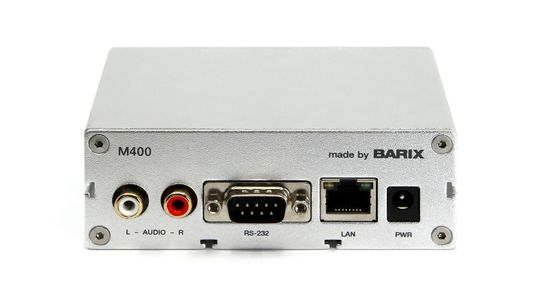

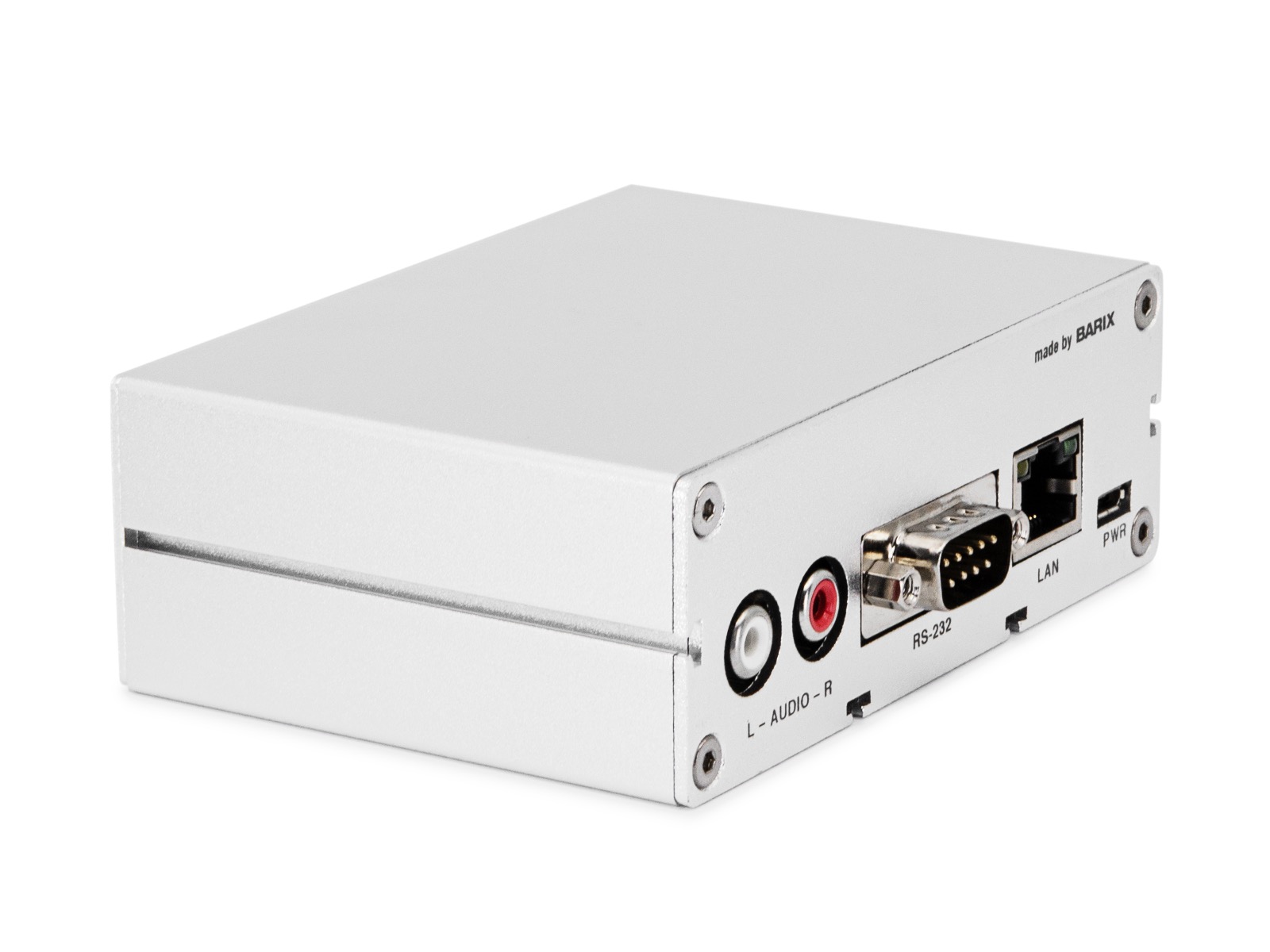

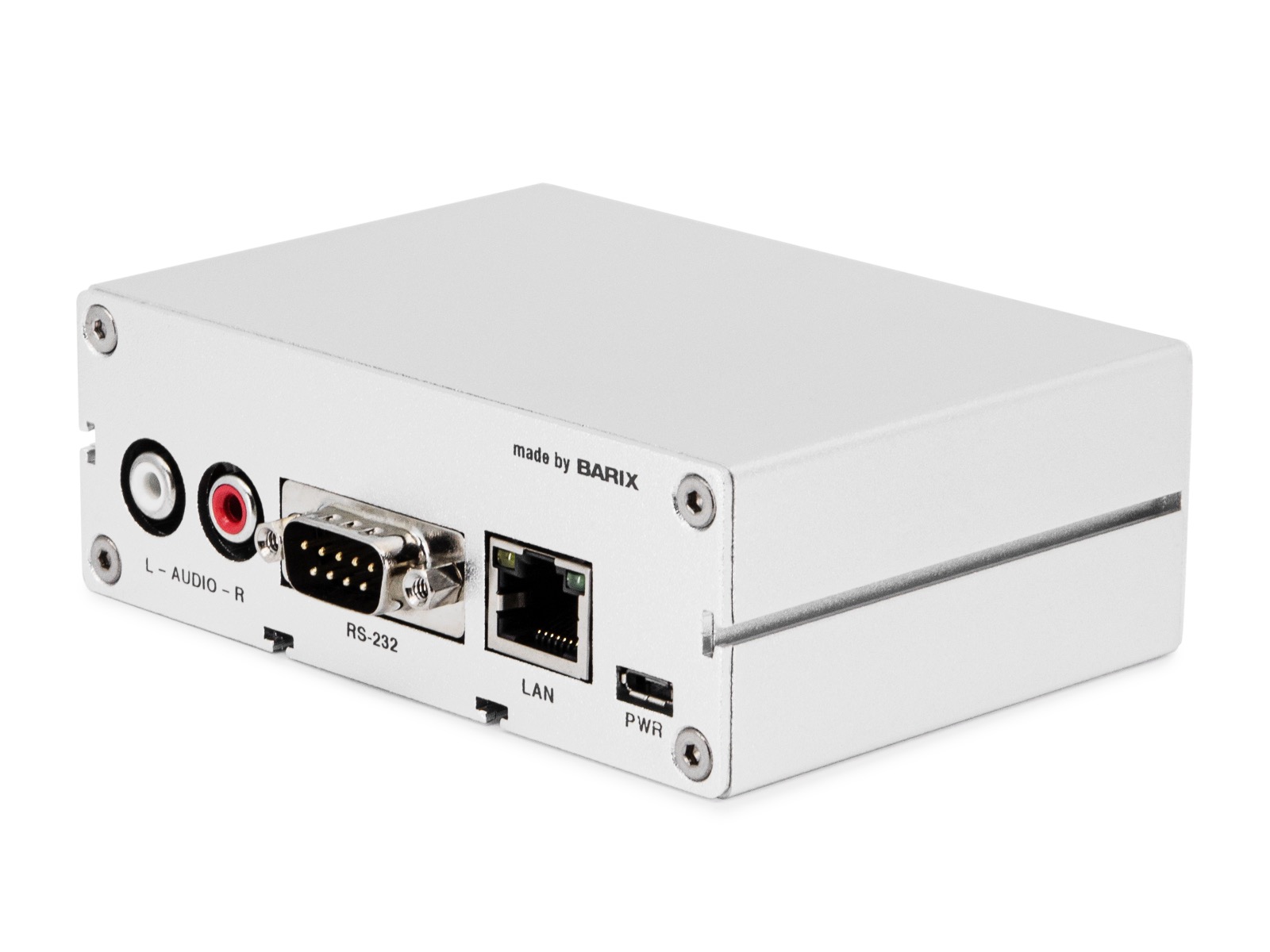

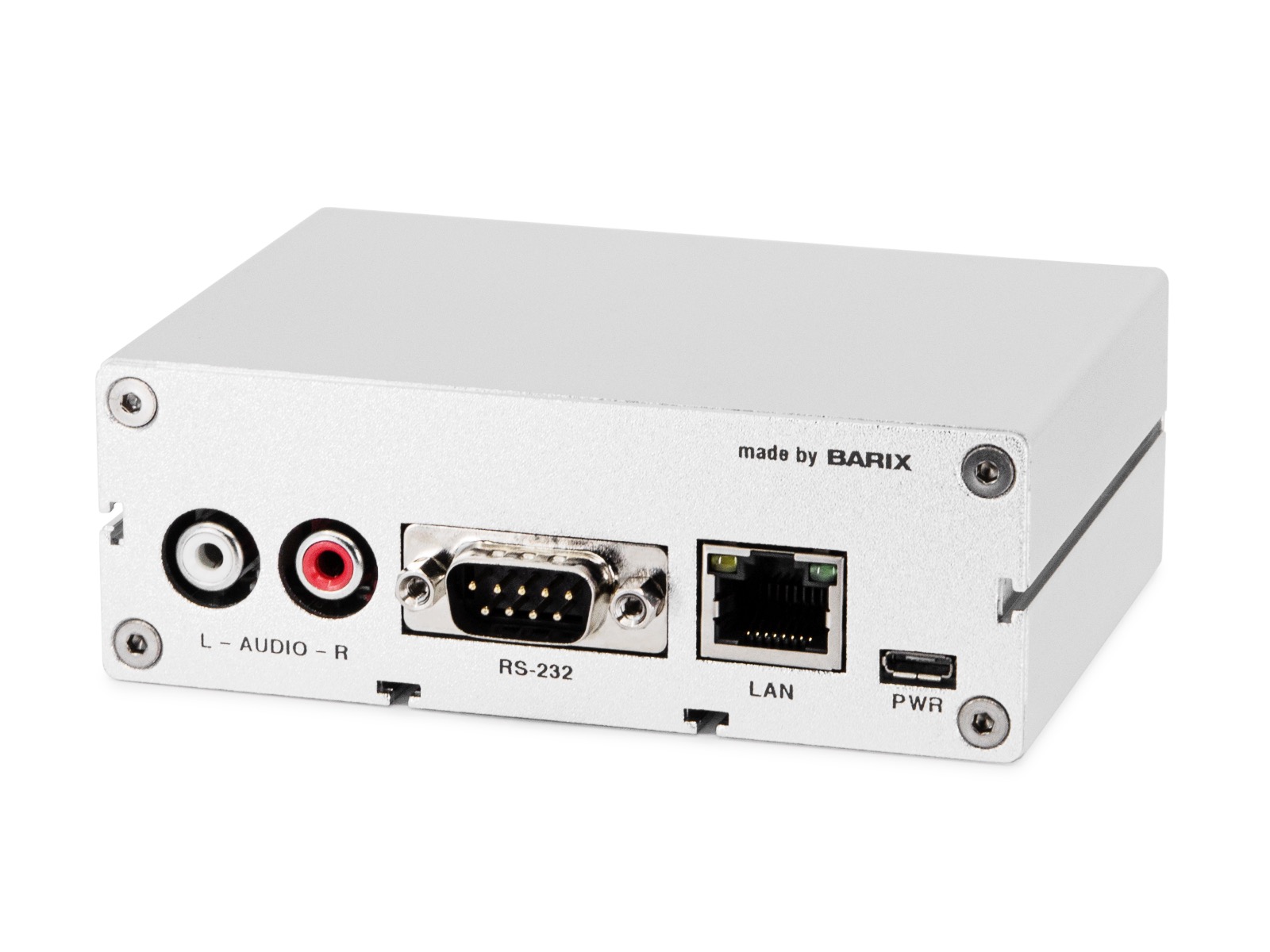

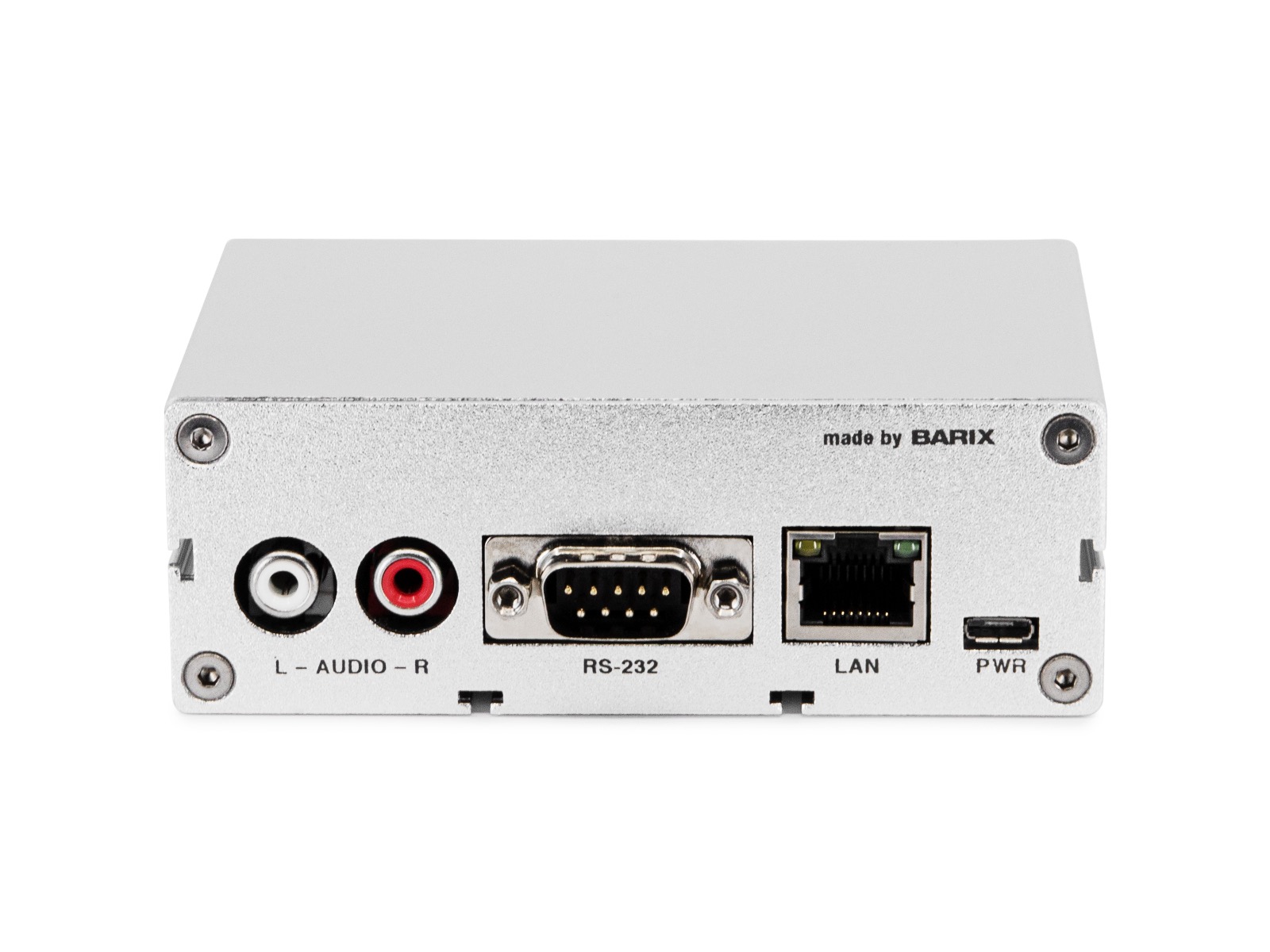

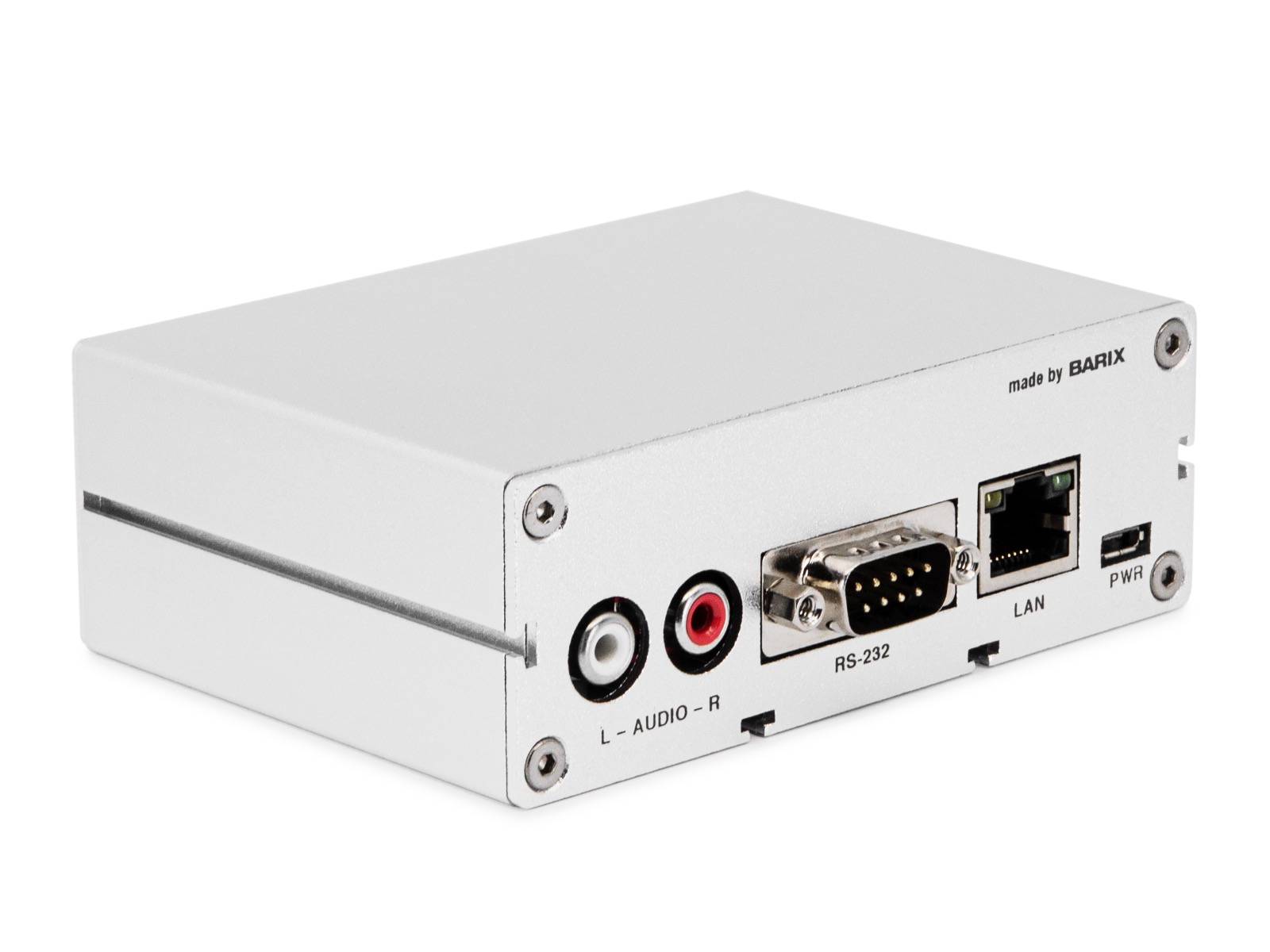

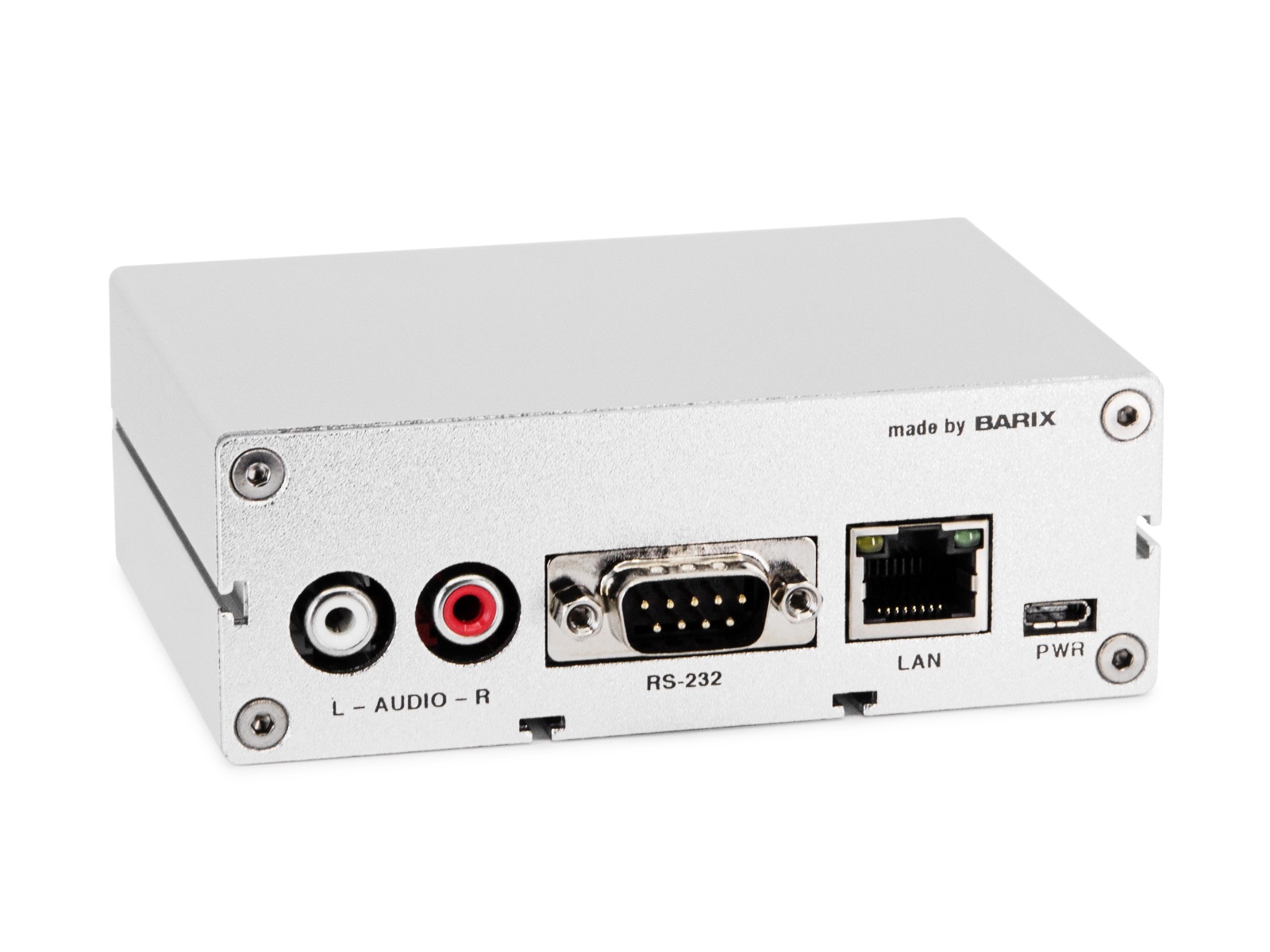

Audio Input

Stereo RCA / cinch connectors
2kΩ input impedance 3.9 Vpp max, adjustable in sensitivity
Dynamic range 87 dB, SNR -87 dB

Audio formats

MP3, AAC mono and stereo

Sample rates 22.05/24/32/44.1/48Khz

Supported bit rates 10kb/s to 192 kb/s

Icecast

Integrated Icecast server: supports up to 100 subscribers

Source to external Icecast server

Stream relay external Internet radio streams

Headphone output

Female Jack 3.5 mm

USB

Double USB connector type A female (for future use)

RS-232

For metadata insertion to internal Icecast server

HW/SW environment

Barix IPAM400 Processor Module

Linux with dual boot recovery and remote firmware
update capability

User Interface

Web interface for control, status and configuration

HW reset button, LEDs for status

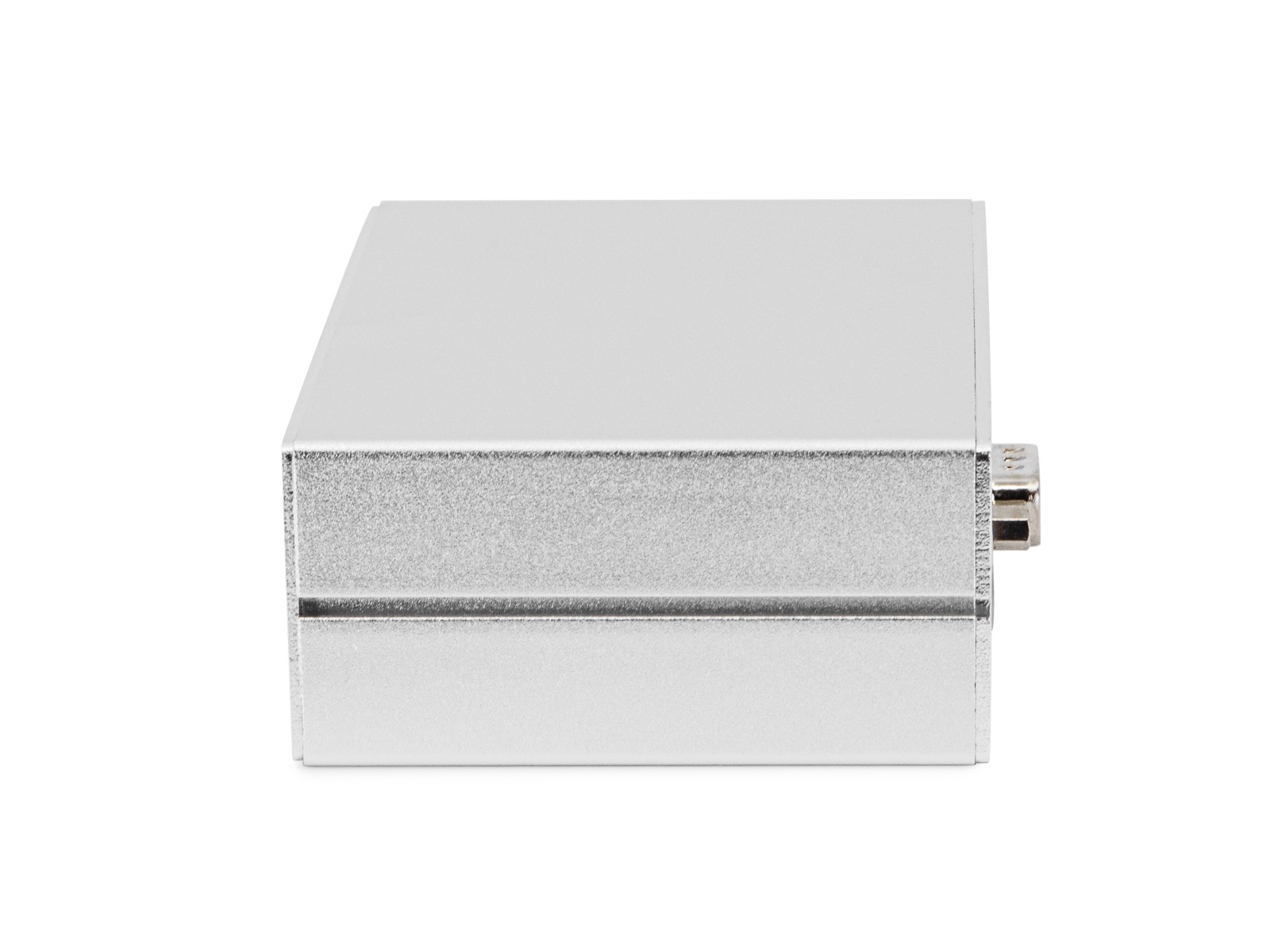

Case & Weight

Aluminum

108x38x78.7mm (4.25×1.5×3.1 inch)

Weight 250g

MTBF

> 199’951h / 22 years

Warranty

Warranty: two years

  • 2018.9237
    Instreamer ICE EU Package
  • 2018.9238
    Instreamer ICE US Package
  • 2018.9239
    Instreamer ICE UK Package
  • 2018.9240
    Instreamer ICE NoPSU Package
