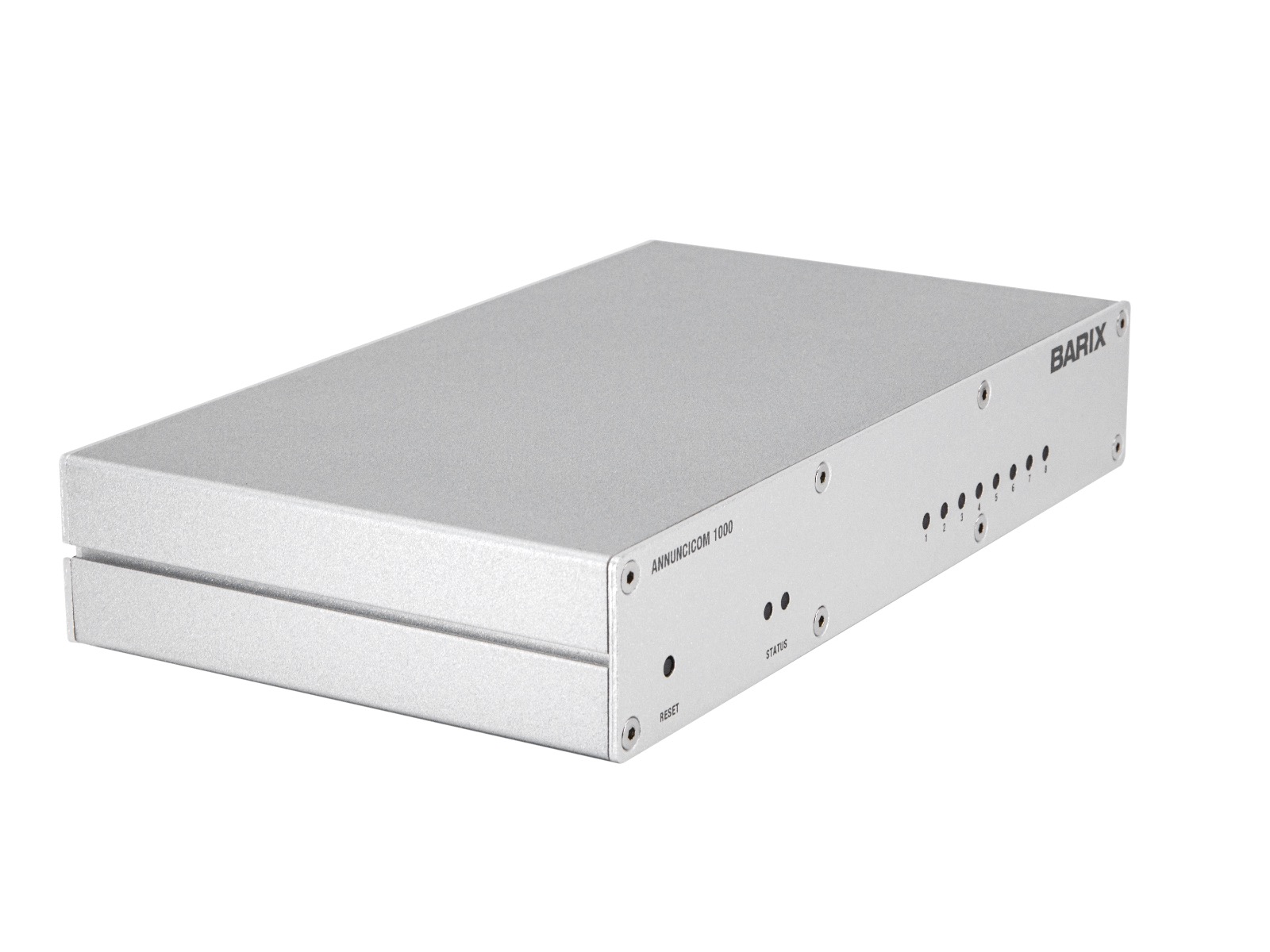

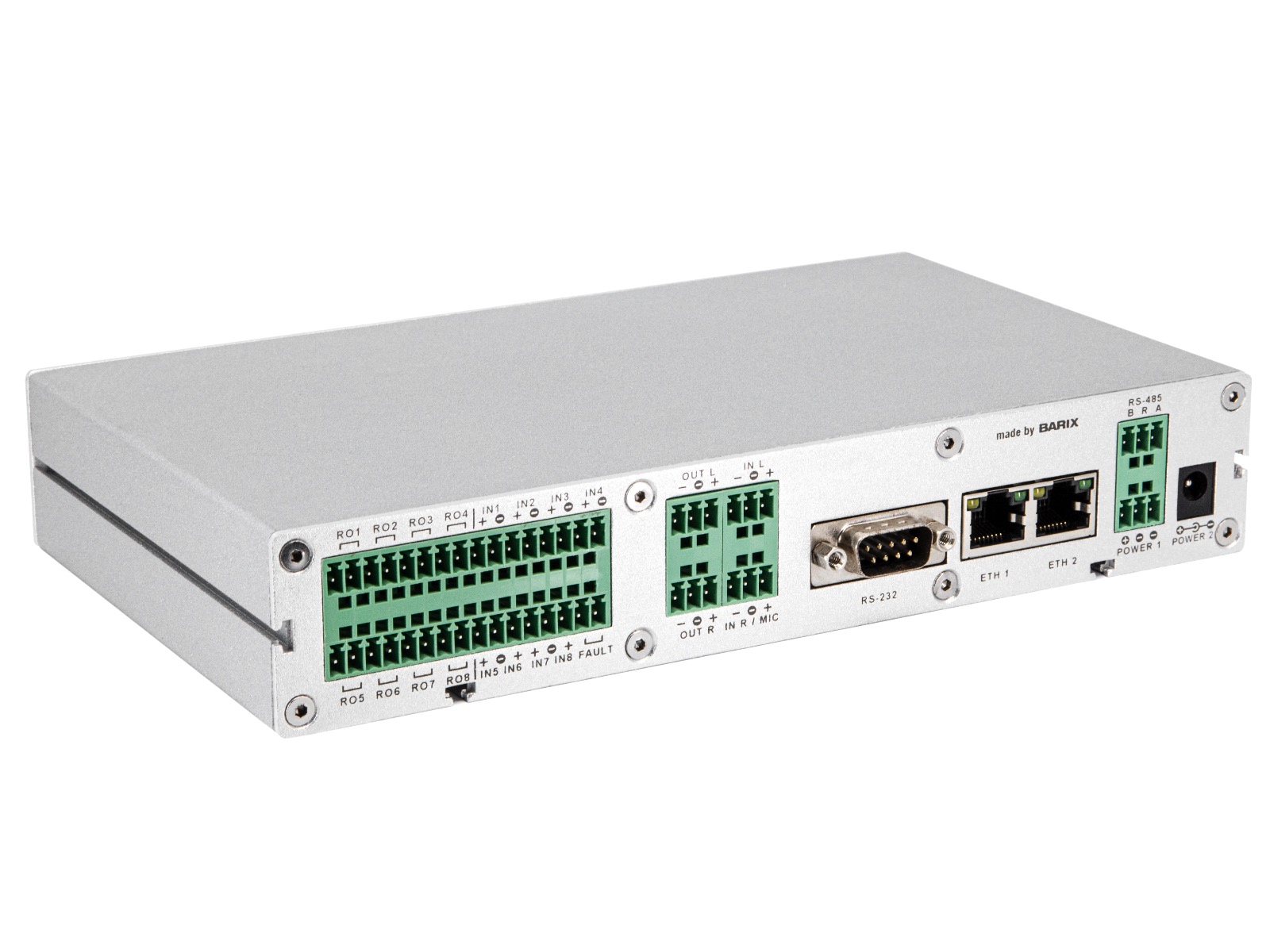

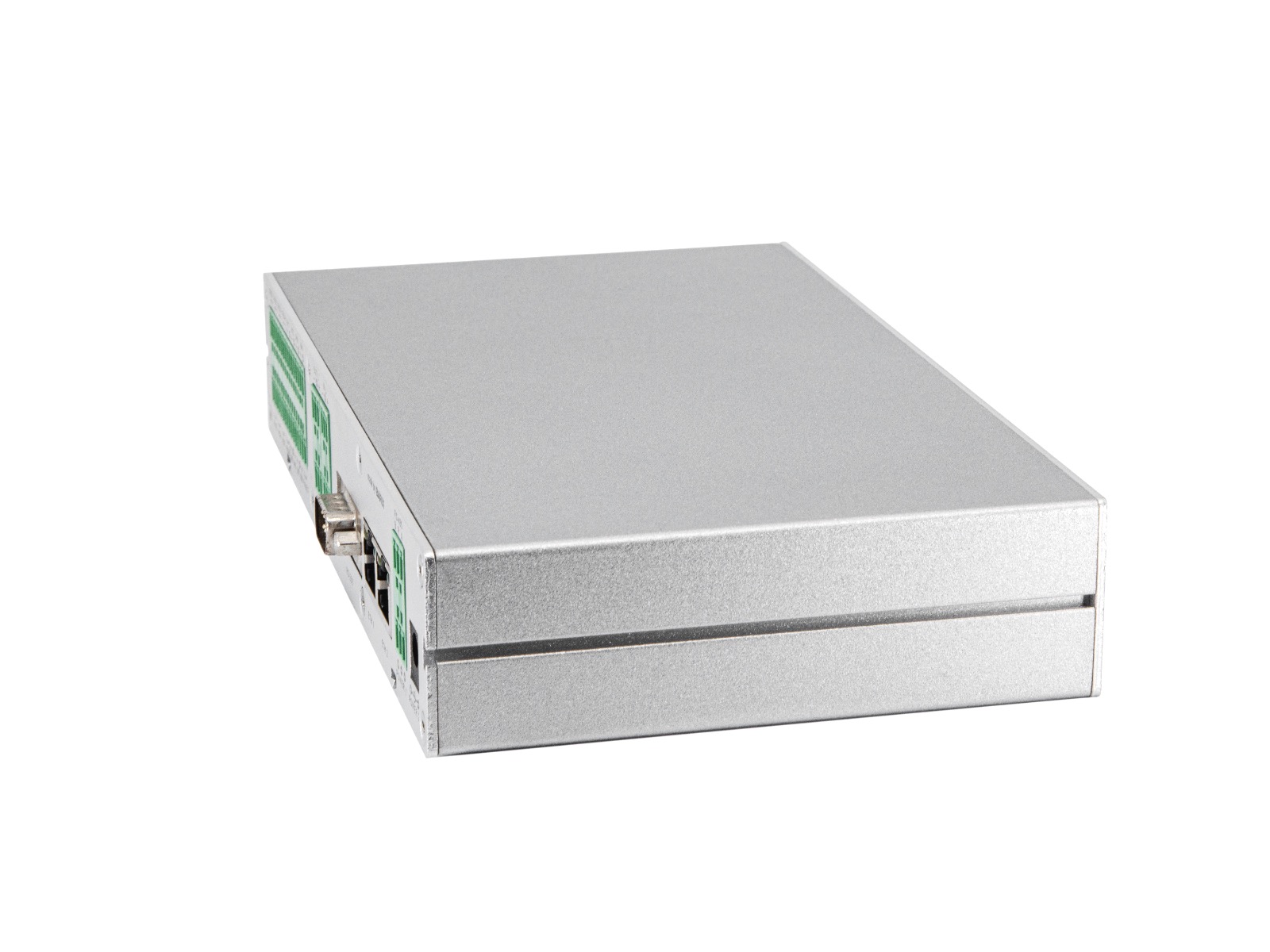

Annuncicom 1000

Professional Intercom / Paging device with supervised contact closures and relay outputs, 48V capable

Professional IP Paging and Intercom codec device for security applications. Balanced Audio interfaces, contact closure input supervision, output relays, redundant power and network connections, switchable microphone input.

Audio Formats

MP3 encoding up to 192 kBit VBR, CBR*, decoding up to

320 kBit (Stereo), G.711 (uLaw/aLaw @ 8 or 24 kHz), G.722* and PCM (16 bit @ 8 or 24 kHz)



Discrete Interfaces

8 supervised Inputs, 8 Relays (dry contacts)

1 Fault Relay output

Audio Interfaces

Mic In (Balanced, Phantom power) or Balanced

Balanced Stereo Line In, 18 kOhm impedance

Input level software controllable


Clippinglevel 3.5 dBu, 3.28 Vpp


Frequency response (-3 dBFS) 20 .. 17000 Hz **


Signal to Noise Ratio 88 dB, THD (-3 dBFS) < 0.1 %


Stereo crosstalk -87 dB



Balanced Stereo Line Out, 40 .. 60 Ohm impedance


Output level software controllable


Full scale output voltage 5.9 dBu, 4.33 Vpp


Frequency response (-3 dBFS) 15 .. 21000 Hz **


Signal to Noise Ratio 92 dB, THD (-3 dBFS) < 0.1 %


Stereo crosstalk -66 dB

Serial Interfaces

RS-232 DSub 9 pin male, 300..115200 Baud

RS-485 screw terminal block, 300..115200 Baud



Control Interfaces

web server for control and configuration



Network Interface

RJ45 10/100 Mbit Ethernet (Auto), TCP/IP, UDP, RTP, SIP, DHCP, SNMP, AutoIP, SonicIP, IPzator



Misc

Ten status LEDs, reset/factory default button

Internal temperature sensor

Power inputs

Two independent, level supervised inputs

24 to 48 VDC ±20% (pos. or neg.), 8 Watt max.



Case

Aluminum, 745 g, 8.5″ x 1.5″ x 4.92″ 216 mm x 38 mm x 125 mm



MTBF

Min. 300 000h acc. to MIL217F at 25°C ambient temperature



* Hardware revision 2 only

** depeds on used codec, best results @48KHz PCM

  • 2007.9076
    Annuncicom 1000 INTL
