IC Paging

Complete Intercom and paging / public address solution over IP networks

The Intercom & Paging Application firmware is the perfect solution for building intercom and paging systems over IP networks with a full-featured master-slave functionality. With this firmware, it’s easy to define groups and zones or multi-master architectures to switch to another control office when the first one is not reachable (f.e. during day/night shift). The same software can be set as ICMaster or ICClient after the installation. The client version supports multichannel Background Music and interrupting voice announcements. On the master station, incoming calls can be shown on the display, set on hold or rejected.  The additional ICgraph Java application allows to develop fully customized graphical interfaces for paging & control from PC. ICGraph is running on various operating systems.

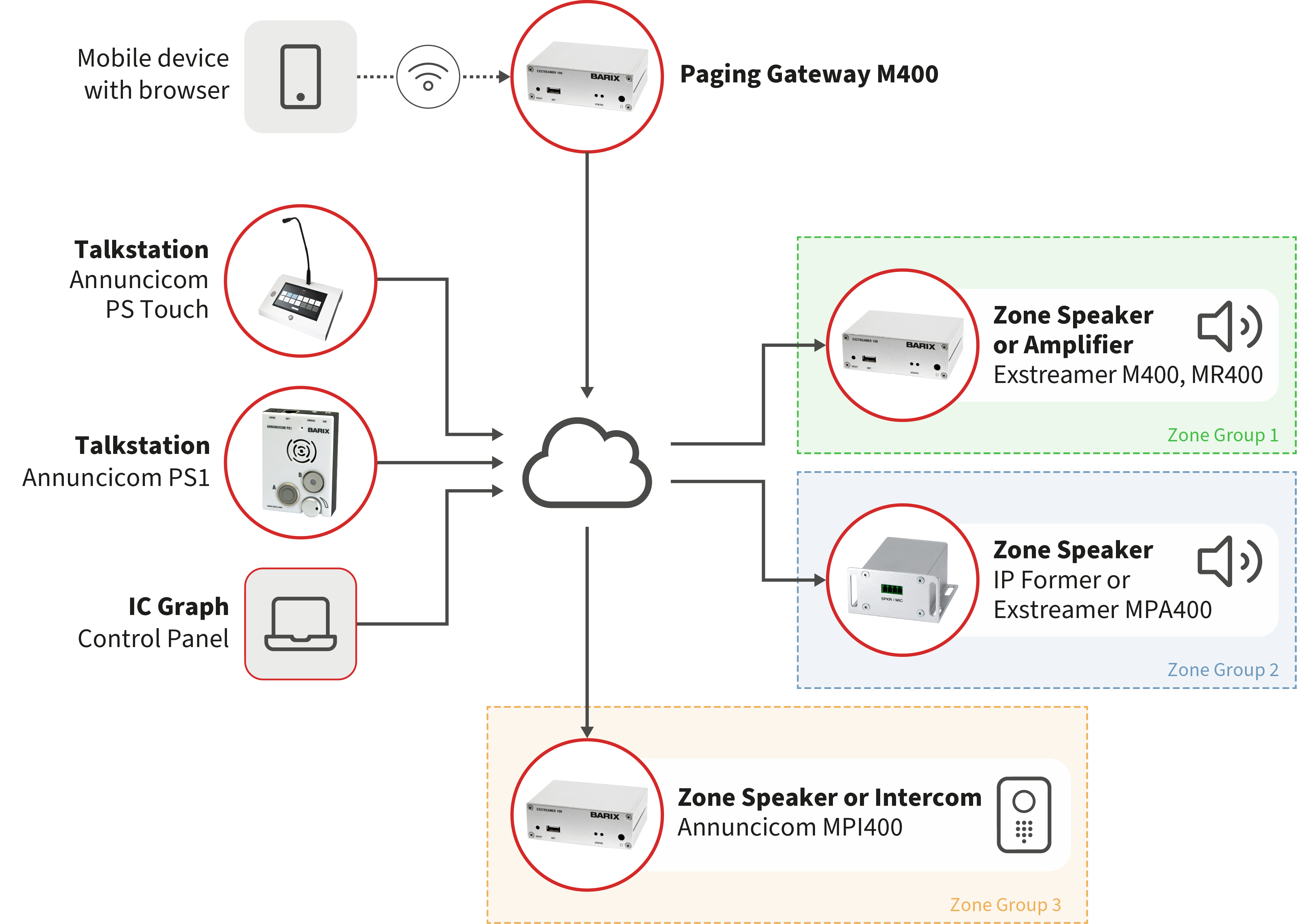

IC Paging Installation Example

Configuration Interface Preview

  • no server needed
  • full or half duplex mode of operation
  • 8 configurable group target buttons, each group can address 128 devices with multicast or broadcast
  • PS Touch allows for 48 devices which can be addressed directly with unicast
  • 4 Master stations support (PS Touch/ICgraph)
  • remote switching of client relay
  • Features priority notification port

Devices Available for IC Paging

IC Paging Annuncicom 60

Paging gateway, small zone device and Intercom device

  • MP3, Ogg Vorbis, G.711, G.722, PCM
  • Shoutcast/Icecast source capability
  • Mic/speaker connection
  • Amplified output 5W (8 Ohm)
  • Contact closure input
  • Power over Ethernet (PoE)

Ordering numbers for Annuncicom 60

  • 2012.9120
    Annuncicom 60
  • 2006.9072
    Wall mount bracket
  • 2007.9082 19’’
    Rack mount shelf (for up to 4 devices)

IC Paging Annuncicom 100

Intercom / Paging codec with contact closure inputs and relay output

  • MP3, G.711, G.722, PCM
  • Shoutcast/Icecast Source capability
  • Mic/speaker connection
  • Amplified Output 2W (8 Ohm)
  • Contact closure inputs, Relay output

Ordering numbers for Annuncicom 100

  • 2006.9062
    Annuncicom 100 EU package
  • 2006.9063
    Annuncicom 100 US package
  • 2006.9064
    Annuncicom 100 NoPSU package
  • 2006.9065
    Annuncicom 100 UK package
  • 2011.5032
    Accessories Power supply 24VDC
  • 2006.9072
    Accessories Wall mount bracket
  • 2007.9082
    Accessories 19“ Rack mount
  • 2006.9054
    Accessories Cable Set Audio

IC Paging Annuncicom 200

Intercom / Paging codec with 8W amplifier

  • MP3, G.711, G.722, PCM
  • Shoutcast/Icecast Source capability
  • Mic/speaker and line level interfaces
  • Amplified output 8W (8 Ohm)
  • Contact closure inputs, relay output
  • Aiphone Door Station Interface (IE/JE series)

Ordering numbers for Annuncicom 200

  • 2008.9090
    Annuncicom 200 PoE package
  • 2011.5032
    Accessories Power supply 24VDC
  • 2006.9072
    Accessories Wall mount bracket
  • 2007.9082
    Accessories 19“ Rack mount
  • 2006.9054
    Accessories Cable Set Audio

IC Paging Annuncicom PS1

IP Intercom and paging master station

  • Built-in speaker and microphone
  • Built in encoder and decoder
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Target/Function Buttons
  • Power over Ethernet (PoE)

Ordering numbers for Annuncicom PS1

  • 2012.9118
    Annuncicom PS1 INTL package

    Device only – Desktop stand with screws and rubber feet

  • 2012.9117
    Annuncicom PS1 Accessory Kit

    Package contents
    – Guiding bracket for gooseneck mic
    – Mini-jack gooseneck microphone

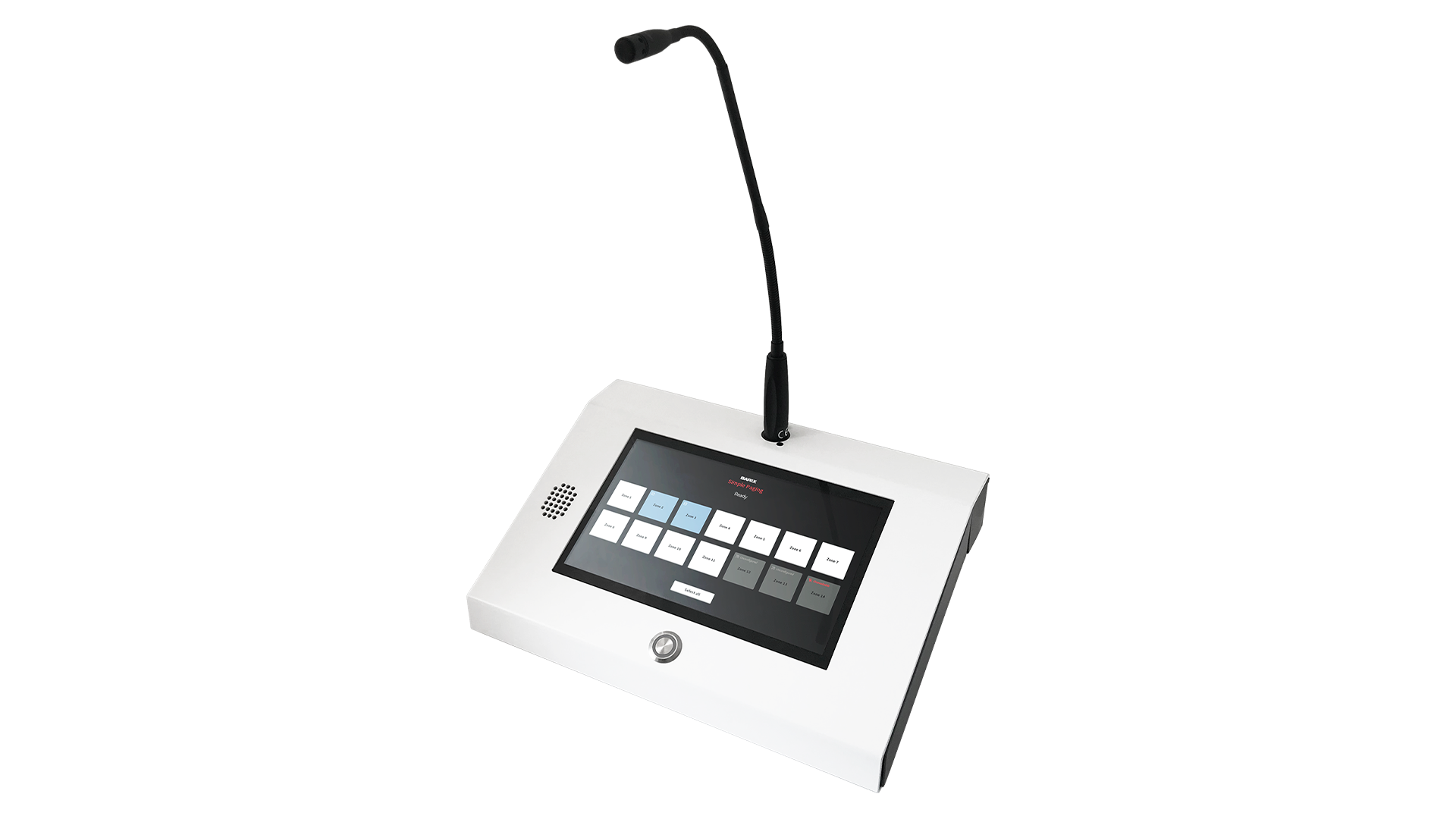

IC Paging Annuncicom PS Touch

Advanced IP Intercom and paging master station with security and redundancy

  • TCP/IP, RTP, UDP, ICMP, DHCP, SNMP
  • 5-Watt output speaker
  • AACplus, MP3, Ogg Vorbis, G.711, G.722, PCM Decoding
  • XLR microphone connector with 13 Volt bias voltage
  • Power over Ethernet (PoE)
  • 14 Softtouch Zone Selectors & 1 Hardware Paging Button

Ordering numbers for Annuncicom PS Touch

  • 2020.9305
    Annuncicom PS Touch SimplePaging
  • 2020.9315
    Annuncicom PS Touch IC-Paging

IC Paging Exstreamer 100, 105, 110, 120

IP Audio decoders for broadcast, interner radio and VoIP applications

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Line Level Output (Stereo)
  • RS-232 Serial Port
  • Optional: Relay Output, IR receiver and Display
  • MicroSD or USB Flash Interface

Ordering numbers for Exstreamer 100, 105, 110, 120

  • 2005.9051
    Extreamer 100 EU package
  • 2005.9052
    Extreamer 100 US package
  • 2006.9056
    Extreamer 100 NoPSU package
  • 2006.9057
    Extreamer 100 UK package
  • 2011.9109
    Extreamer 105 EU package
  • 2011.9110
    Extreamer 105 US package
  • 2011.9111
    Extreamer 105 UK package
  • 2007.9079
    Extreamer 110 EU package
  • 2007.9080
    Extreamer 110 US package
  • 2007.9083
    Extreamer 110 UK package
  • 2008.9087
    Extreamer 110 NoPSU package
  • 2010.9100
    Extreamer 120 EU package
  • 2010.9101
    Extreamer 120 US package
  • 2010.9102
    Extreamer 120 UK package
  • 2010.9103
    Extreamer 120 NoSPU package
  • 2006.9072
    Wall Mounting Bracket
  • 2007.9082
    Barix 19″ Rack mount
  • 2006.9054
    Cable Set Audio
  • 2003.9017
    IR Kit (Reciever + Remote)

IC Paging Exstreamer 200, 205

IP Audio decoders that plays out via a built-in amplifier to 8 Ohm speakers

  • G.711, uLaw, aLaw, PCM Encoding
  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Amplified Output 2x25W (8 Ohm)
  • IR interface
  • MicroSD or USB Flash Interface

Ordering numbers for Exstreamer 200, 205

  • 2005.9055
    Exstreamer 200 EU/US package
  • 2011.9113
    Exstreamer 205 EU/US package
  • 2006.9054
    Cable Set Audio
  • 2003.9017
    IR Kit (Receiver + Remote)
  • 2006.9072
    Wall Mounting Bracket
  • 2007.9082
    Barix 19’’ Rack mount

IC Paging Exstreamer P5

PoE powered IP speaker to make any 8 Ohm speaker IP capable

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Amplified Output 5W (8 Ohm)
  • RS-485 and IR port for local control
  • Powered over Ethernet (PoE)

Ordering numbers for Exstreamer P5

  • 2010.9104
    Exstreamer P5 PoE package

IC Paging IC Graph

Customized communication interfaces

  • Build user interfaces
  • Easy to configure
  • Java based
  • Free to use

Ordering numbers for IC Graph

IC Paging Paging Gateway M400

Bridges Smartphones, Computer and Tablet with Analog and IP Paging Systems

  • L-R Line Out on RCA Connectors (unbalanced)
  • Multi-level message priority
  • G.711 over RTP

Ordering numbers for Paging Gateway M400

  • 2021.9347P Paging Gateway M400 EU Packaging
  • 2021.9348P Paging Gateway M400 US Packaging
  • 2021.9349P Paging Gateway M400 UK Packaging
  • 2021.9350P Paging Gateway M400 NoPSU Packaging
