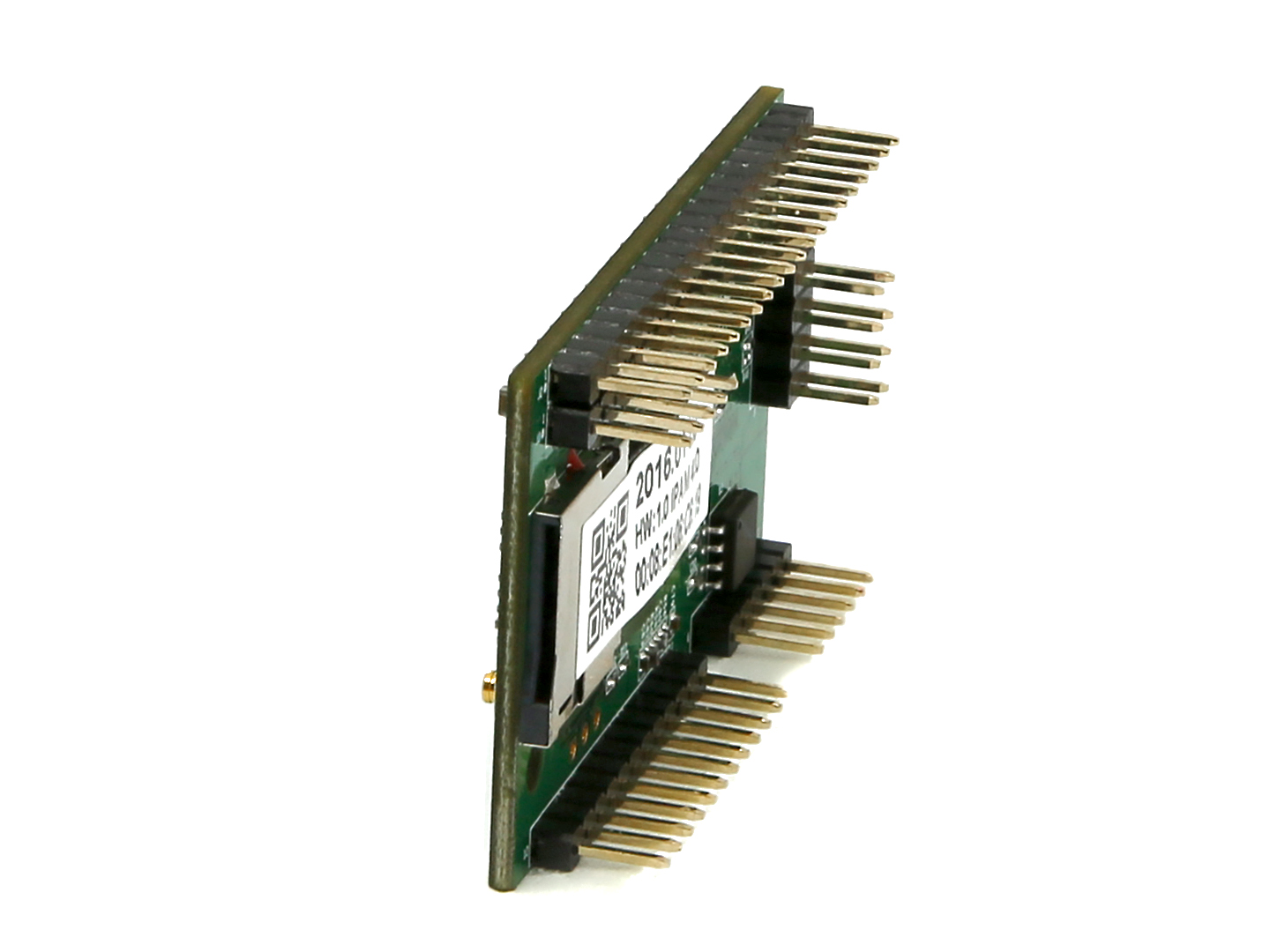

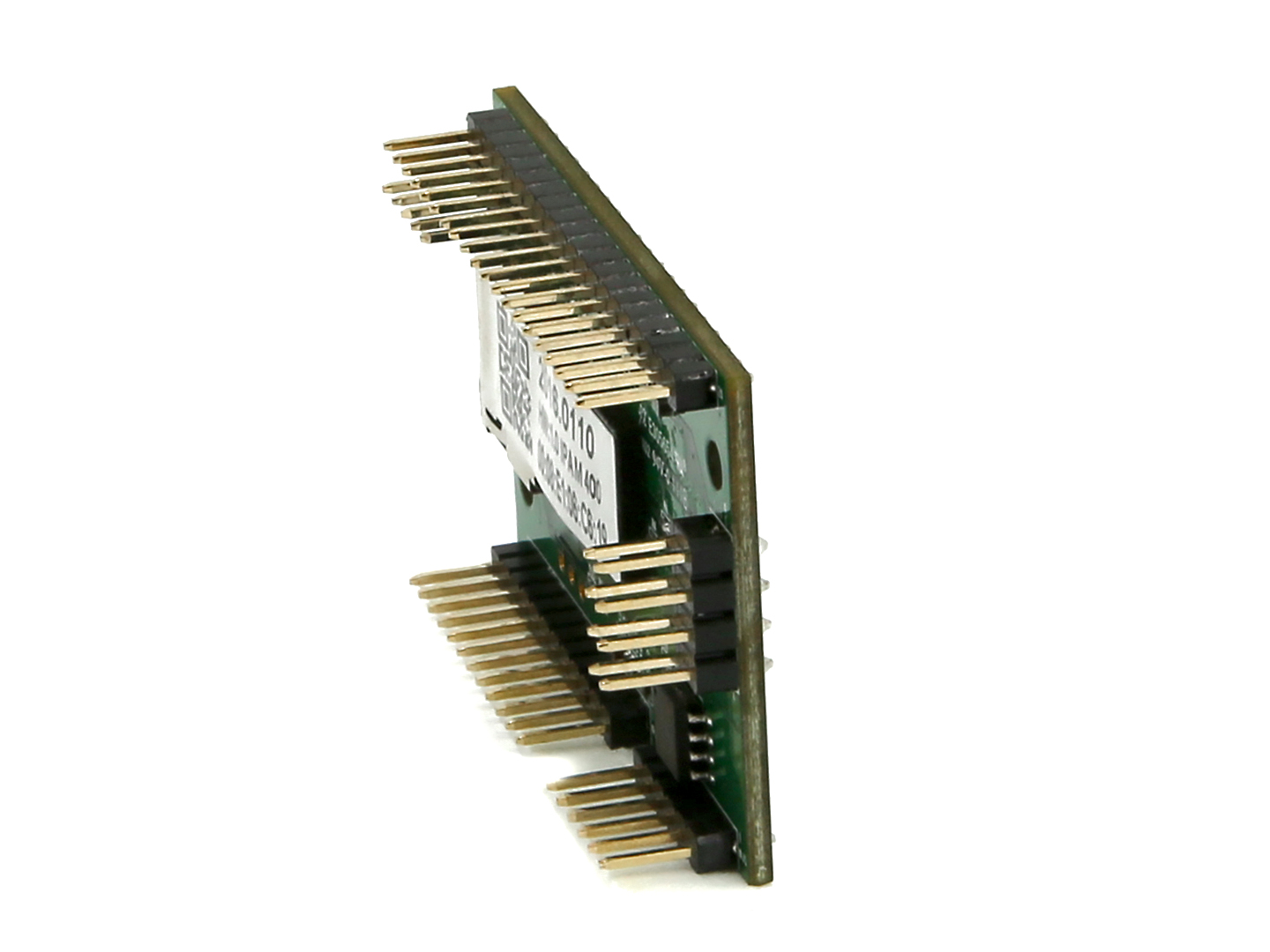

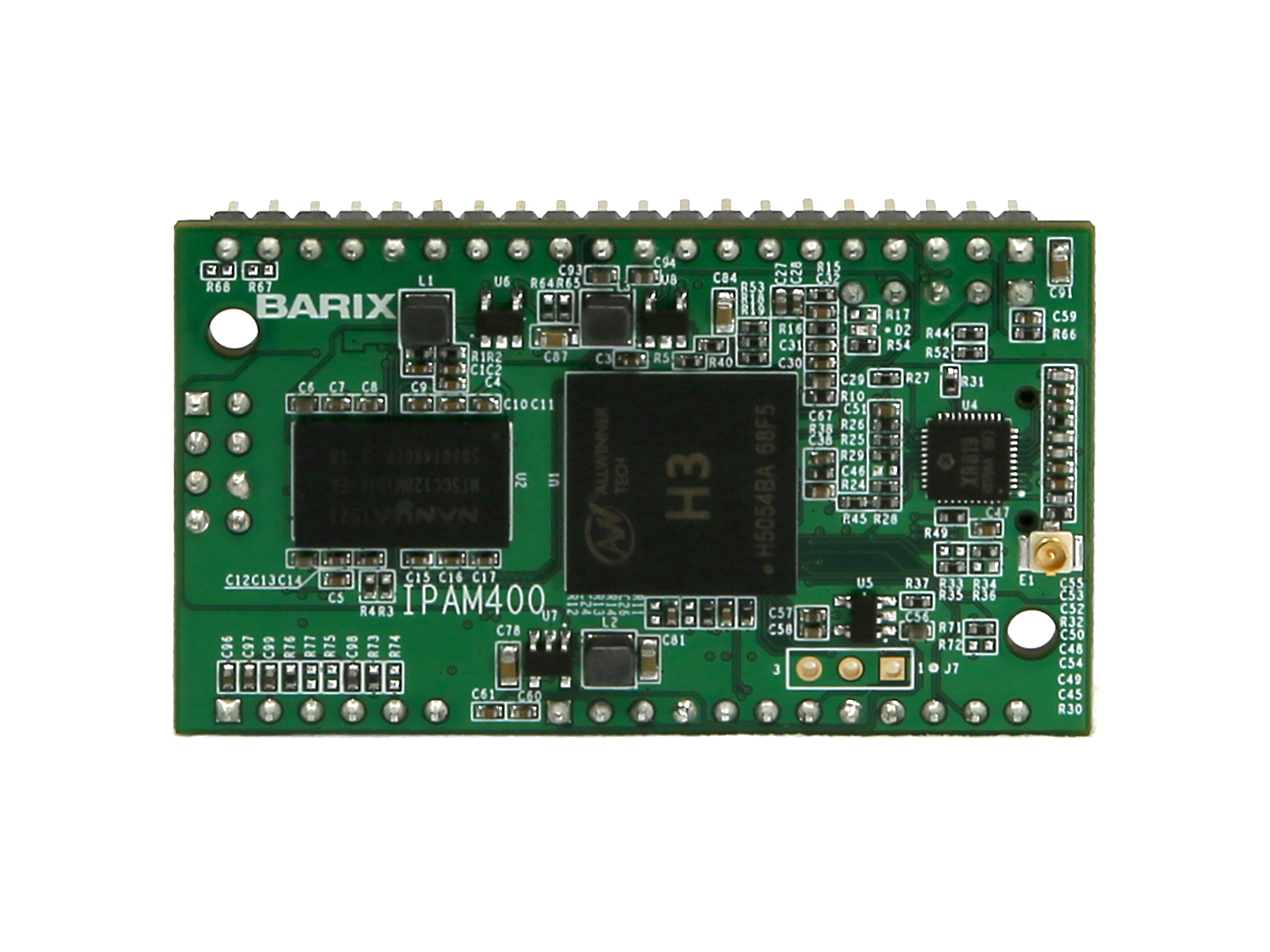

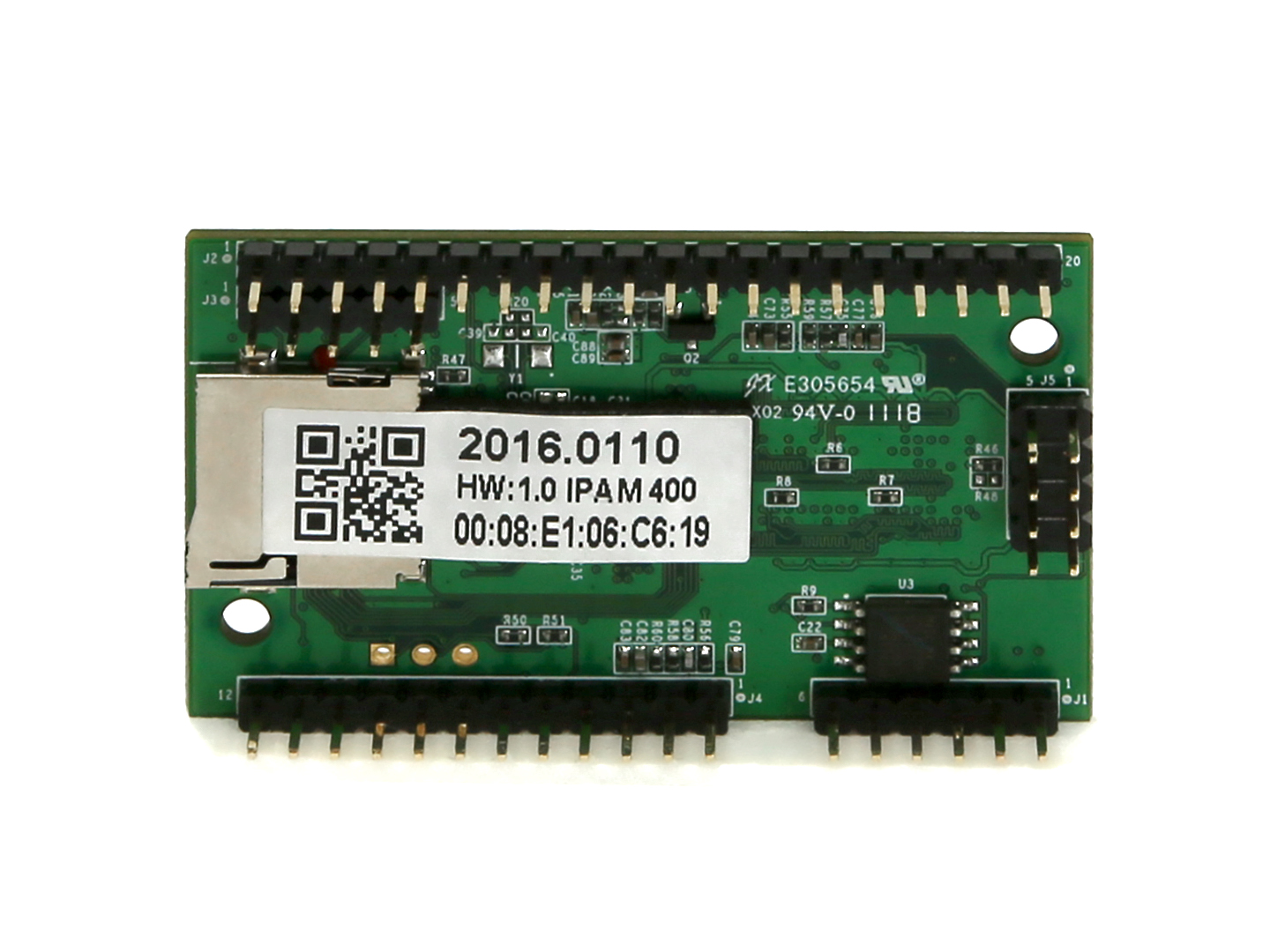

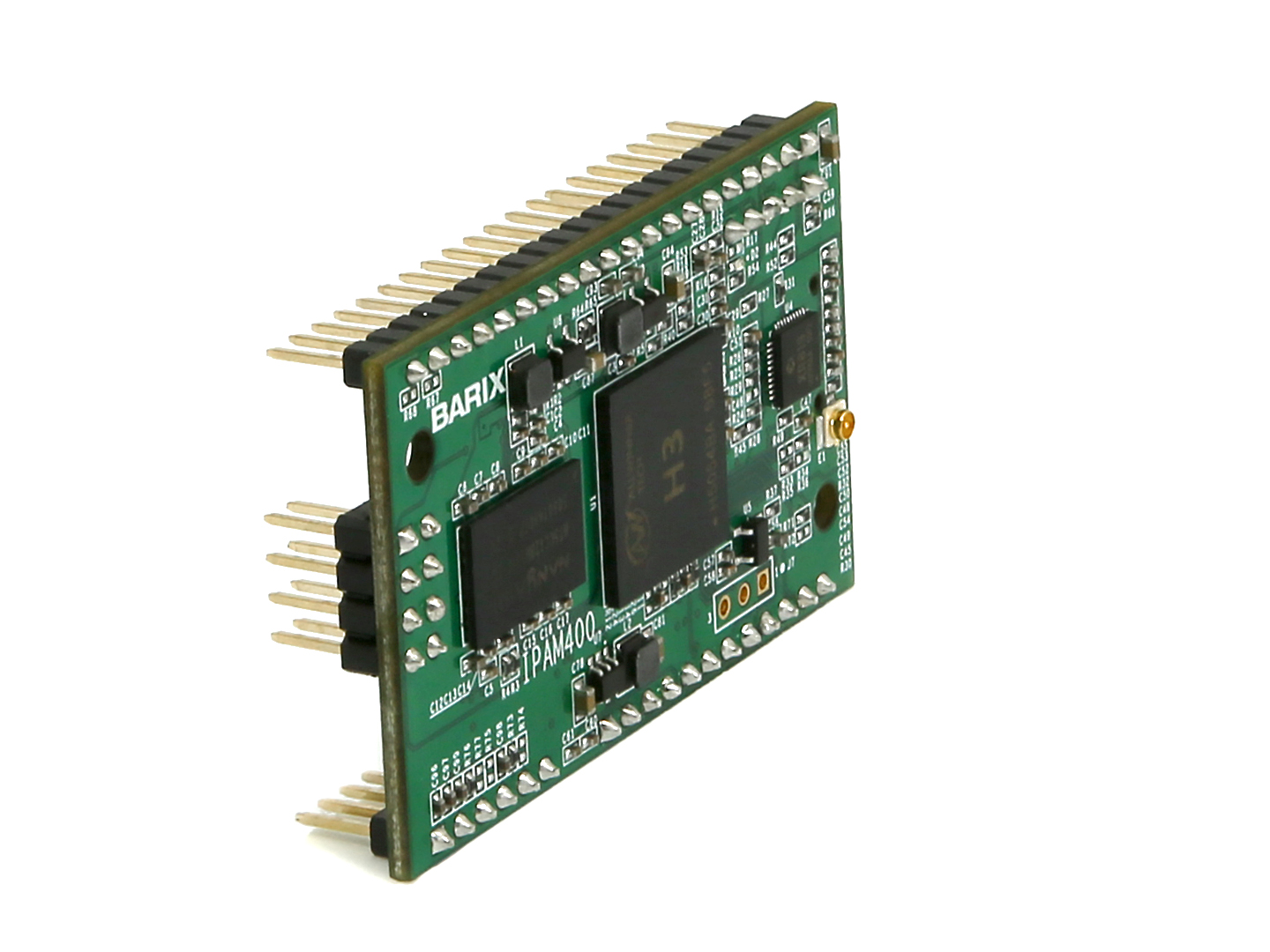

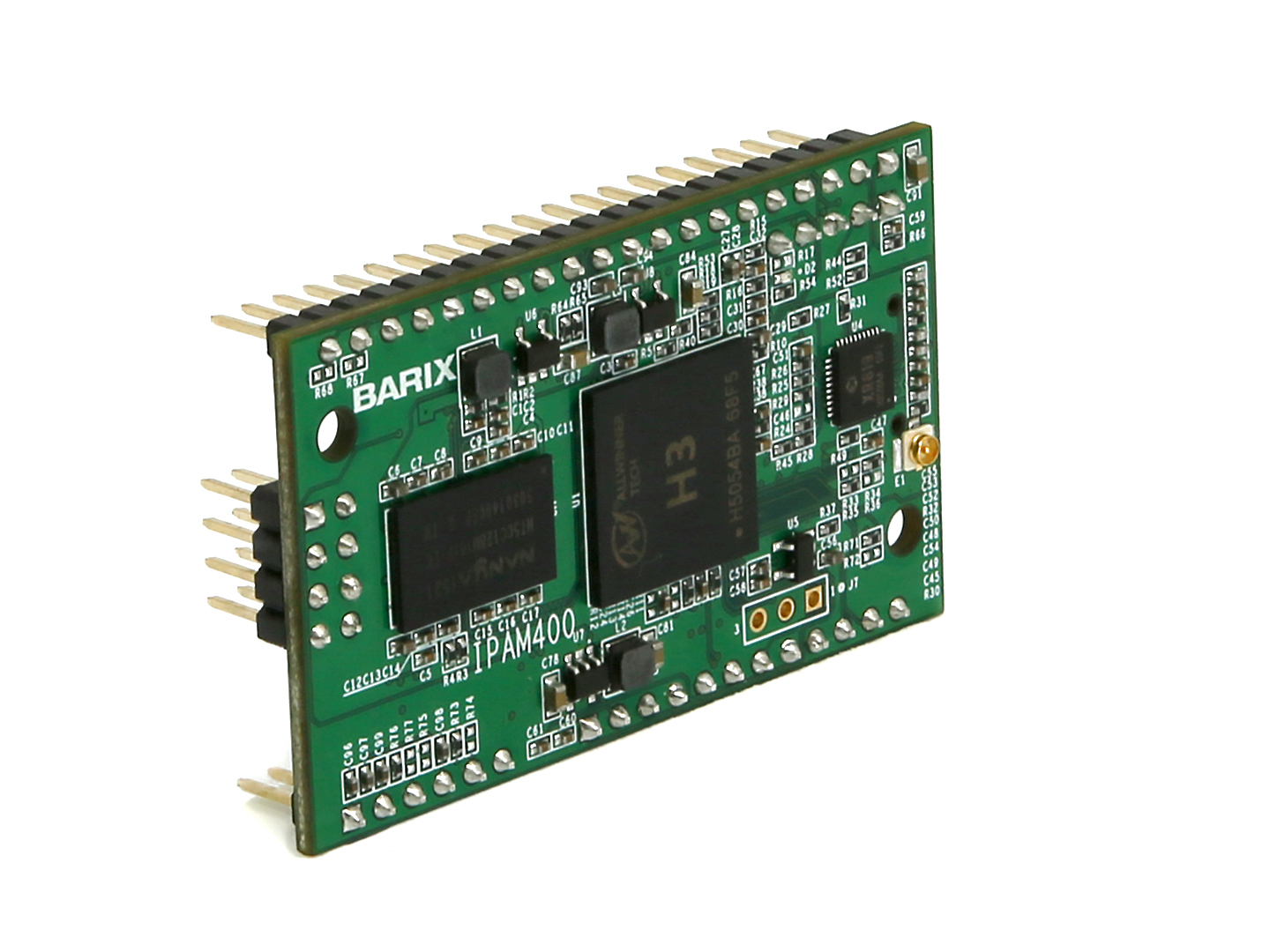

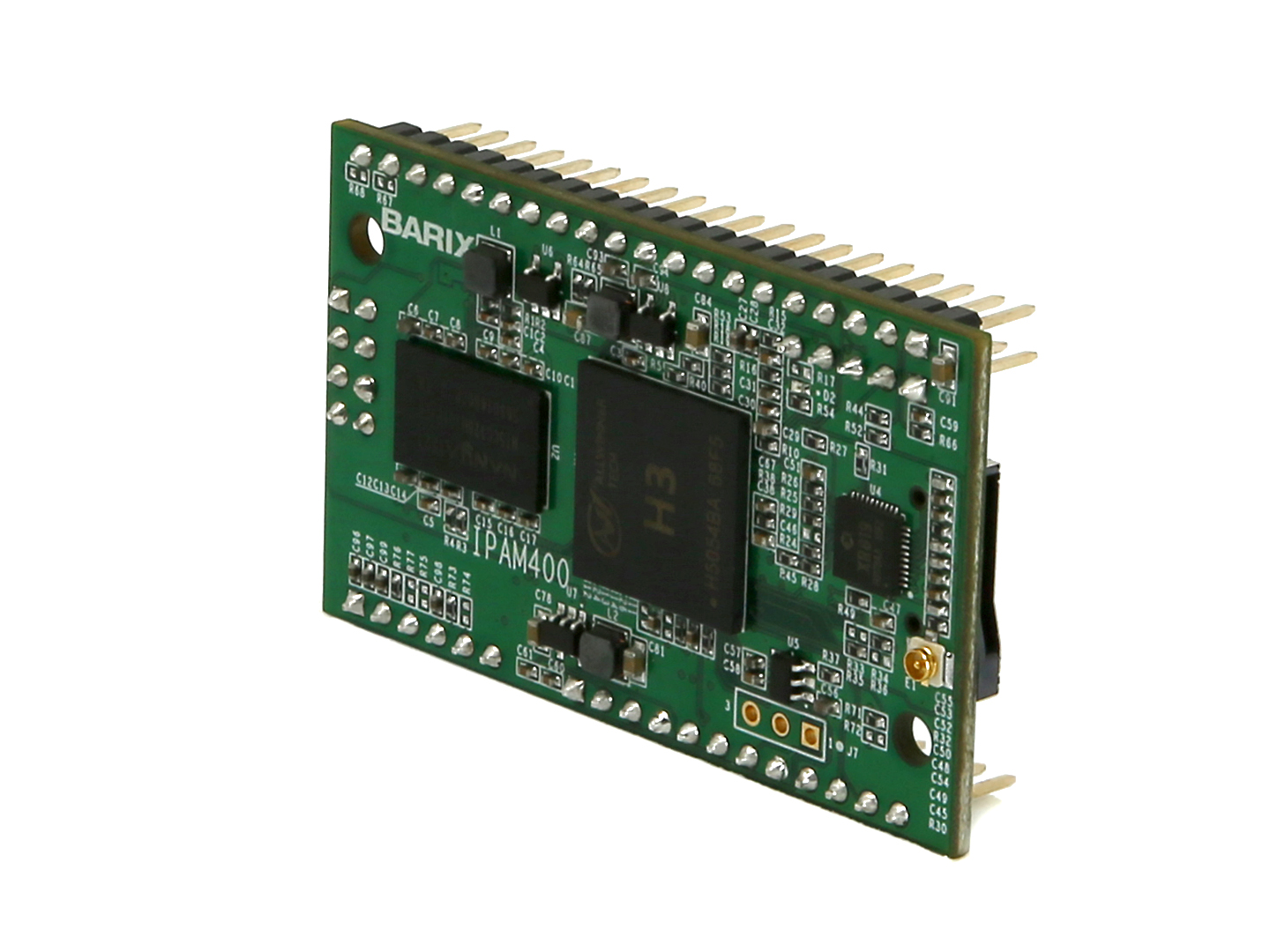

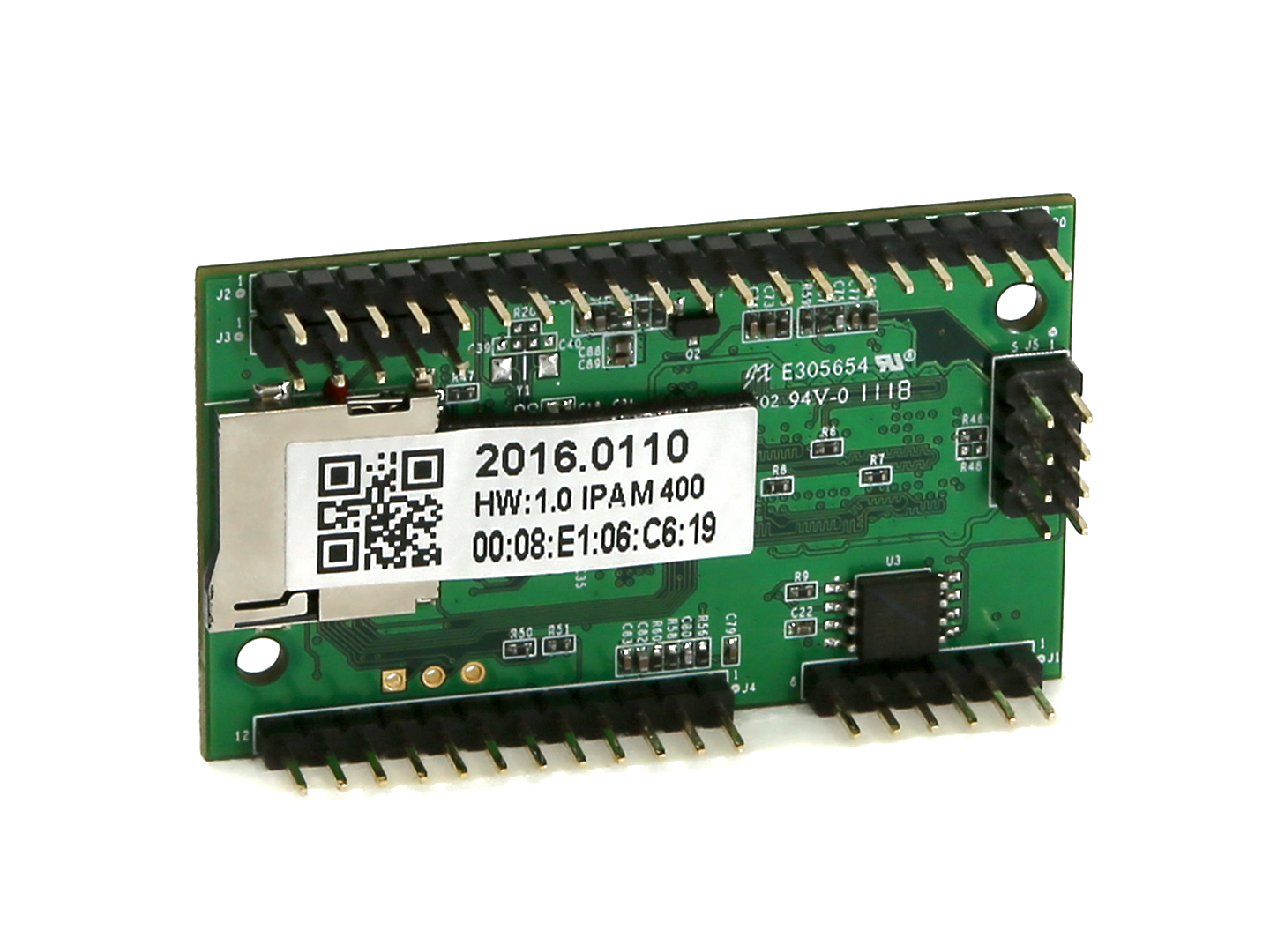

The IP Audio Module (IPAM) 40x is a powerful universal, standalone, Linux based IP Audio function block, which can be easily embedded into OEM products and programmed with the programming language of your choice including C++ and PHYTON. Supporting a vast range of protocols, codecs and interfaces and providing on board memory as well as a μSD card slot, the module is ideal for all audio related applications such as VoIP, IP intercom and paging as well as high quality music distribution. 10/100 Mbit Ethernet port, three USB interfaces a variety of I/Os as well as a serial interface are provided. The Quadcore Cortex™ A7 processor allows for very fast encoding and packet handling and is performant enough to support all advanced security end encryption requirements.
Yocto (OpenEmbedded), Linux ( Armbian) including update functionality
IPv4/IPv6, security, full fledged linux
Web interface for control, status and configuration
one physical layer (PHY)
Ethernet interface, IPv4, IPv6 capable
TCP/IP, RTP, UDP, ICMP, DHCP, SIP, SNMP
10/100 fdx/hdx, auto negotiation
Fully compatible with IPAM400 hardware and firmware
Single 3.3V DC supply voltage, +/- 5%, 2A max
Separate Audio ground domain/connection
2 x UART, one with hardware handshake (TTL level)
1 x USB 2.0 On-the-go
2 x USB 2.0 full/hi/low speed capable host
256MB DDR3 RAM
16MB SPI flash
32KB L1 Instruction cache, 32KB L1 data cache
512KB L2 cache
VFPv4 Floating point unit
LPAE and NEON advanced SIMD
* Potential licenses are not included. For licensed Codecs such as AAC+ customer needs to register with the appropriate licensing company.

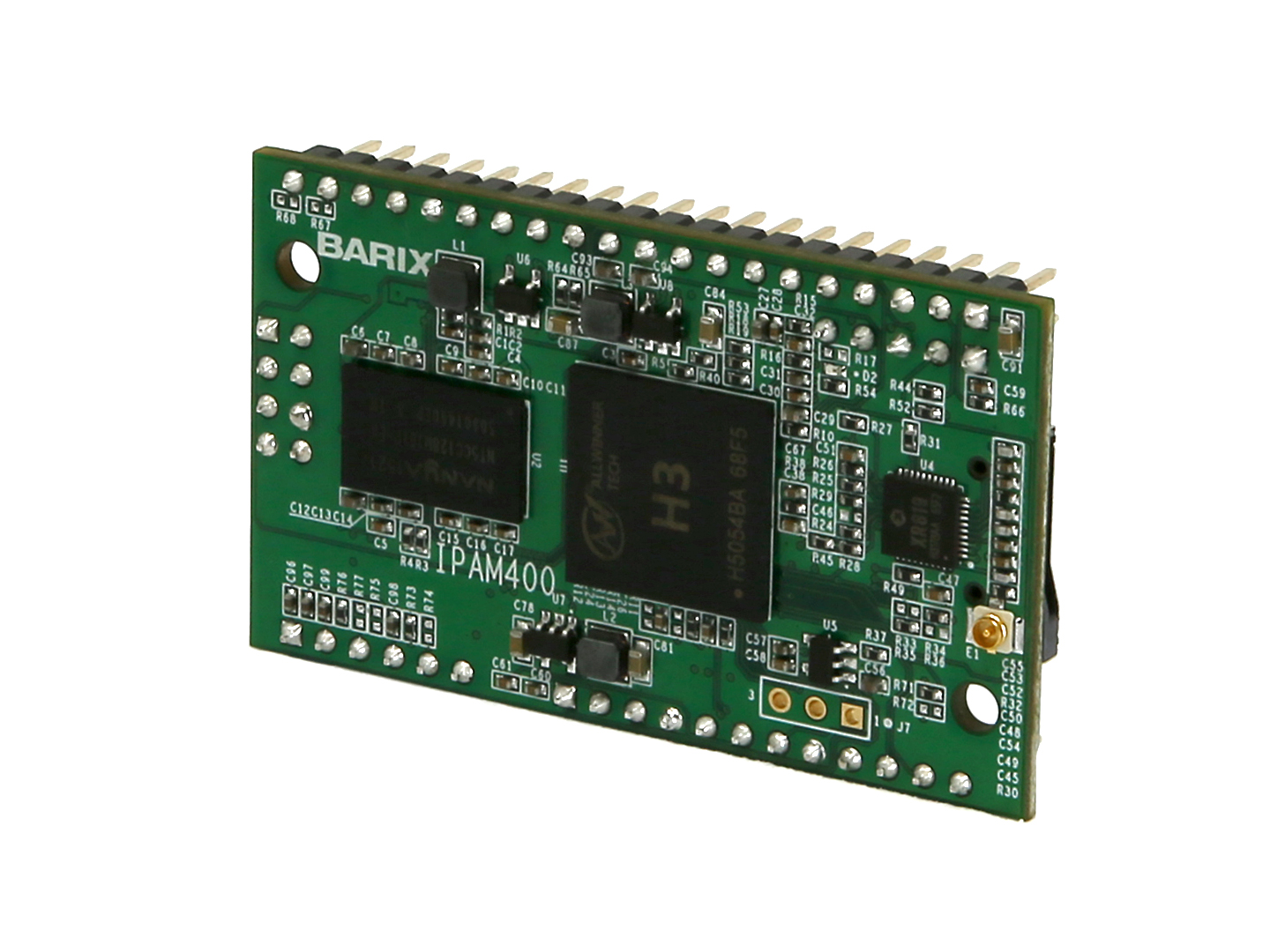

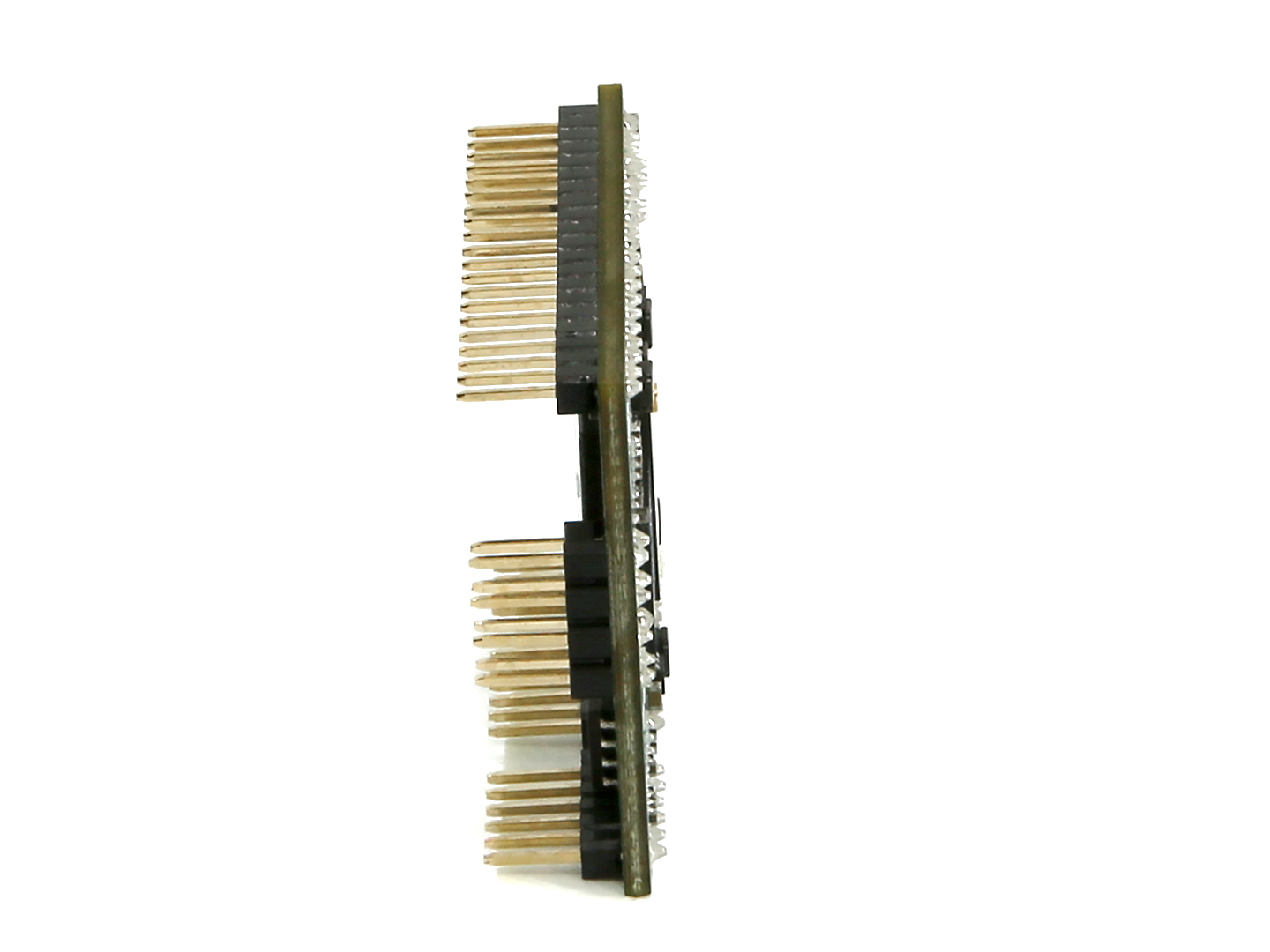

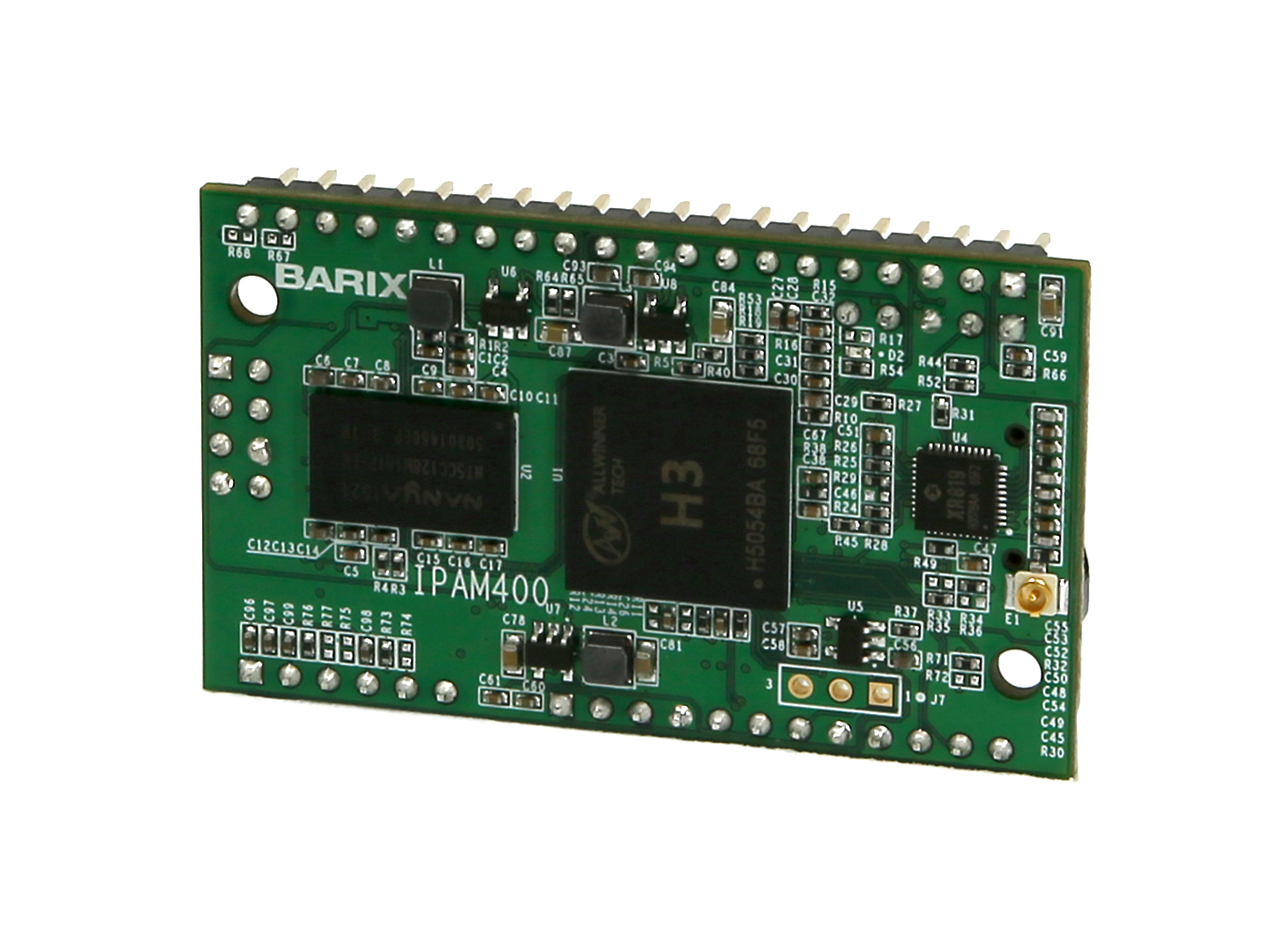

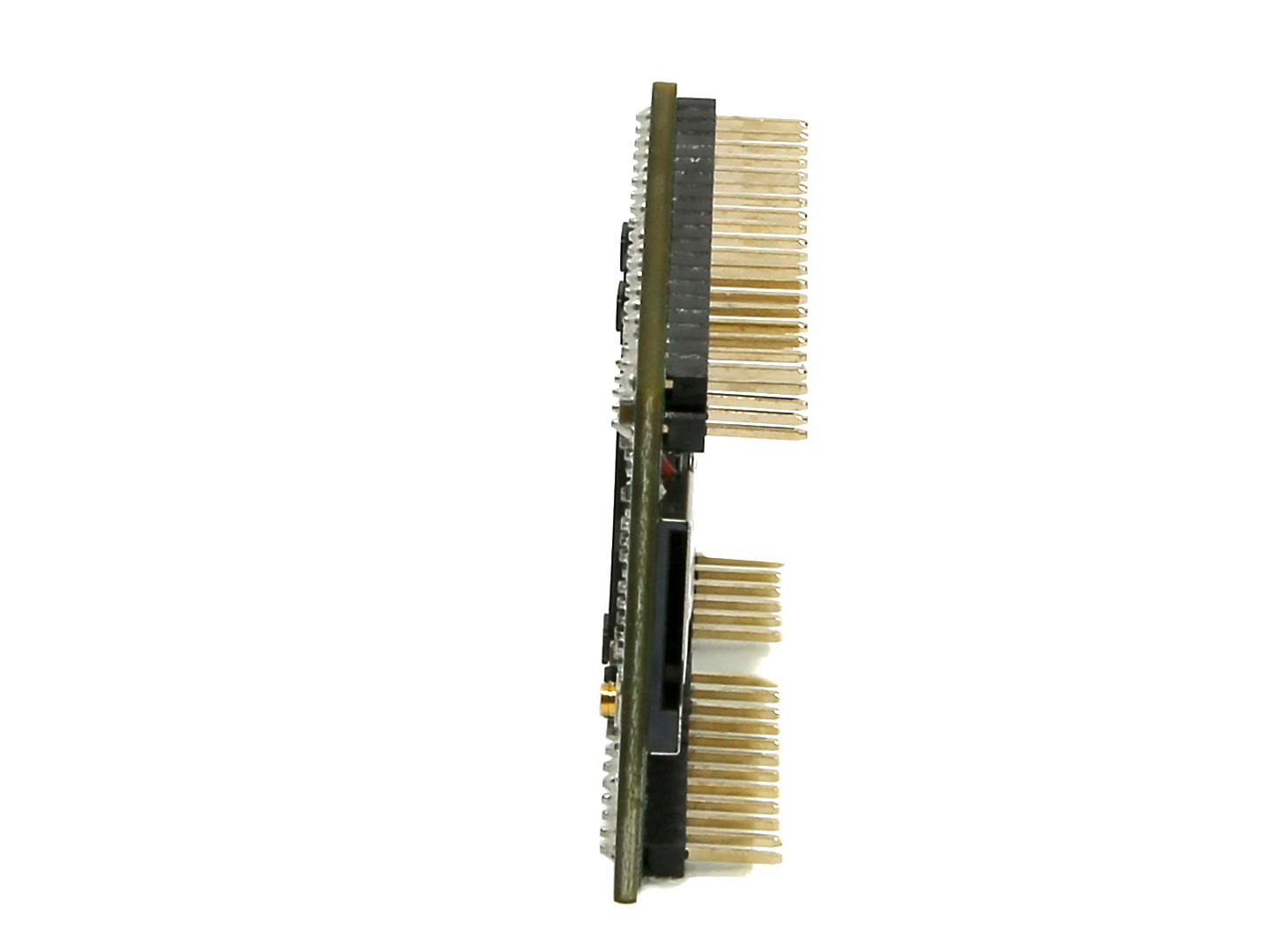

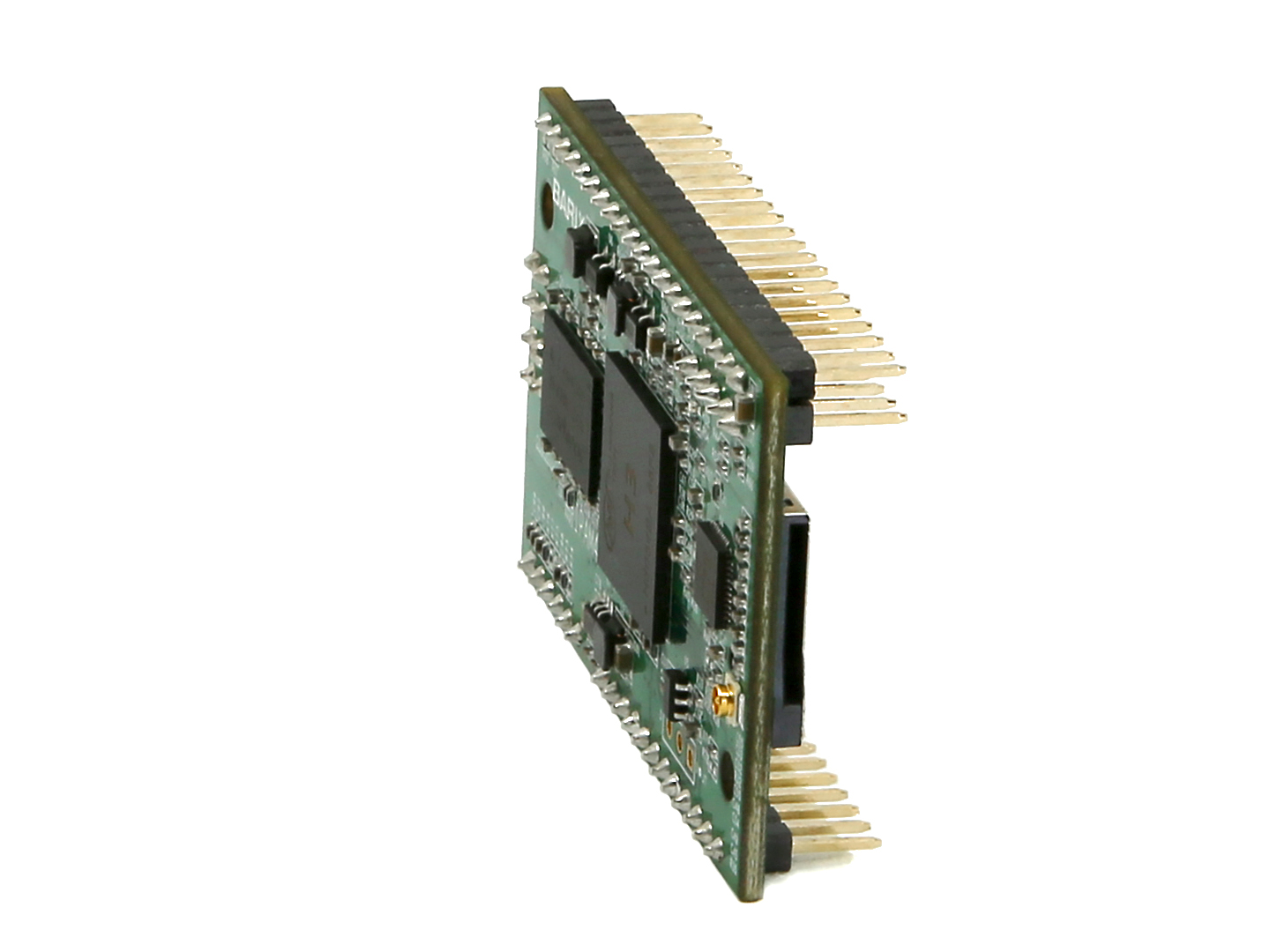

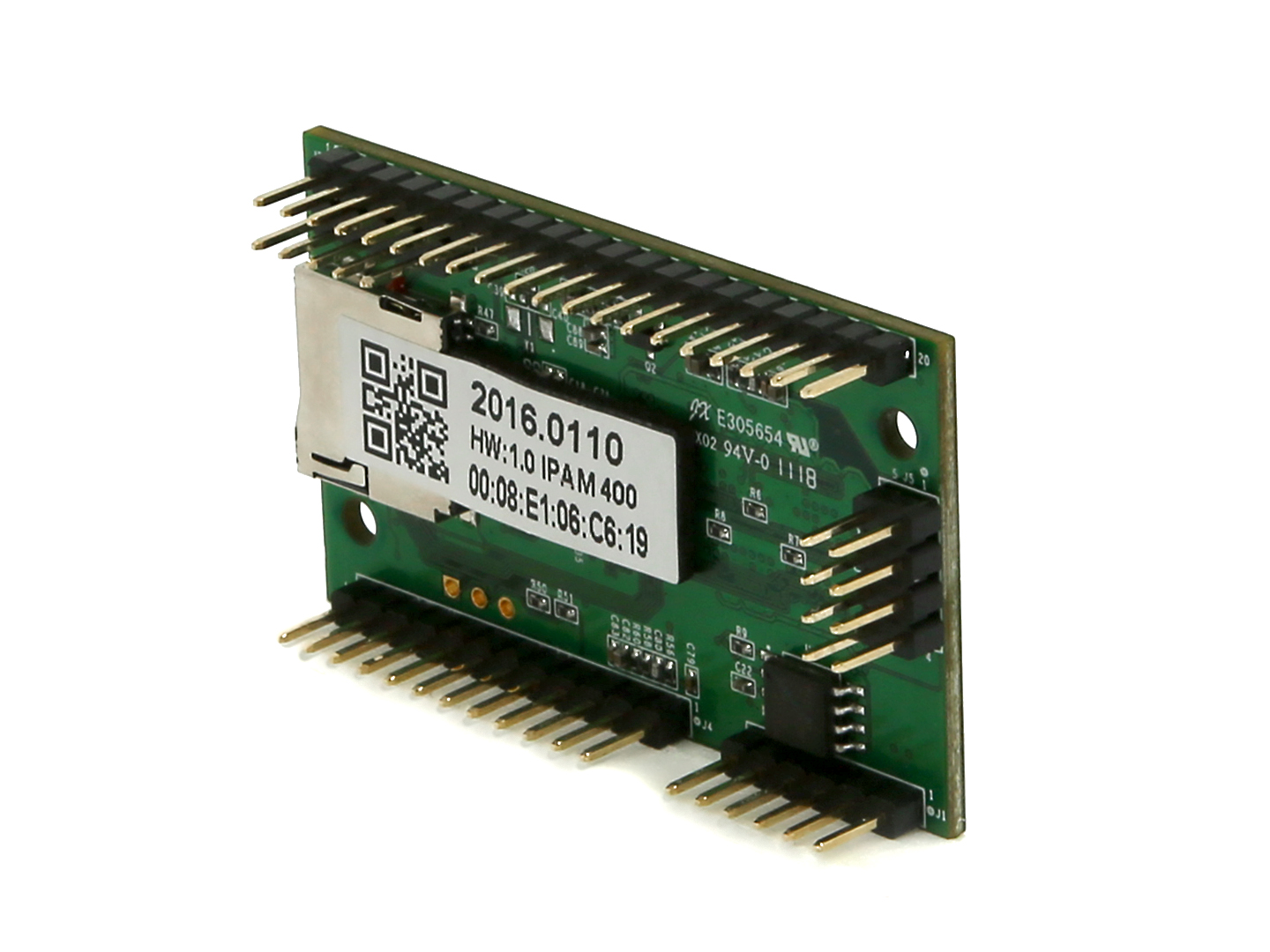

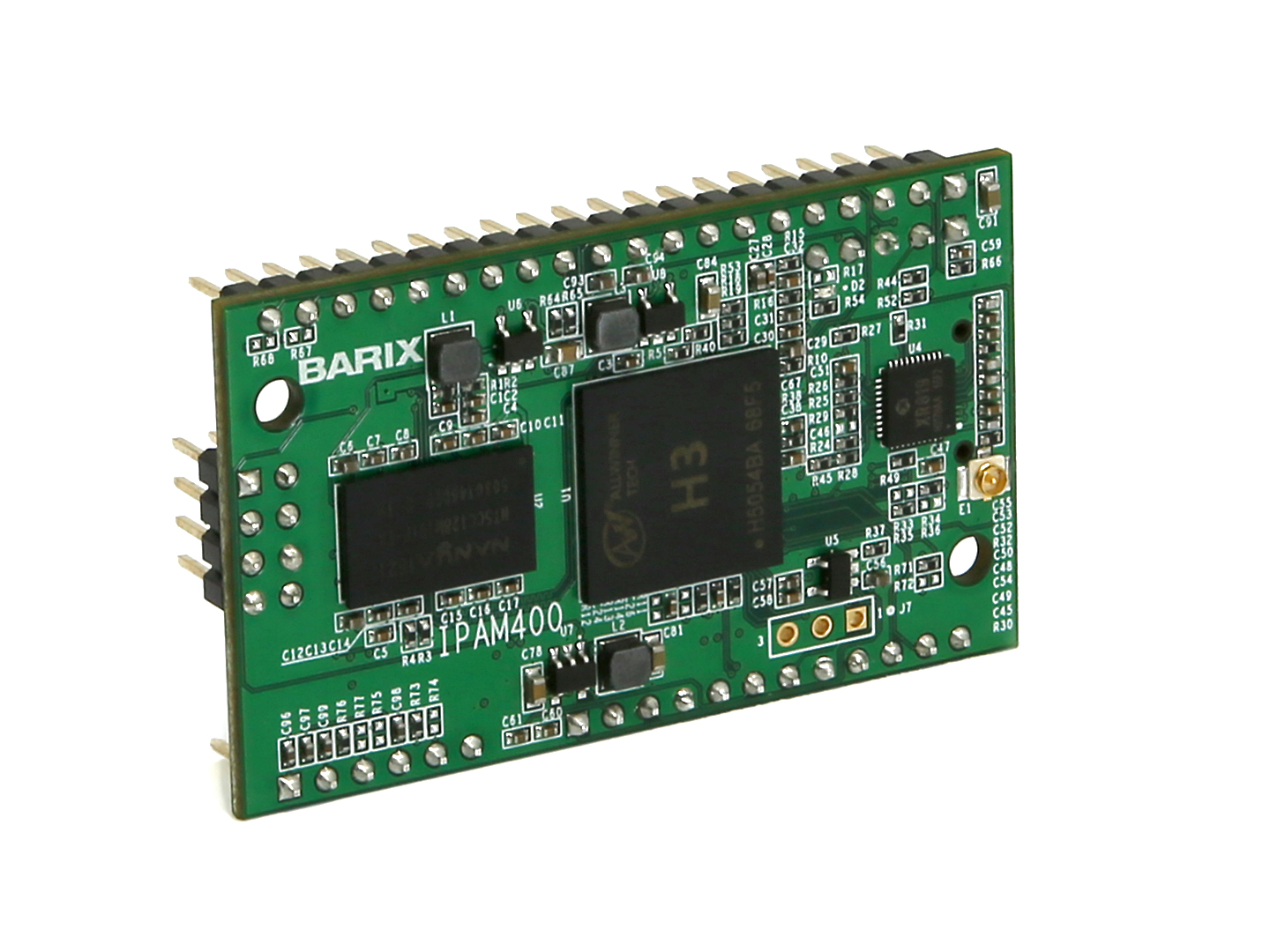

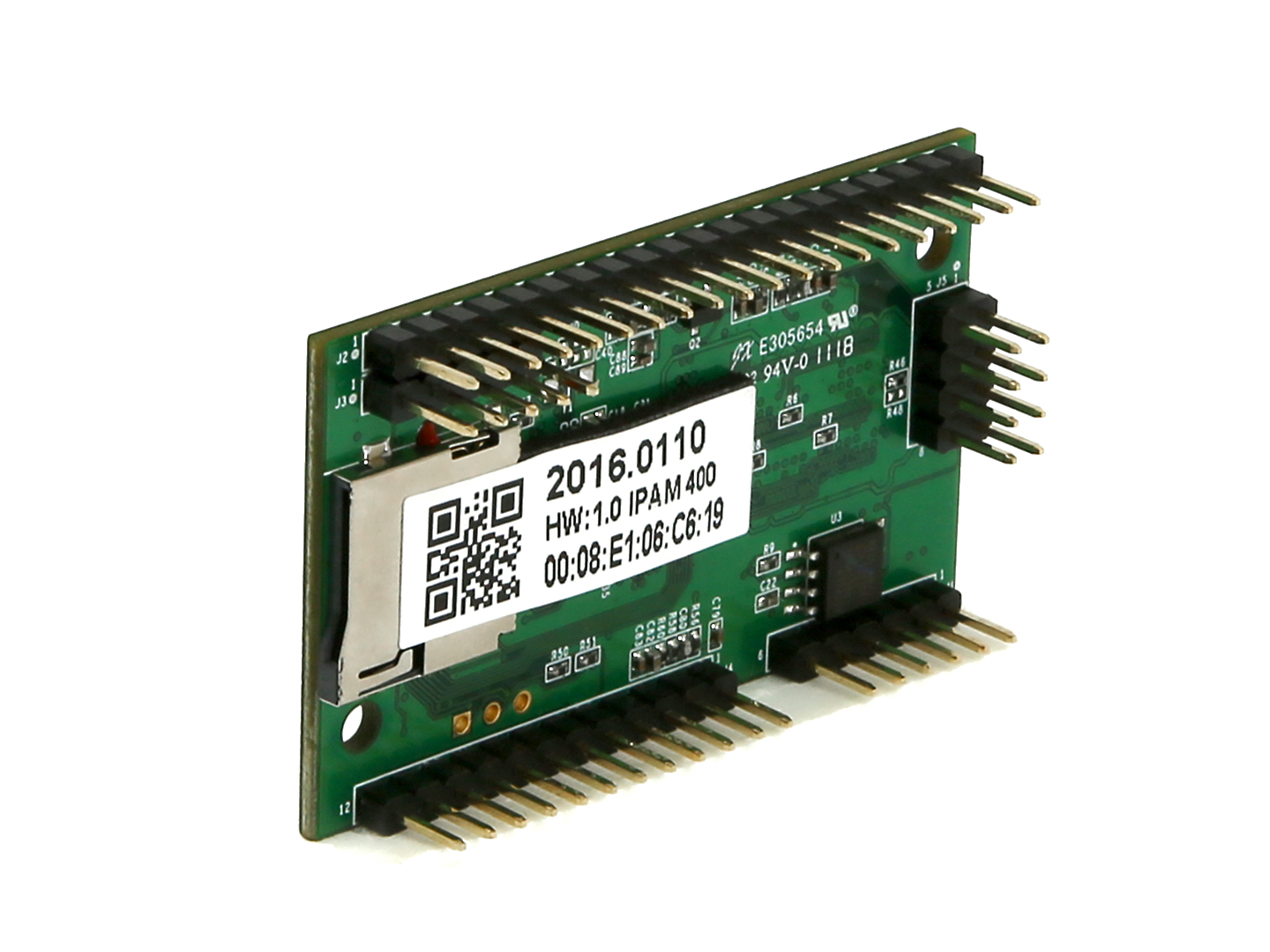

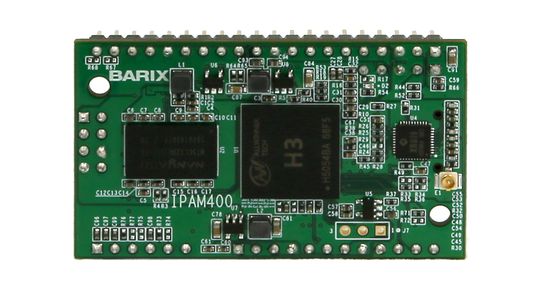

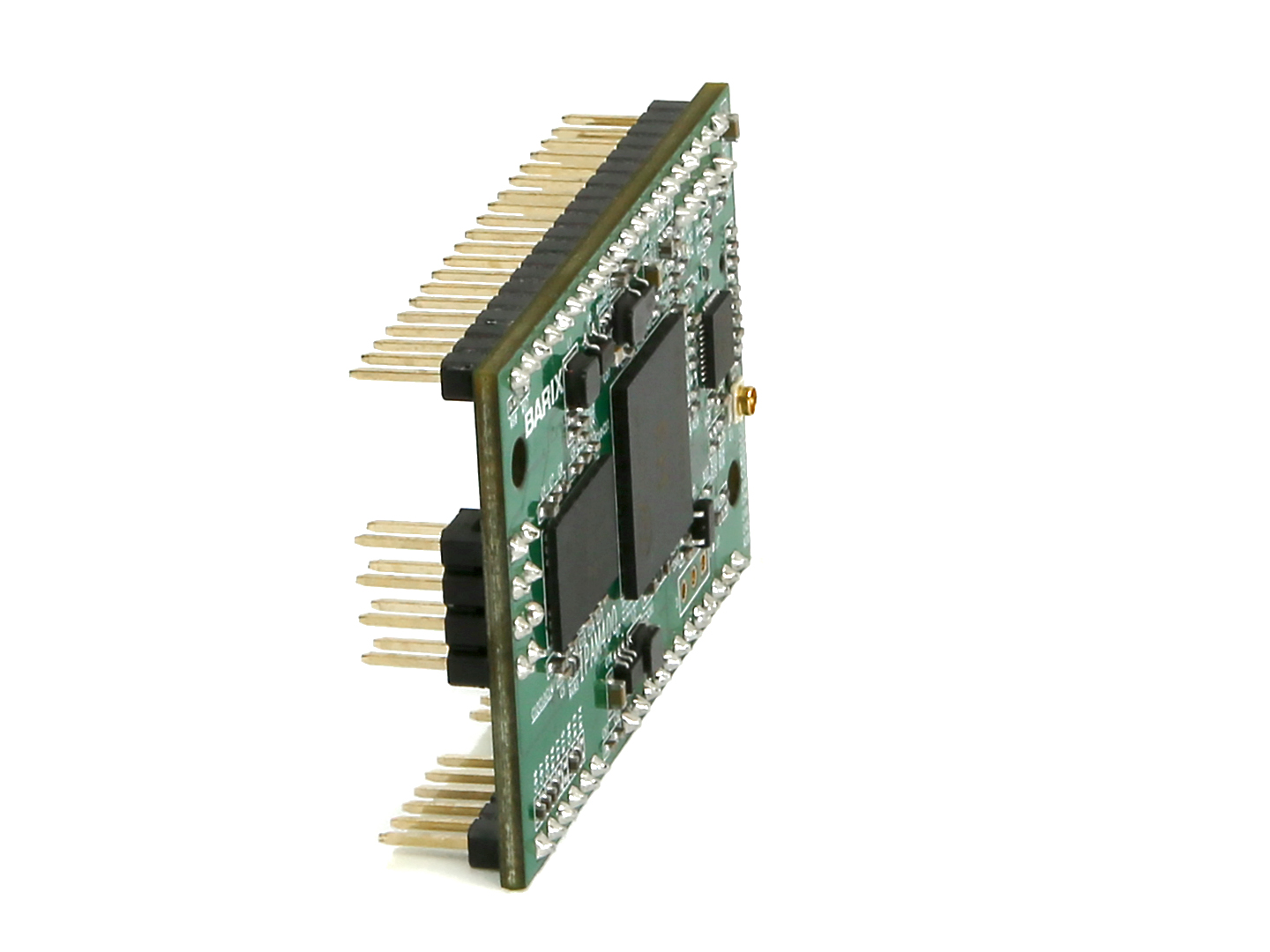

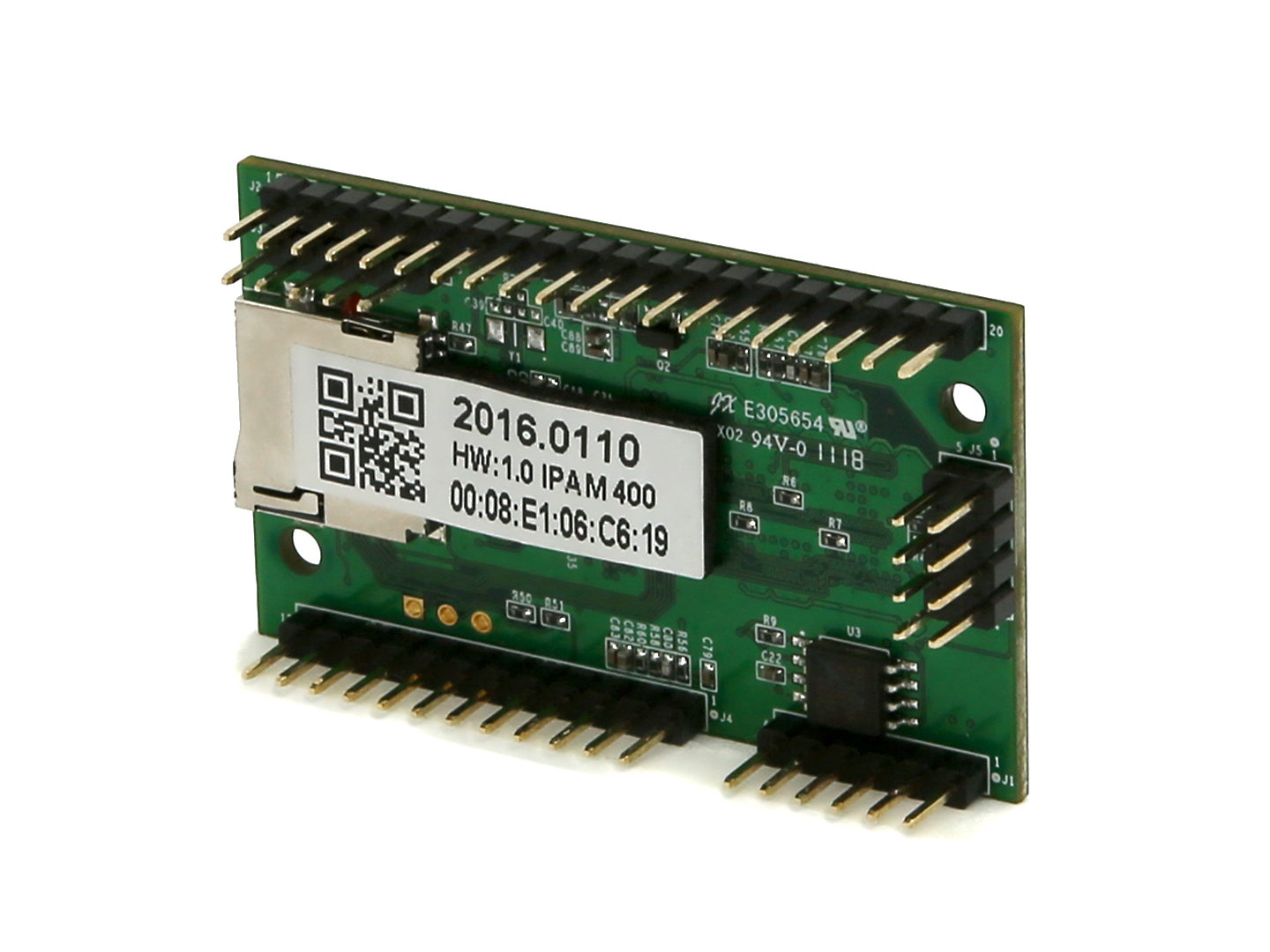

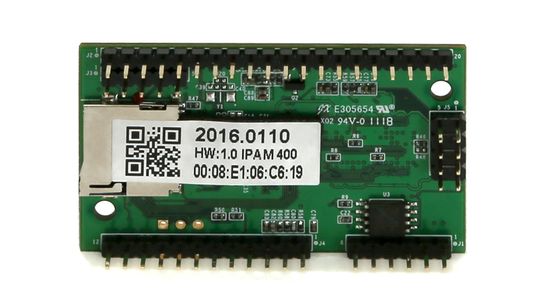

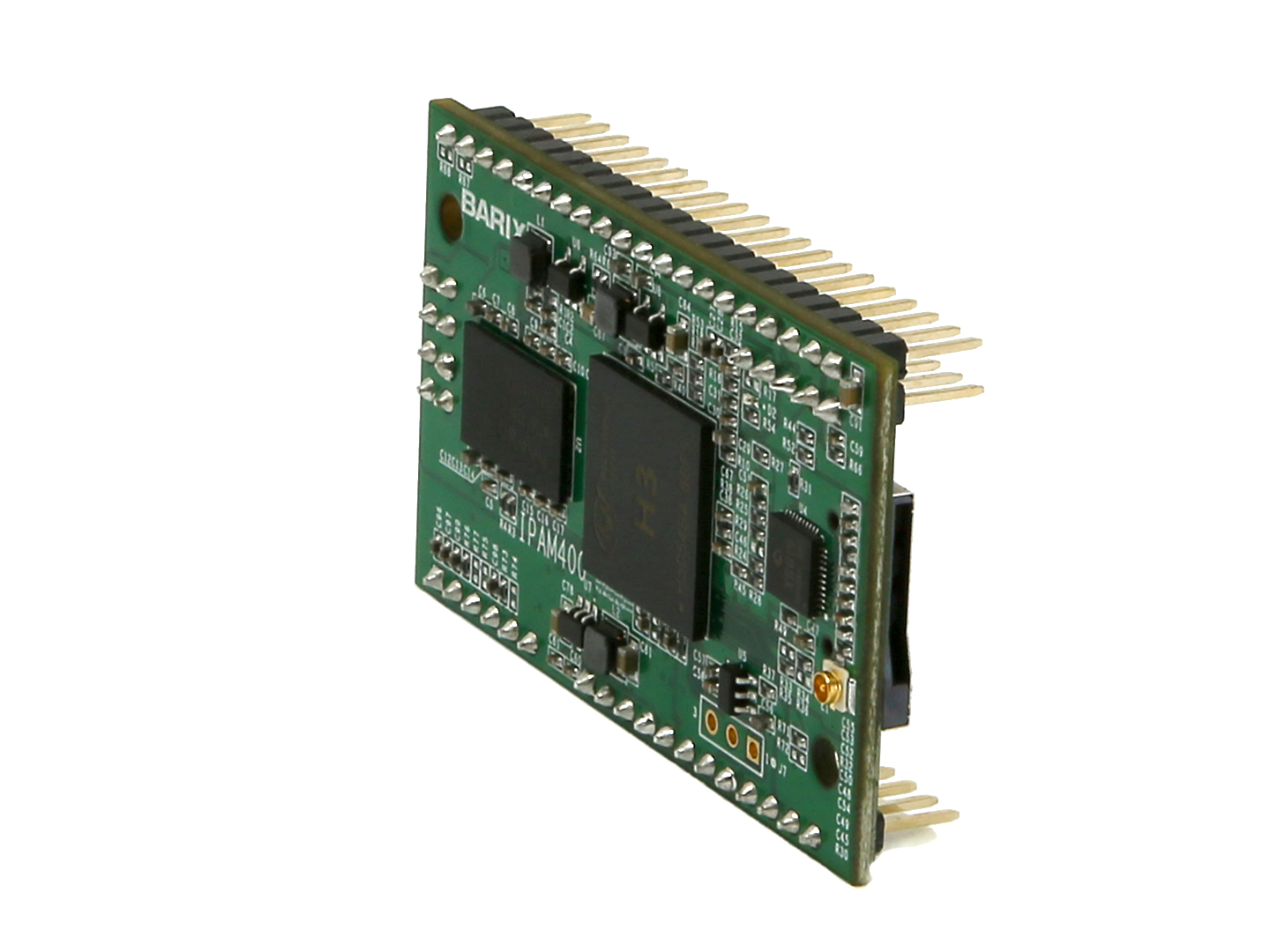

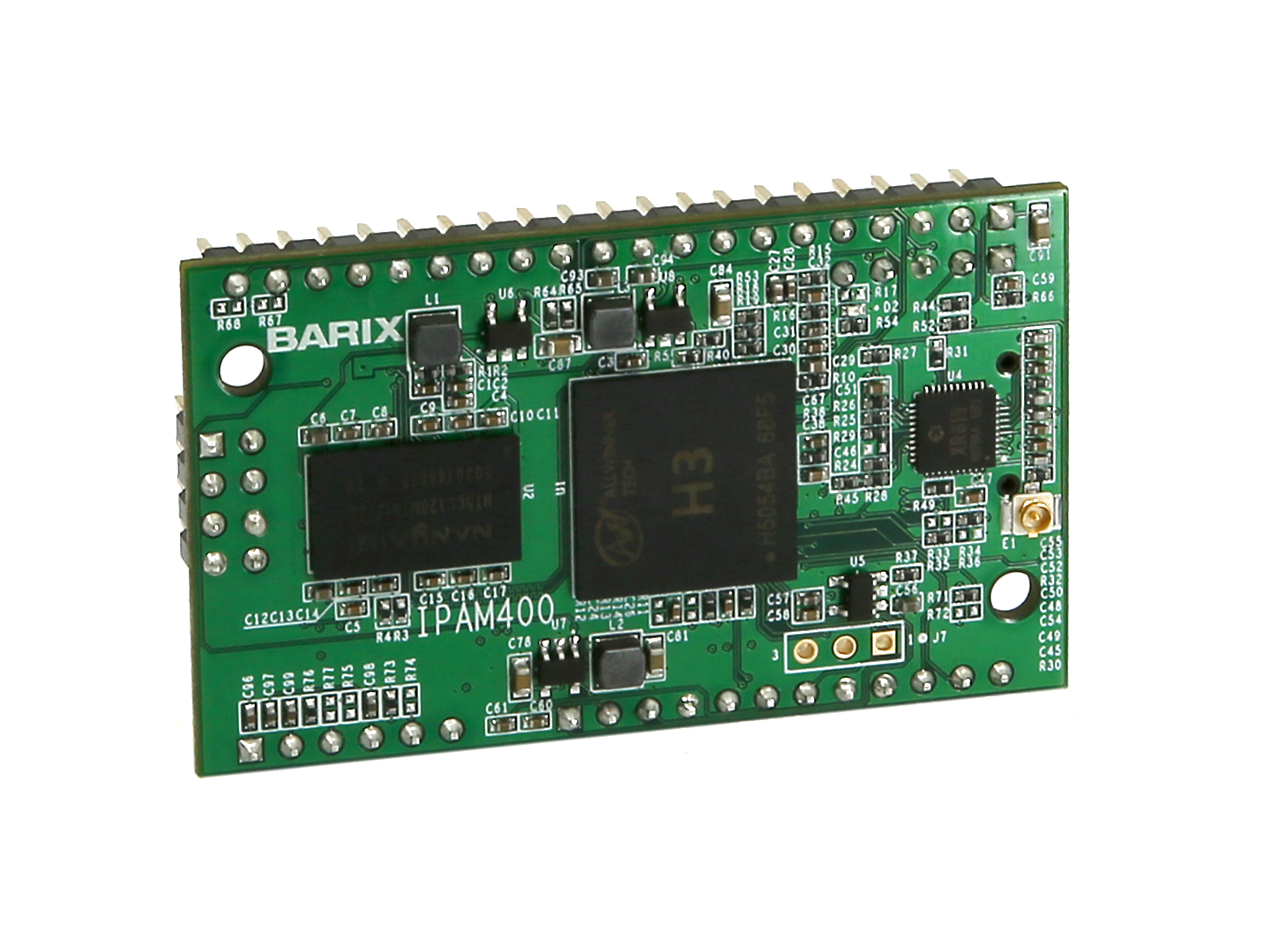

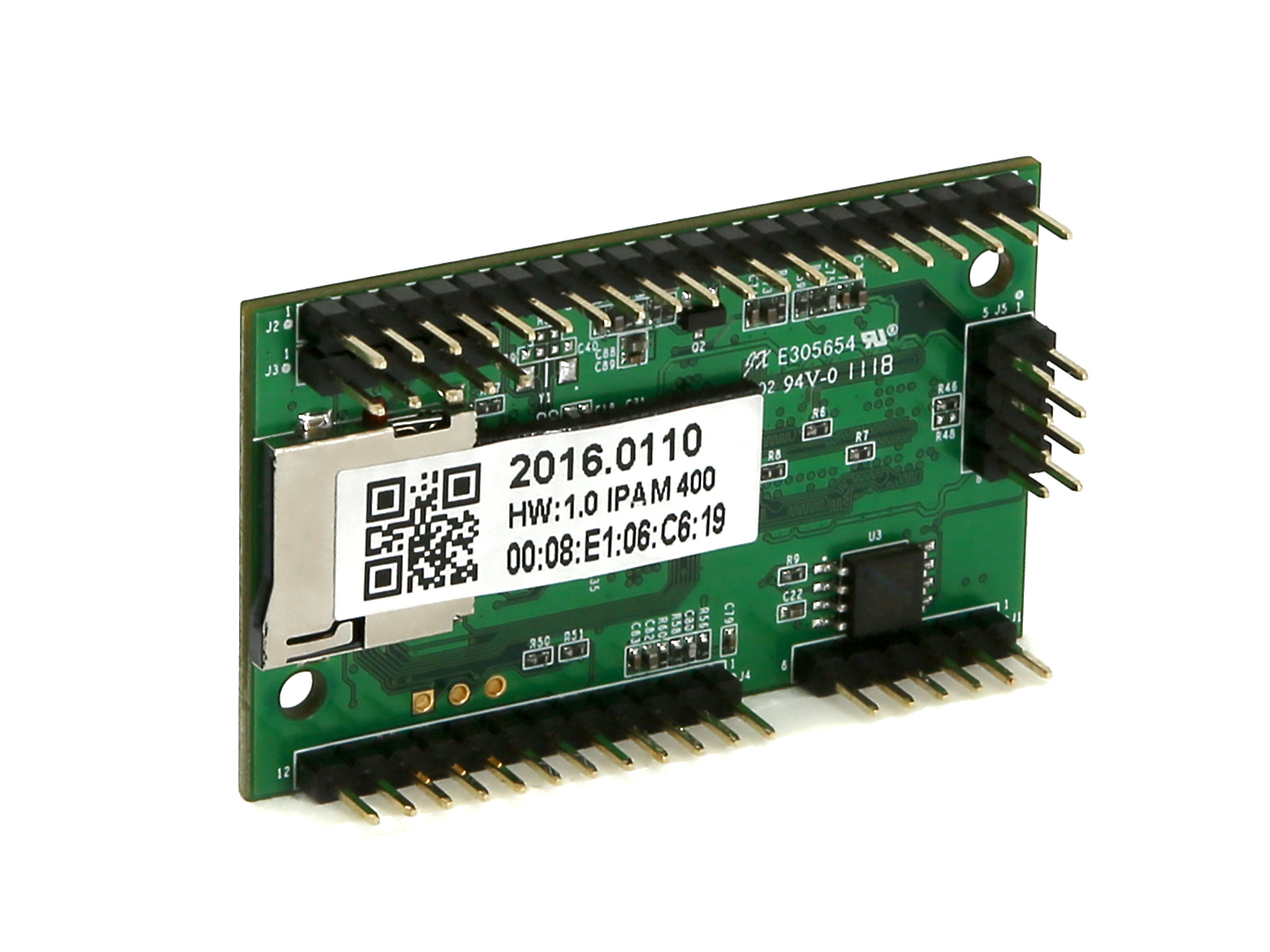

Barix IPAM400 Processor Module
Quad-Core ARM Cortex™ -A7 (clocked up to 1.29 Ghz)
Separate NEON coprocessor
supports fast boot process from Flash or SD/TF
Crypto Engine Encryption type
1 x Stereo Output (L&R)
1 x Microphone Input (balanced/unbalanced) or 1 x Stereo Input
I2S digital audio interface
digital audio interface (S/PDIF)
I2C interface
seven 3.3VDC level digital general purpose I/Os
8GB eMMC (IPAM404 only)

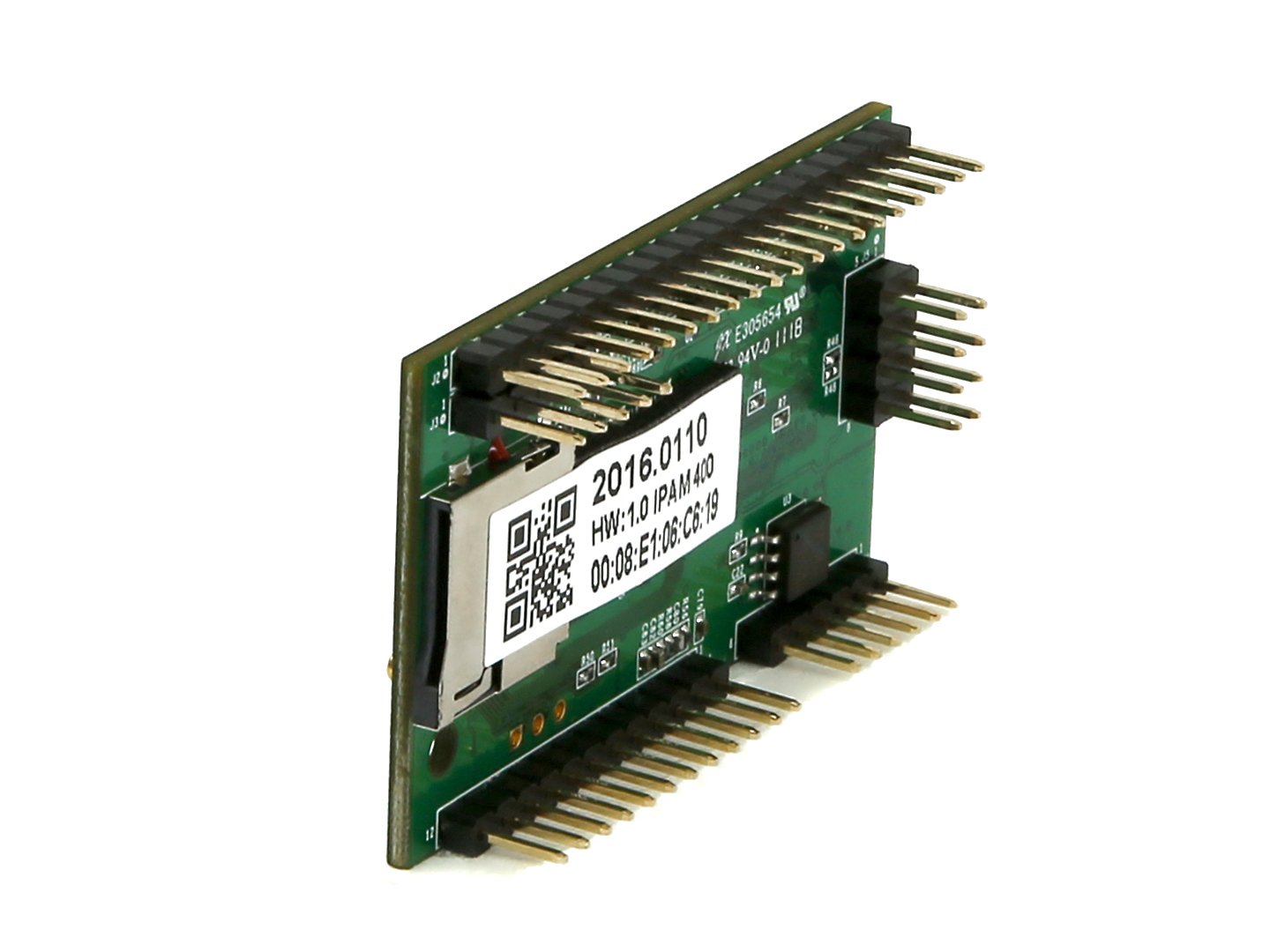

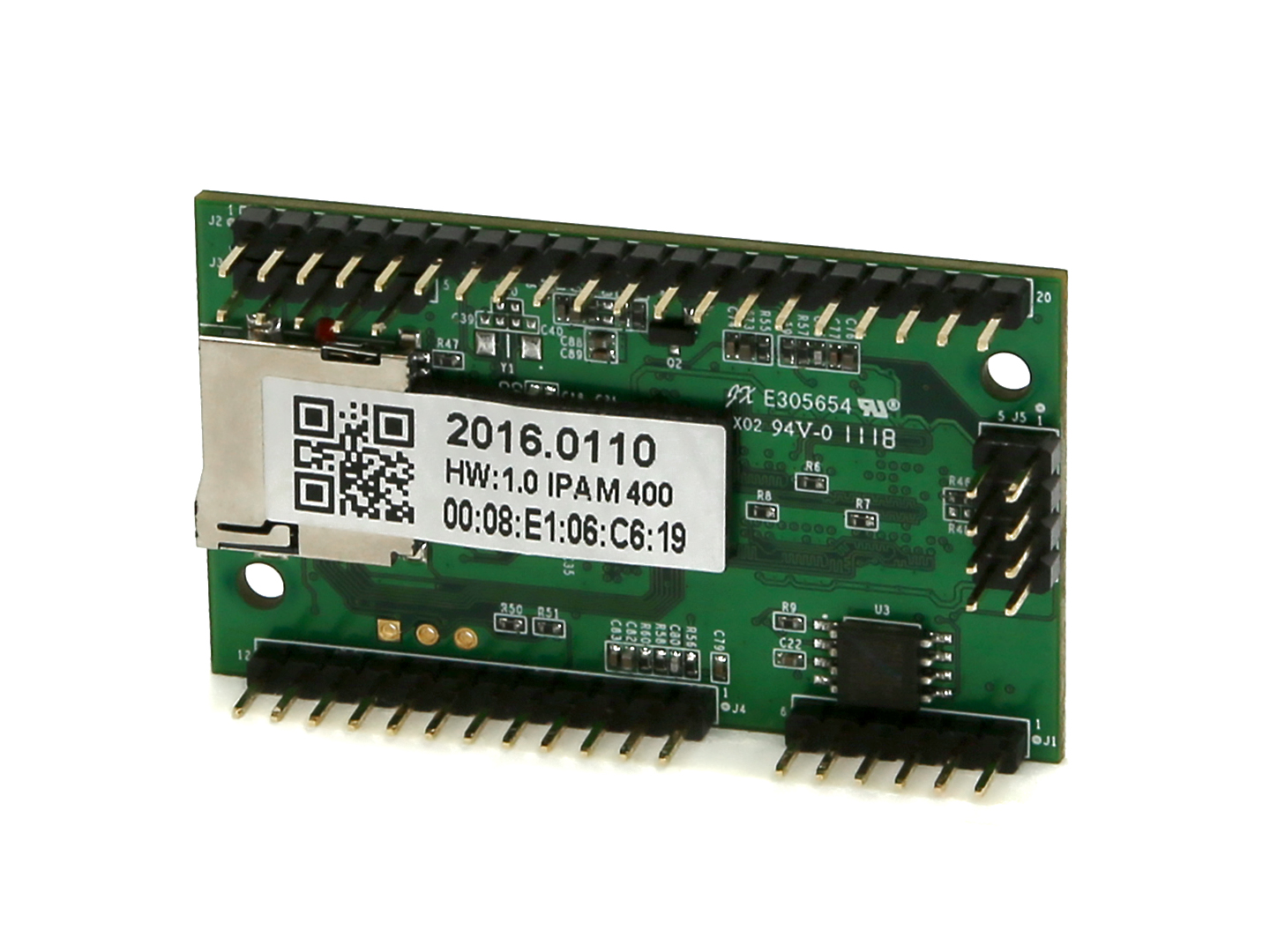

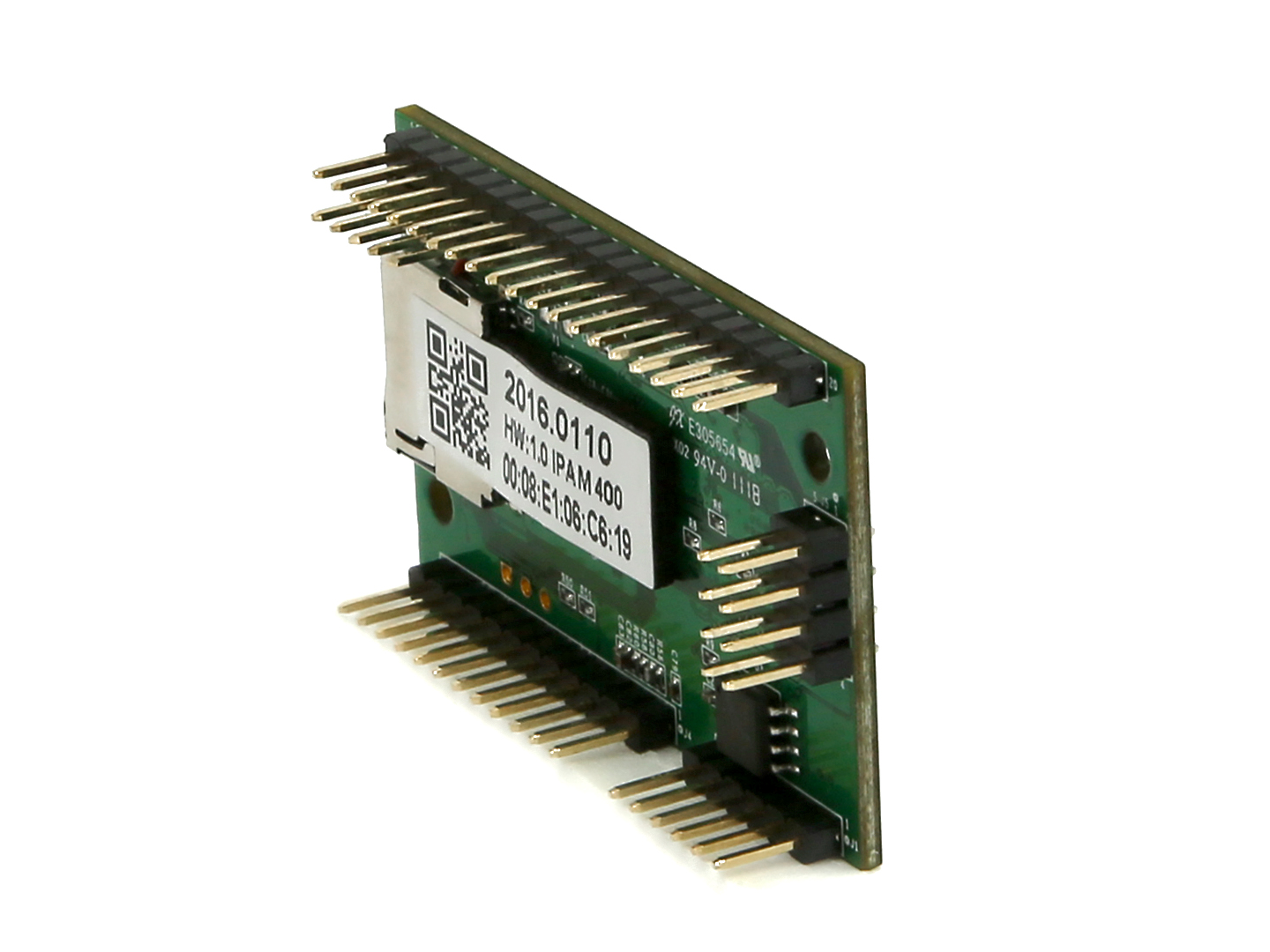

On-board uSD card socket
Reset and Recovery functions on hardware and software triggers
> 950’000h
2.2” x 0.45” x 1.3” / 56.1mm x 11.44mm x 33mm
14g (IPAM403) / 16g (IPAM404)
Two years
2023.9379P IPAM403 Package
2023.9390P IPAM404 Package
