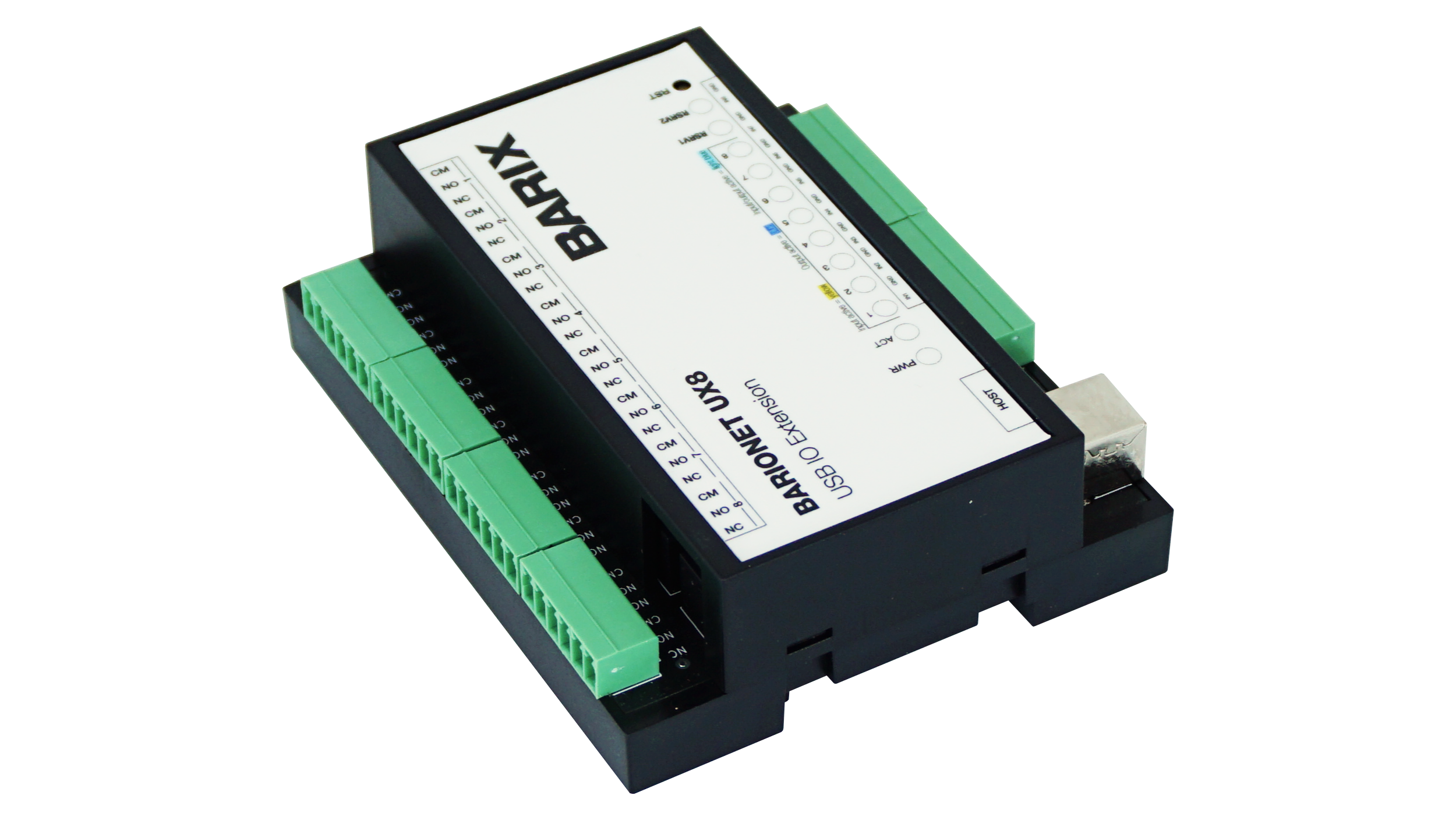

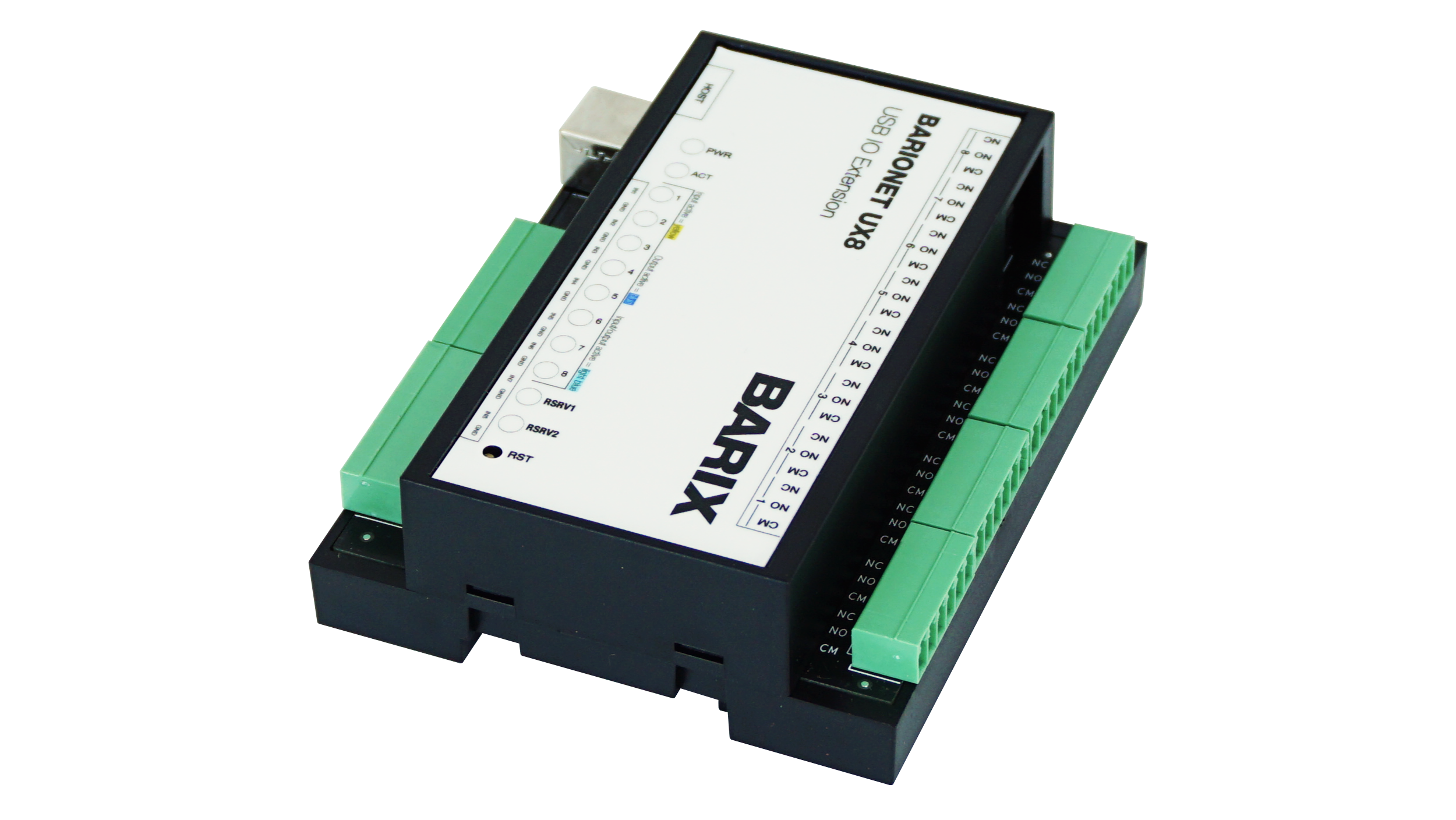

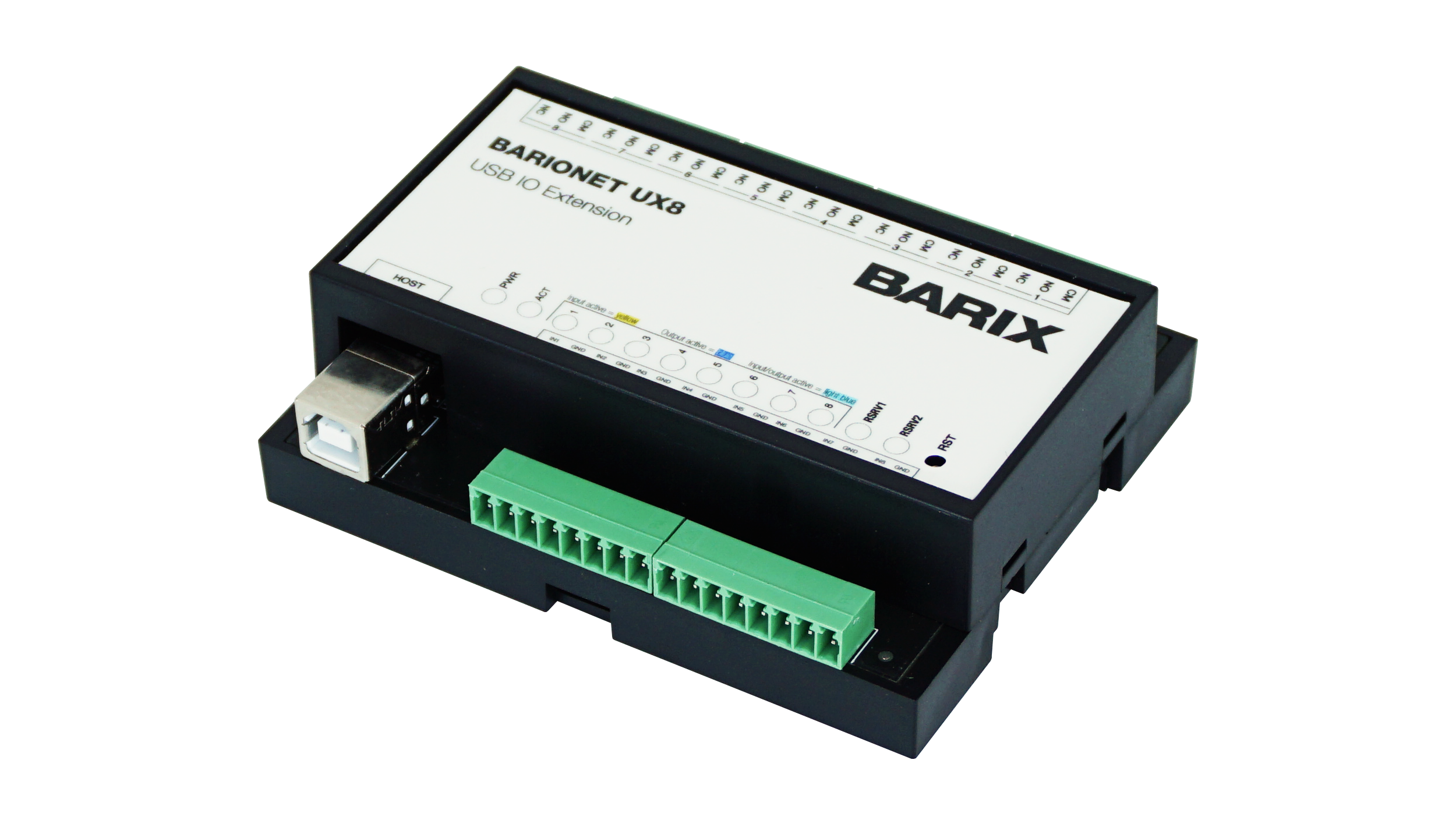

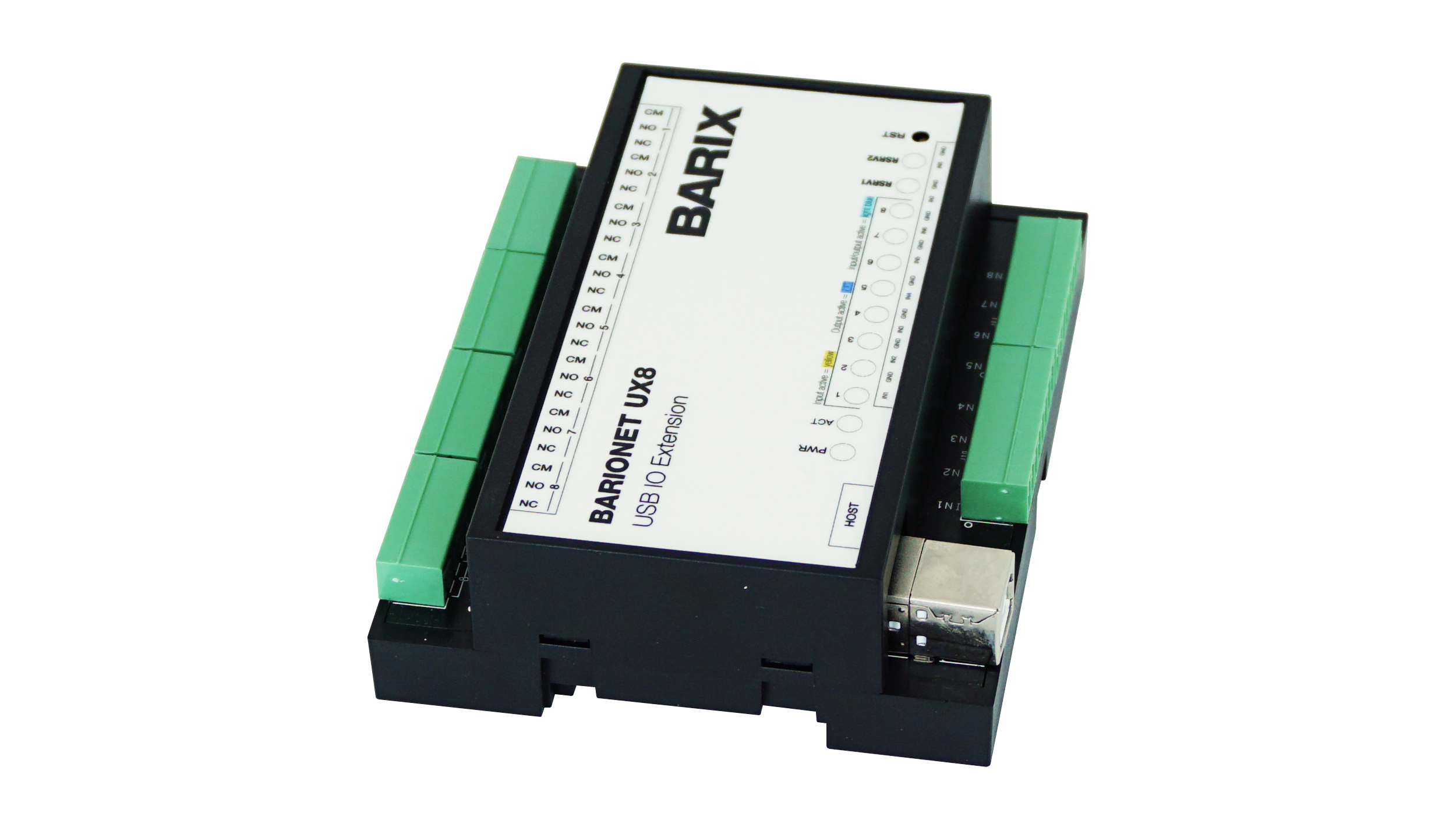

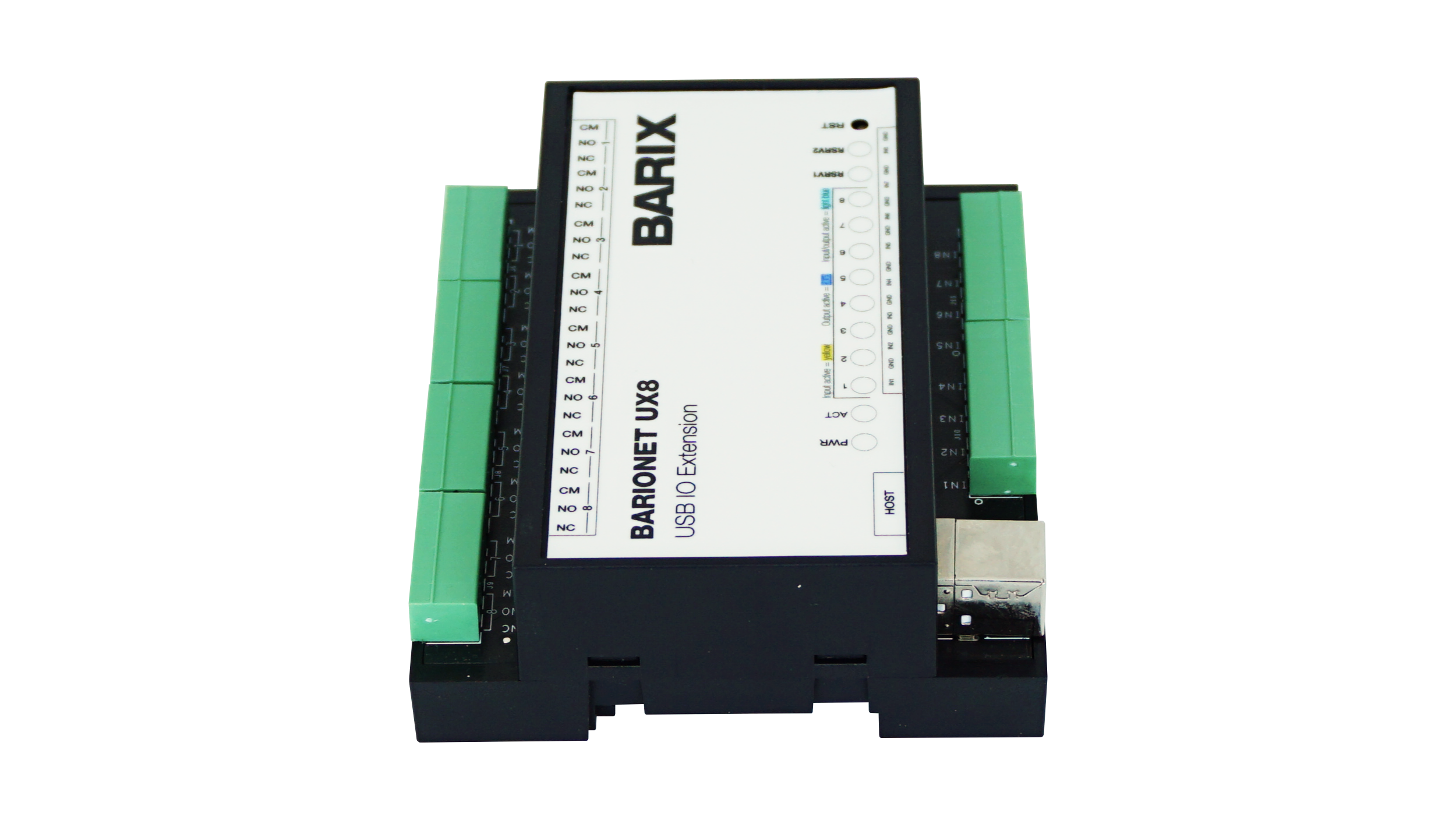

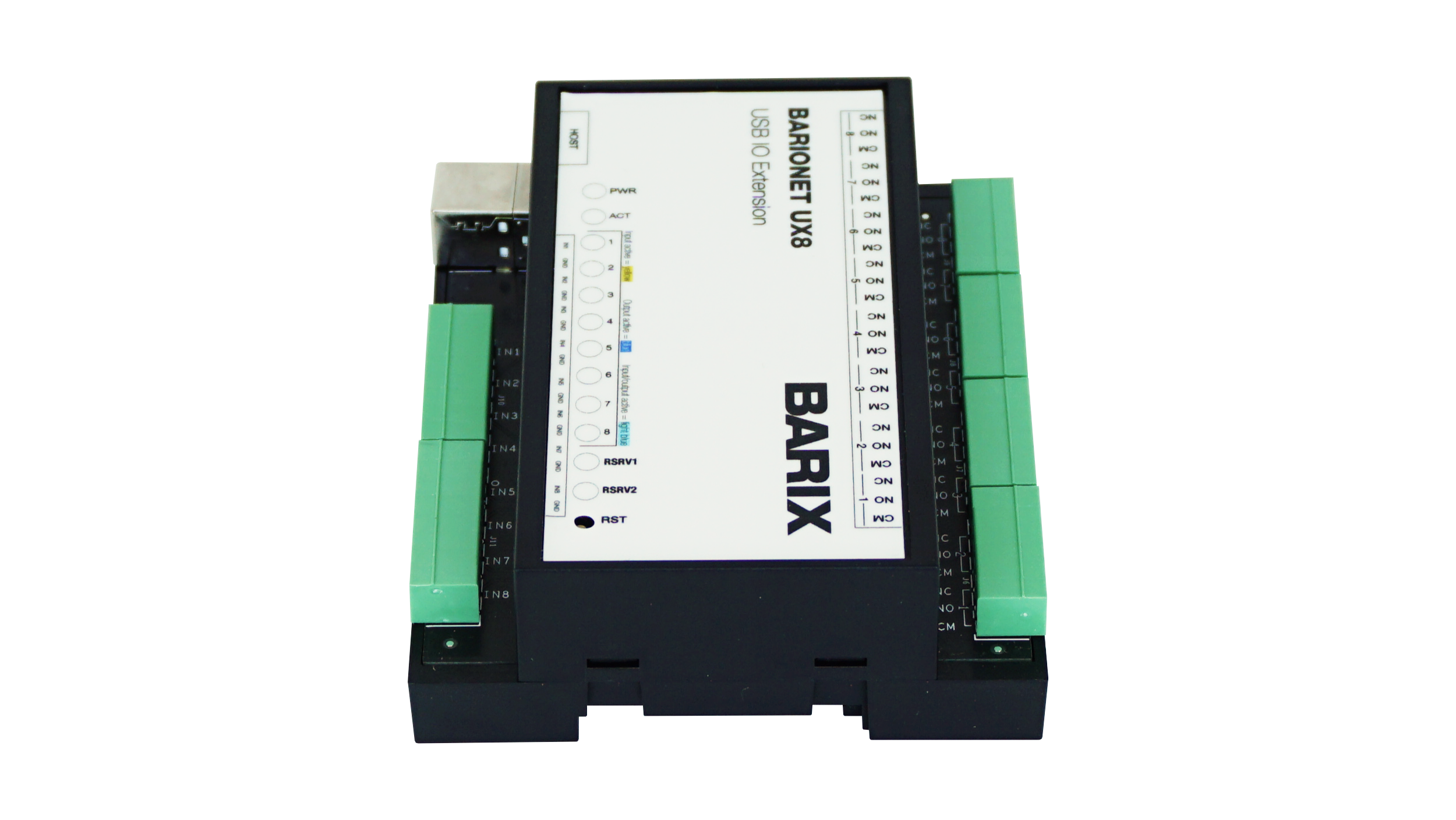

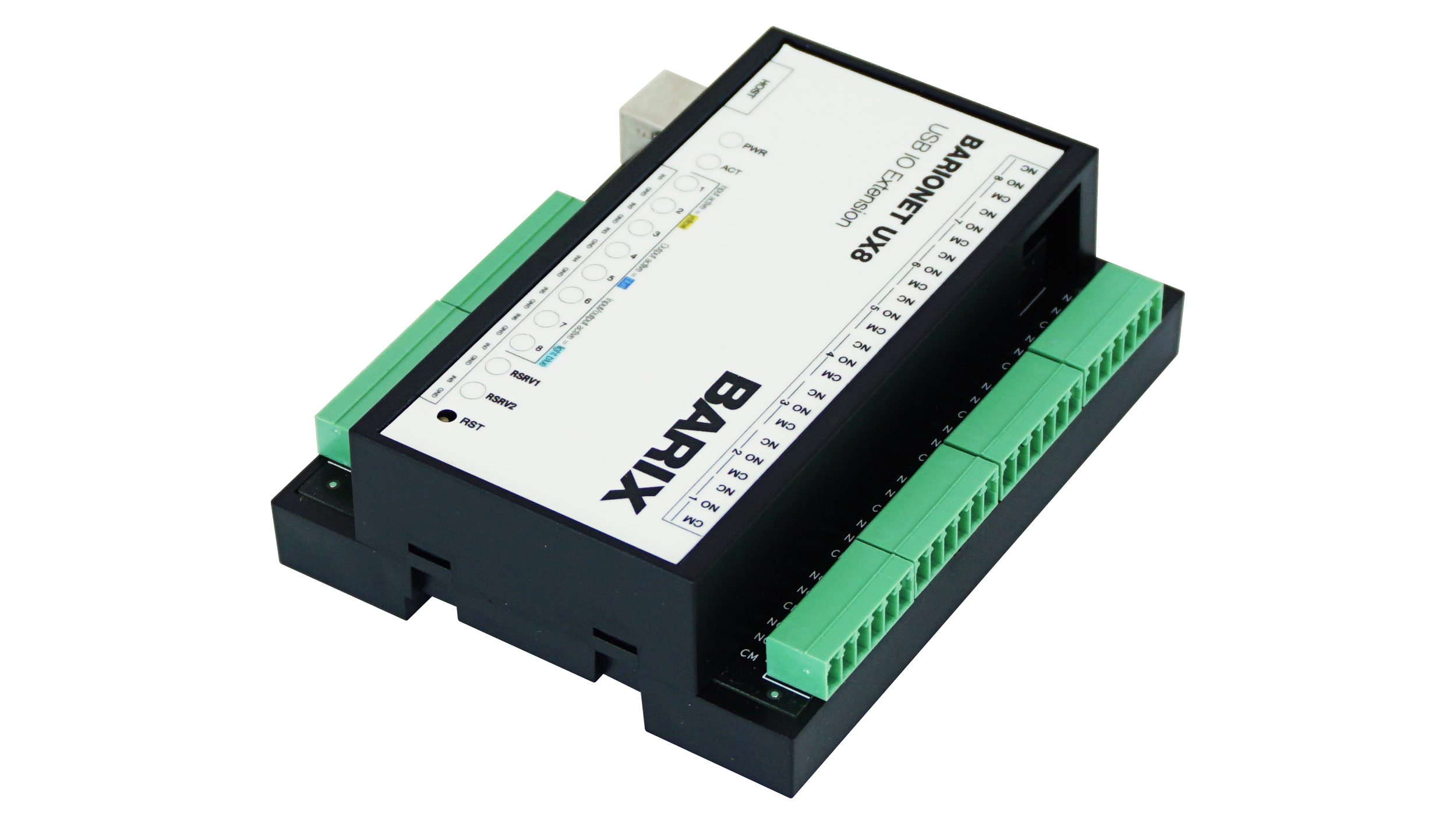

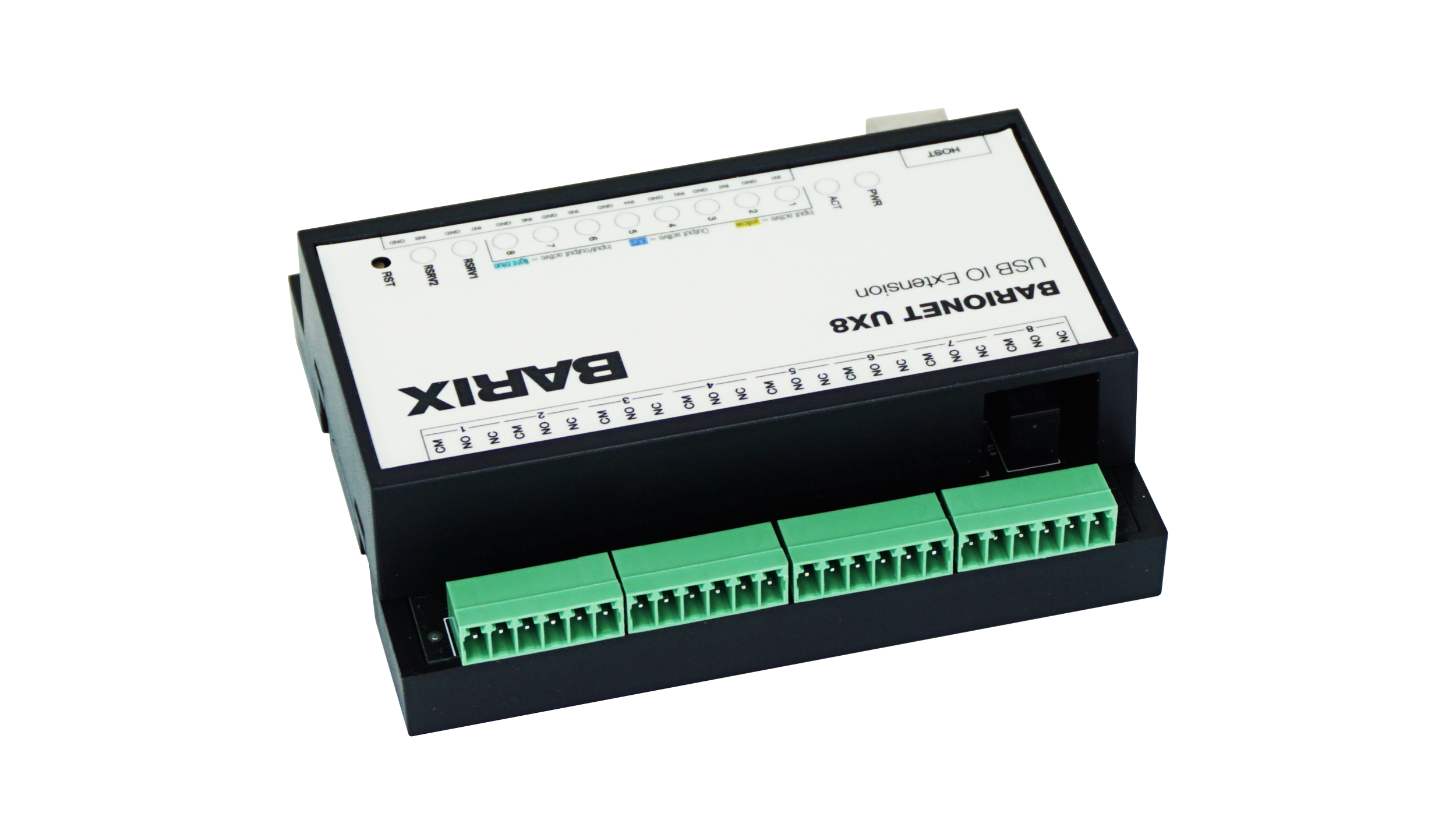

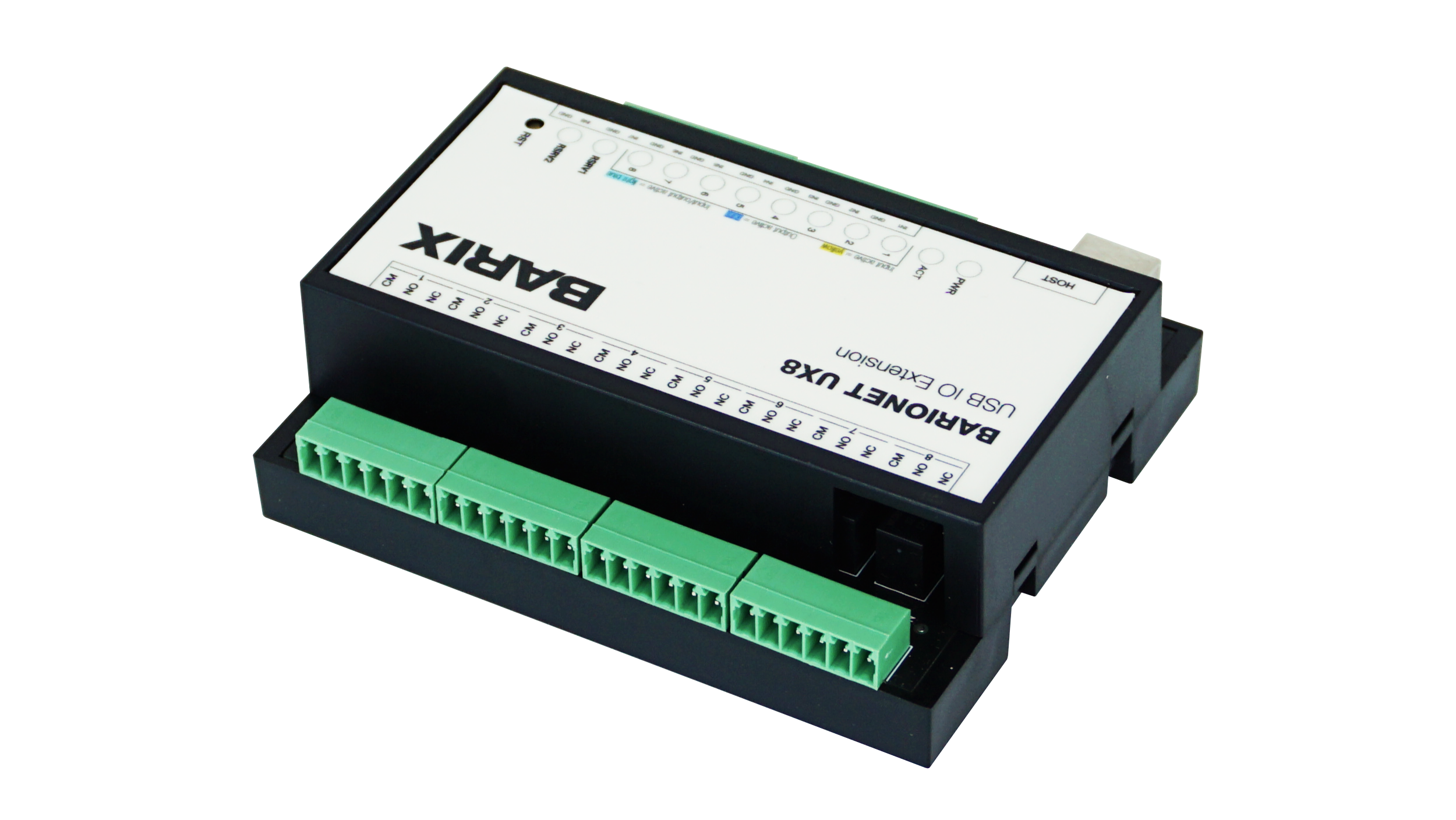

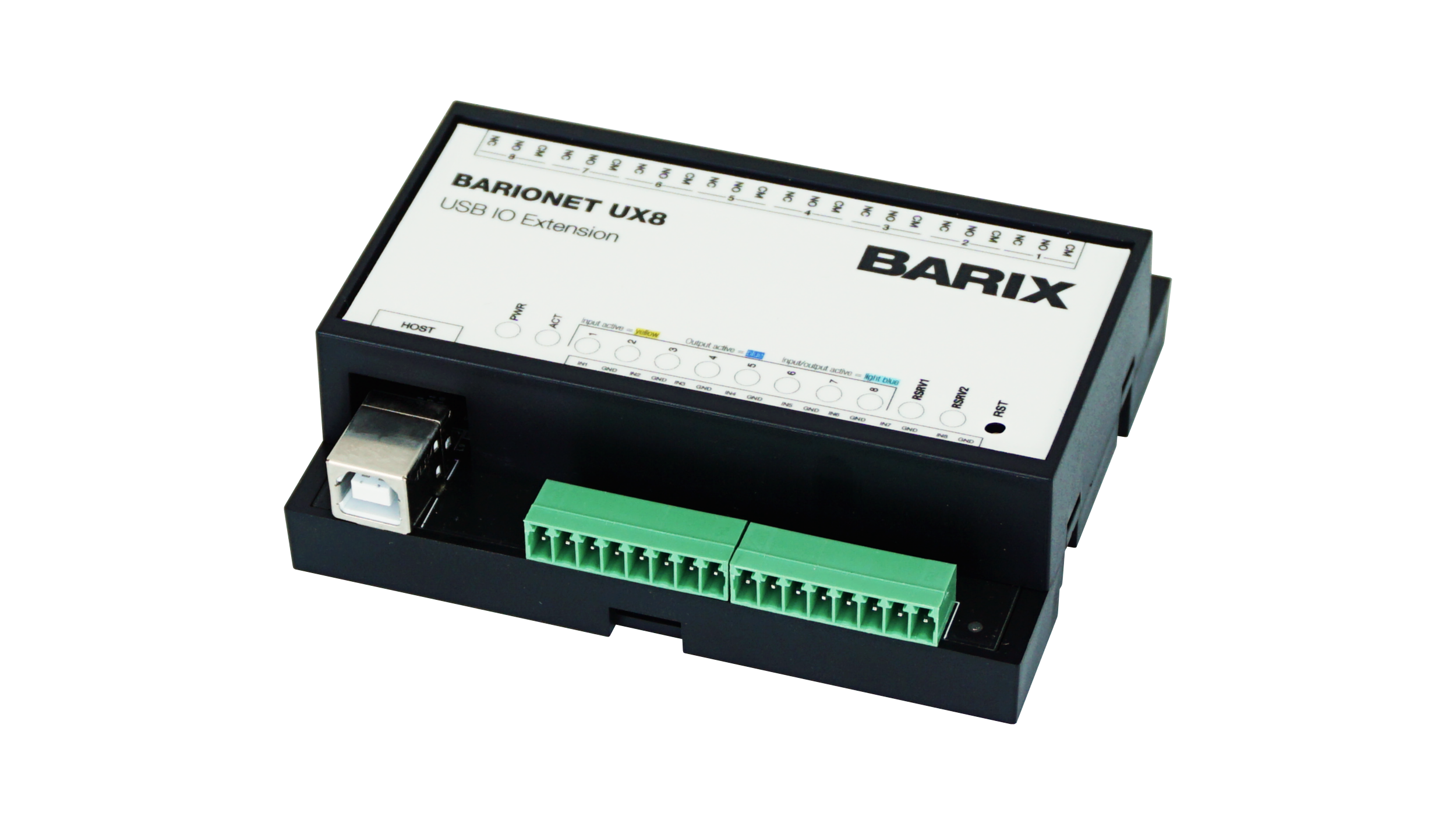

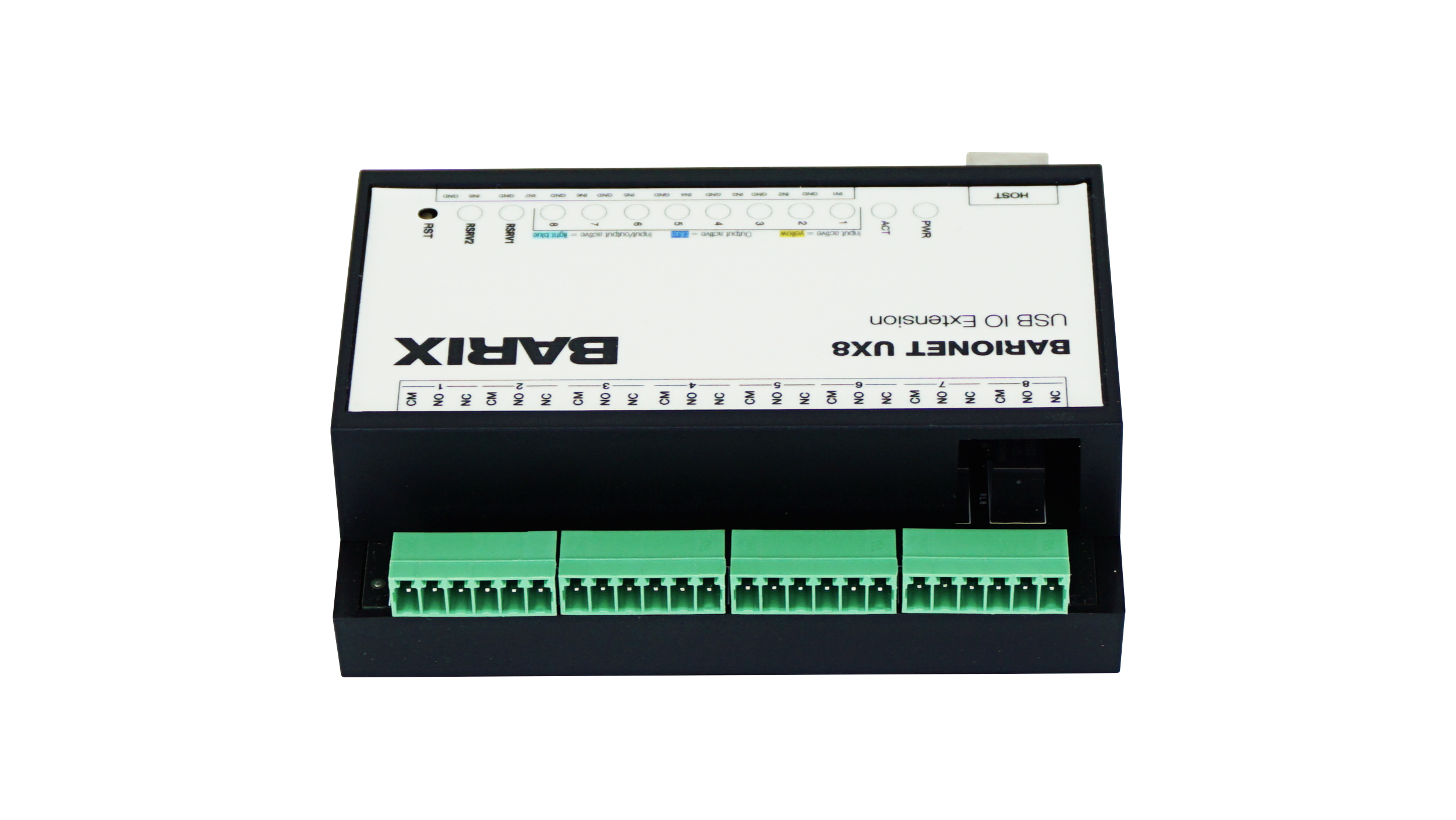

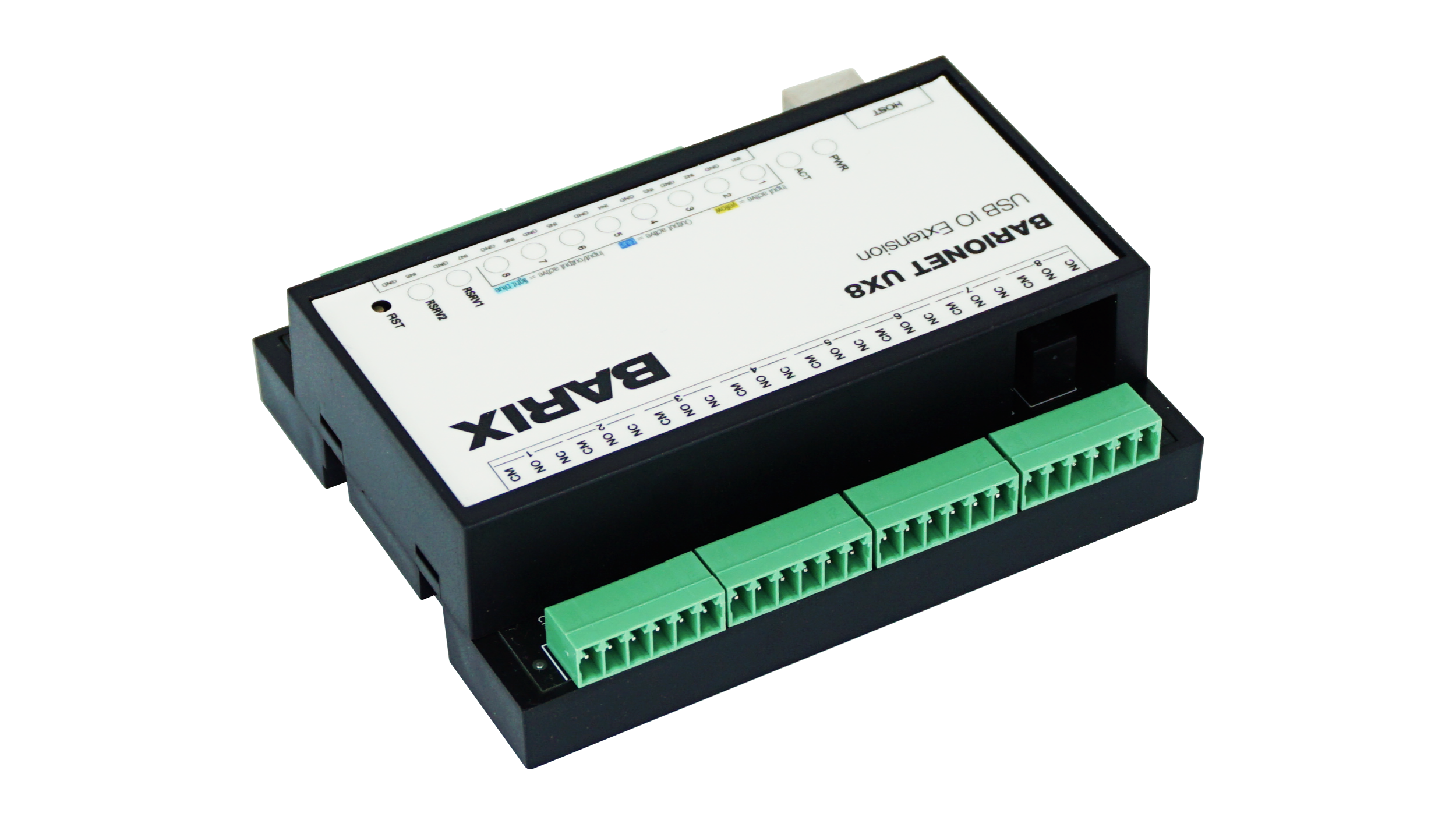

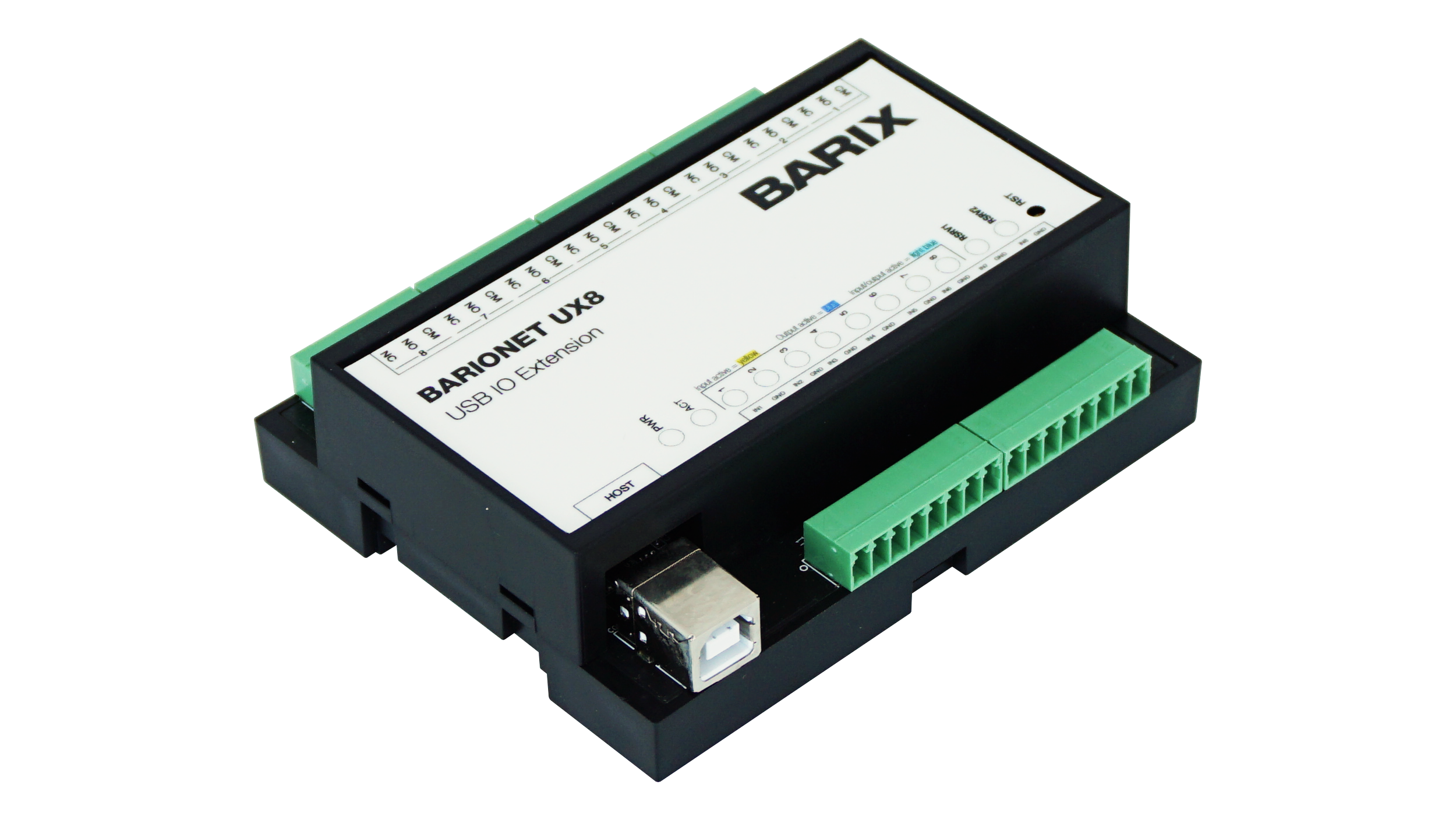

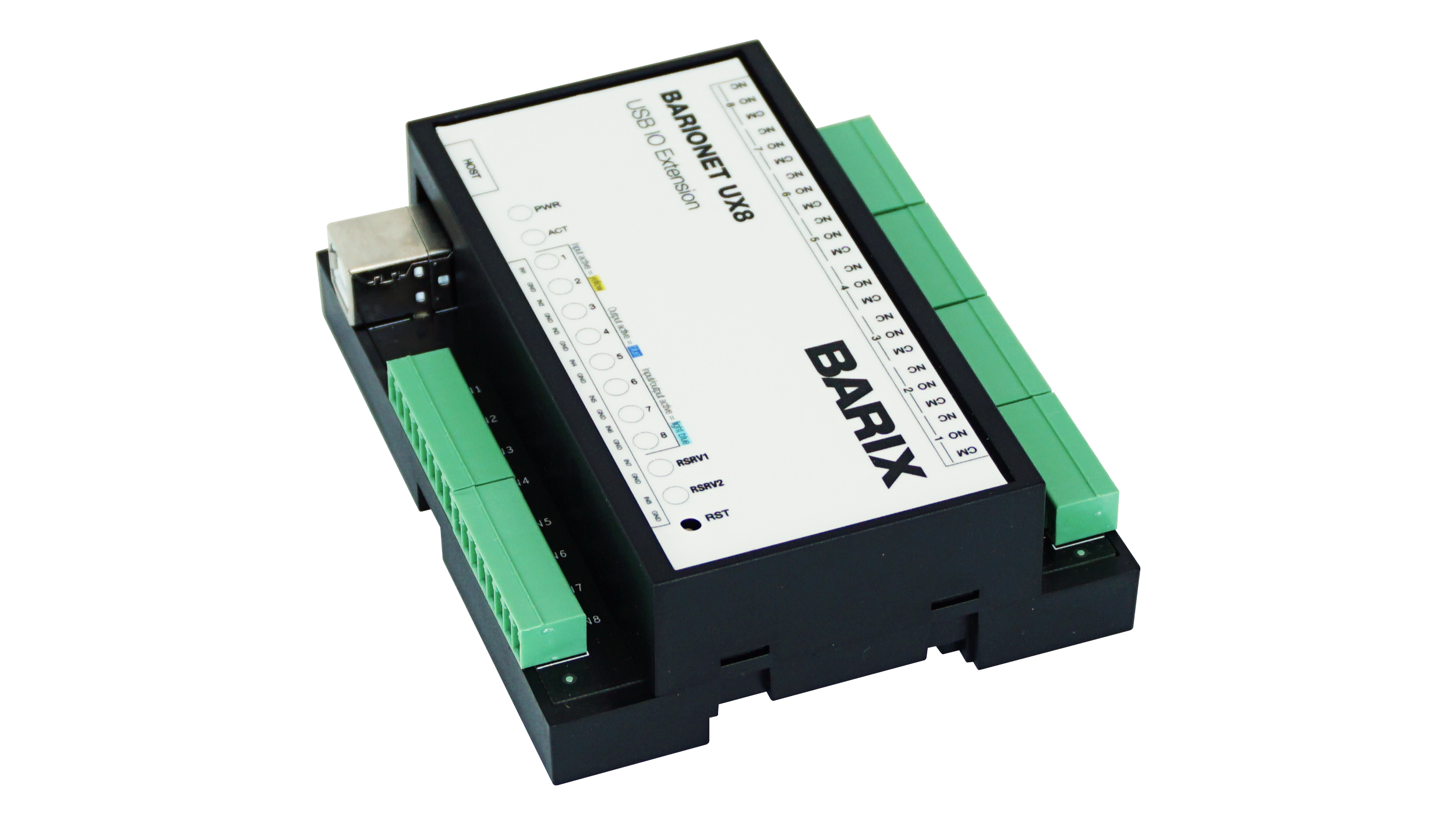

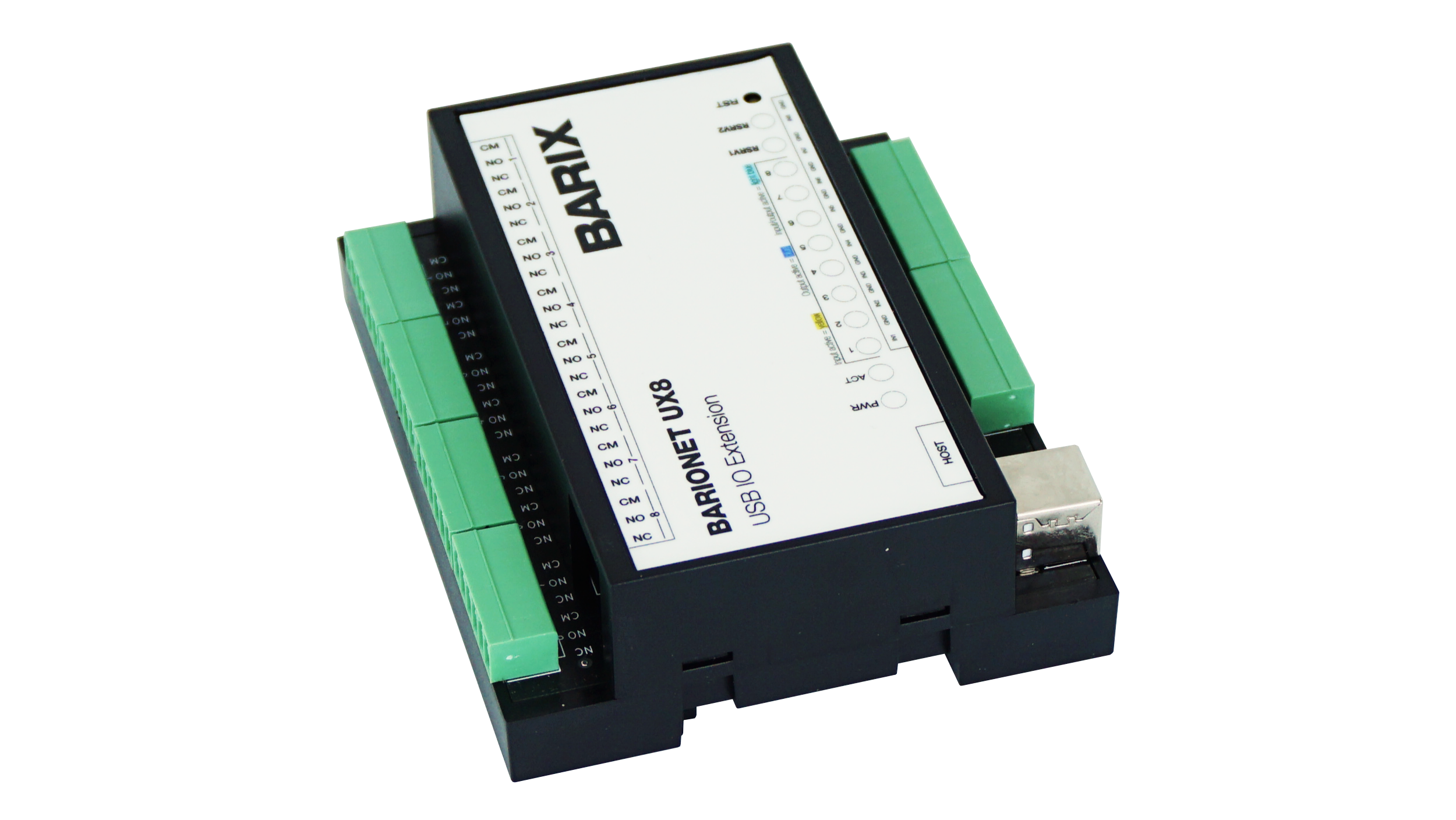

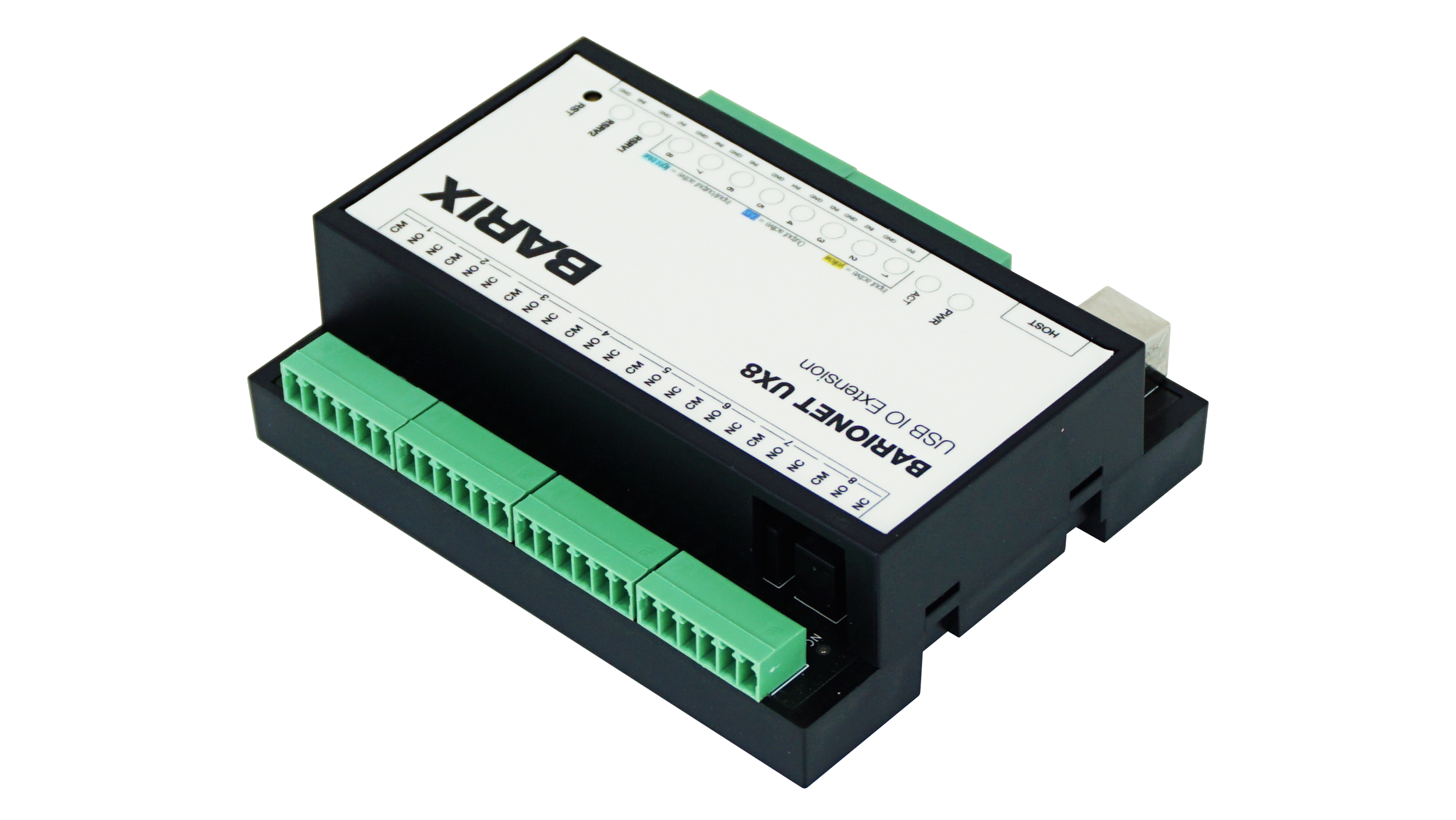

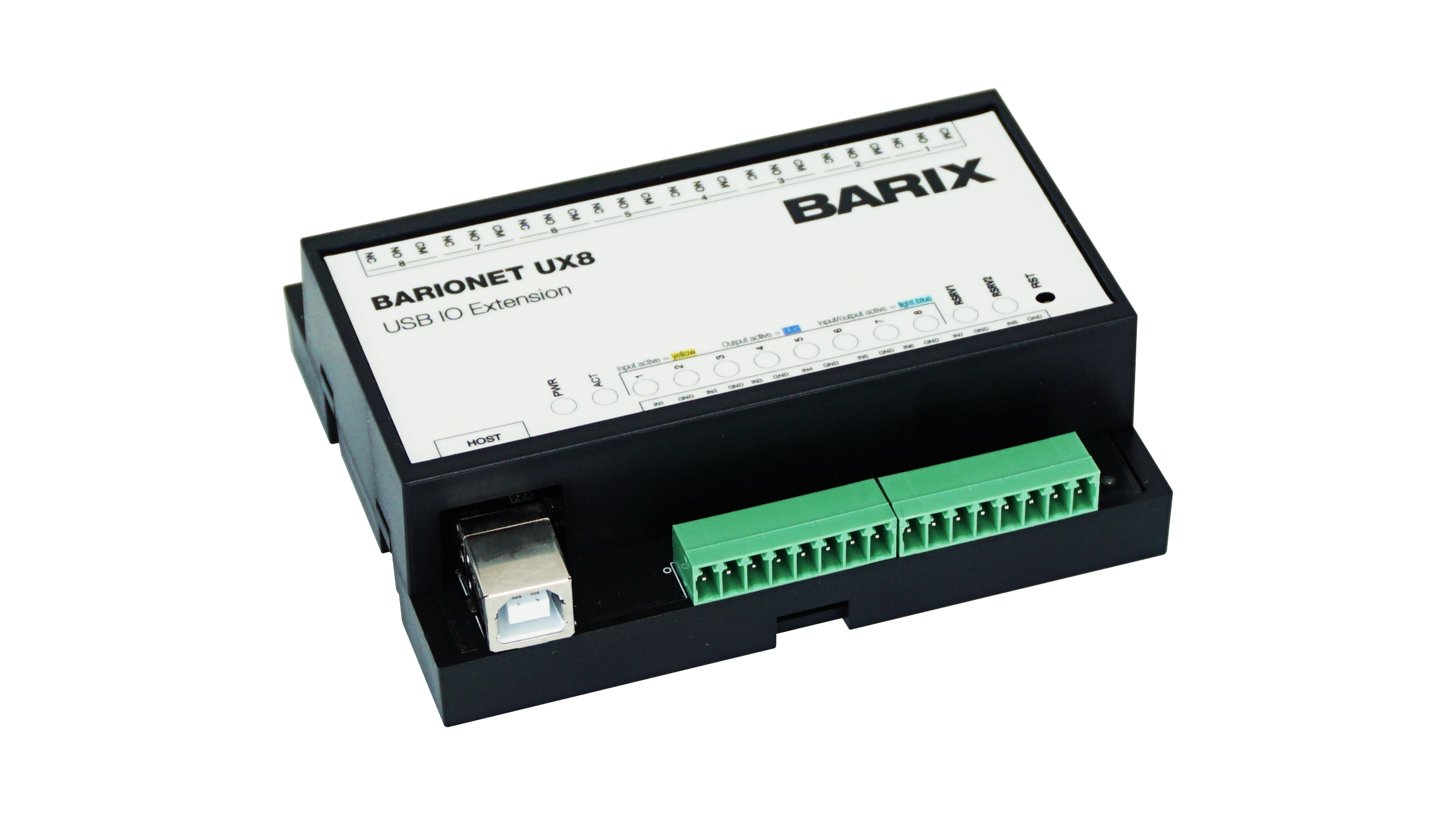

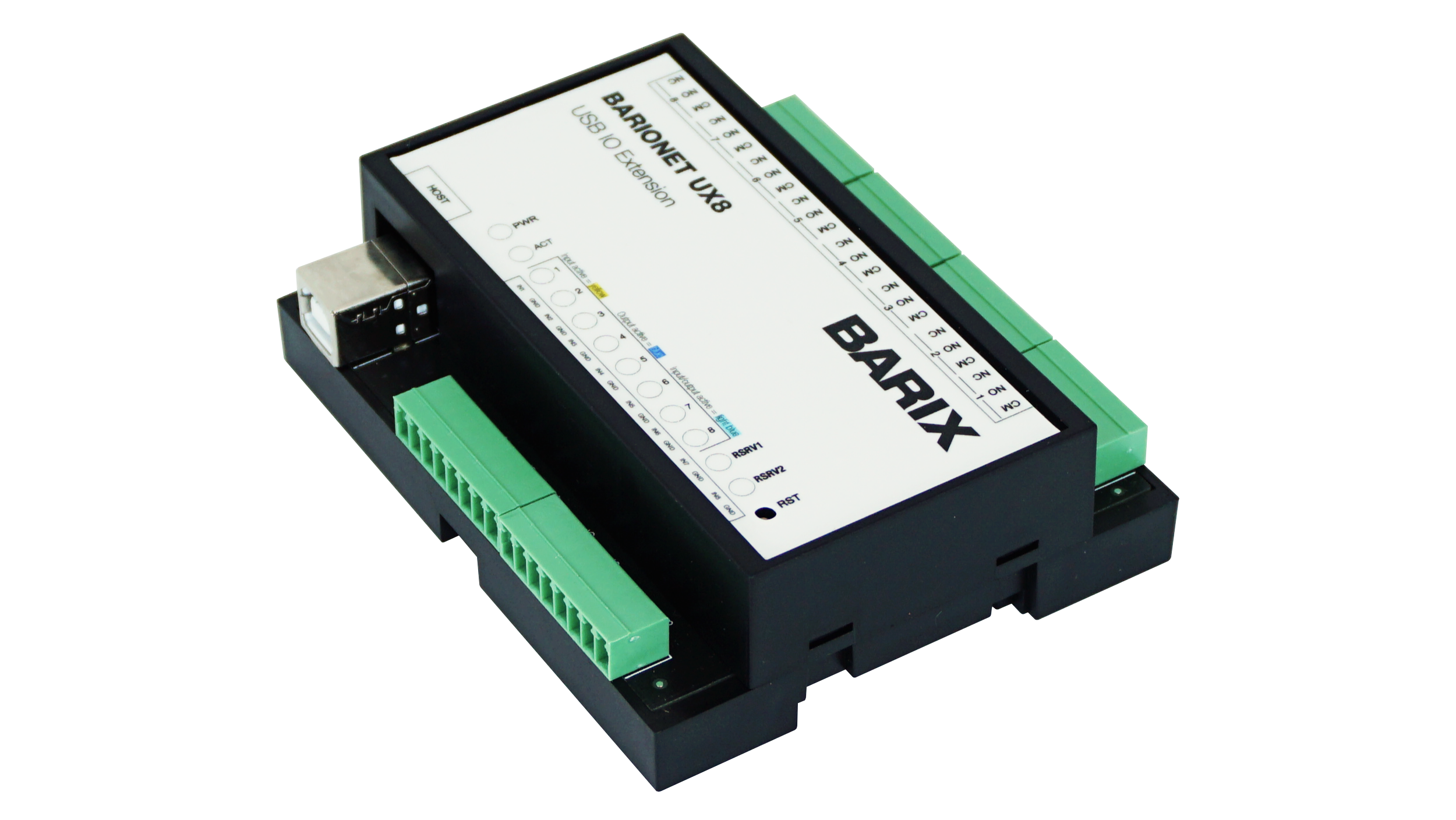

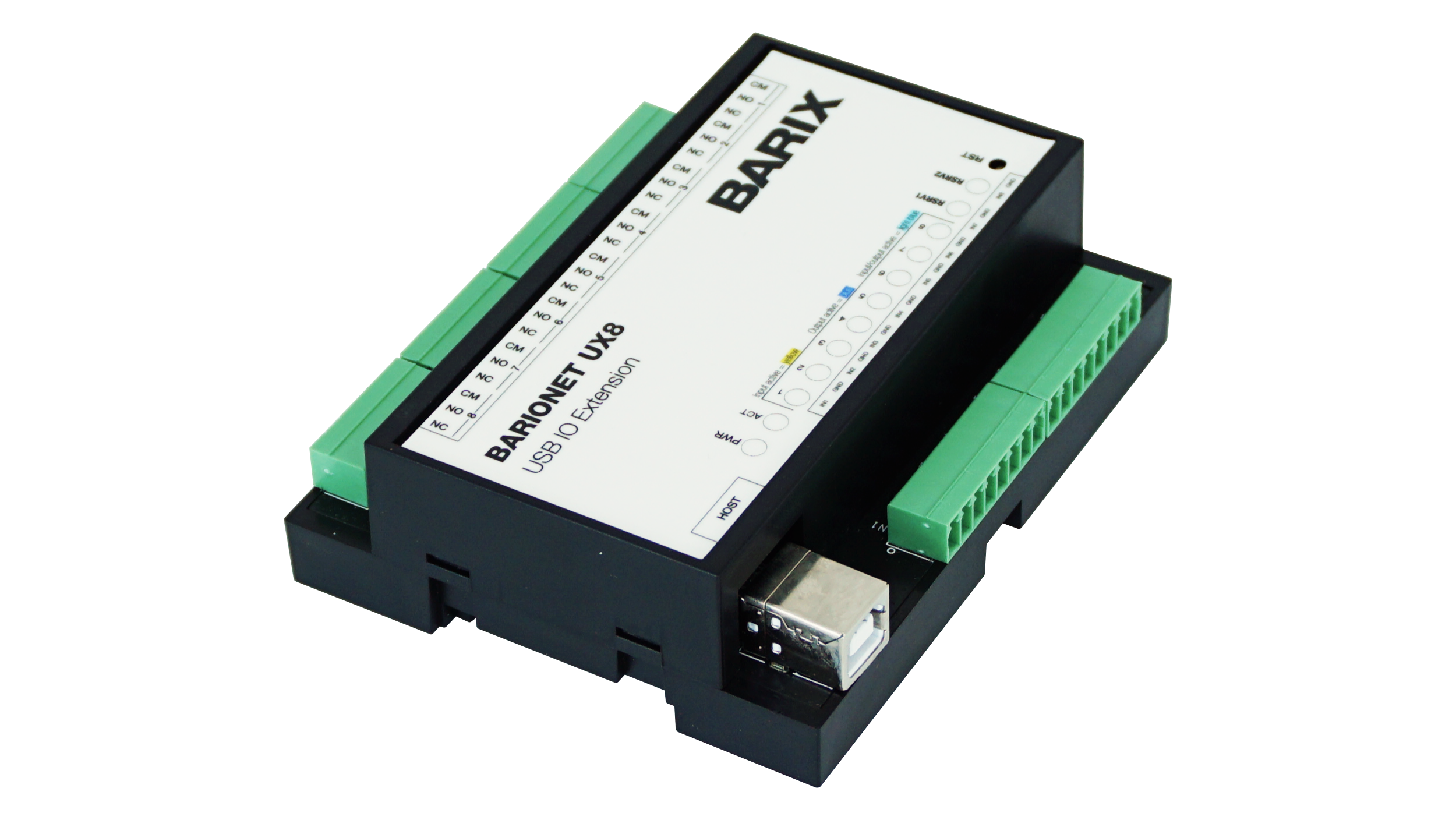

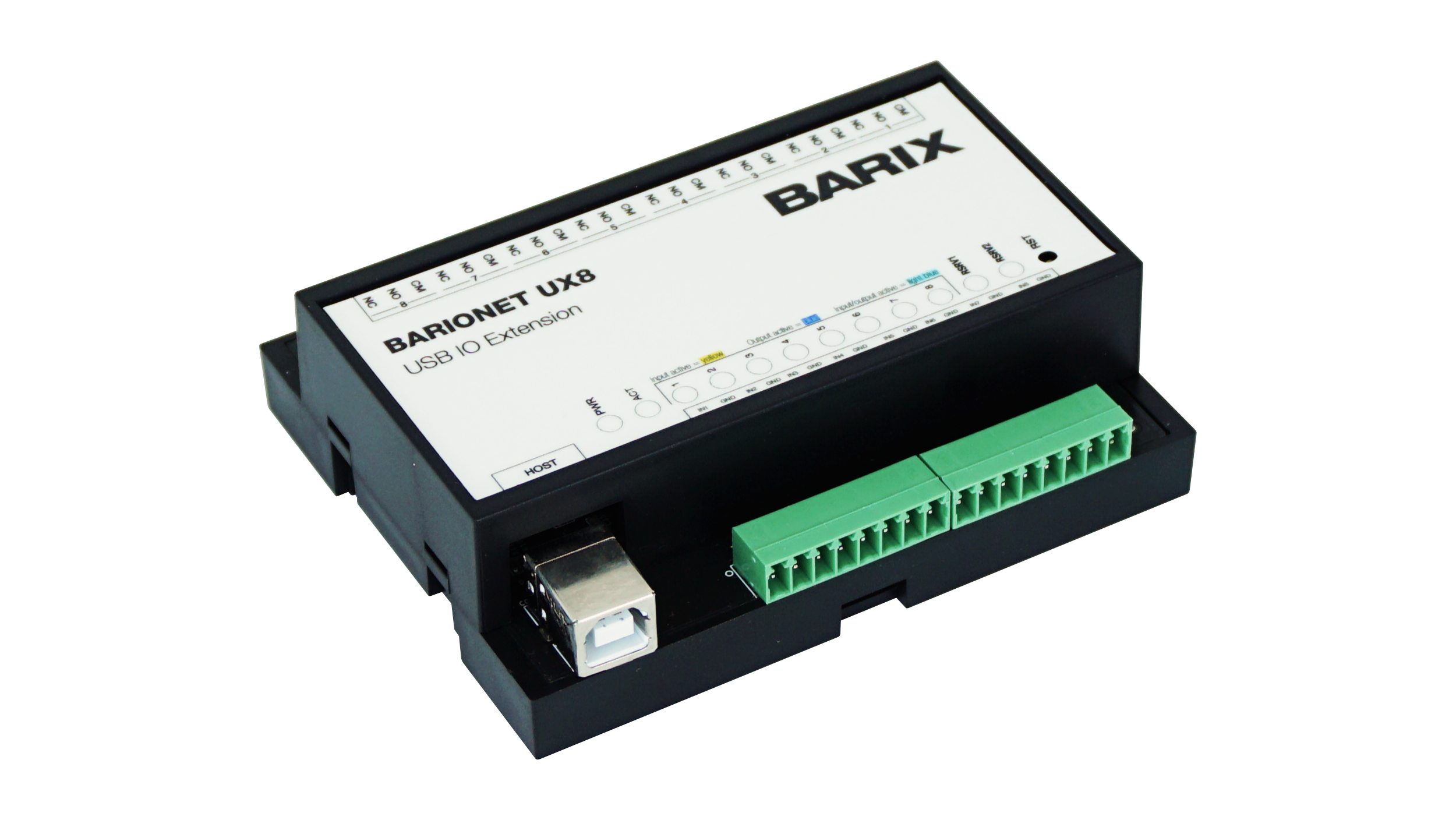

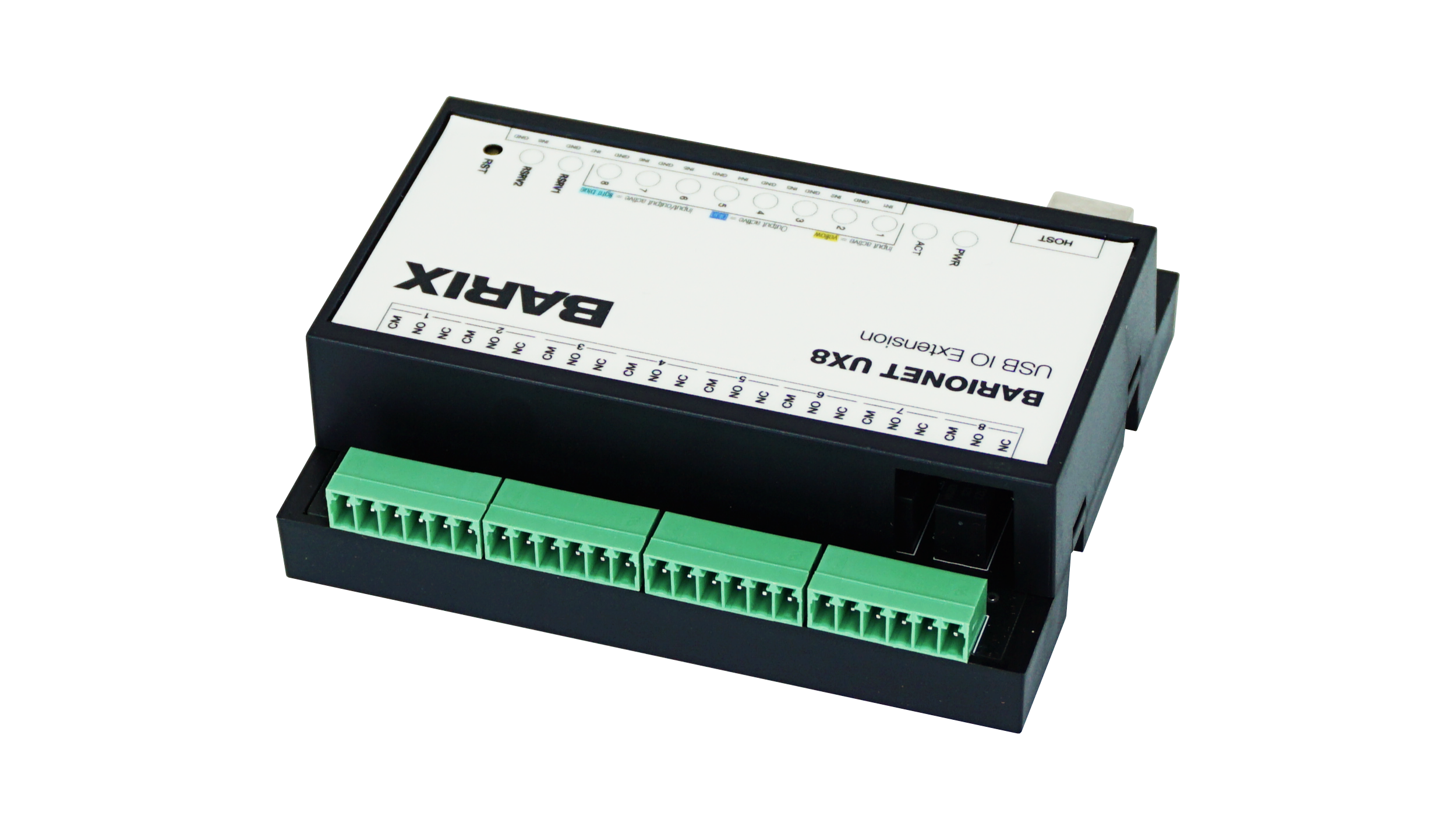

Barionet UX8

USB connected and powered IO Extension.

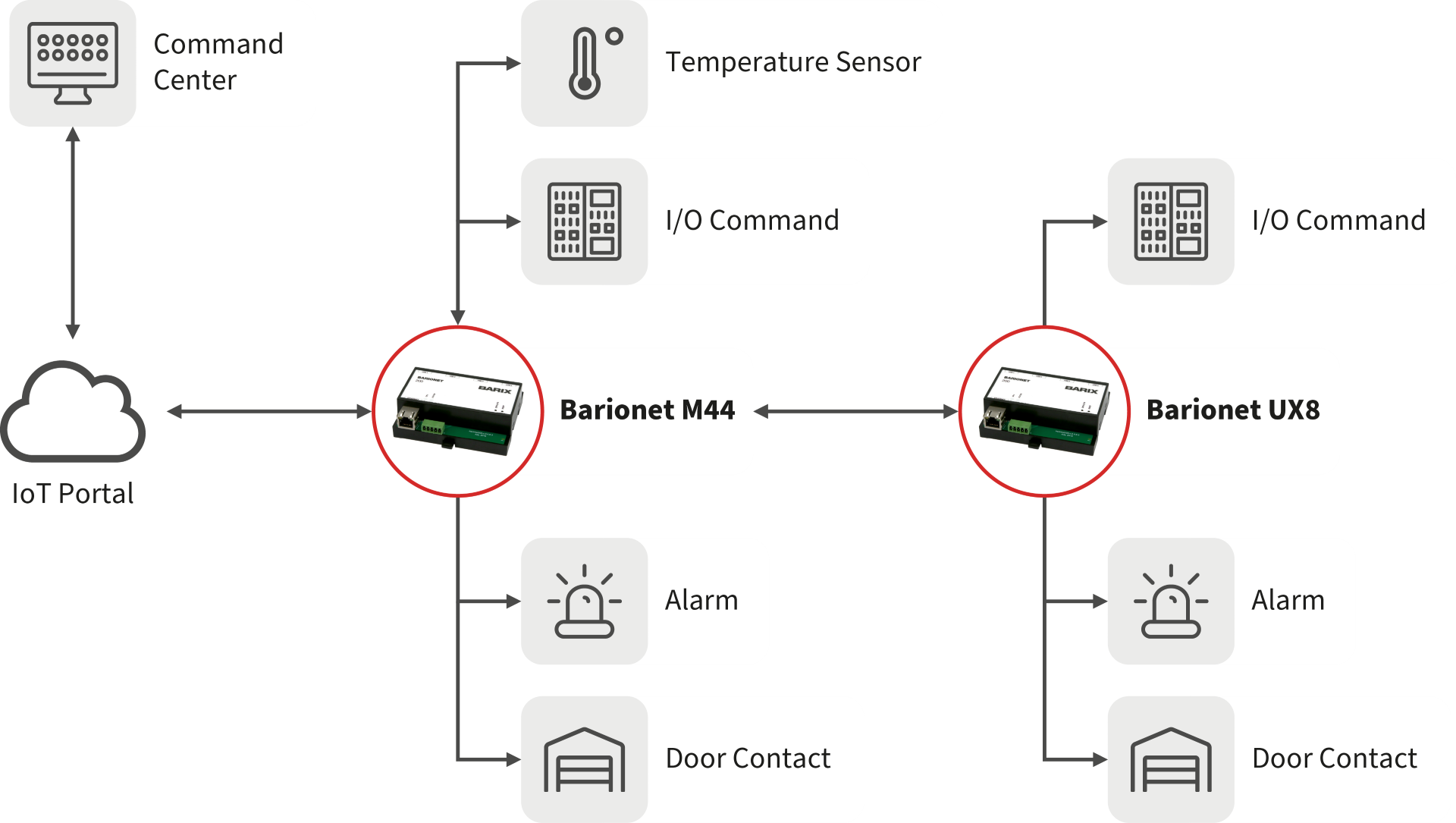

The UX8 is a USB connected and powered IO Extension for IPAM based Barionet devices. It provides a simple way to increase the number of contact closures with 8x Dry Input Contact and 8x Relay outputs with NO and NC positions. The Barionet UX8 is immediately identified by the head-end Barionet device to which it is connected to and seamlessly extends its IO capabilities. The IOs provided by UX8 appear as part of the file system just like the built-in IOs of the head end Barionet unit. A Barionet head-end unit can support up to 2 UX8 extensions.

device-image
Operation System

Extension to the head unit’s Linux file system



Host Interface

1 x USB Type B

I/O Interface

8 x Relay Outputs (30VDC, 1A) NO and NC
8x Dry contact inputs (0 -15V)



Compatibility

Compatible with Barionet M series
NOT compatible with Barionet 50, 100, 400, 1000



Power Requirements

5V on USB: 2.5W (max)

LEDs

Power
(8x) Input contact closures
(2x) Relay Outputs (#1 and #2)



Buttons

Reset button to perform HW reset of the MCU board on
UX8
DIP Switch used to set the unit’s address to the head end
Barionet

Measurement

4.05” x 3.35” x 1.22” / 105mm x 85mm x 31mm



Weight

150g



Warranty

Two years



Package Content

Barix UX8 device
4x 6-pin female terminal block
2x 8-pin female terminal block
Rail spring adaptor
USB A to USB B cable
Sticker with Mac Address and password inf

Barionet UX8 (Made in Europe)

2023.9425P Barionet UX8
