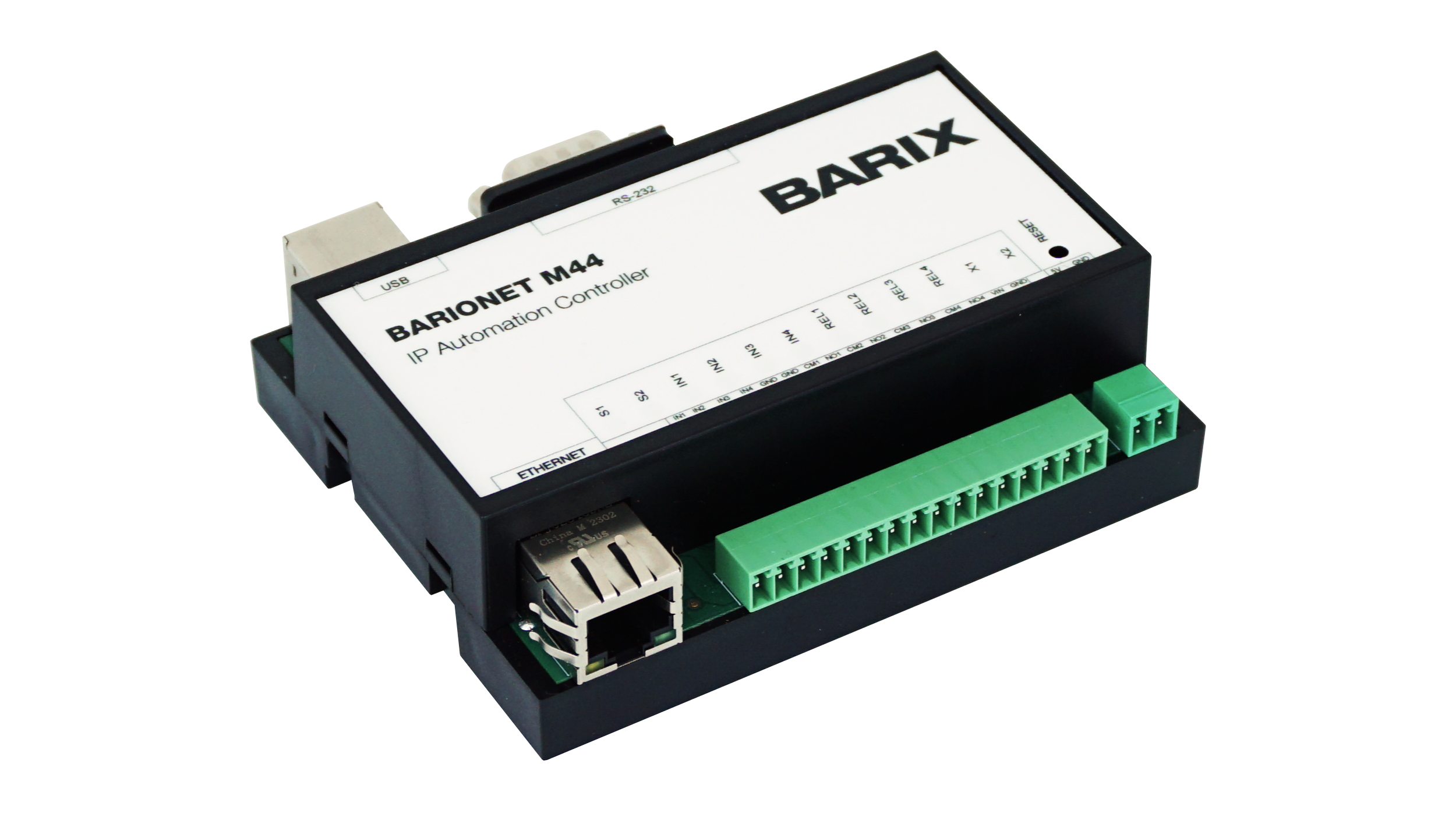

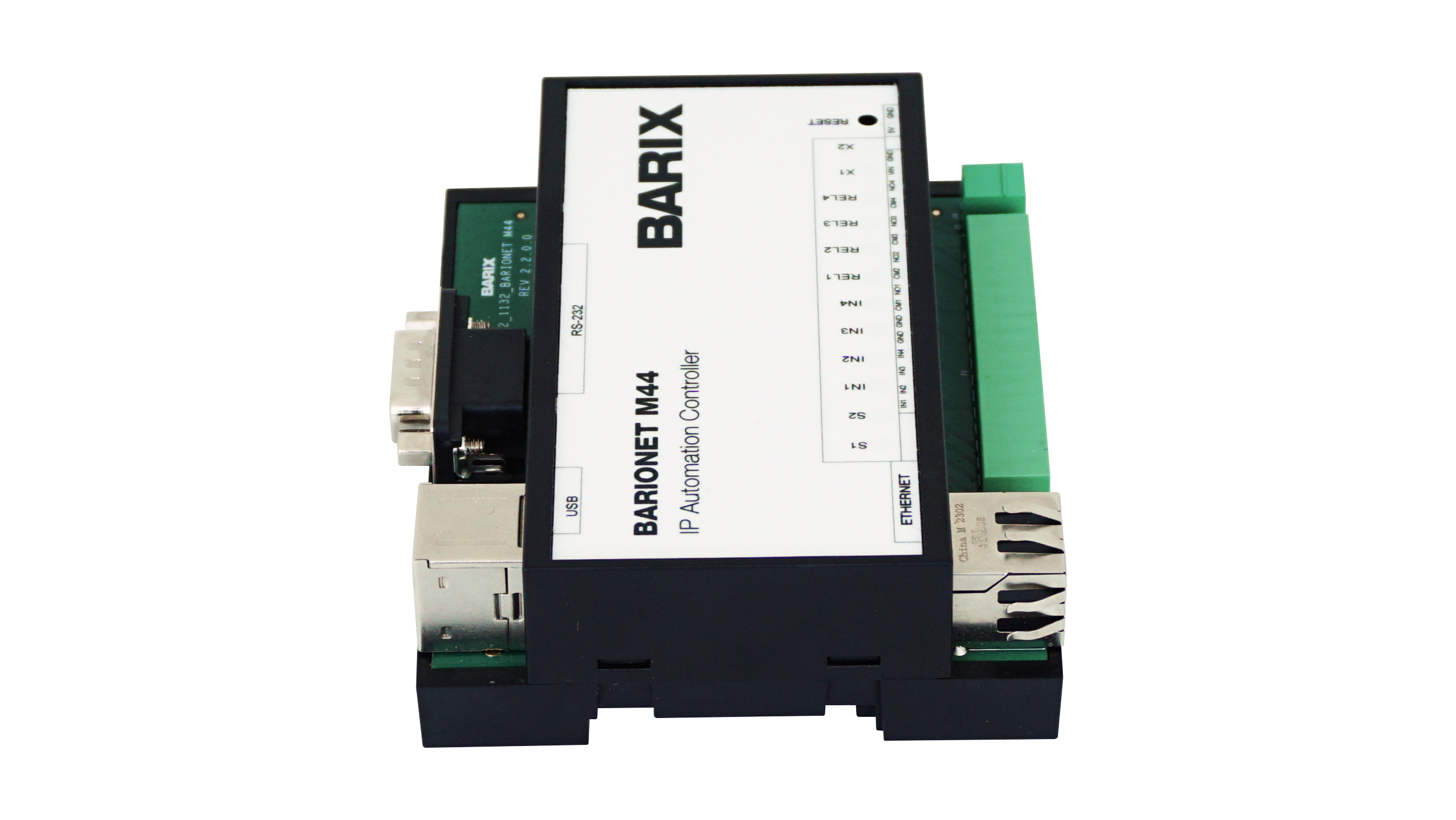

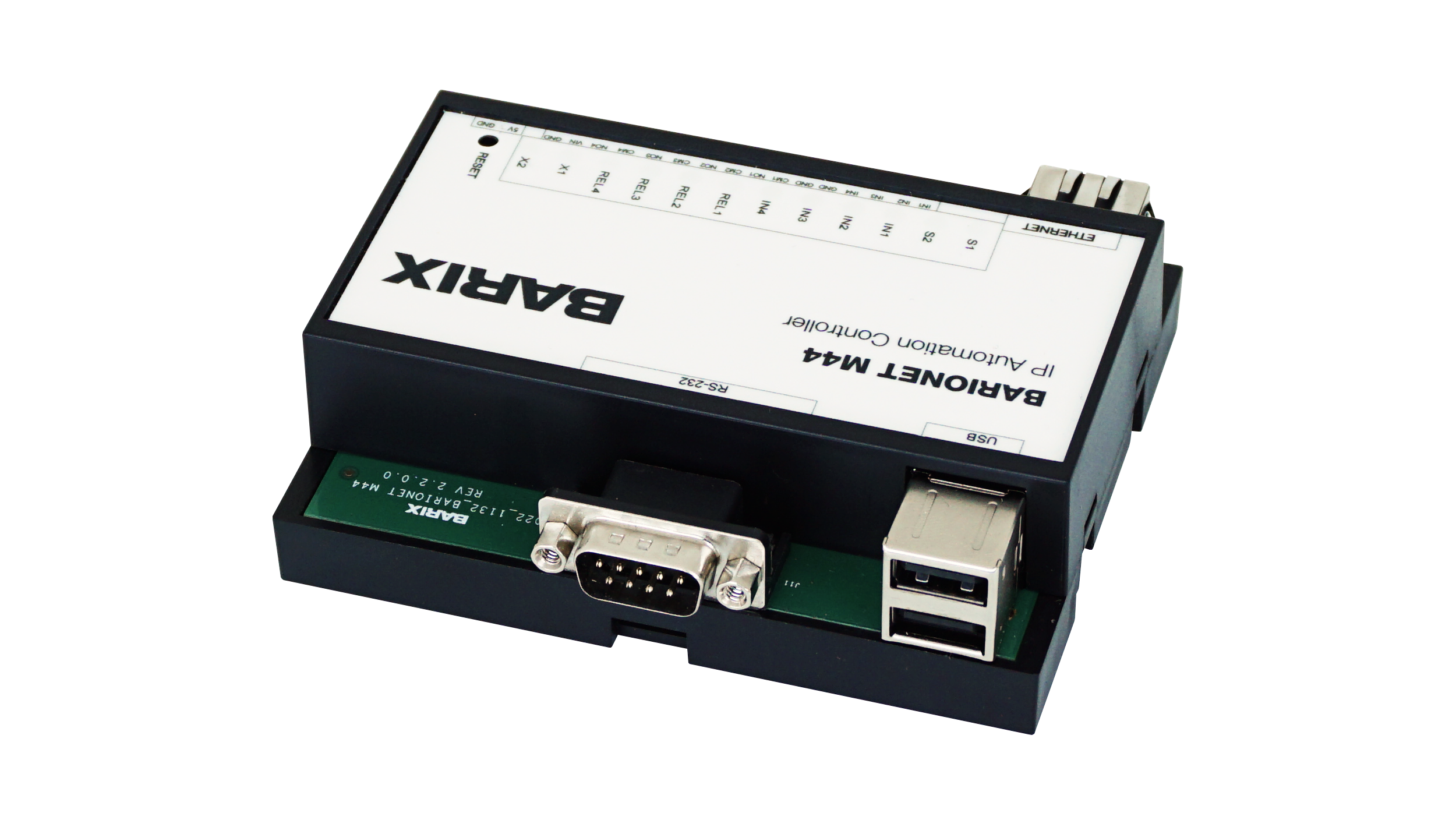

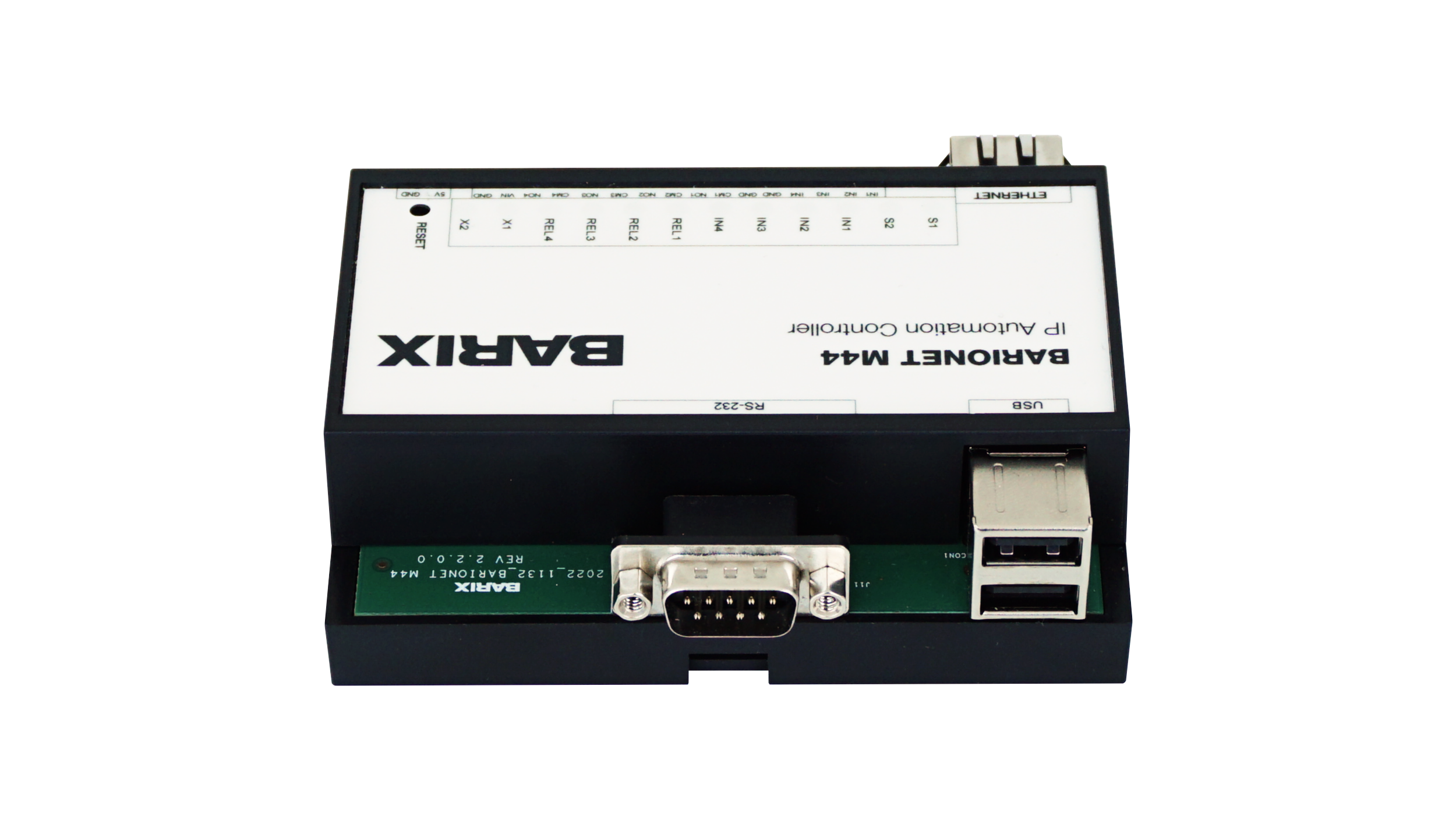

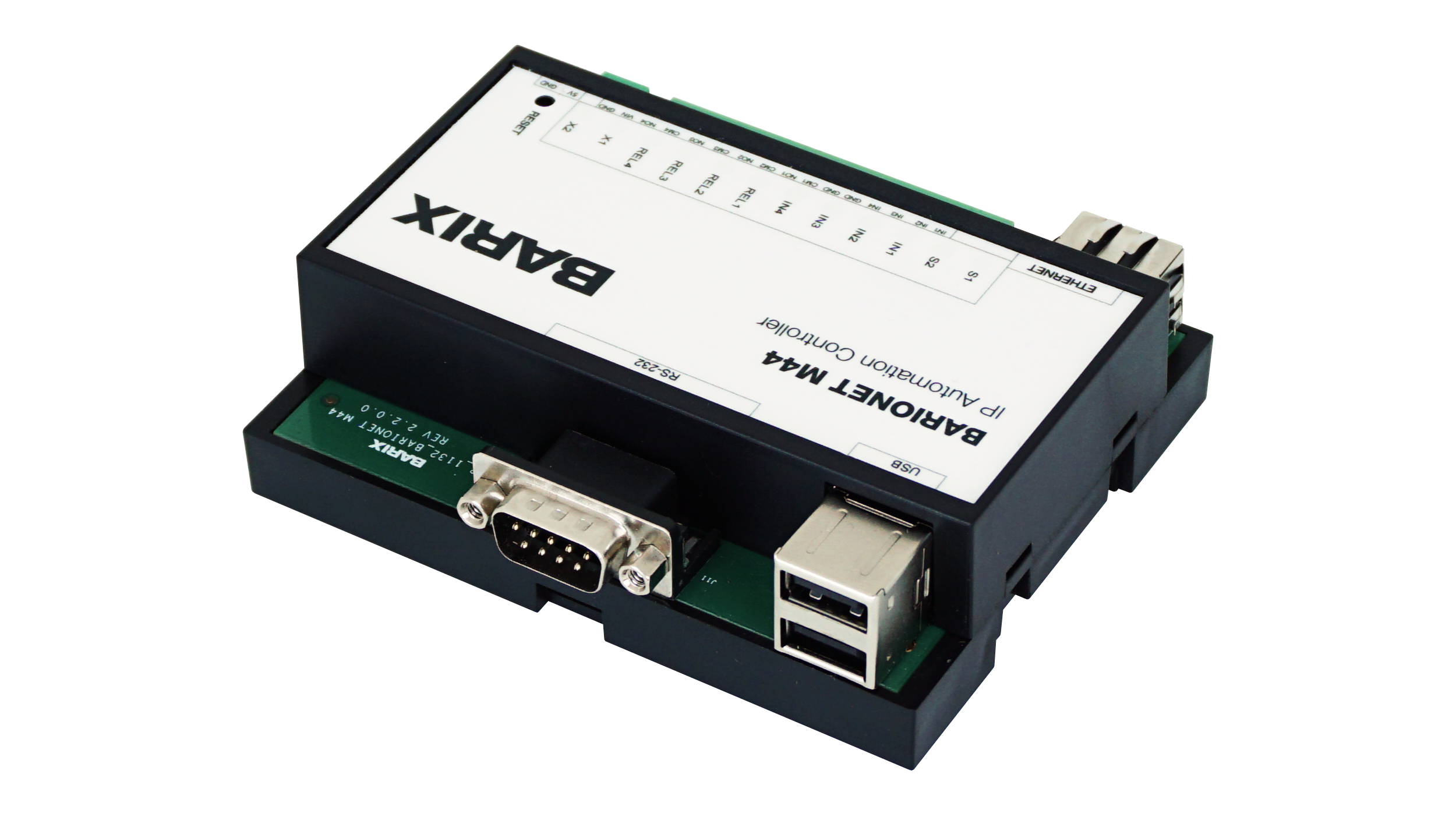

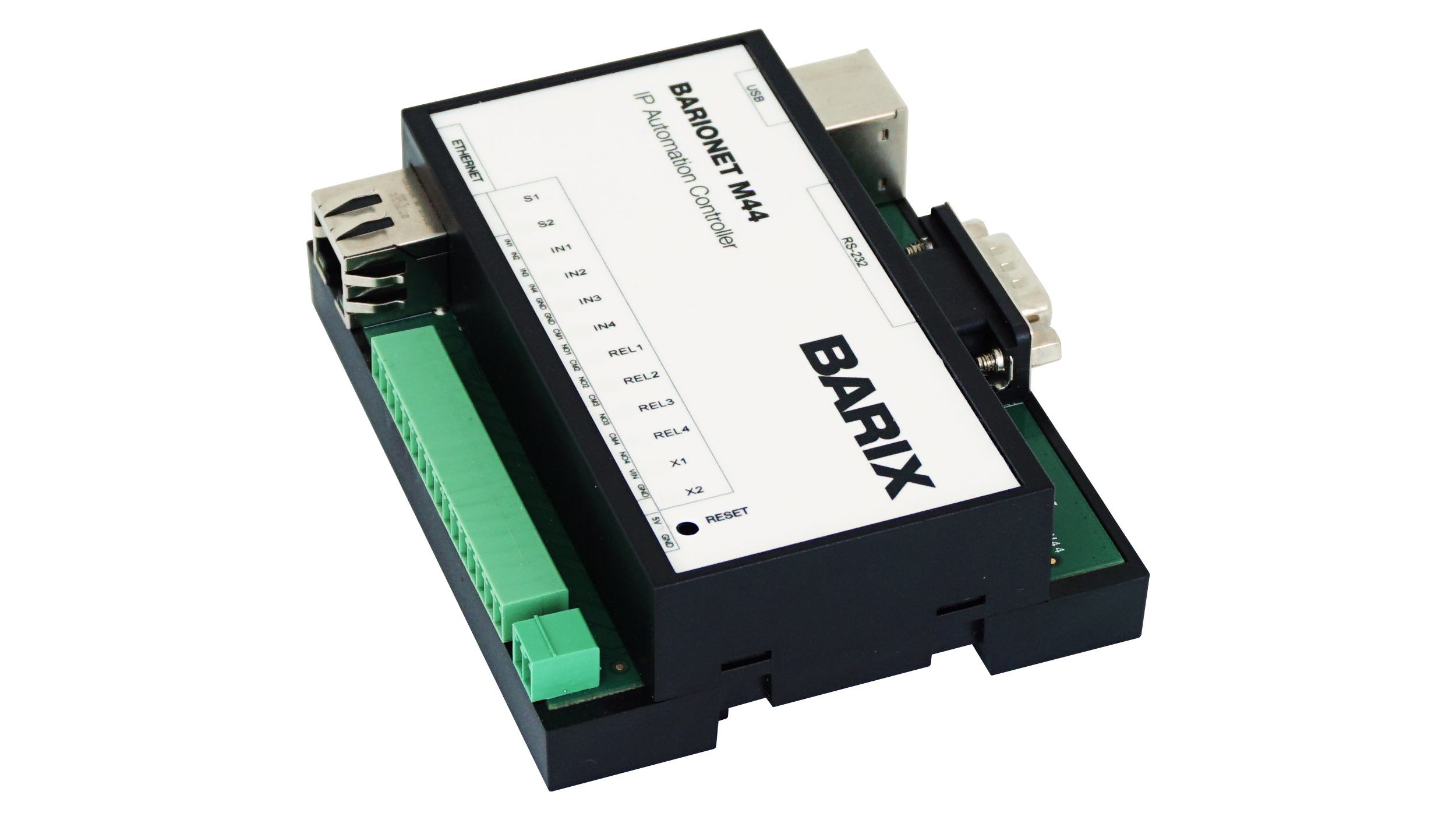

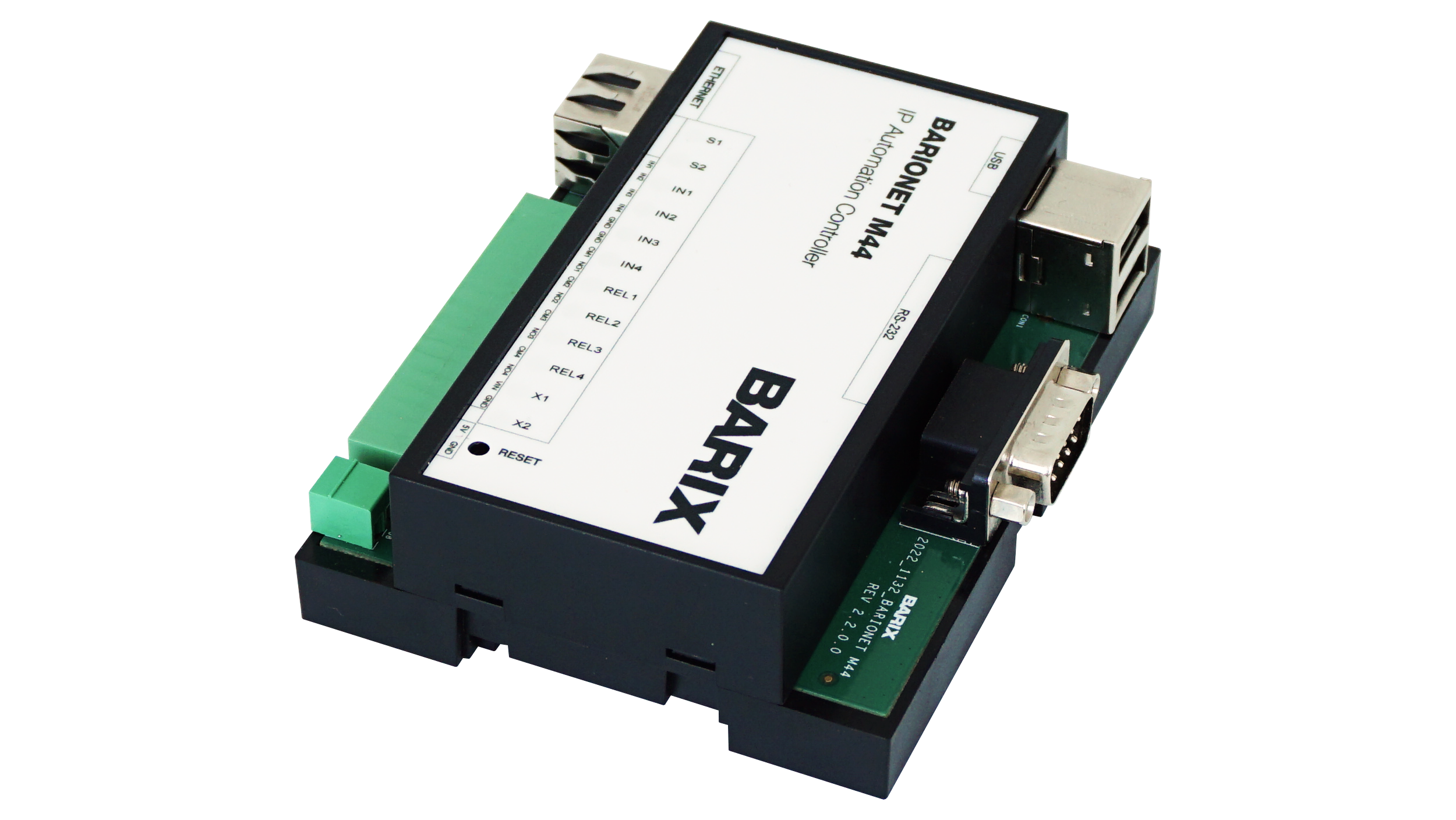

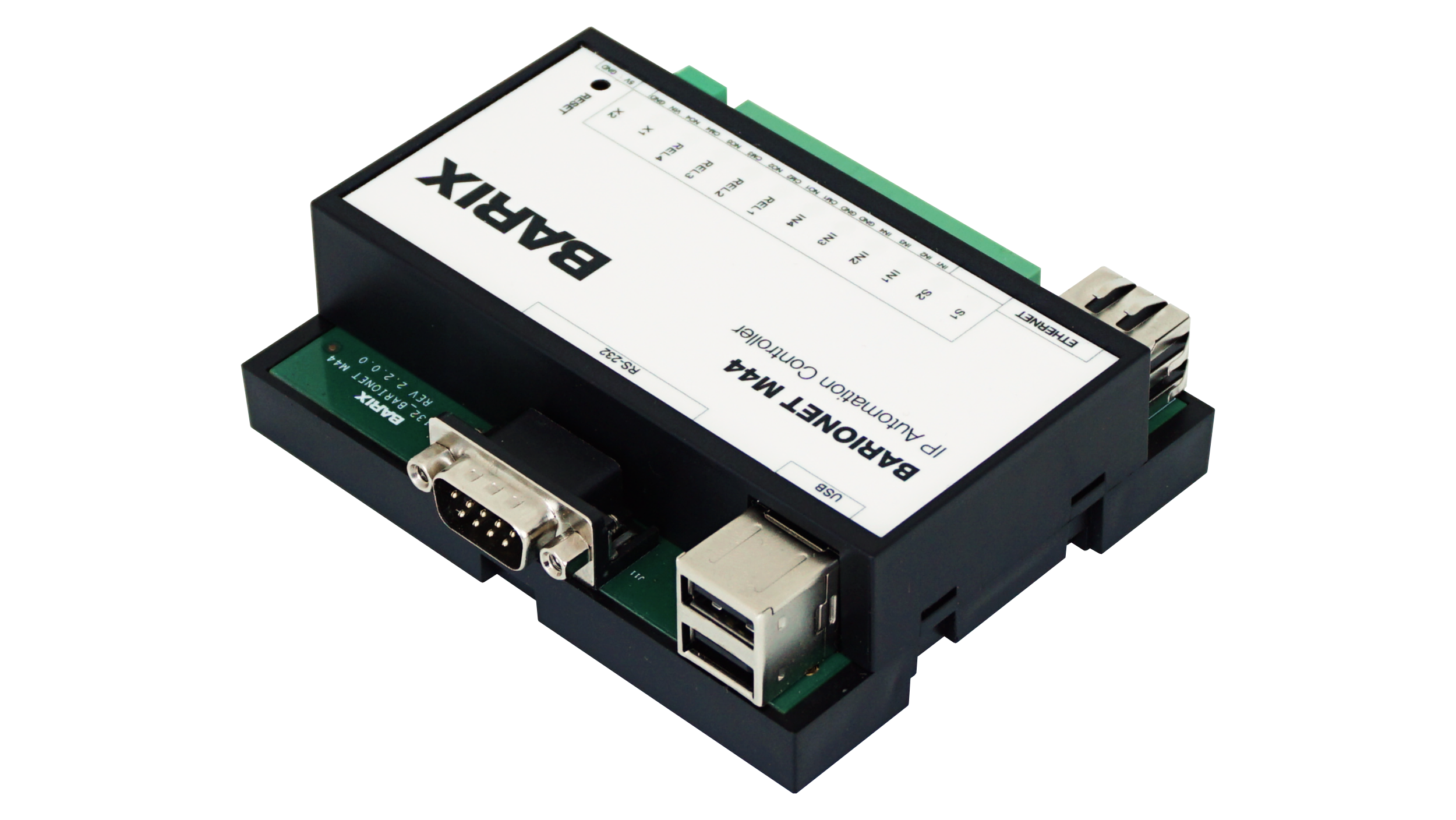

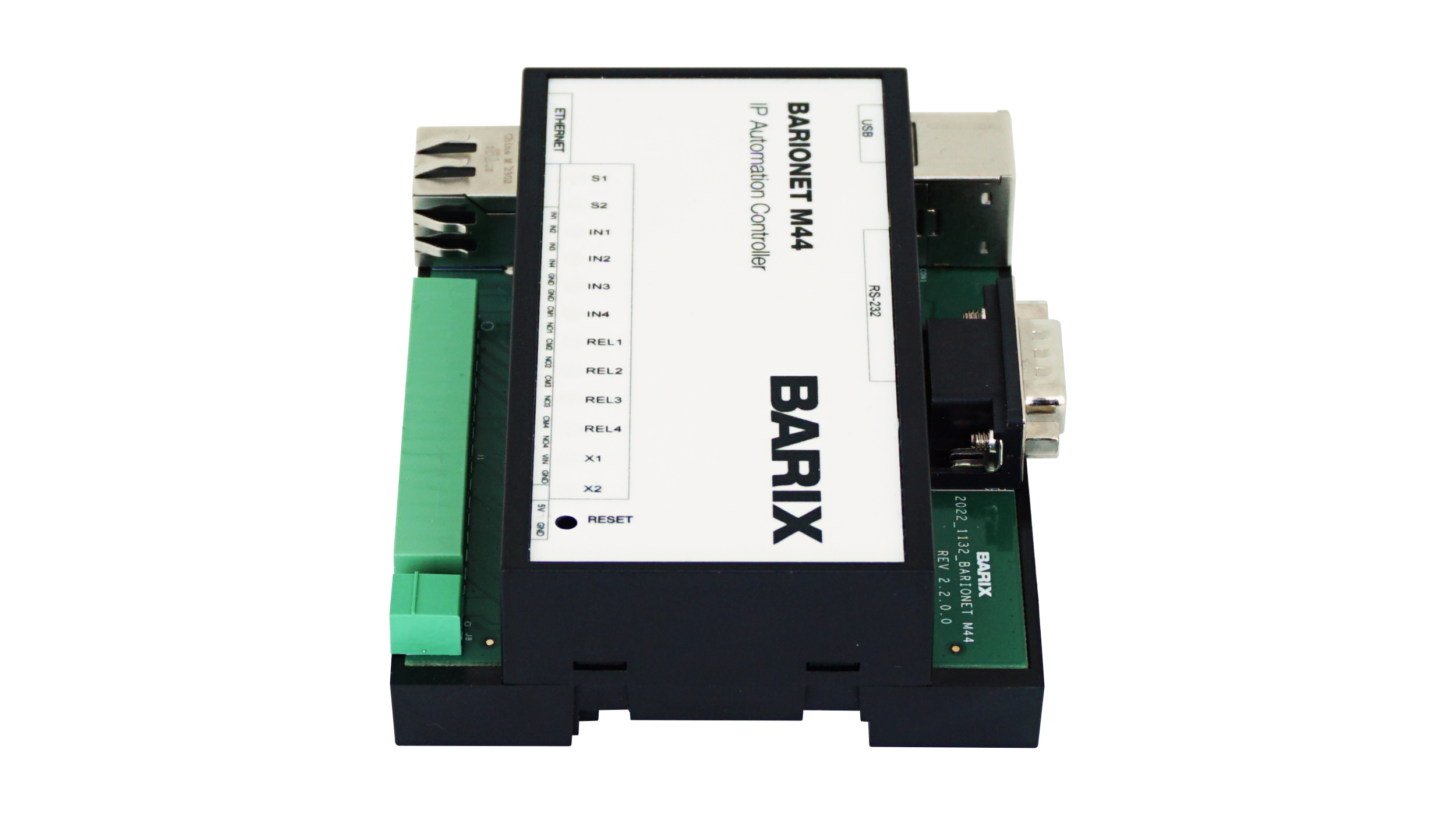

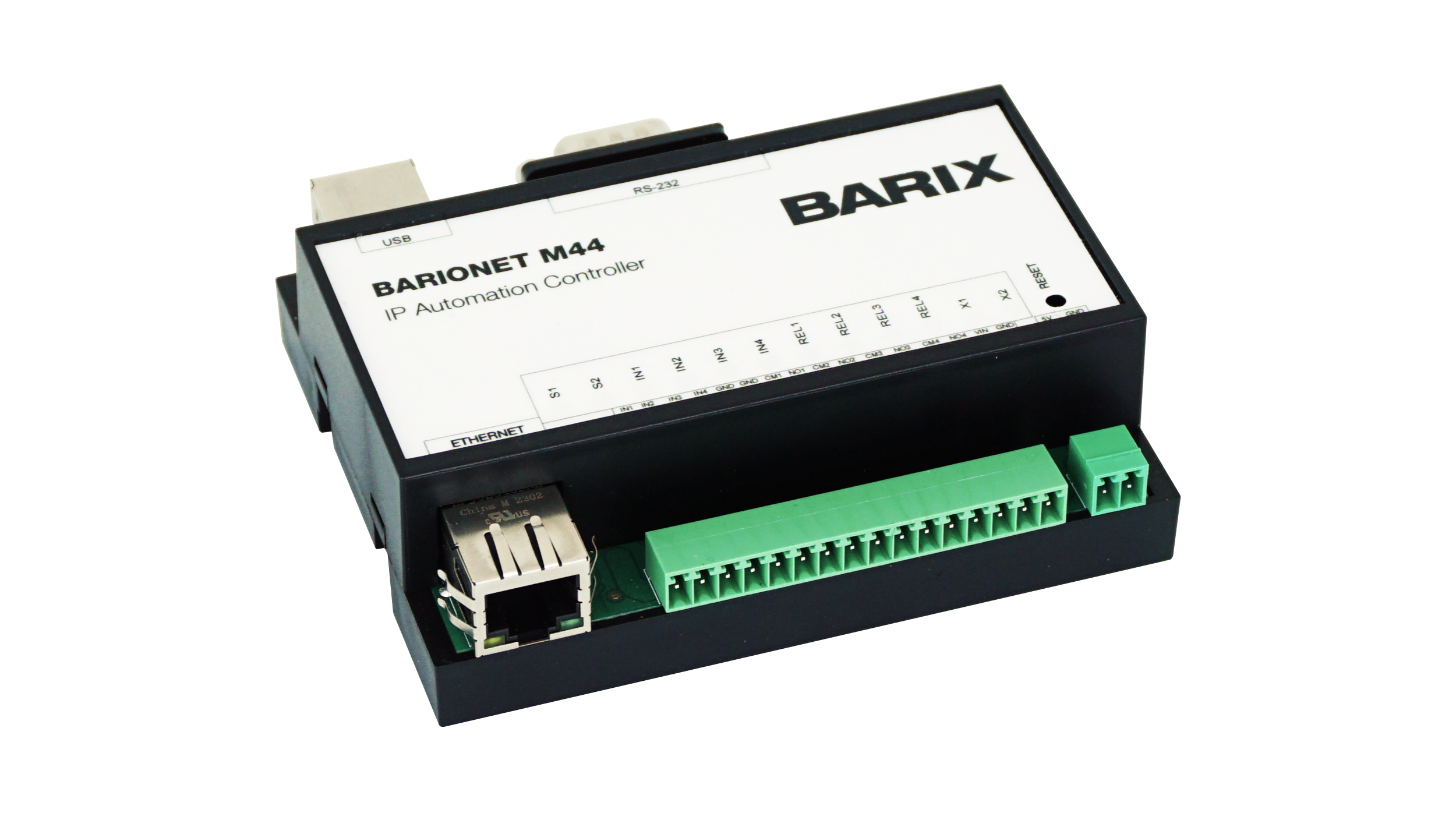

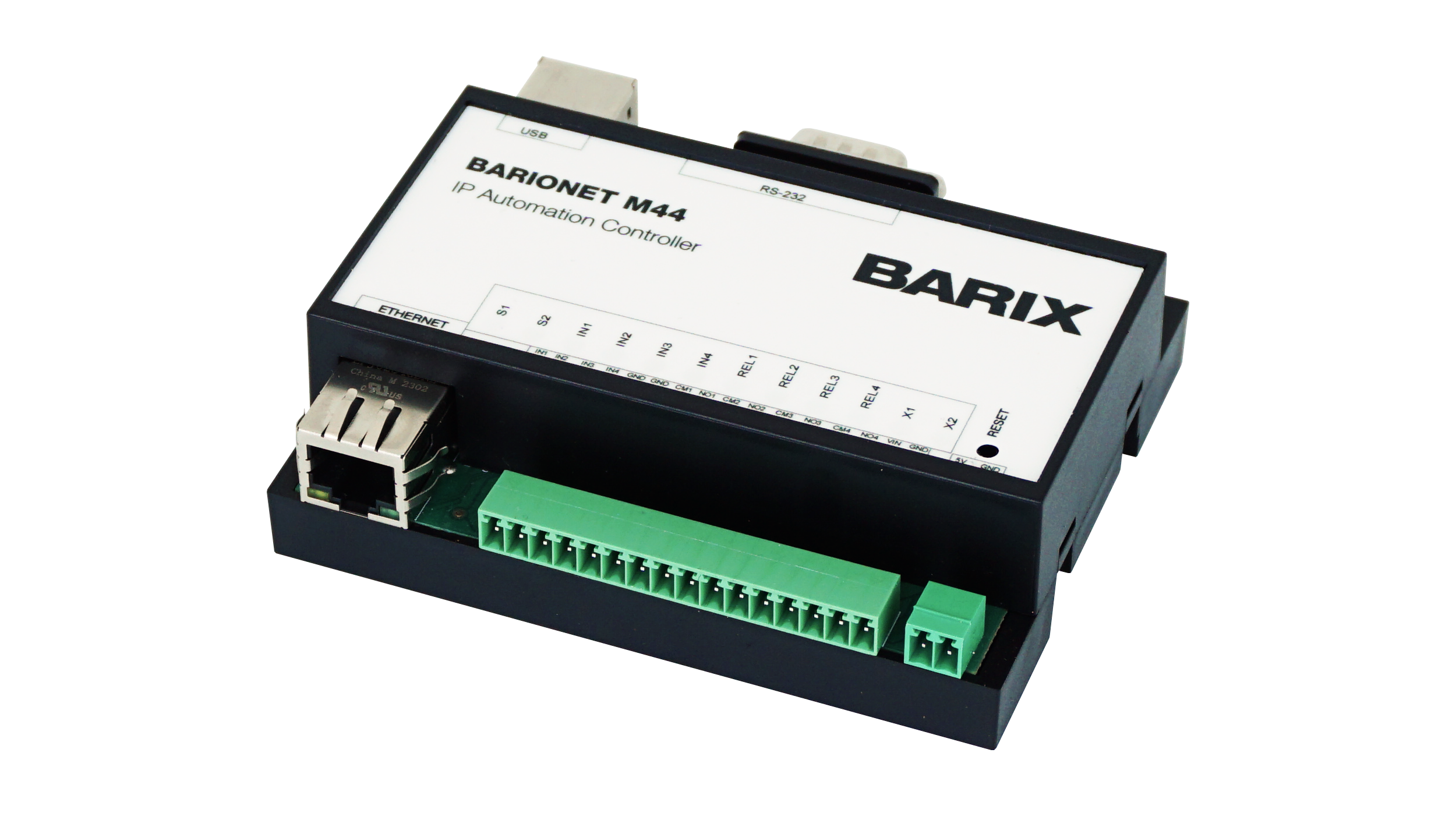

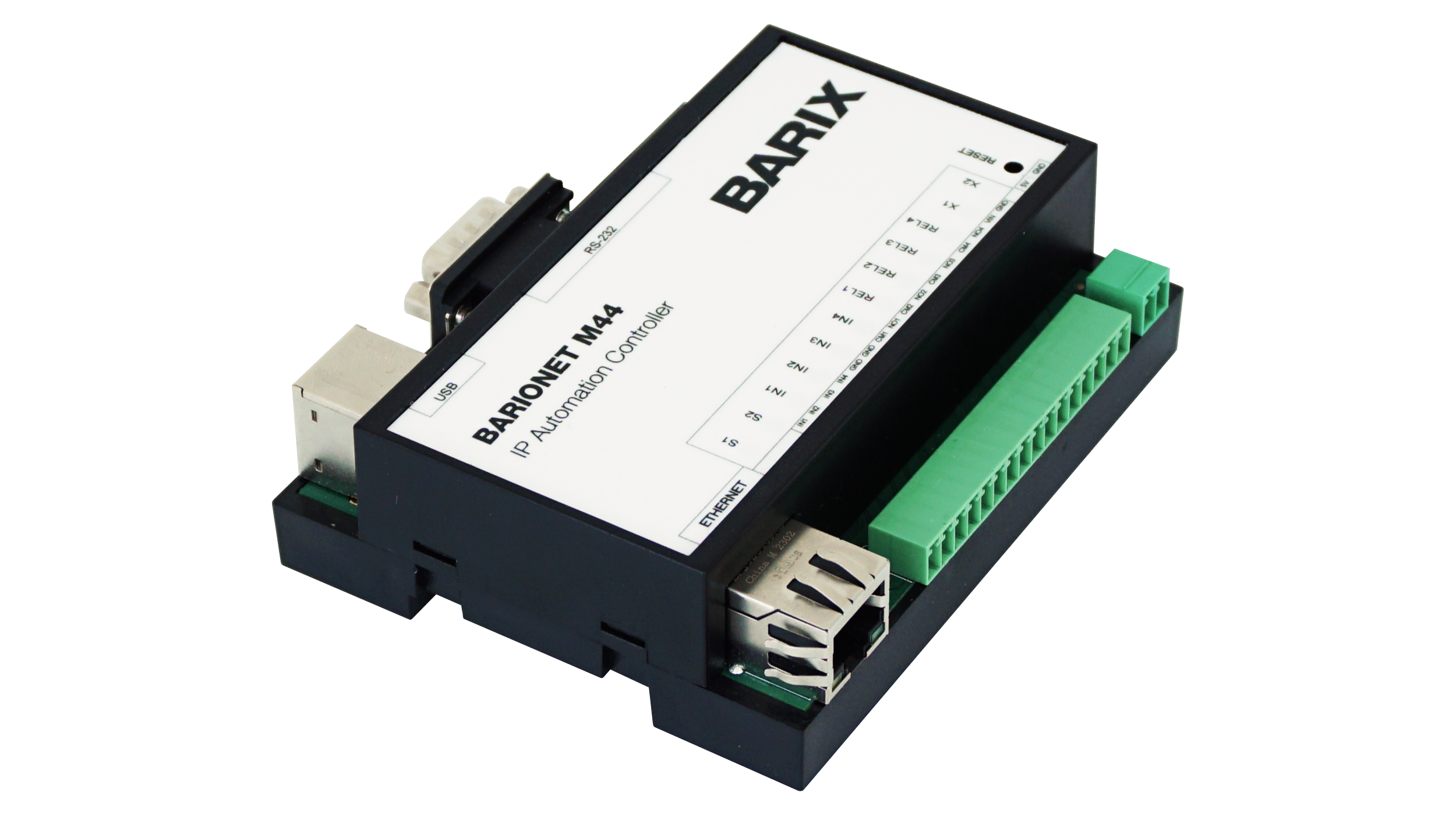

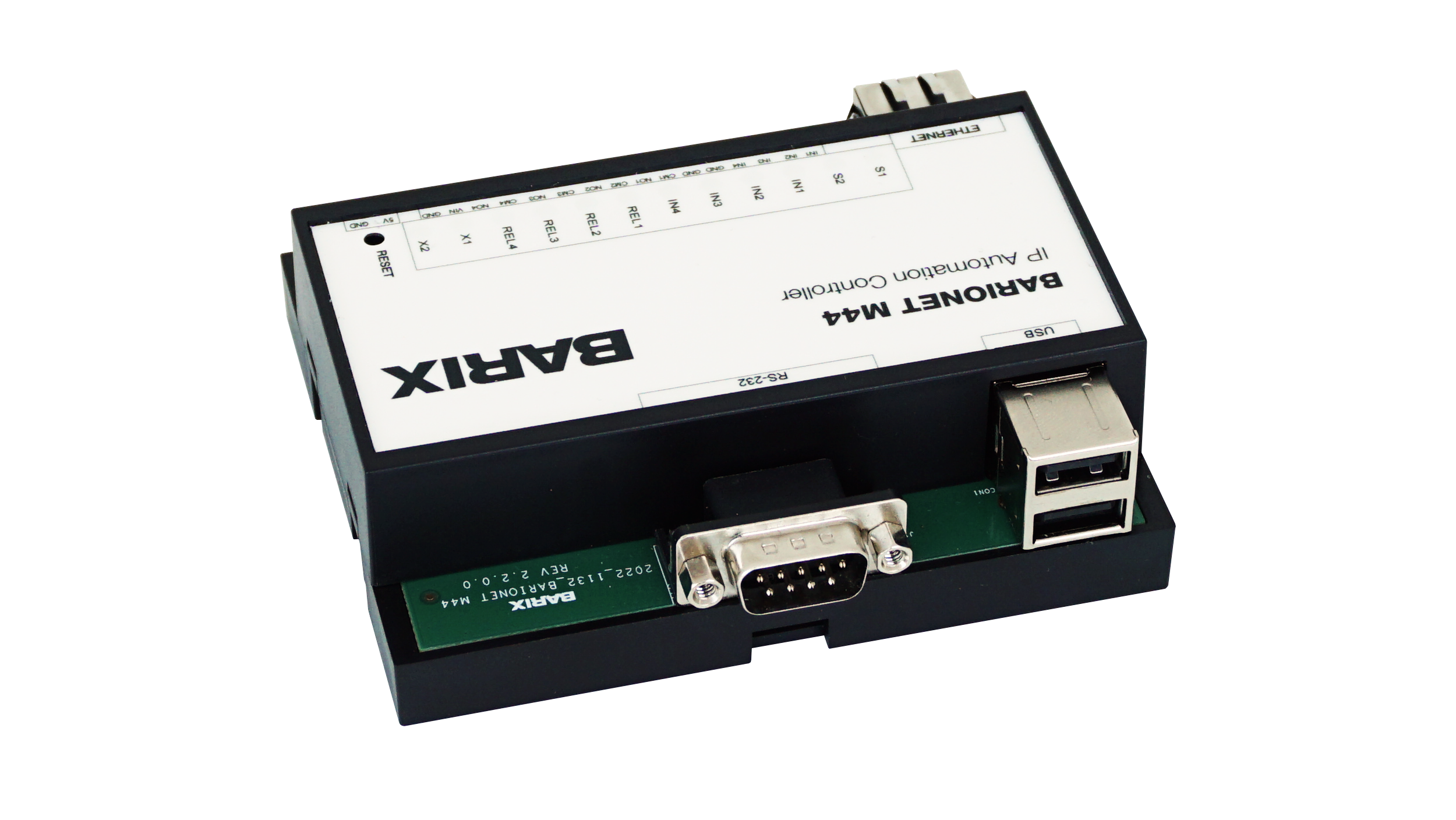

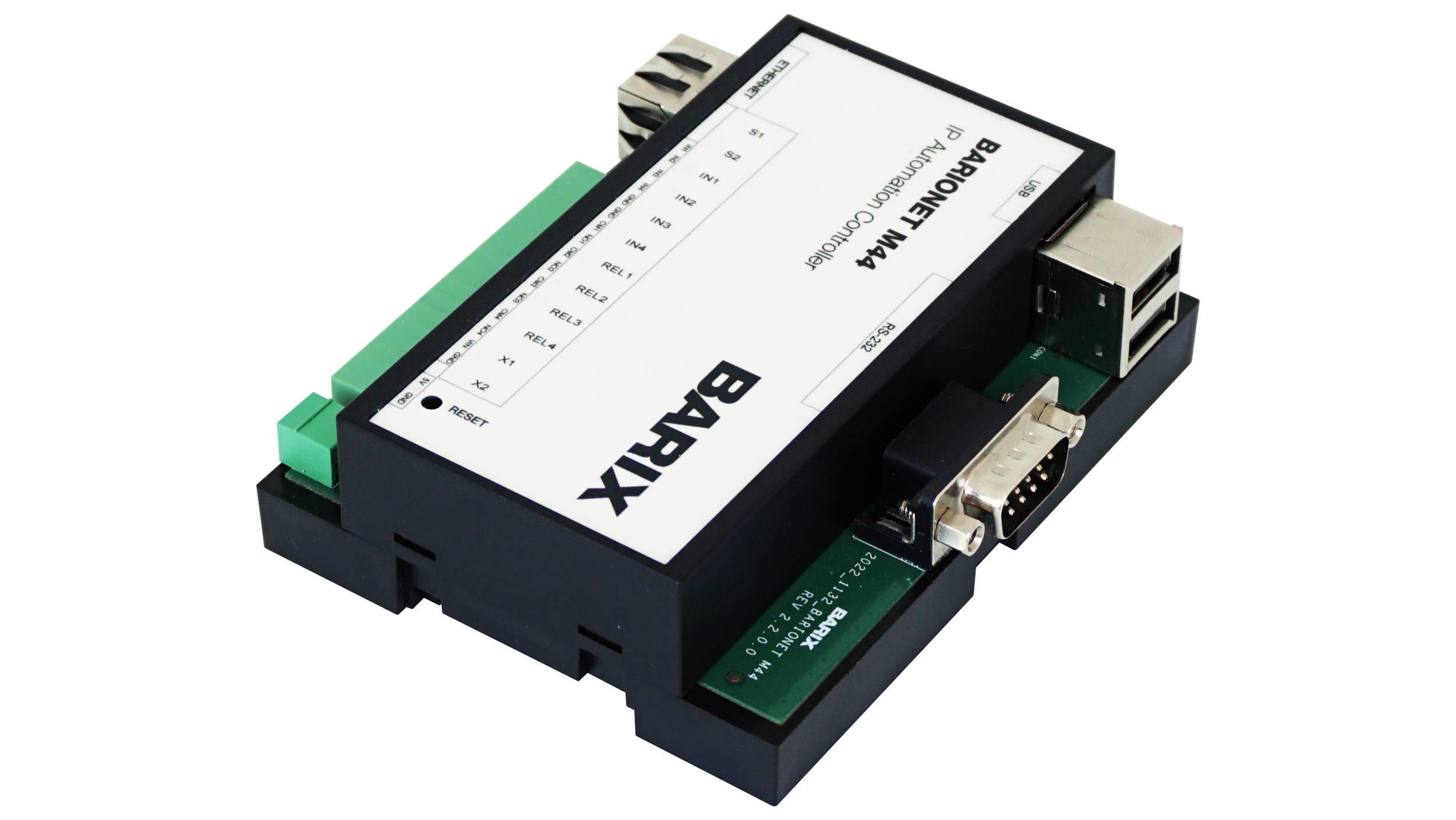

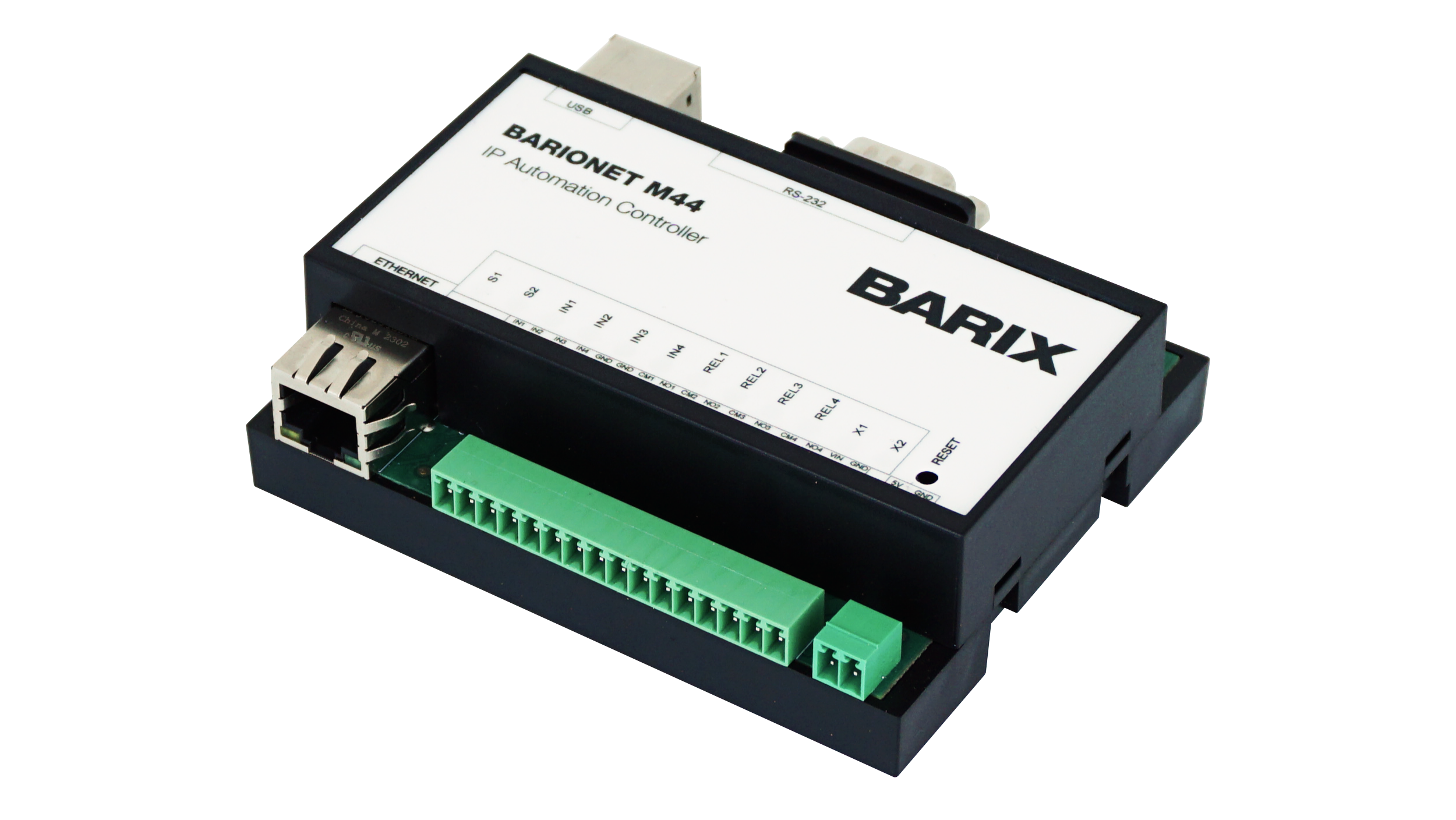

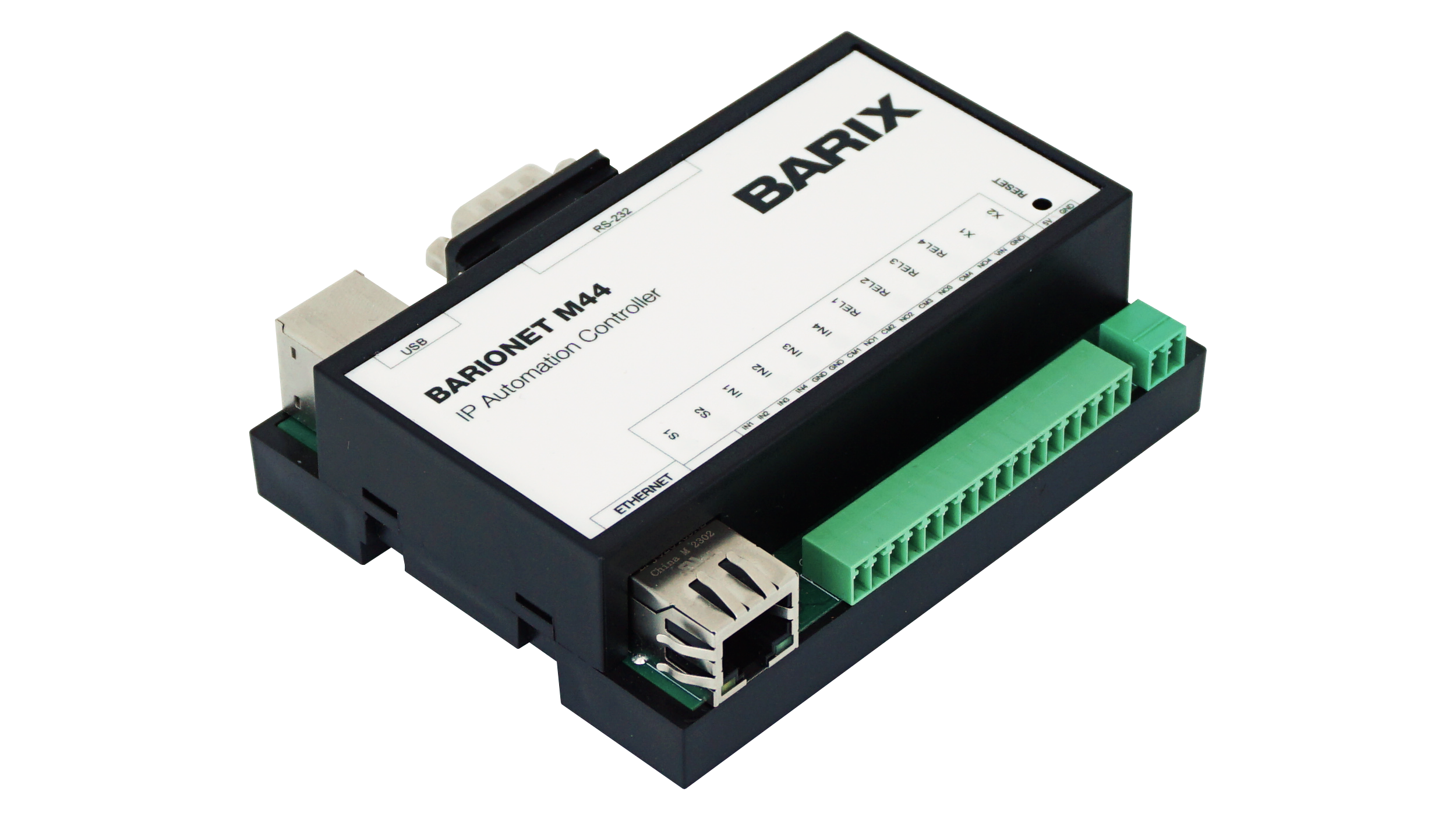

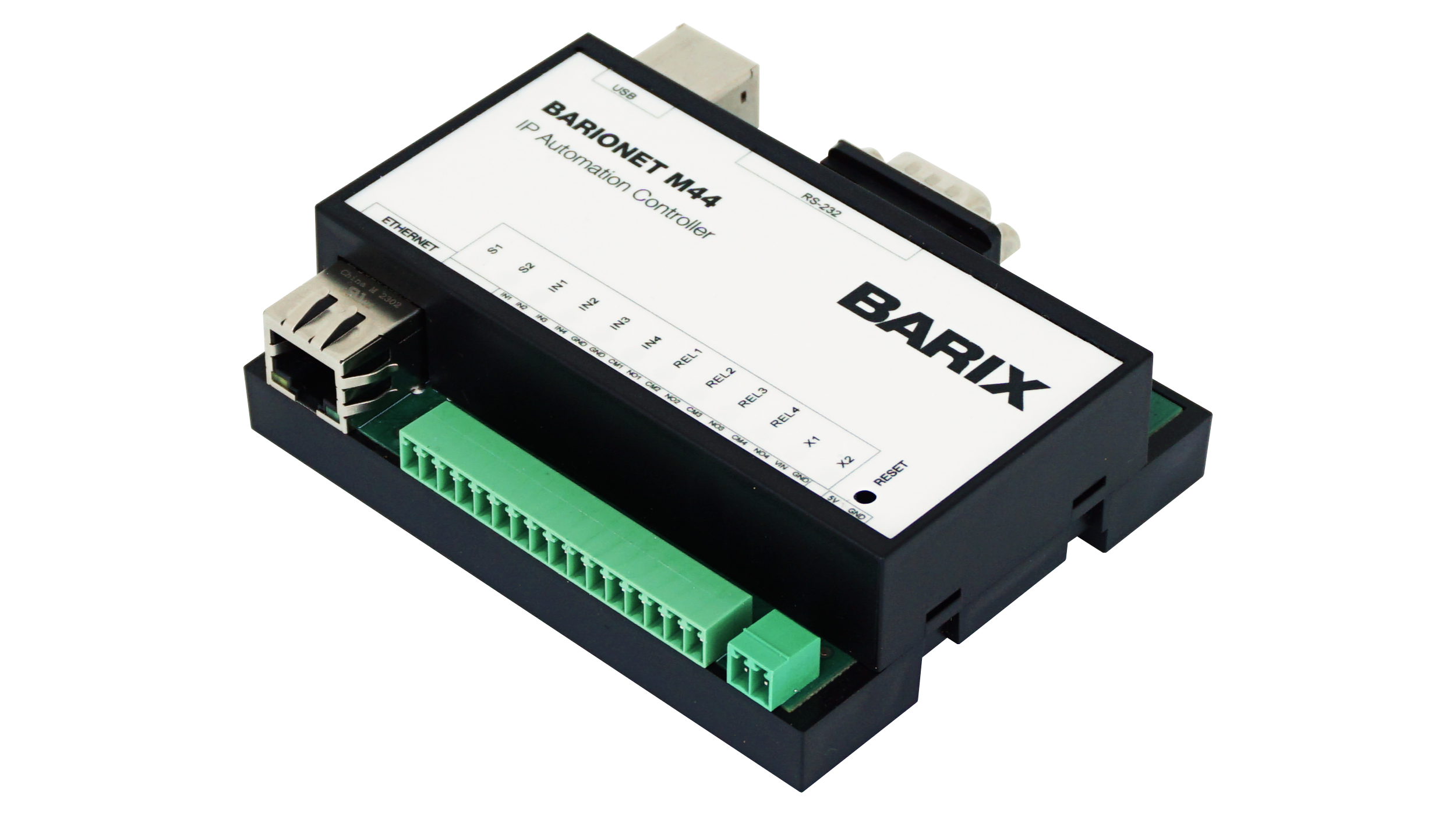

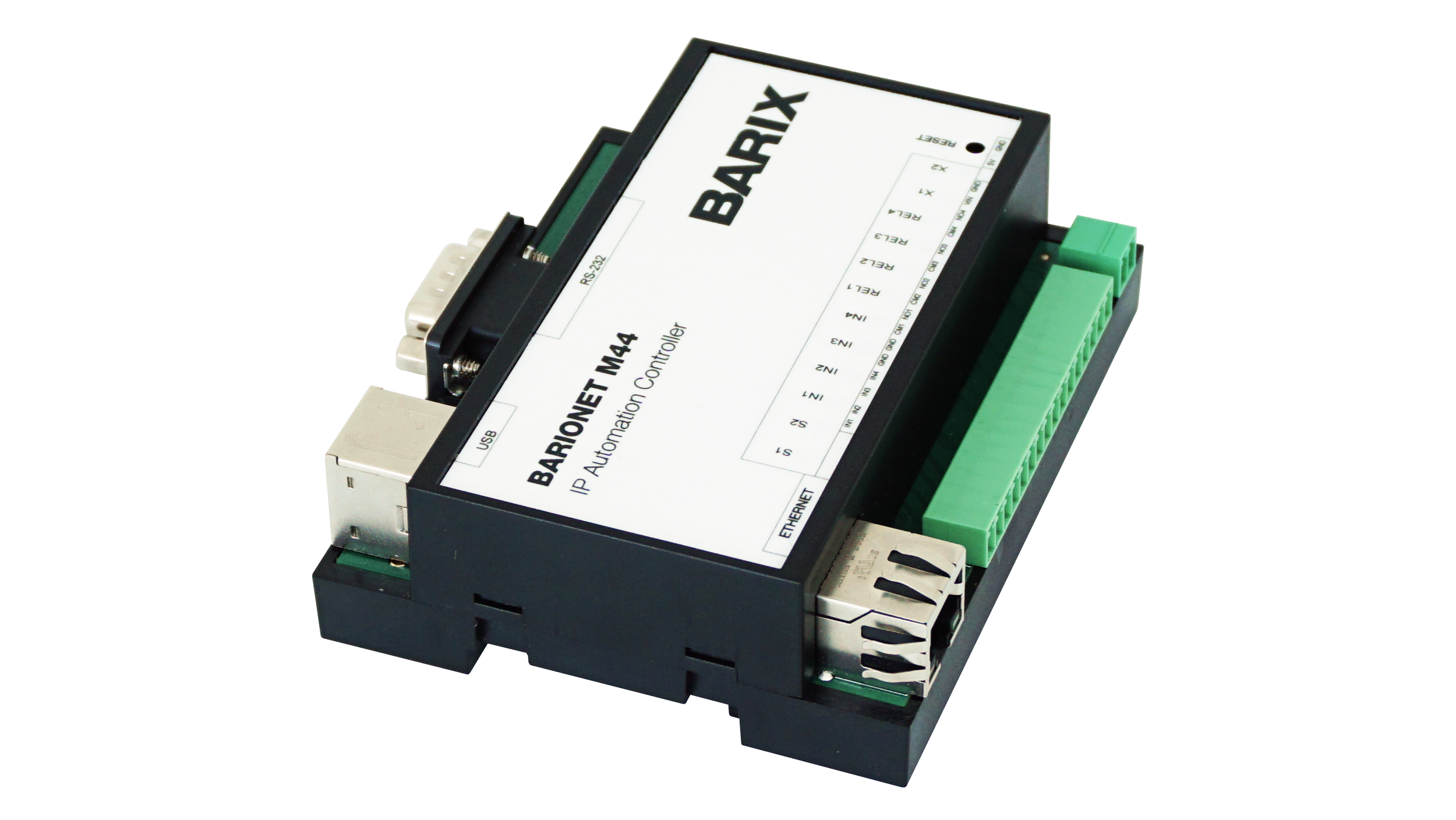

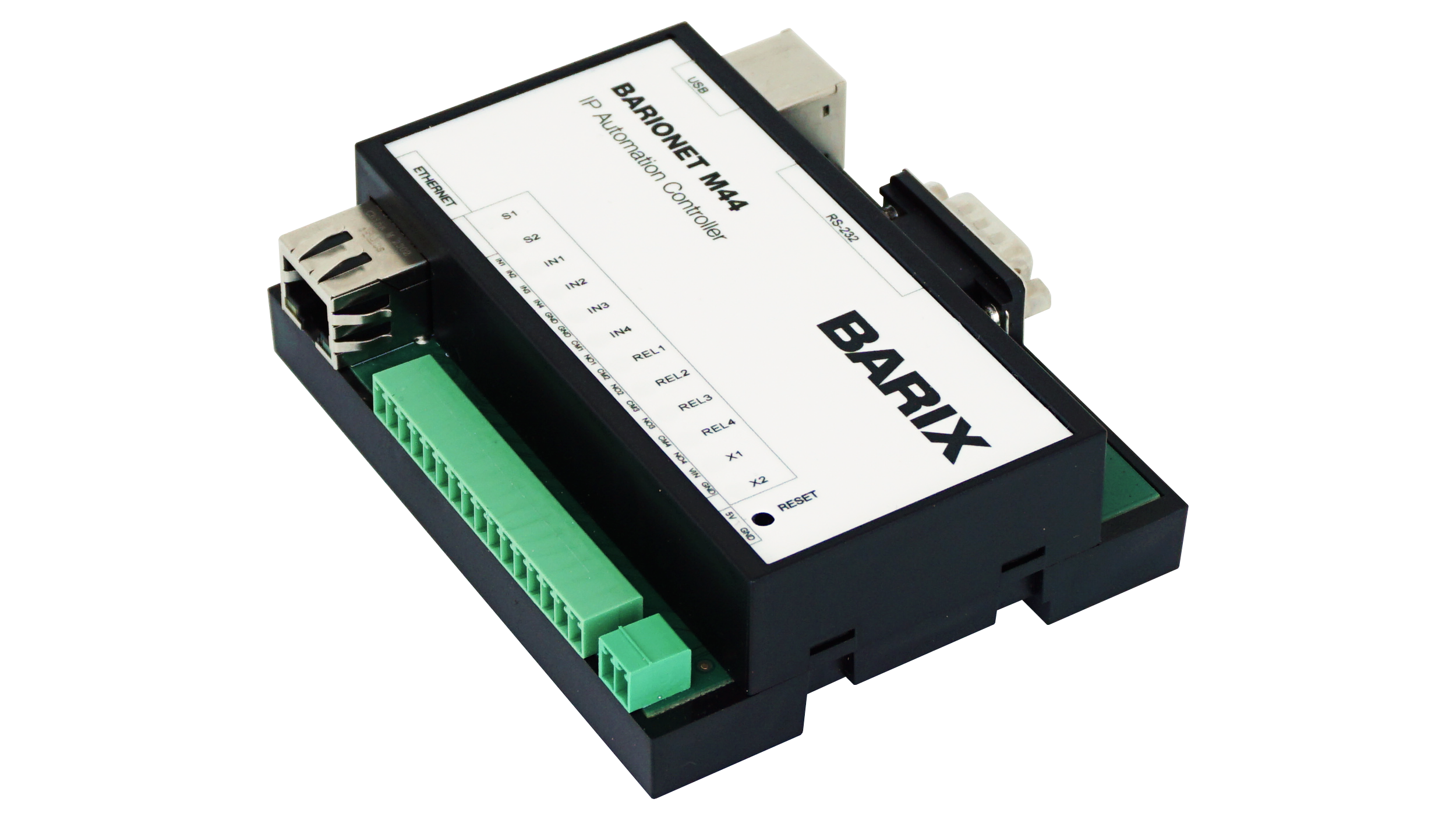

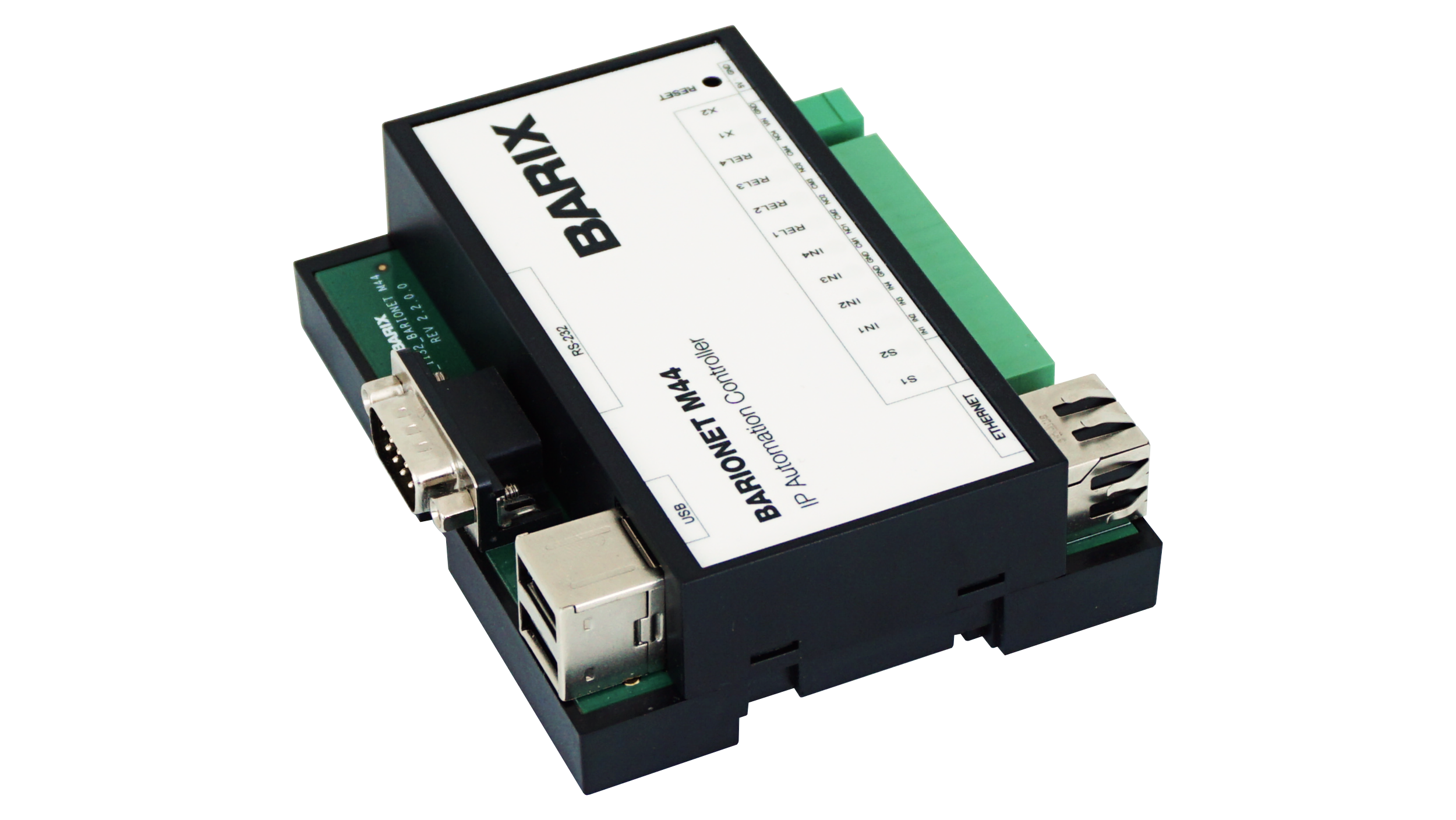

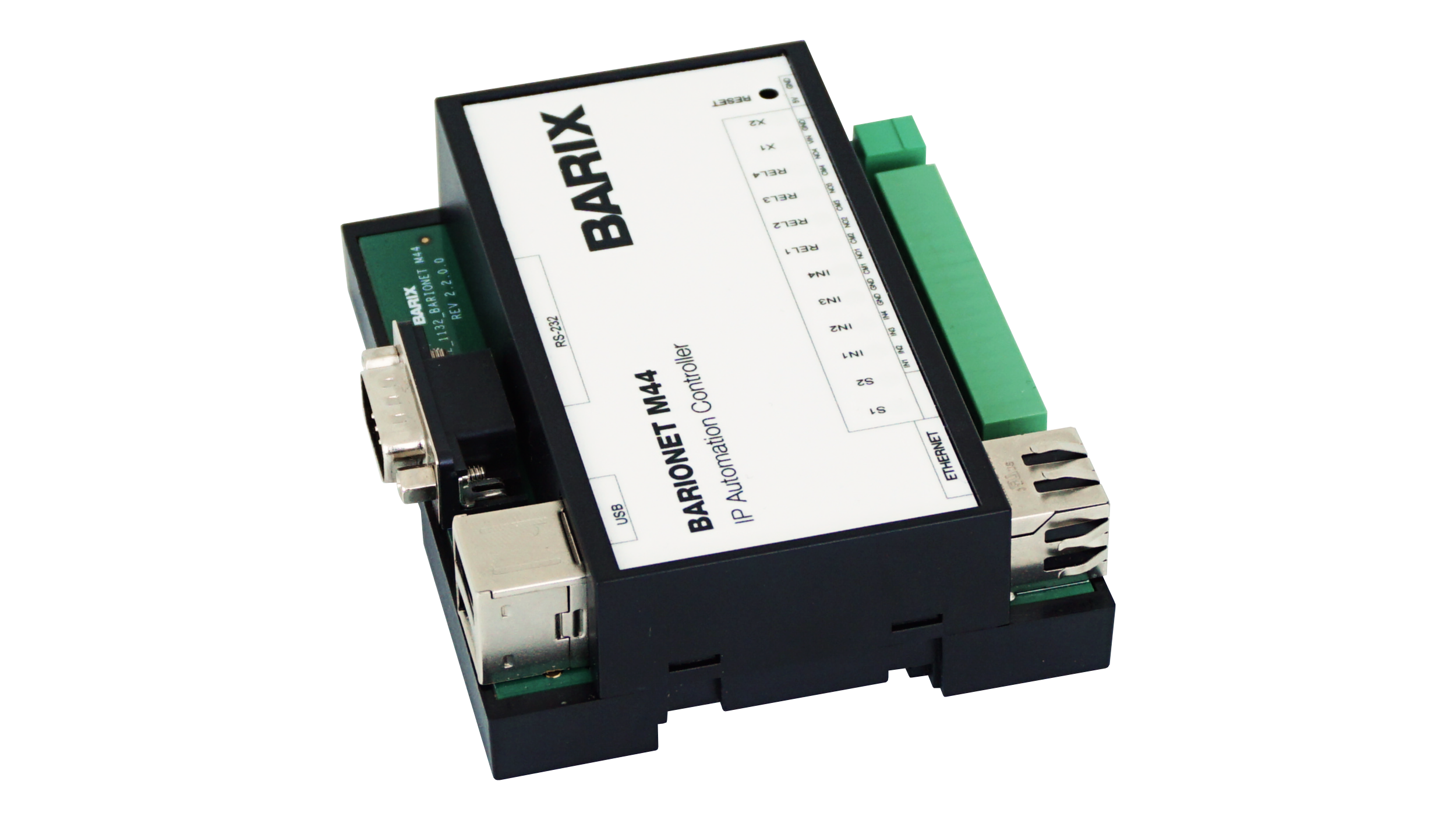

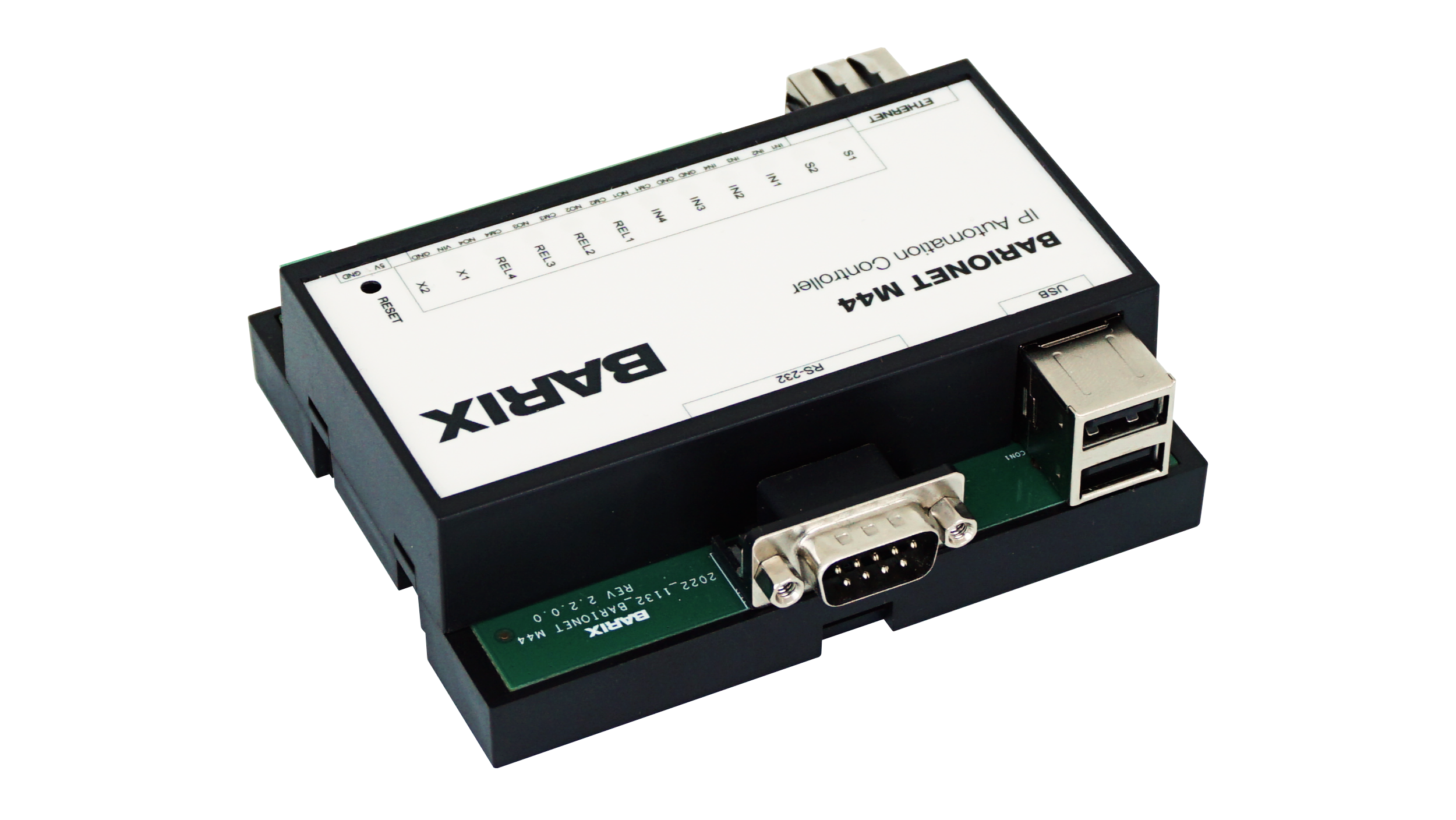

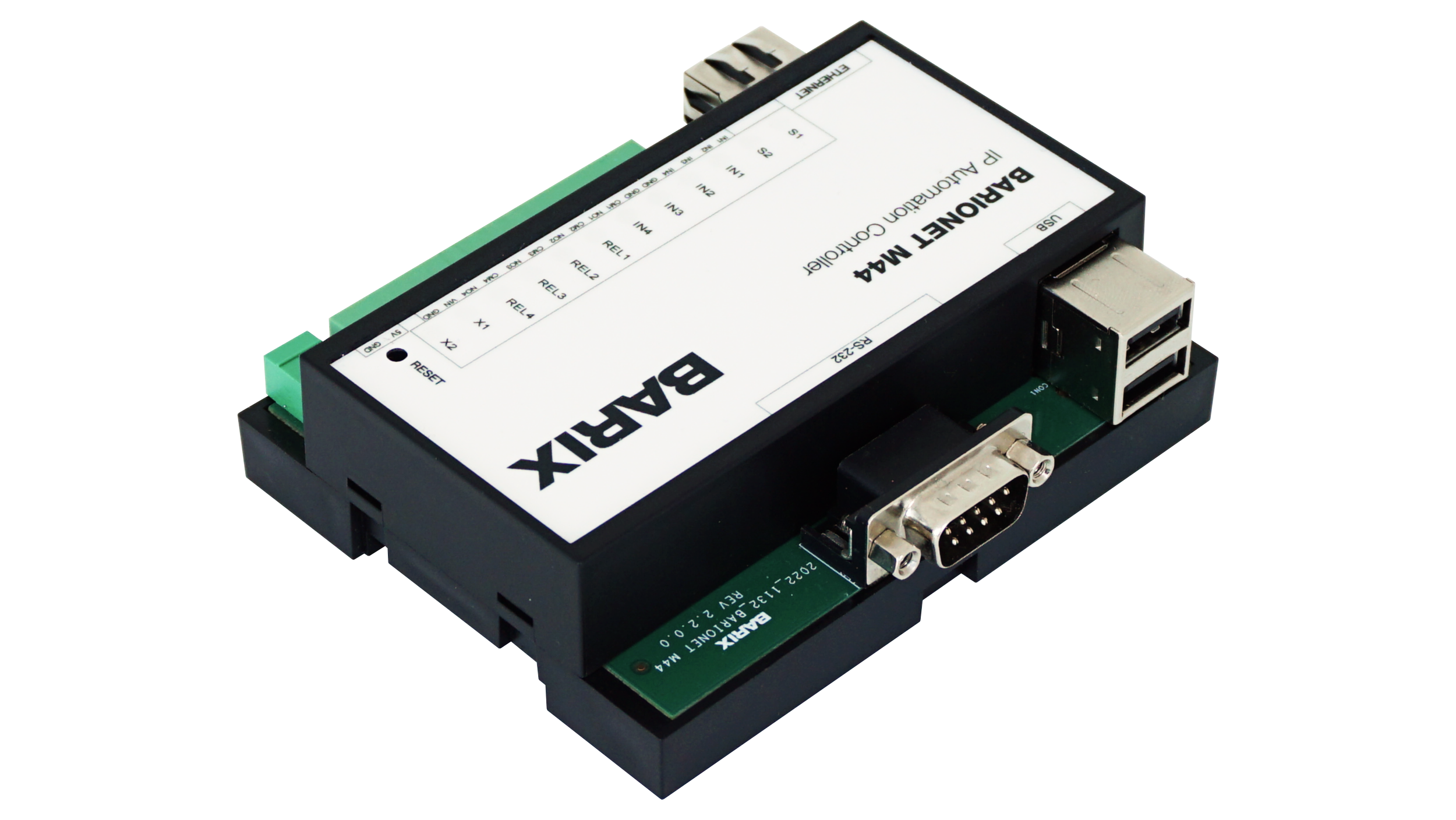

Barionet M44

Universal, programmable I/O device server.

Barionet M44 is a fully programmable I/O device server of Barix, based on Yocto Linux and can be programmed with Python, Lua. The device features most common IO interfaces such as USB, digital and analog Inputs and Relays. Supporting multiple communication protocols, the Barionet M44 can be used in different applications such as mass emergency notification, automation, building control, public transport and many more. Barix Products are developed and manufactured in Europe to the highest standards.

device-image
Operation System

Linux Yocto / Barix FLEXA



Network / WiFi Interfaces

1 x Ethernet (RJ45) 10/100 interface with IEEE802.3af POE
IPv4, IPv6 capable
10/100 fdx/hdx, auto negotiation
TCP/IP, RTP, UDP, ICMP, DHCP, CGI, HTTP(S), SNMP,
Modbus

I/O Interface

4 x Relay Outputs (60VDC, 1A) Normally Open
4 x analog/digital inputs (0 -15V) with configurable pull-ups



USB Interface

2 x USB Host (Type A) Interface



RS232 Interface

Baud rates: 9600 .. 115200

CPUs / Memory

Barix IPAM40x processor module
Quad-Core ARM Cortex™ -A7
256MB DDR3 RAM



User Interface

Web interface for control / configuration
12 x Multicolor LED Status indicators
Reset & Factory Defaults Button



Power Requirements

9-30VDC 12W (max)
(without attached USB devices) or
IEEE 802.3af PoE

Measurement

4.05” x 3.35” x 1.22” / 105mm x 85mm x 31mm



Weight

160g



Warranty

Two years



Package Content

Barionet M44 device
16-pin female terminal block
2-pin female terminal block
Rail spring adaptor
Sticker with Mac Address and password info

Barionet M44 (Made in Europe)

2022.9371P BARIONET M44
