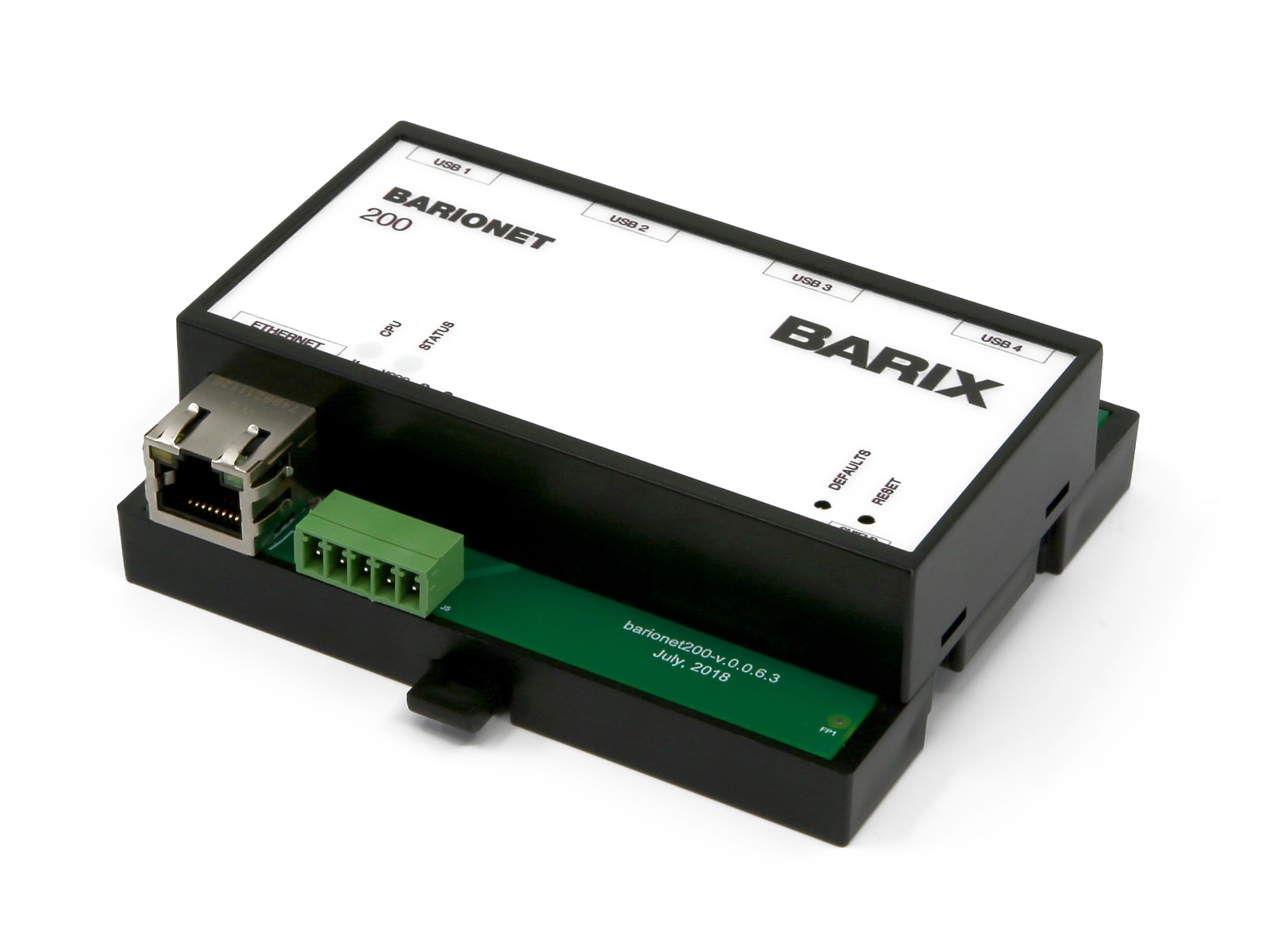

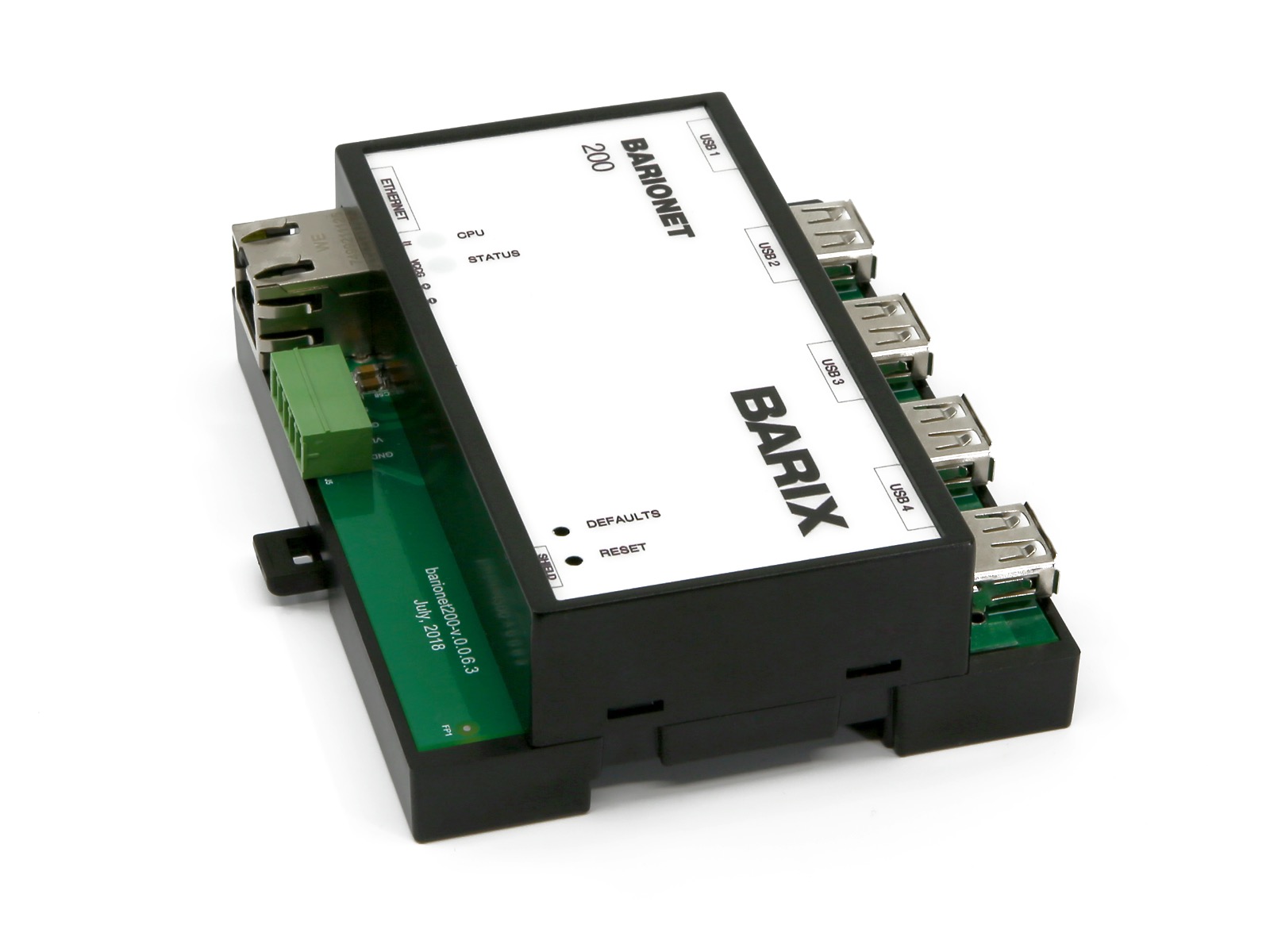

Barionet 200

Universal, programmable I/O device server

Barionet 200 is a fully programmable IoT sensor server from Barix, based on Linux OpenWrt. The device features interfaces such as 4x USB, Wi-Fi and a Digital Input port. It is IPv4 and IPv6 capable. Supporting many IP and Control protocols, the Barionet device can be easily integrated into third party management systems. Barix products are developed in Switzerland and manufactured in the EU.

Operation System

Linux / OpenWRT



Network / WiFi Interfaces

1 x Ethernet (RJ45) Interface

IPv4, IPv6 capable

10/100 fdx/hdx, auto negotiation

WiFi 802.11 b/g/n, 2.4 GHz

TCP/IP, RTP, UDP, ICMP, DHCP, CGI, HTTP, SNMP



I/O Interface

1 x Digital Inputs (0-15VDC)

USB Interface

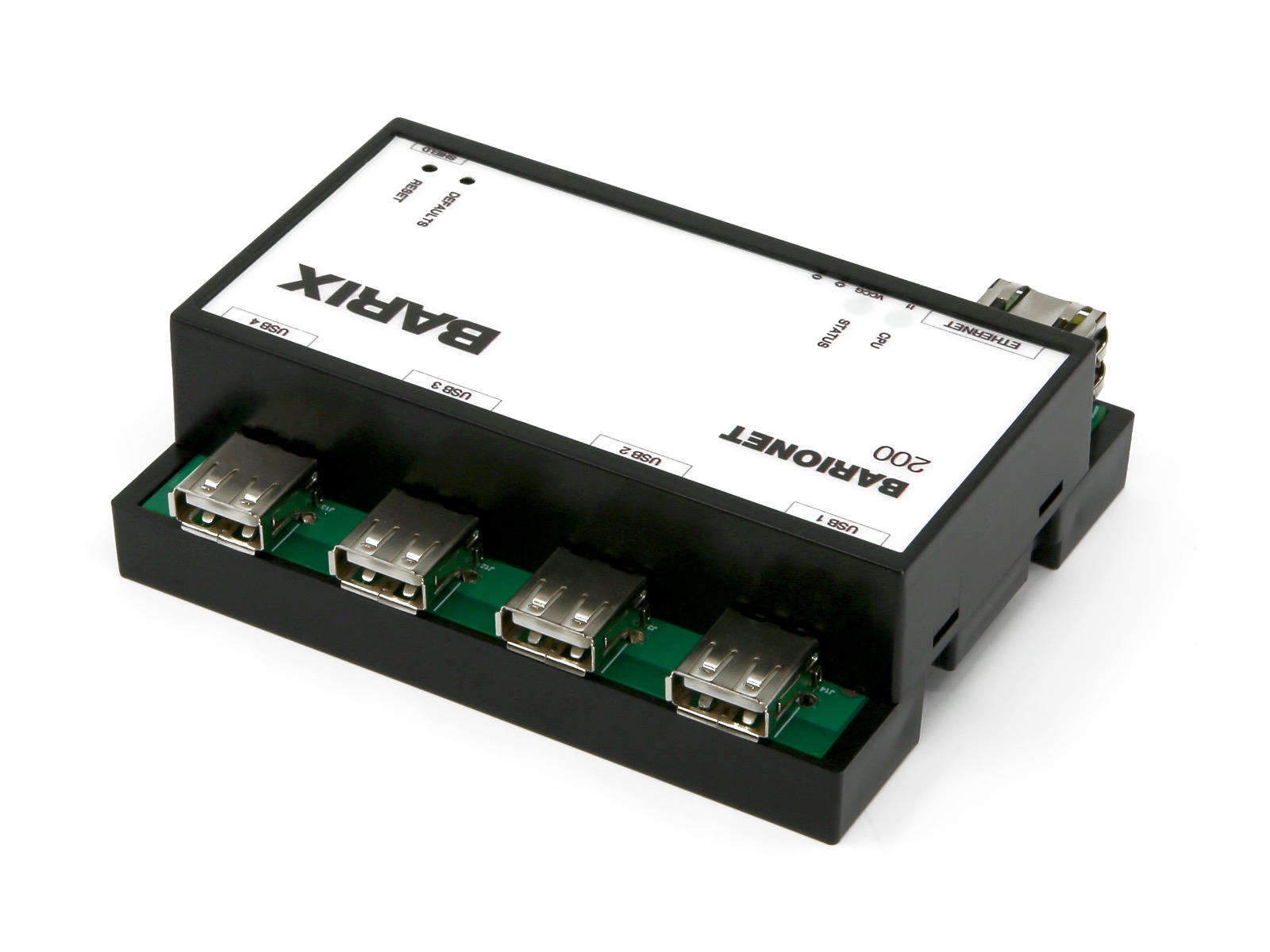

4 x USB Host (Type A) Interface



OEM Options

RTC Real Time Clock



CPUs / Memory

MediaTek MT7620N, Qino Lite Module

64MB SDRAM

8MB Flash

User Interface

Web interface for control / configuration

2 x LED Status indicators

Reset & Factory Defaults Button



Power Requirements

Single 9-30V DC supply voltage, 2.5 Watt (without attached USB devices) or

IEEE 802.3af PoE

Measurement

4.05” x 3.35” x 1.22” / 103mm x 85mm x 31mm



Weight

160g



Warranty

Two years

  • 2018.9253P
    BARIONET 200 NO PSU
