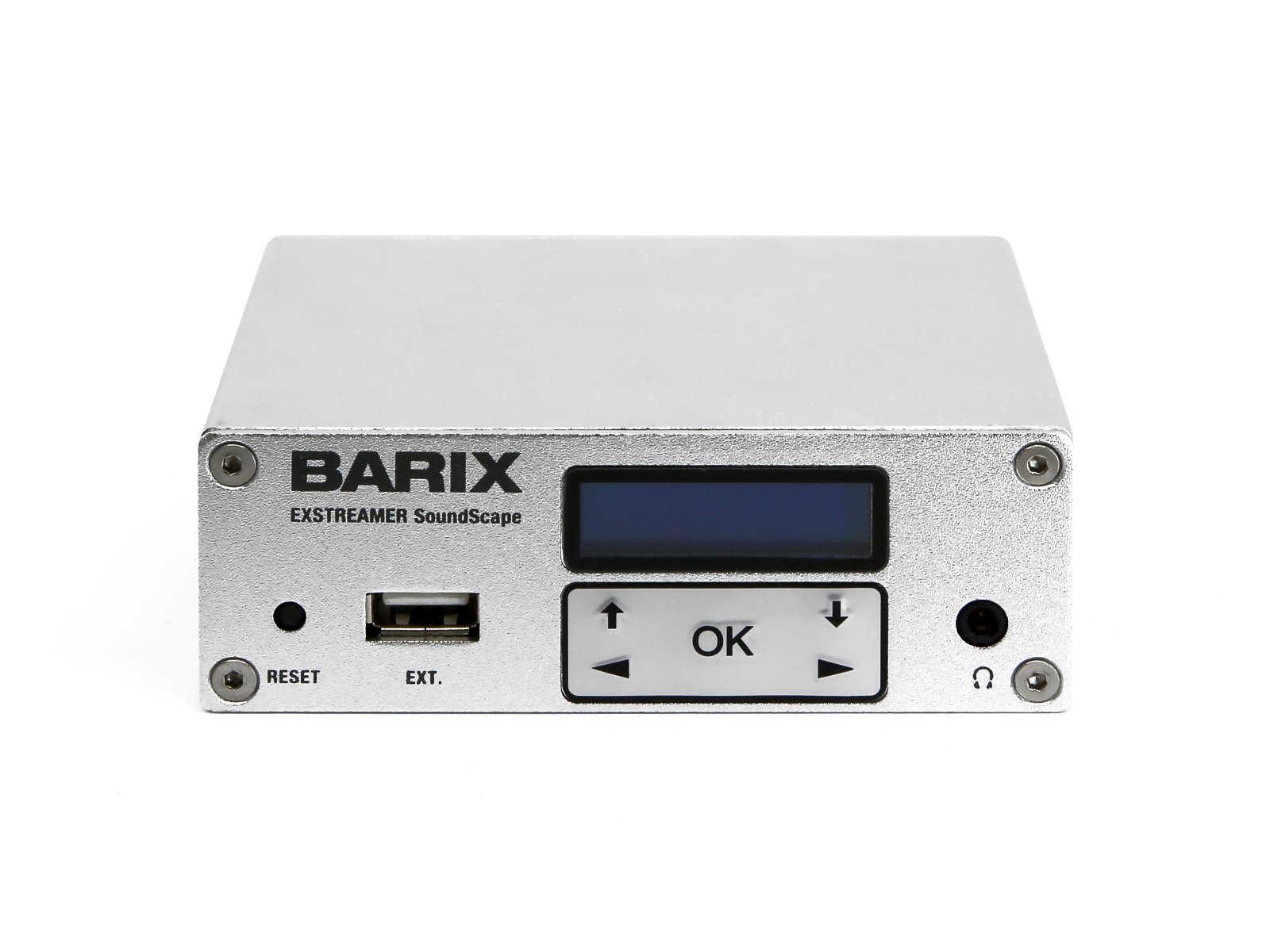

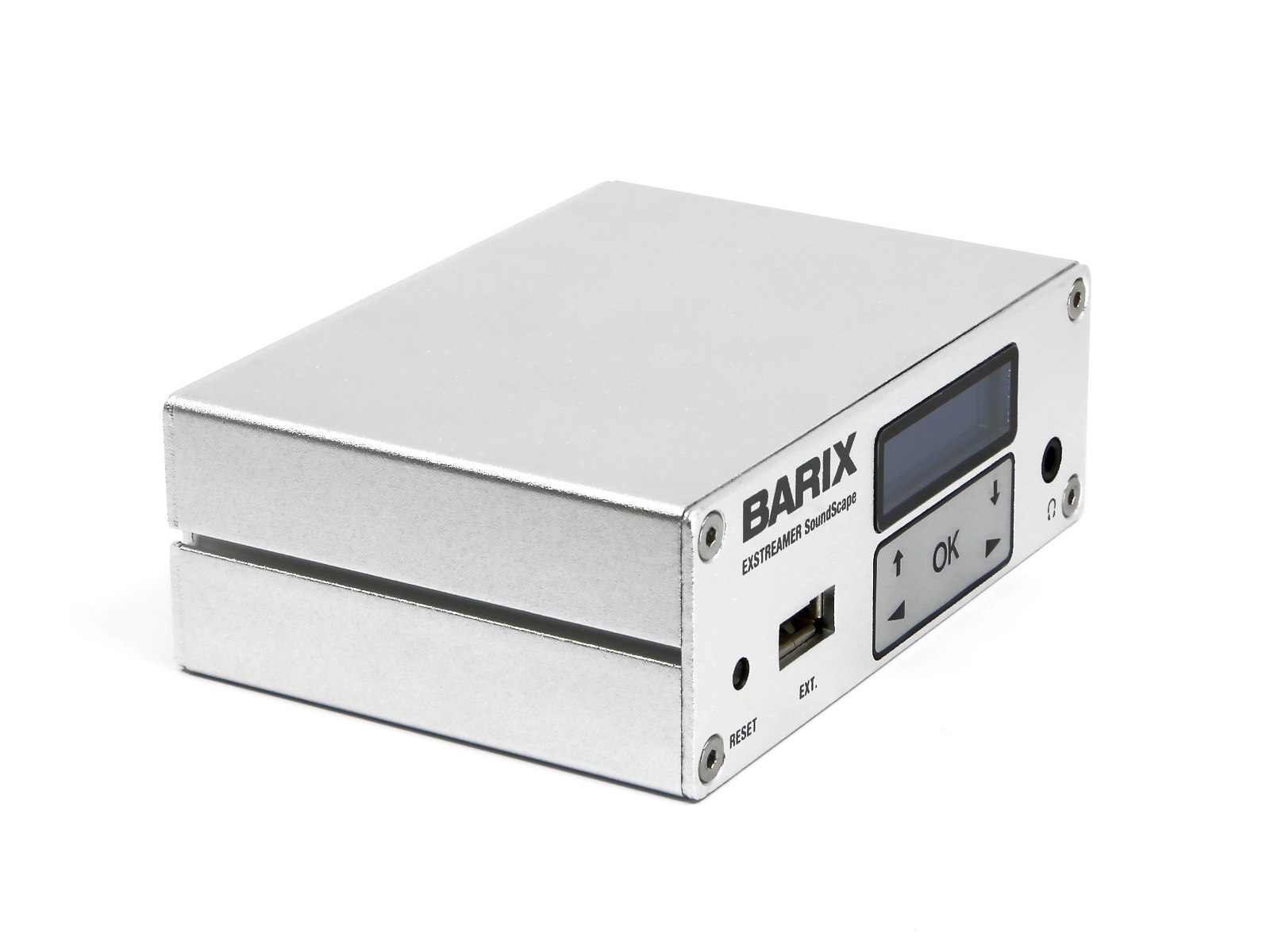

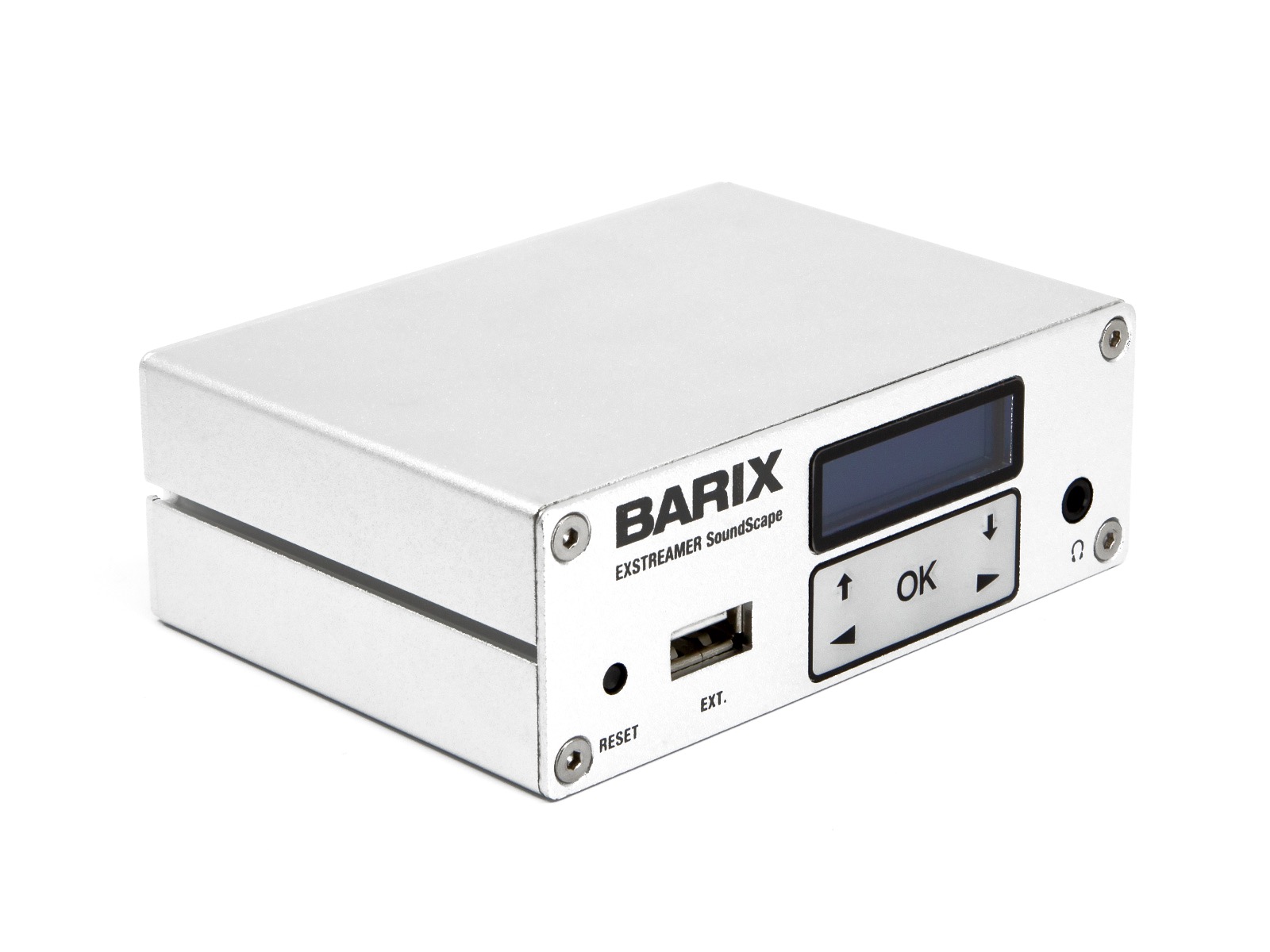

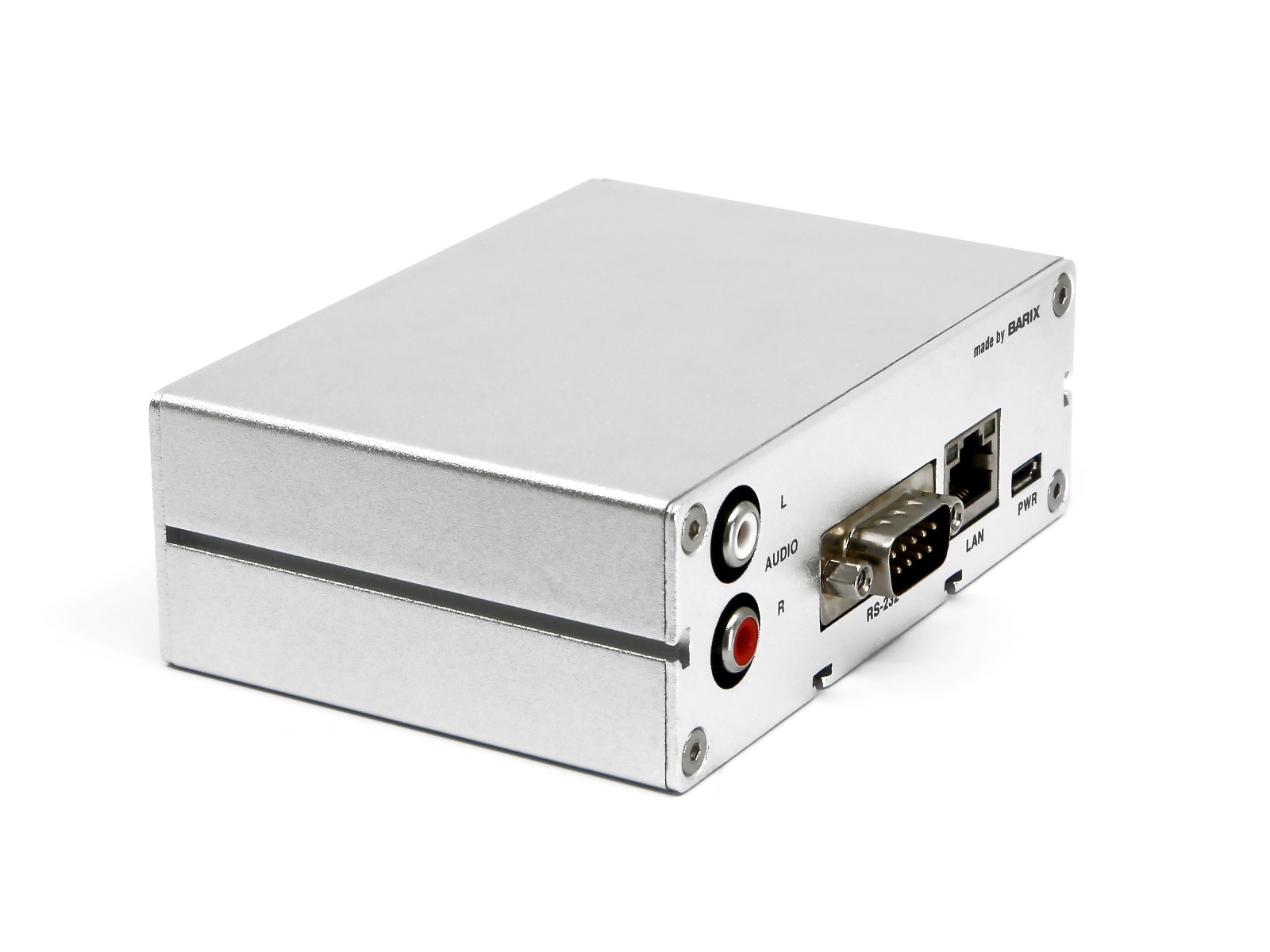

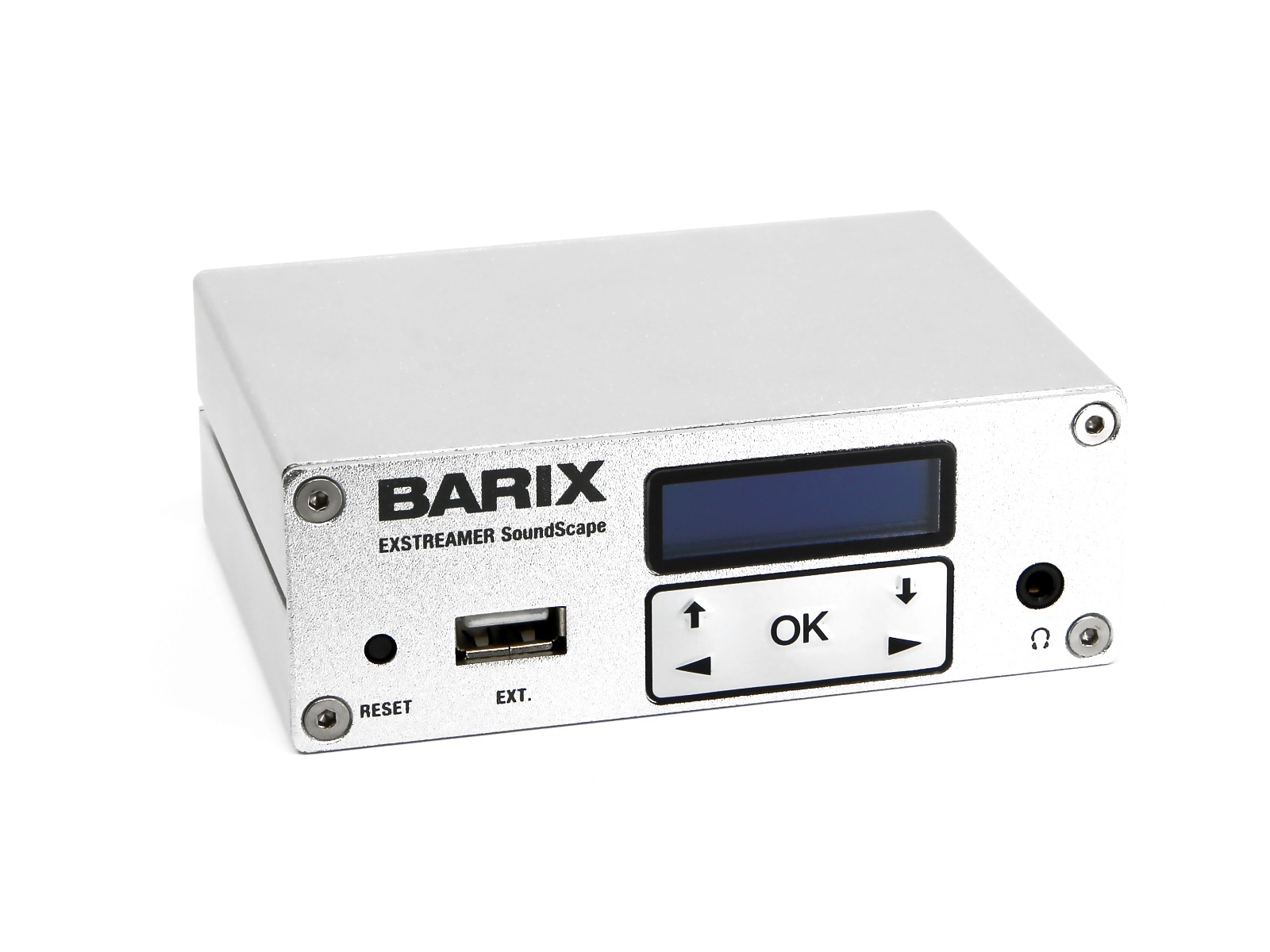

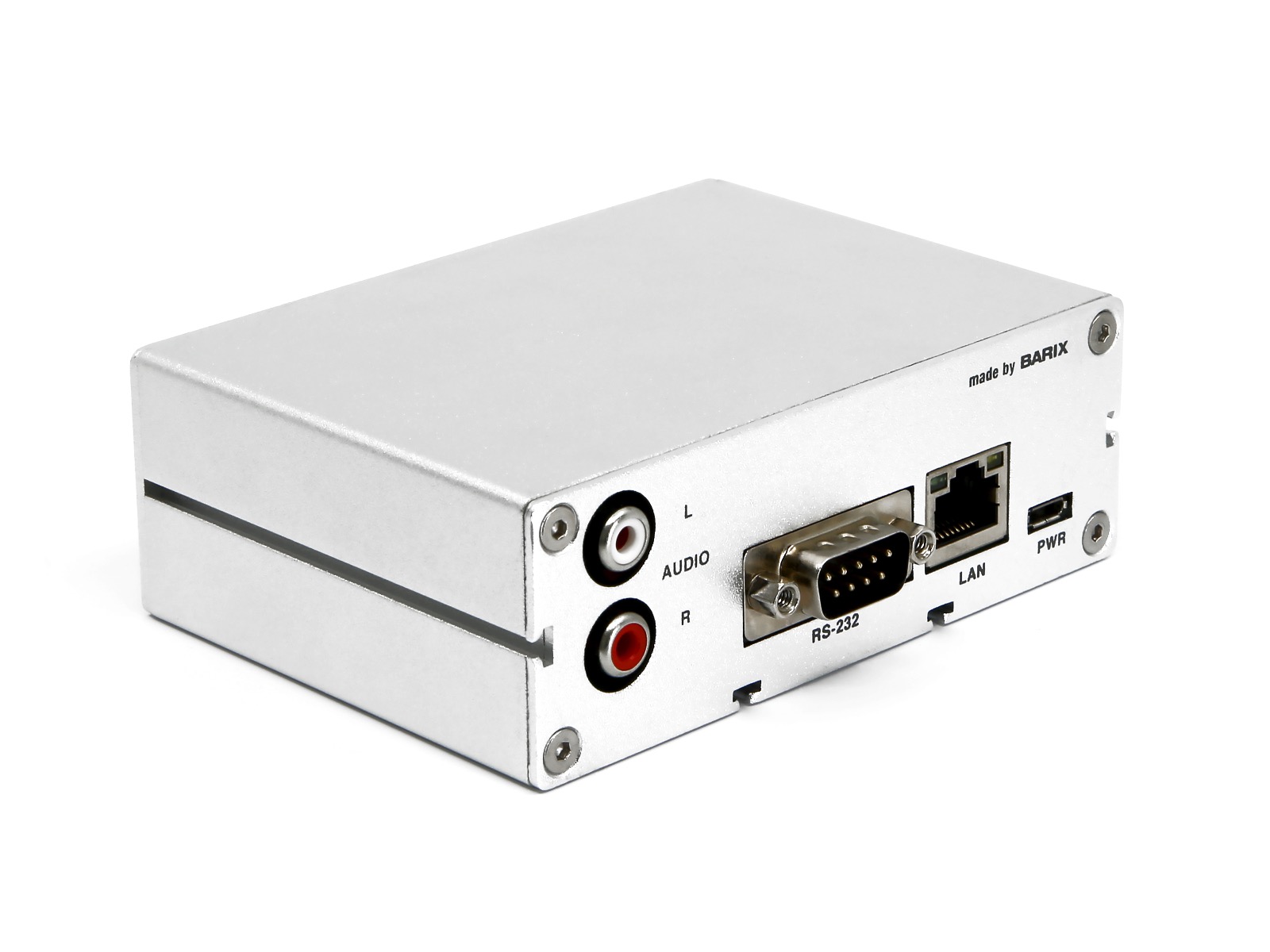

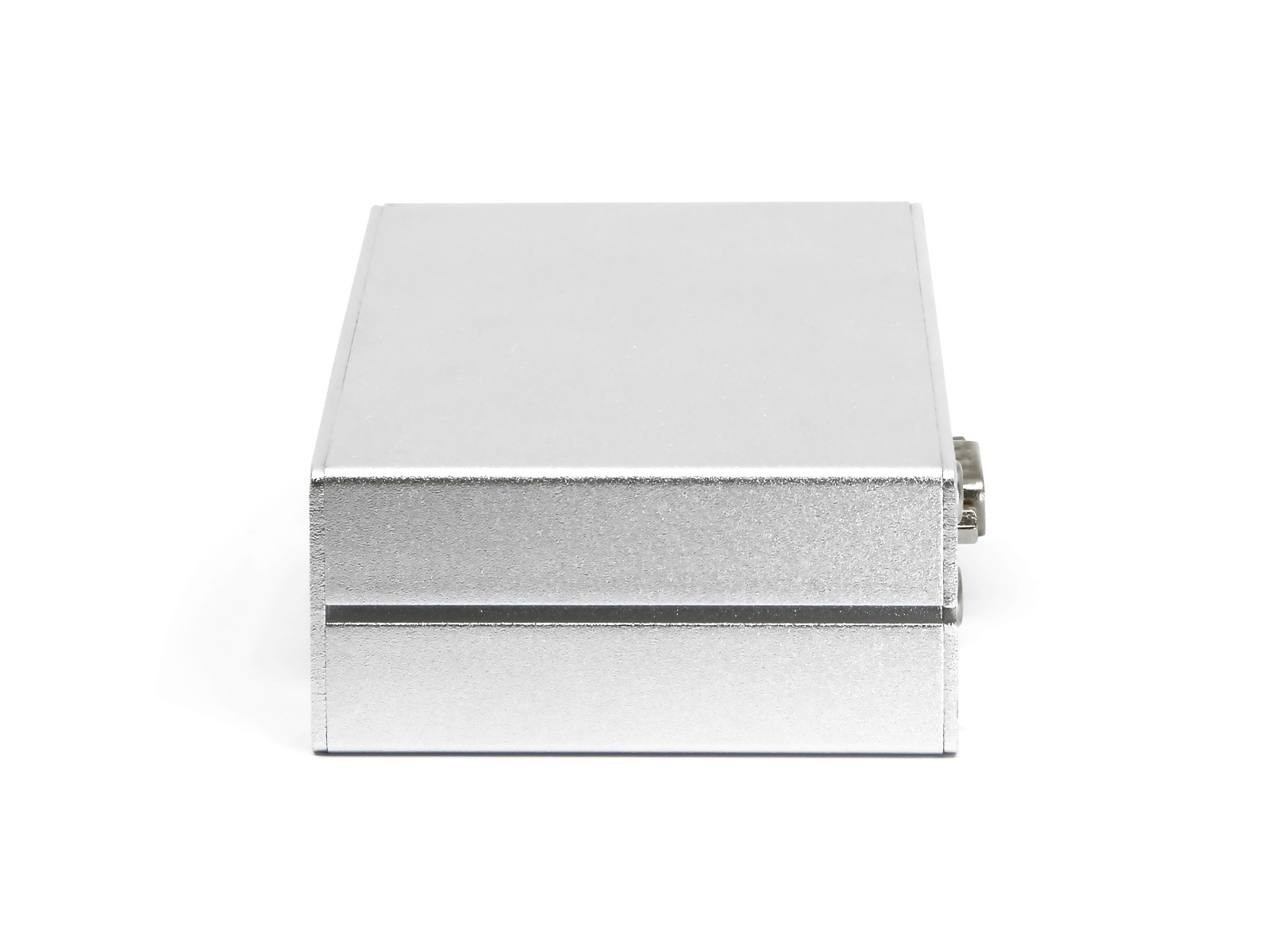

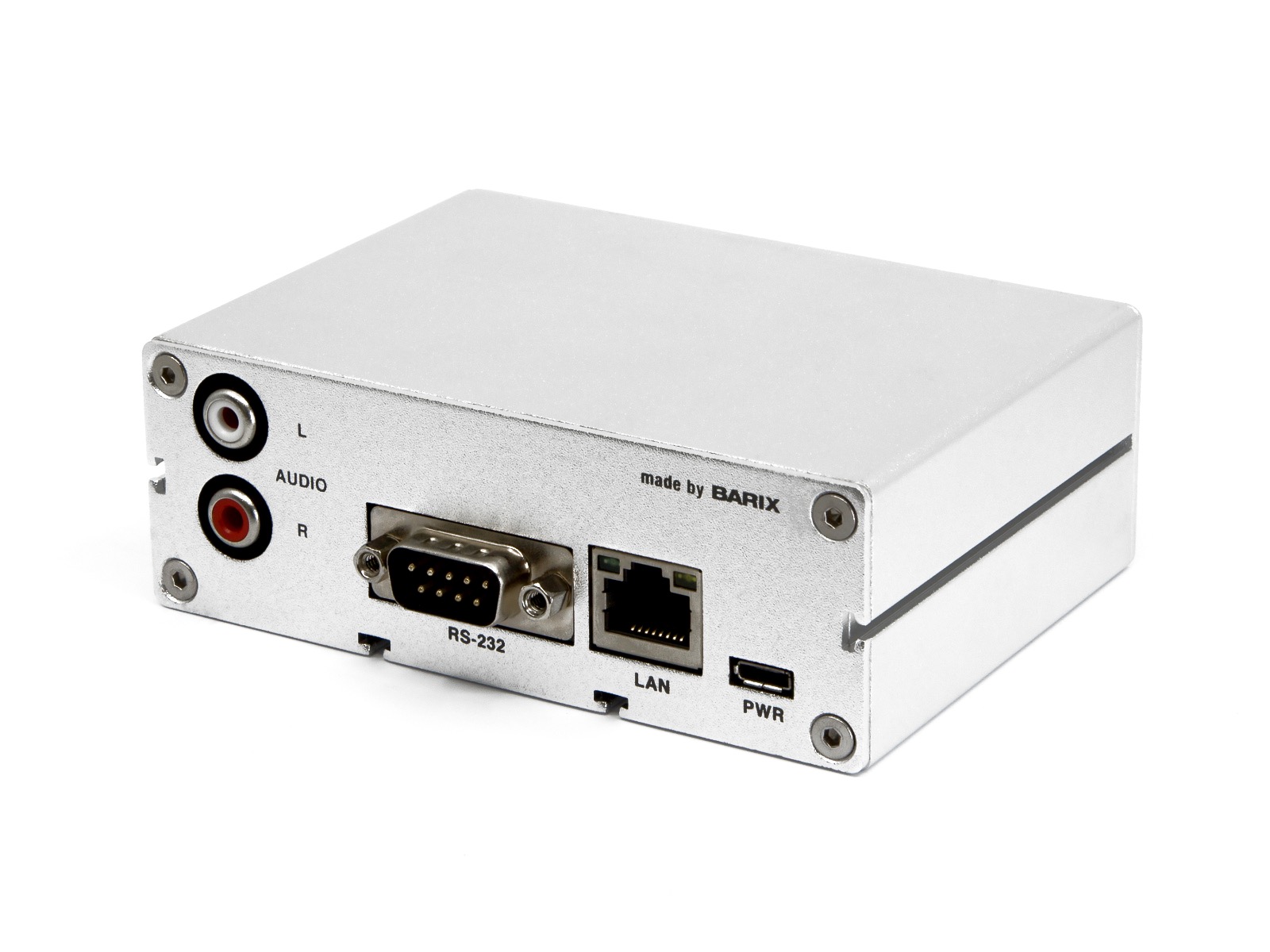

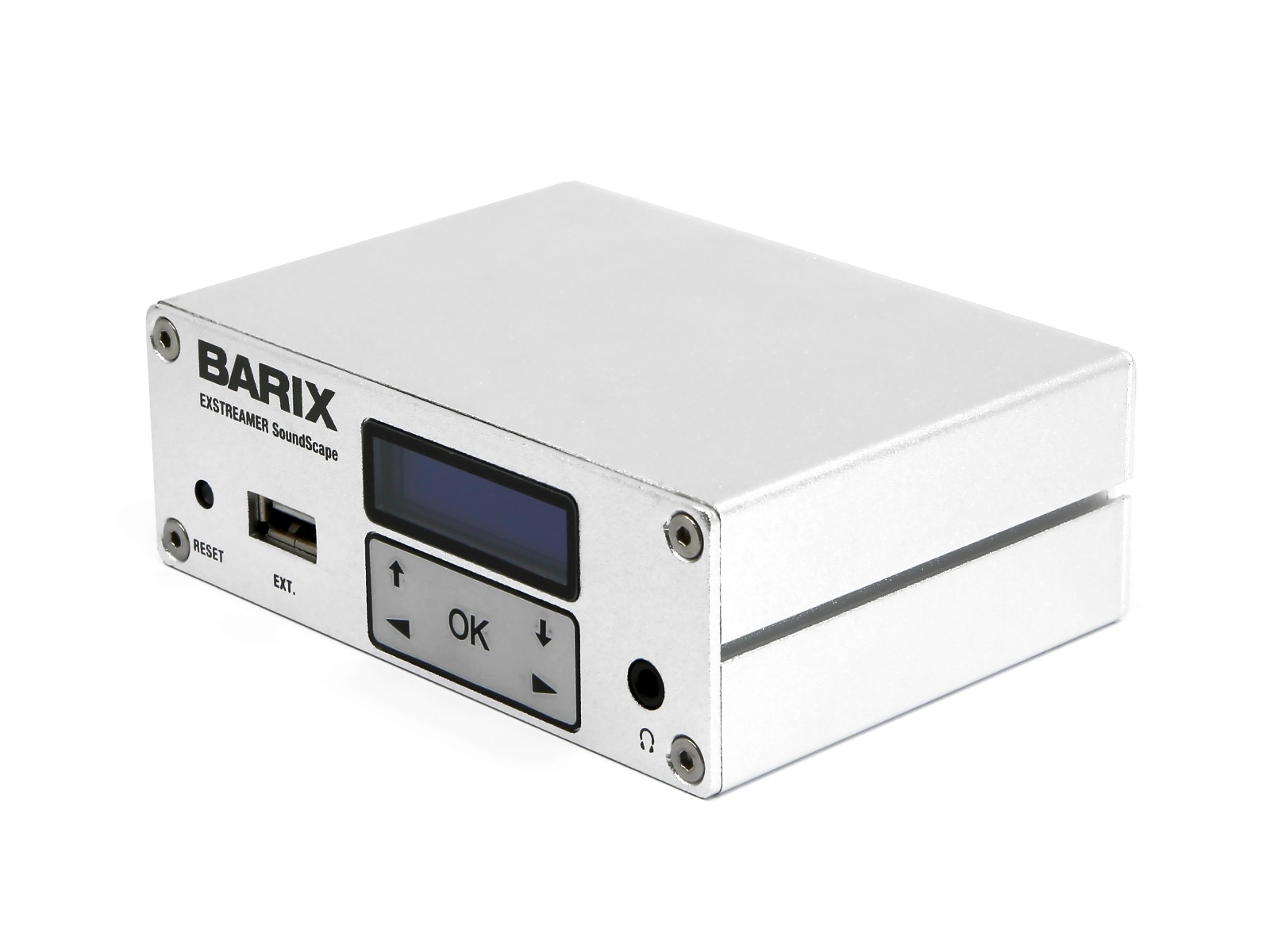

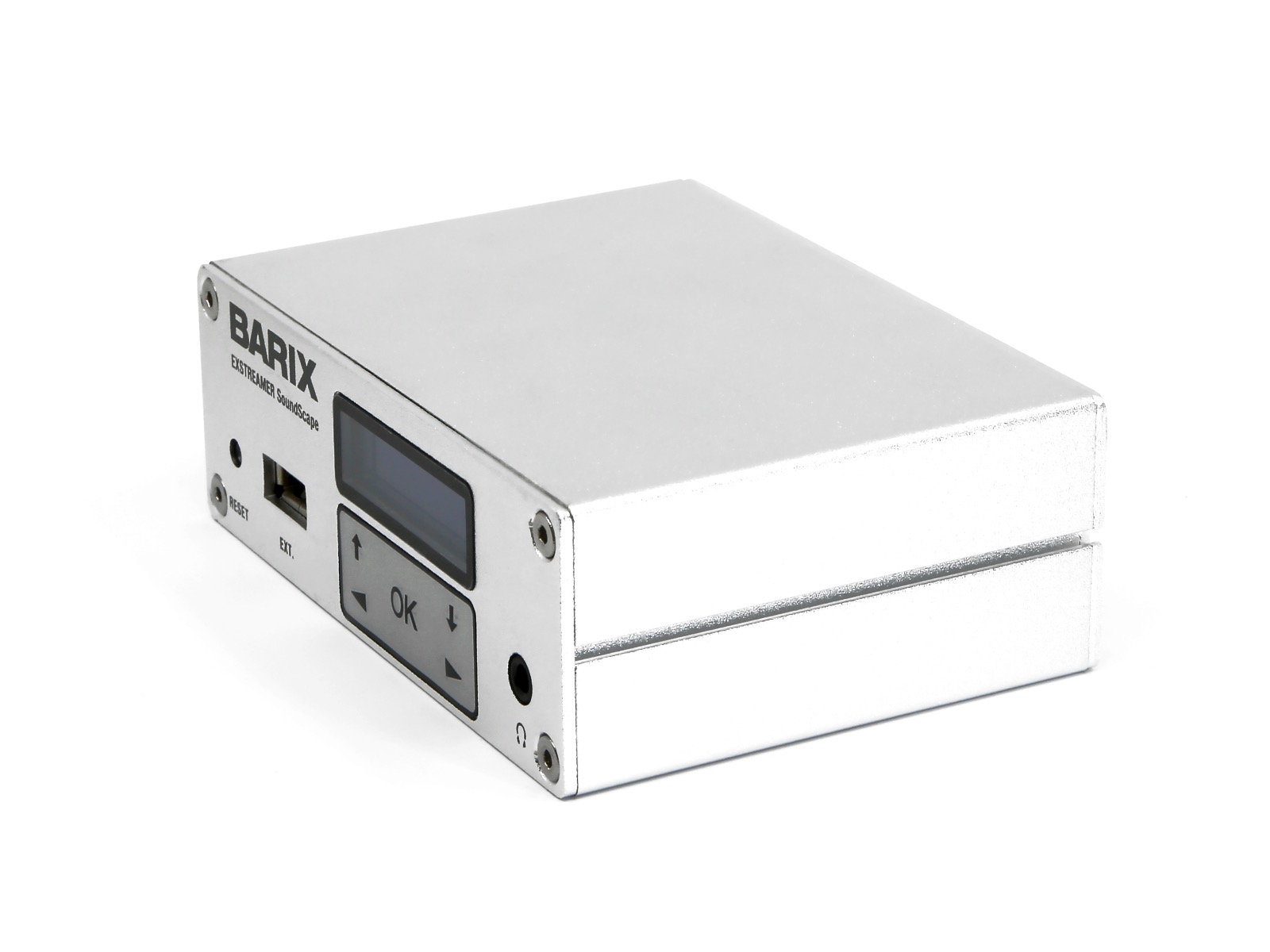

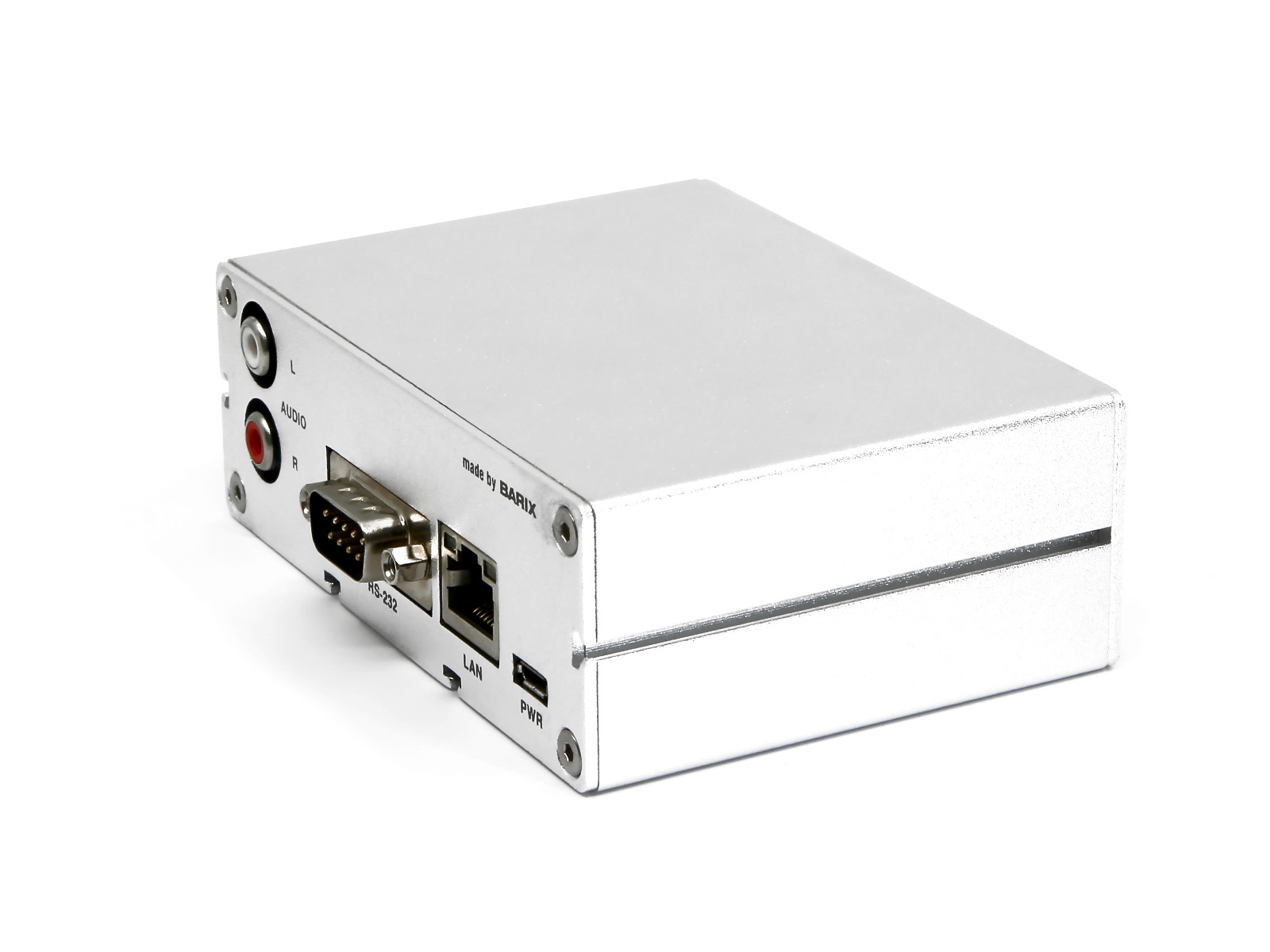

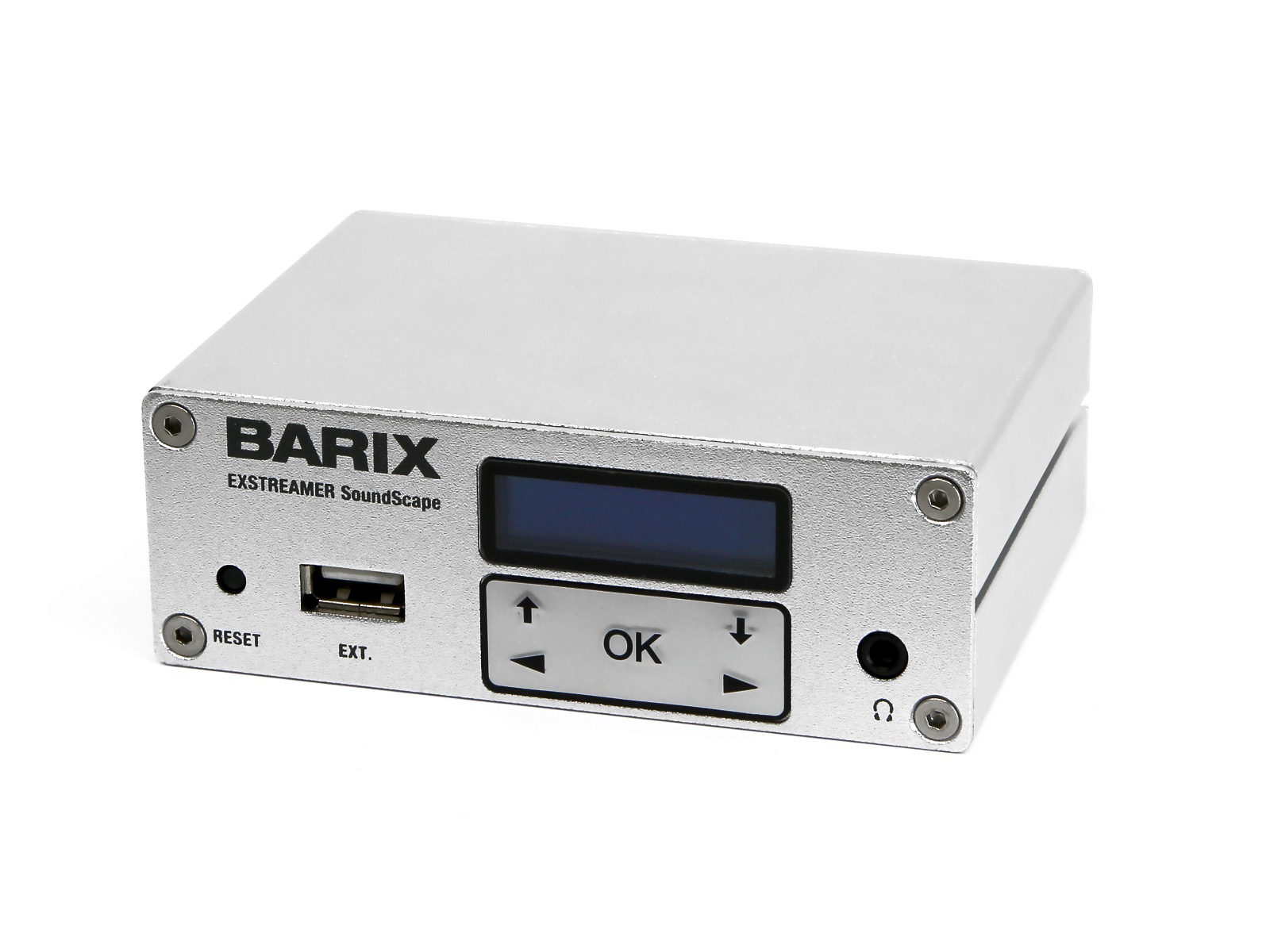

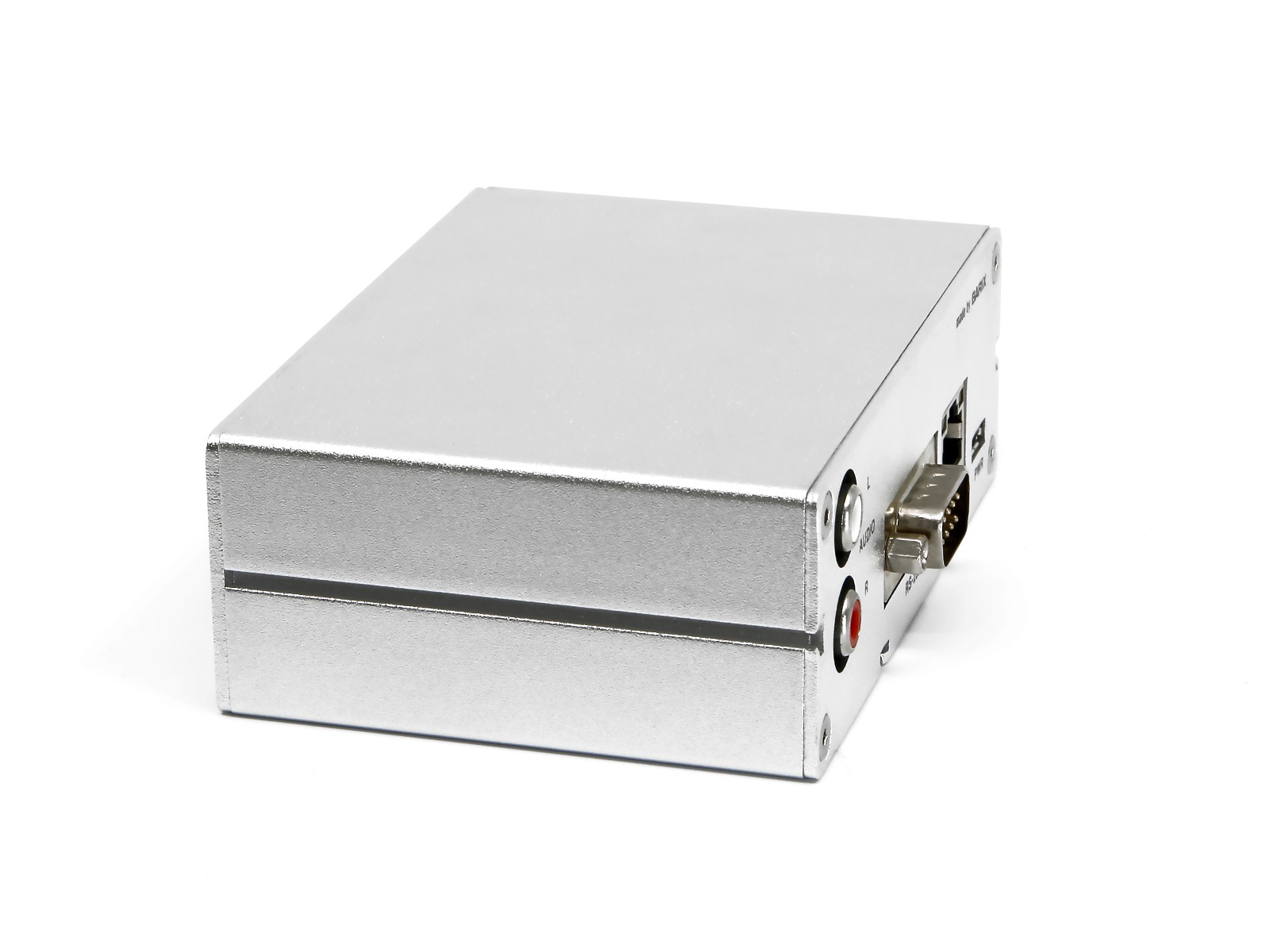

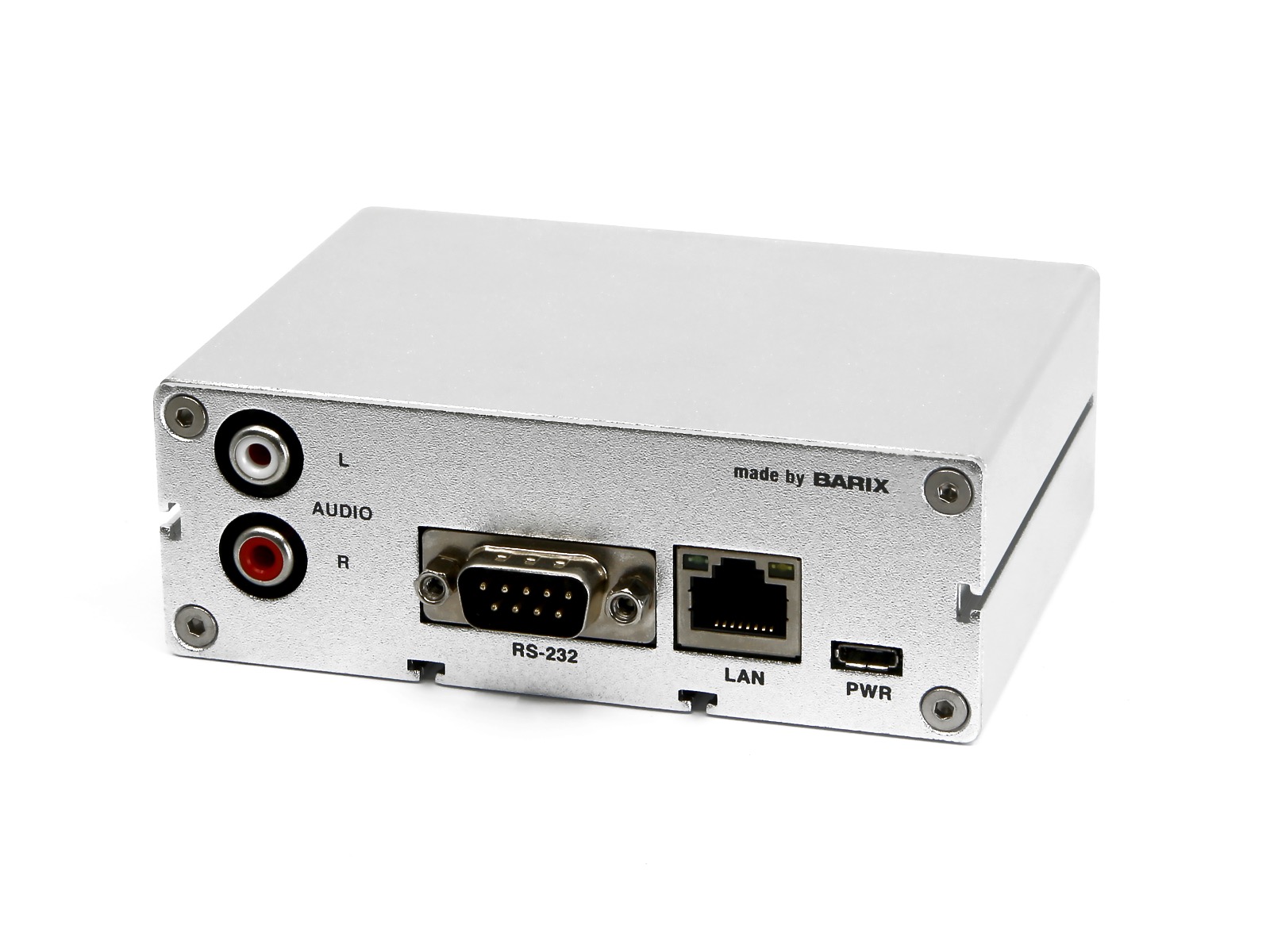

Exstreamer SoundScape

Managed IP network audio decoder with microSD storage, display and keypad

The Exstreamer SoundScape is an audio player that supports playback of Playlists, Adverts and live Streams. Audio content is scheduled from the SoundScape Portal - a central cloud-based management platform that is also used to monitor and configure the player devices. This product is designed for Business Music applications that demand high flexibility and reliability in scheduling, monitoring and reporting of audio playback and is especially suitable for Content Providers who manage audio content distribution for clients worldwide.

device-image

Electrical

Power Supply 5VDC, 2 Watt max.

Standard ‘Micro-B’ USB connector



Ethernet

10/100Mbps Auto-negotiation, Auto MDI-X

RJ-45 connector with integrated Link/Activity LED

Protocols: TCP/IP, FTP, HTTP, DHCP

Web User Interface for remote control, status and troubleshooting

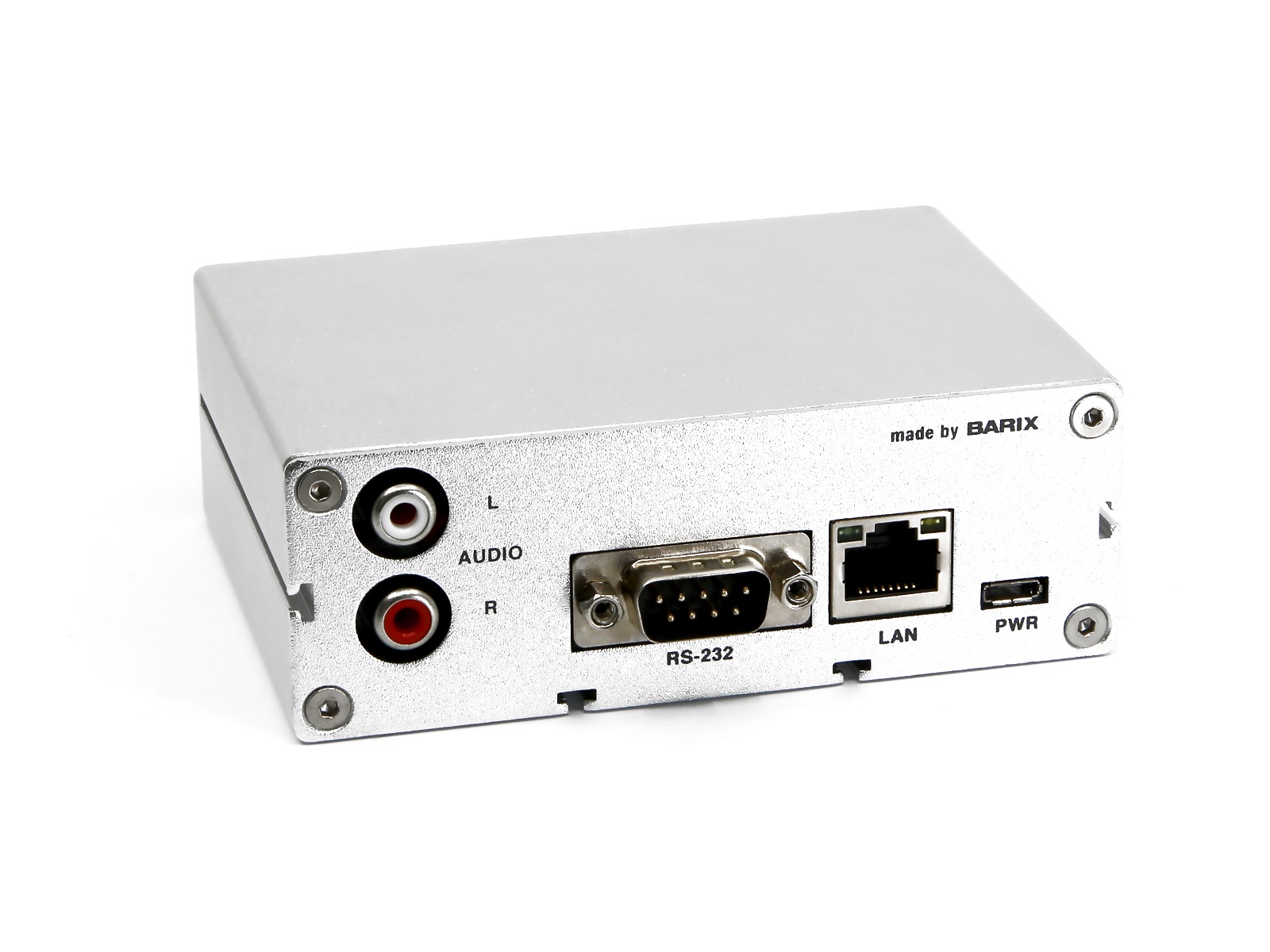

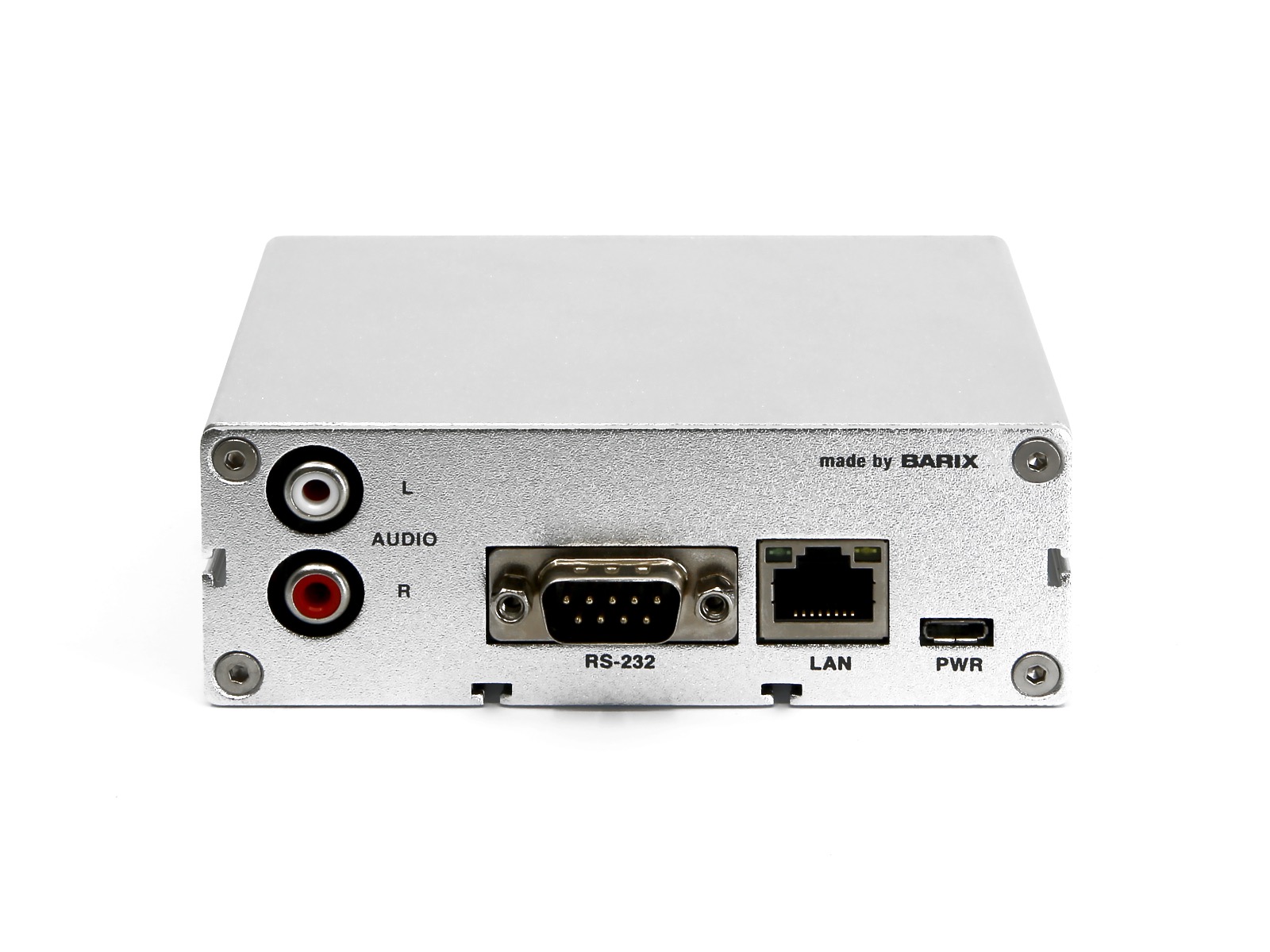

Analog Output

Line level output, 40..60 Ohm impedance on RCA and 1/8” headphone jack

Output level software controllable

Full scale output voltage: 5.6 dBu, 4 Vpp into 600 Ohm load

Frequency response (-3dB) 20Hz…20kHz *

Signal to Noise Ratio -92 dB *

Total harmonic distortion (THD) <0.01% *

Dynamic range 92dB *

Stereo crosstalk -91dB @ 1kHz *

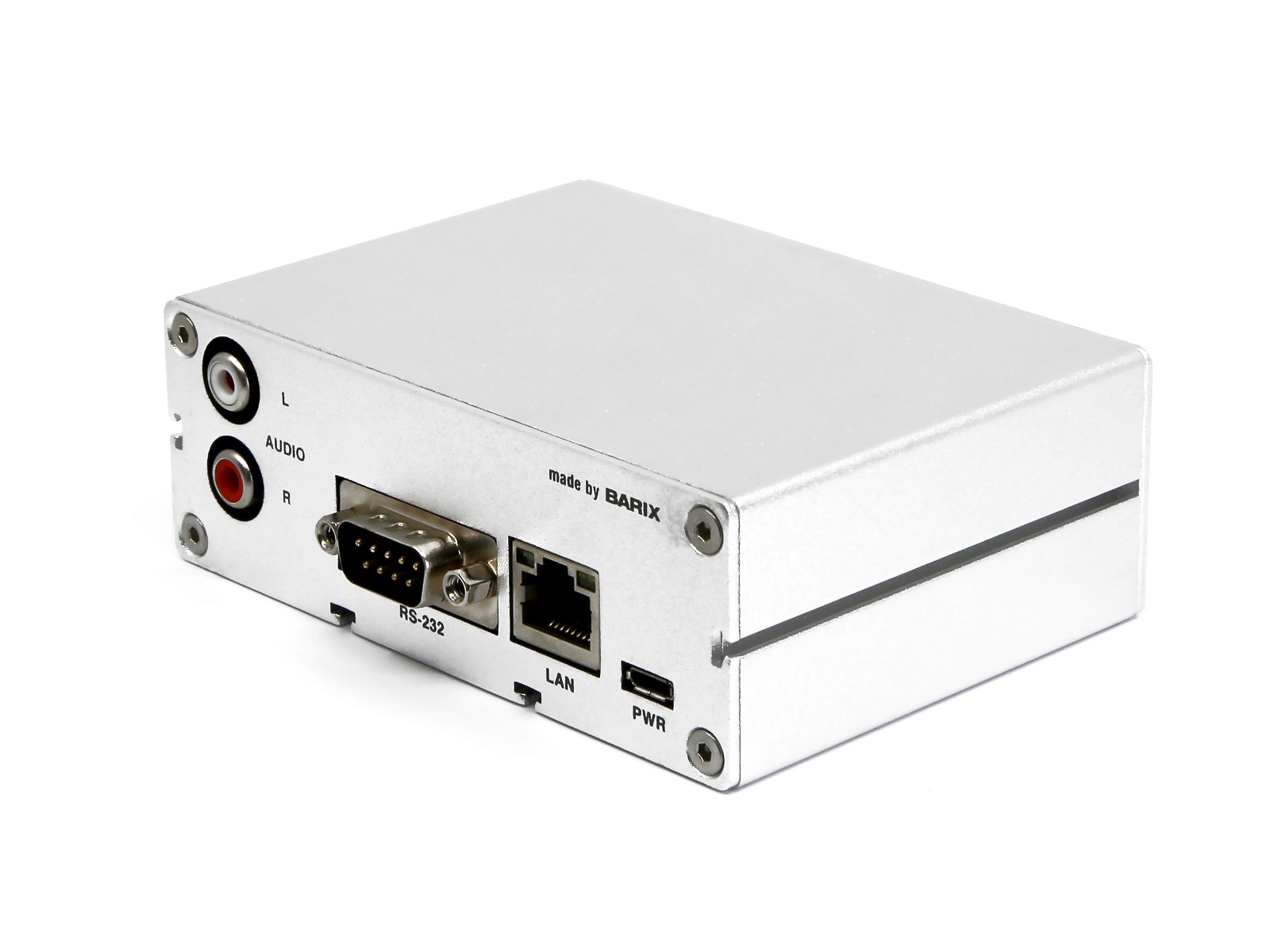

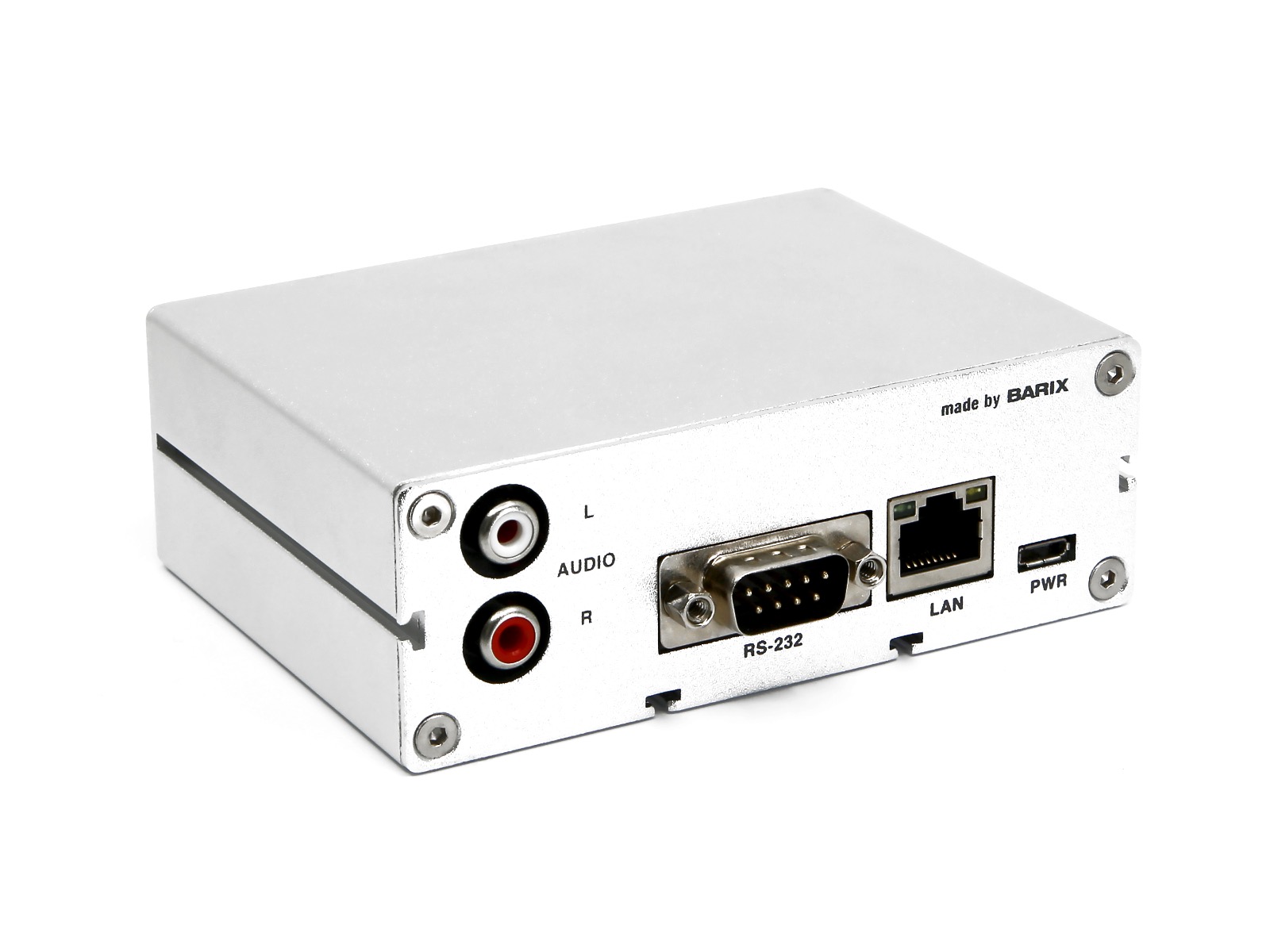

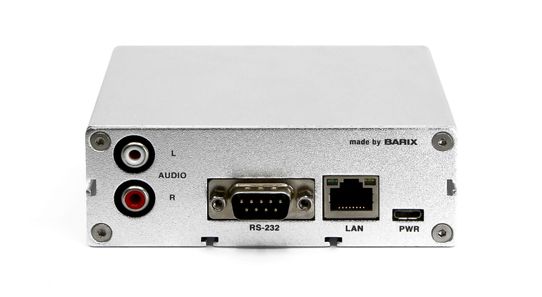

RS-232 Interface

Male 9-pin Sub-D connector

115’200 Baud asynchronous

5 VDC supply output for external device (100 mA max.)

Audio formats

MP3 codec
MP3 files (MPEG version 1, 2 and 2.5 layer III)
CBR, VBR and ABR
8 to 320 kbps
8 to 48 kHz sample frequency

AAC and AAC+ codecs
AAC, MP4 and M4A audio file extensions
Main Profile, AAC-LC, AAC-HE v1 and v2
CBR and VBR
Up to 576 kbps
DRC (Dynamic Range Control)

HTTP Streams
ICEcast and SHOUTcast streams



Miscellaneous

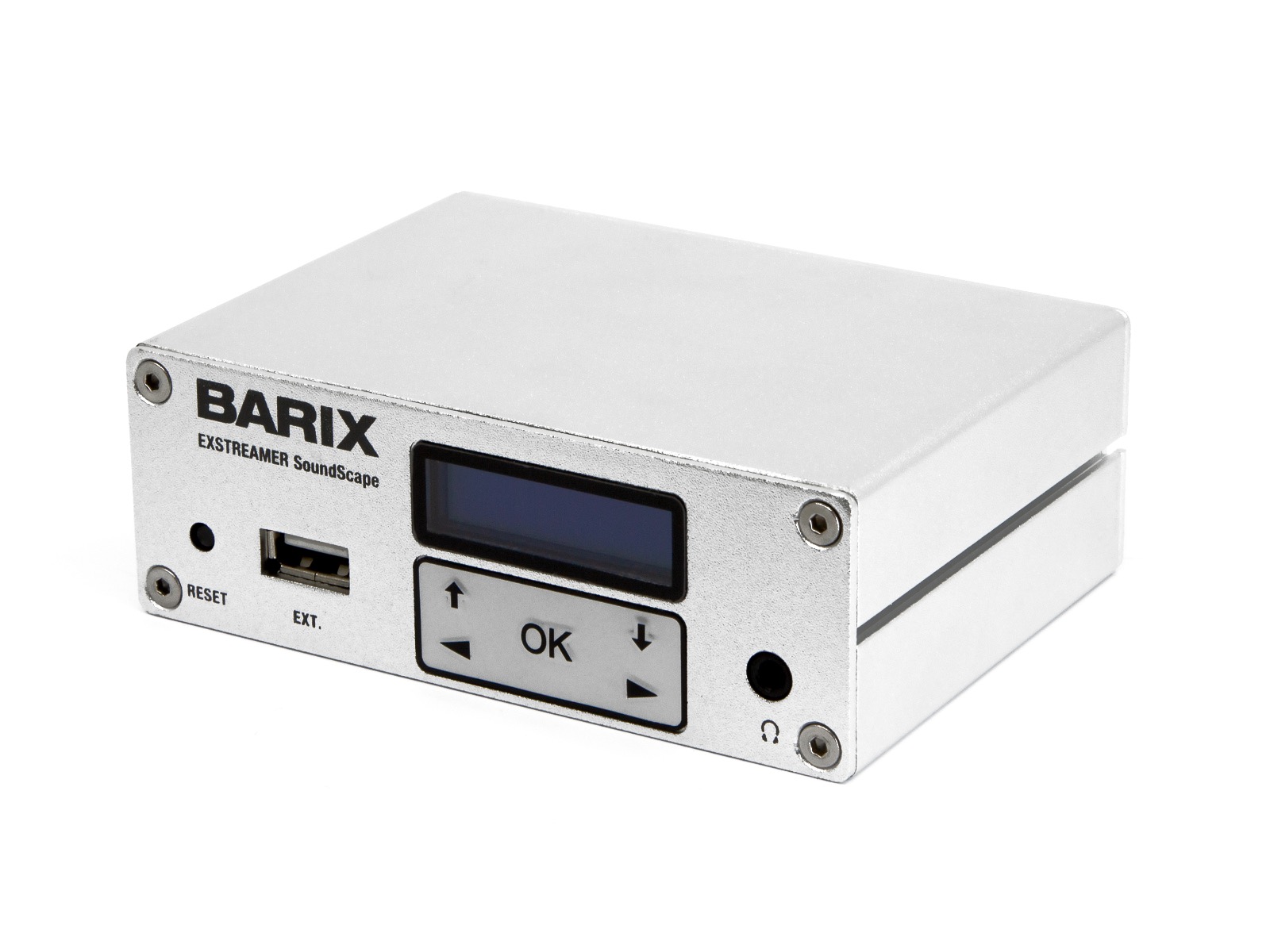

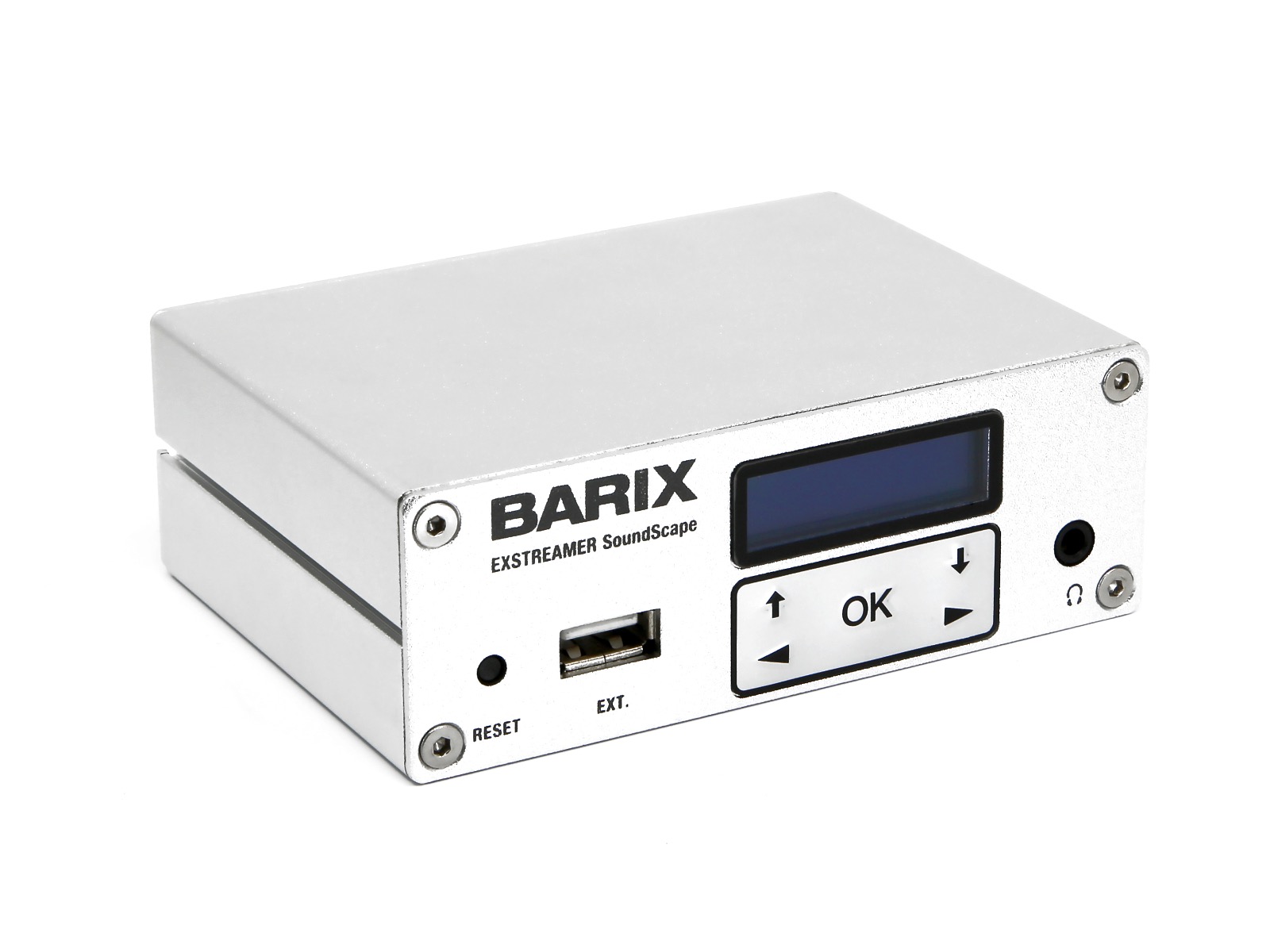

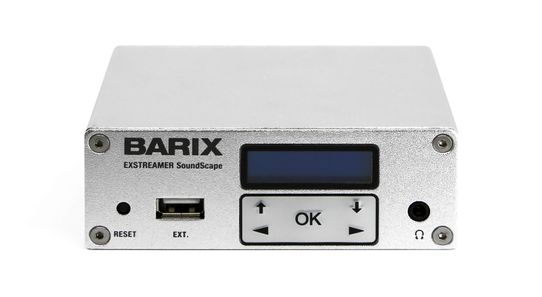

Retro-illuminated display with 2 lines/16 chars and keypad with 5 buttons

RESET button for reboot and reset factory defaults

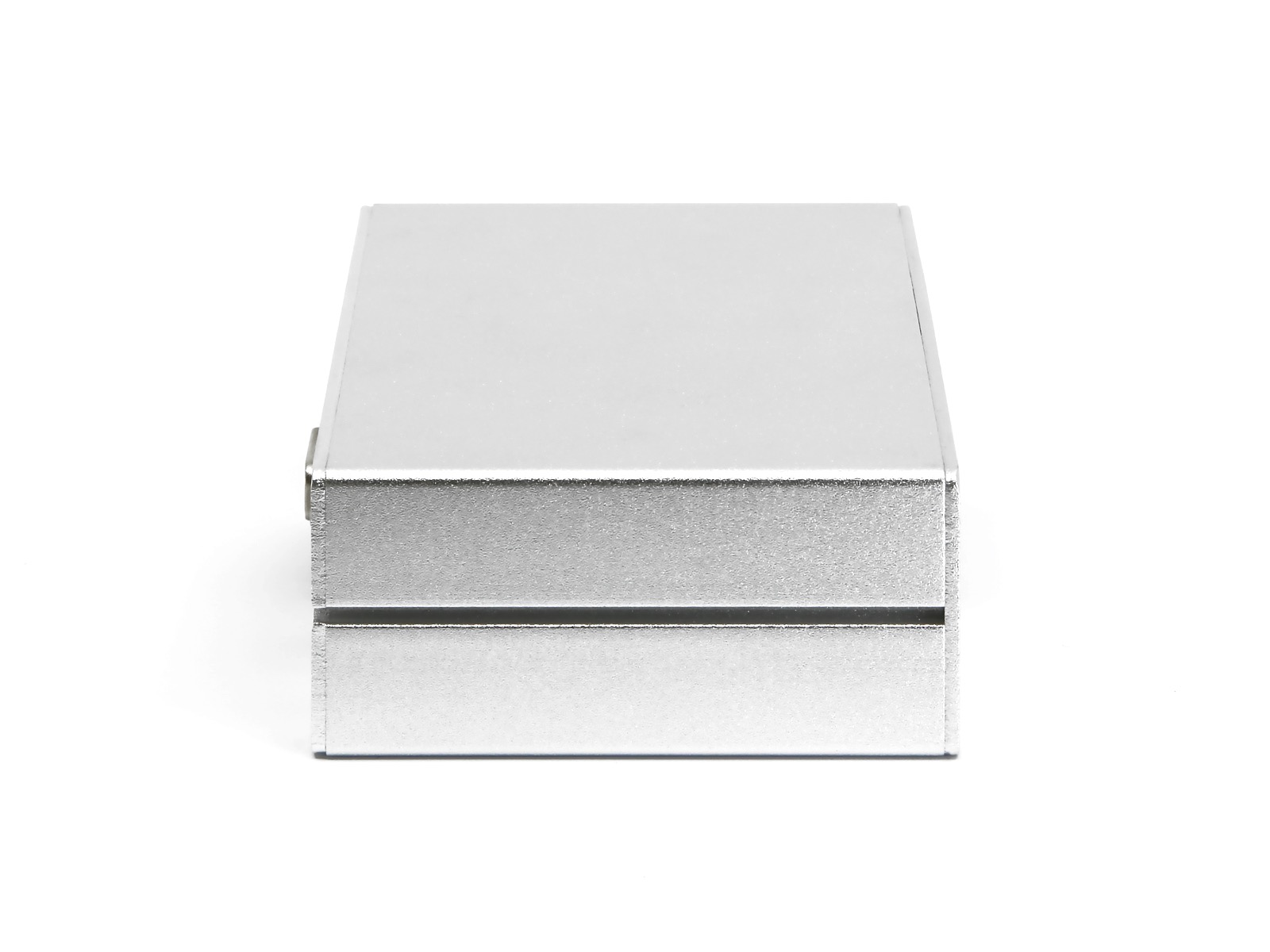

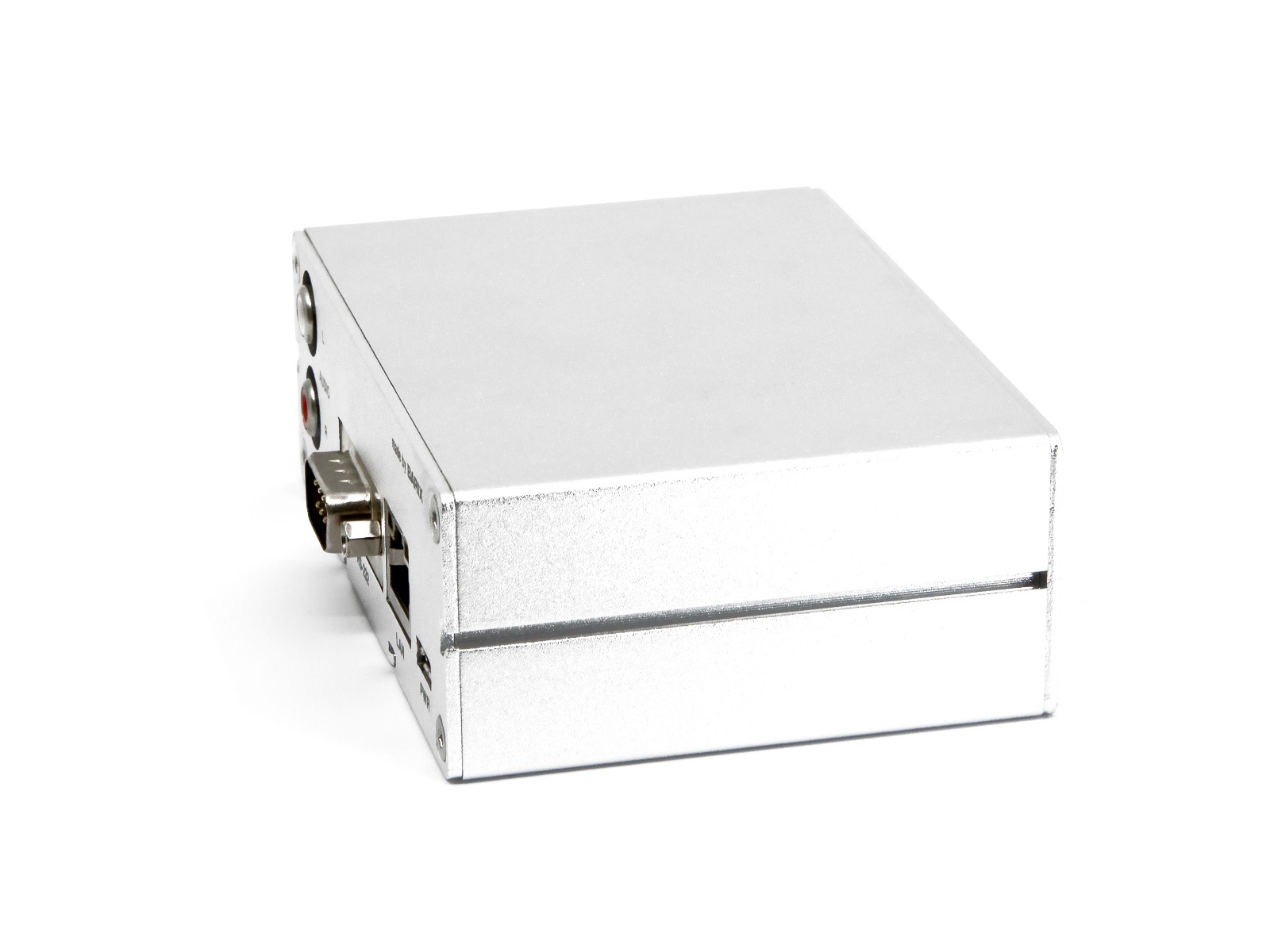

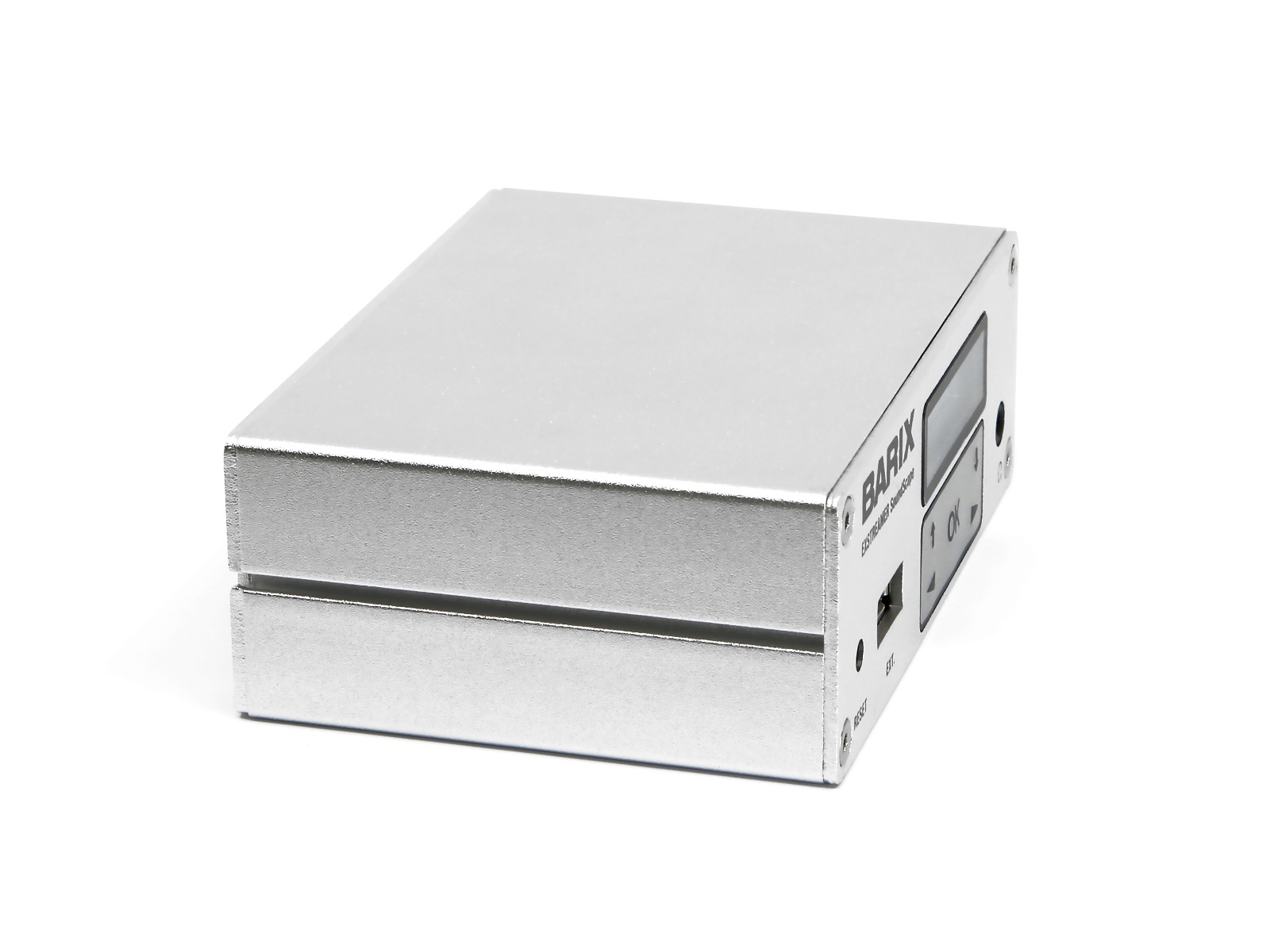

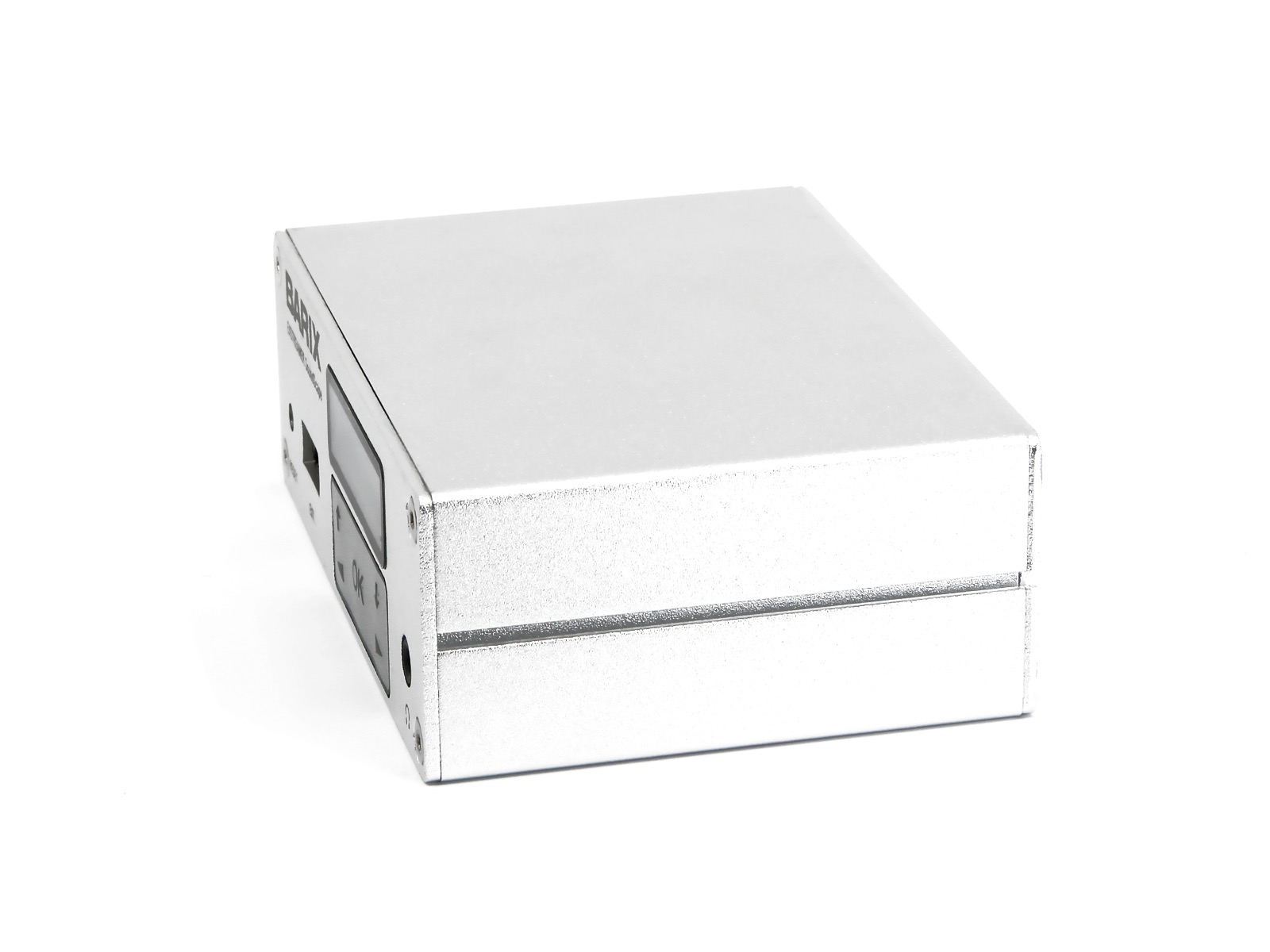

Mechanical

Aluminum case, 250g

Rack and wall mountable using accessories



Dimensions (W x H x D)

W x H x D: 108x38x78.7mm (4.25×1.5×3.1 inch)



Declarations of conformity

RoHS, FCC, CE, C-Tick



MTBF

(Calculated acc. MIL217F at 25°C environment ground fix)

Exstreamer SoundScape: min. 500’000h



* using MP3 @48kHz sample rate, 320 kbps

  • 2015.9180
    Exstreamer SoundScape Display+Keypad 8GB EU Package
  • 2015.9181
    Exstreamer SoundScape Display+Keypad 8GB US Package
  • 2015.9182
    Exstreamer SoundScape Display+Keypad 8GB UK Package
  • 2015.9183
    Exstreamer SoundScape Display+Keypad 8GB NoPSU Package
  • 2006.9072
    Wall Mounting Bracket
  • 2007.9082
    Barix 19’’ Rack mount
  • 2006.9054
    Cable Set Audio
