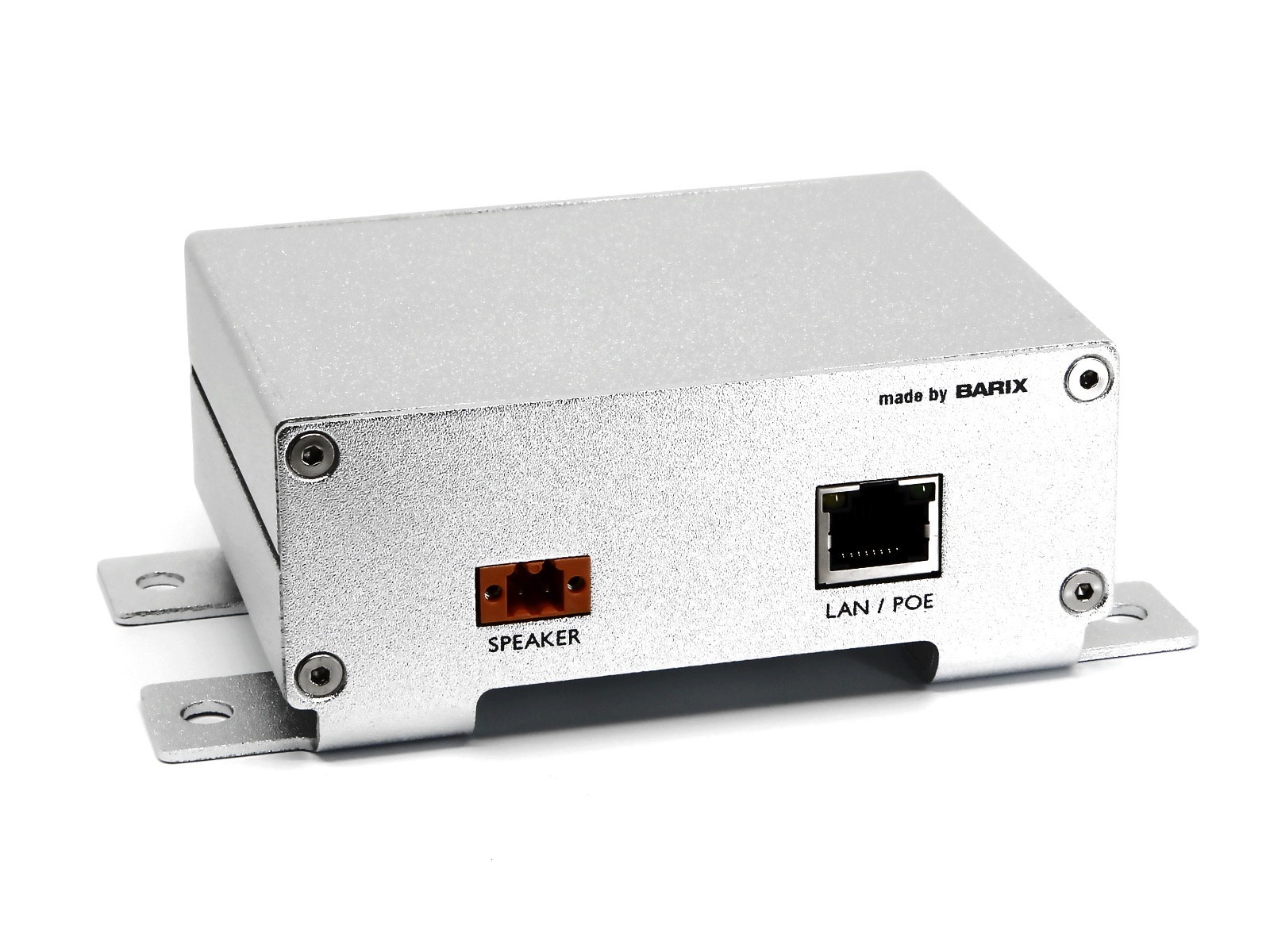

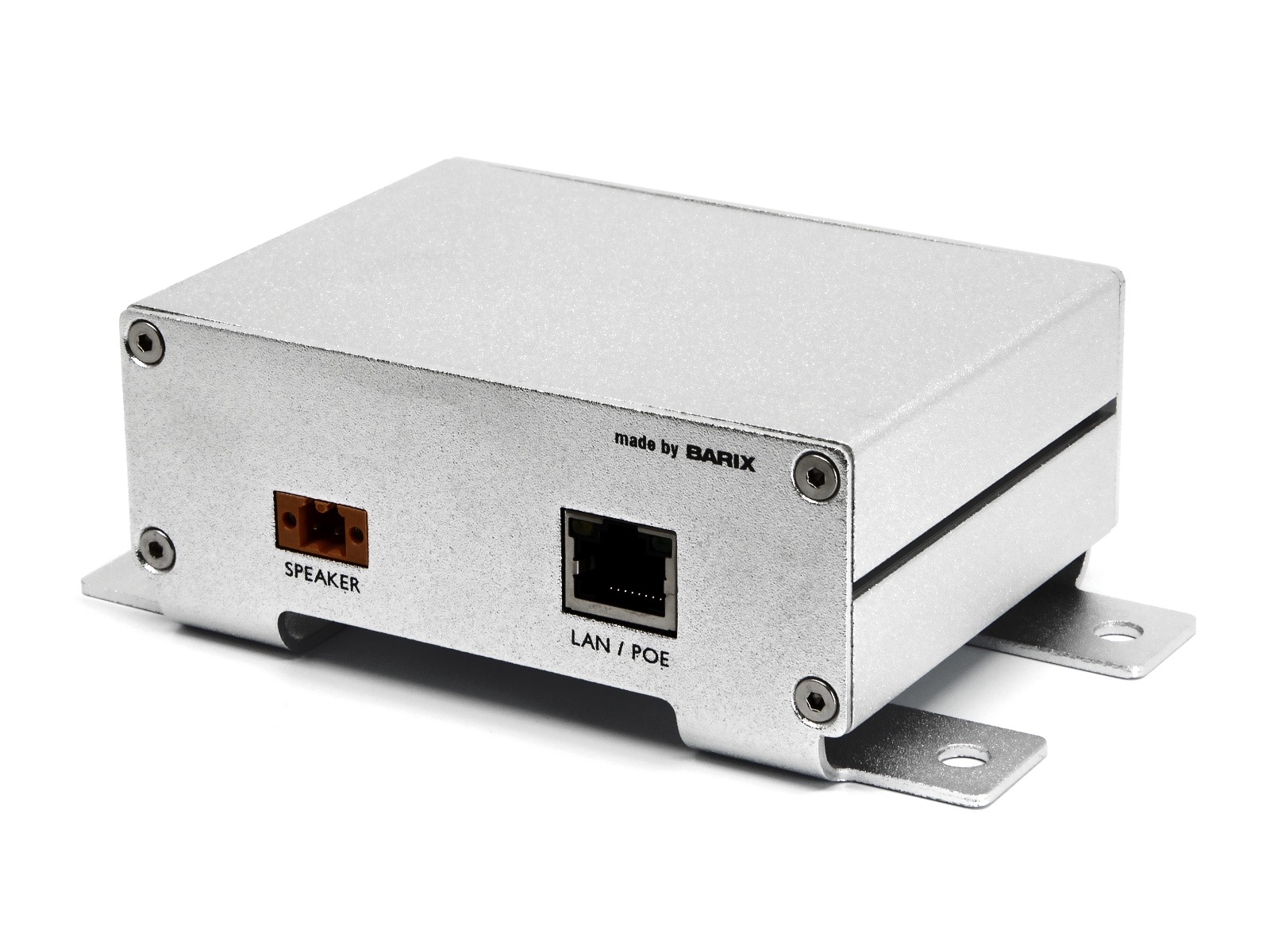

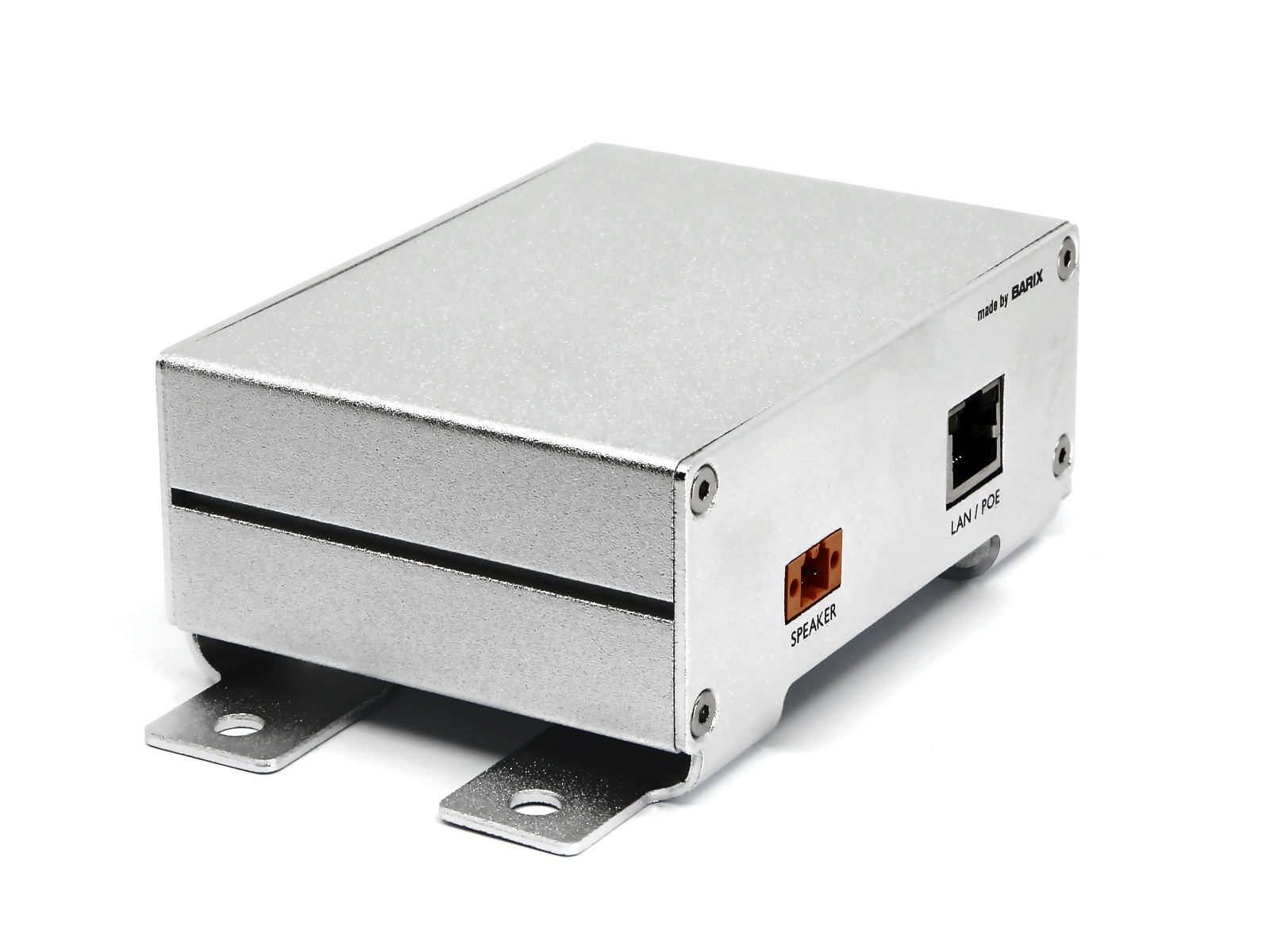

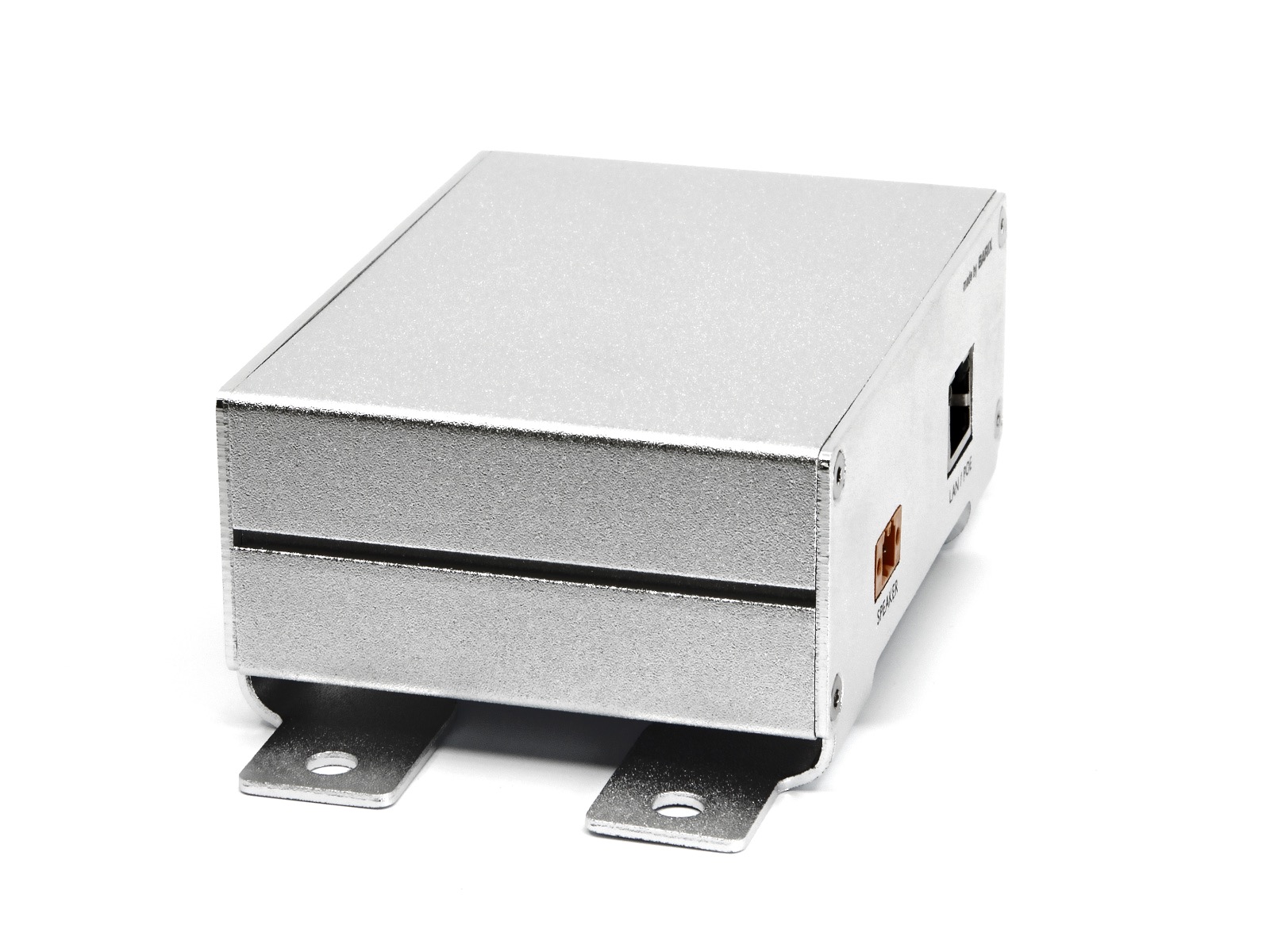

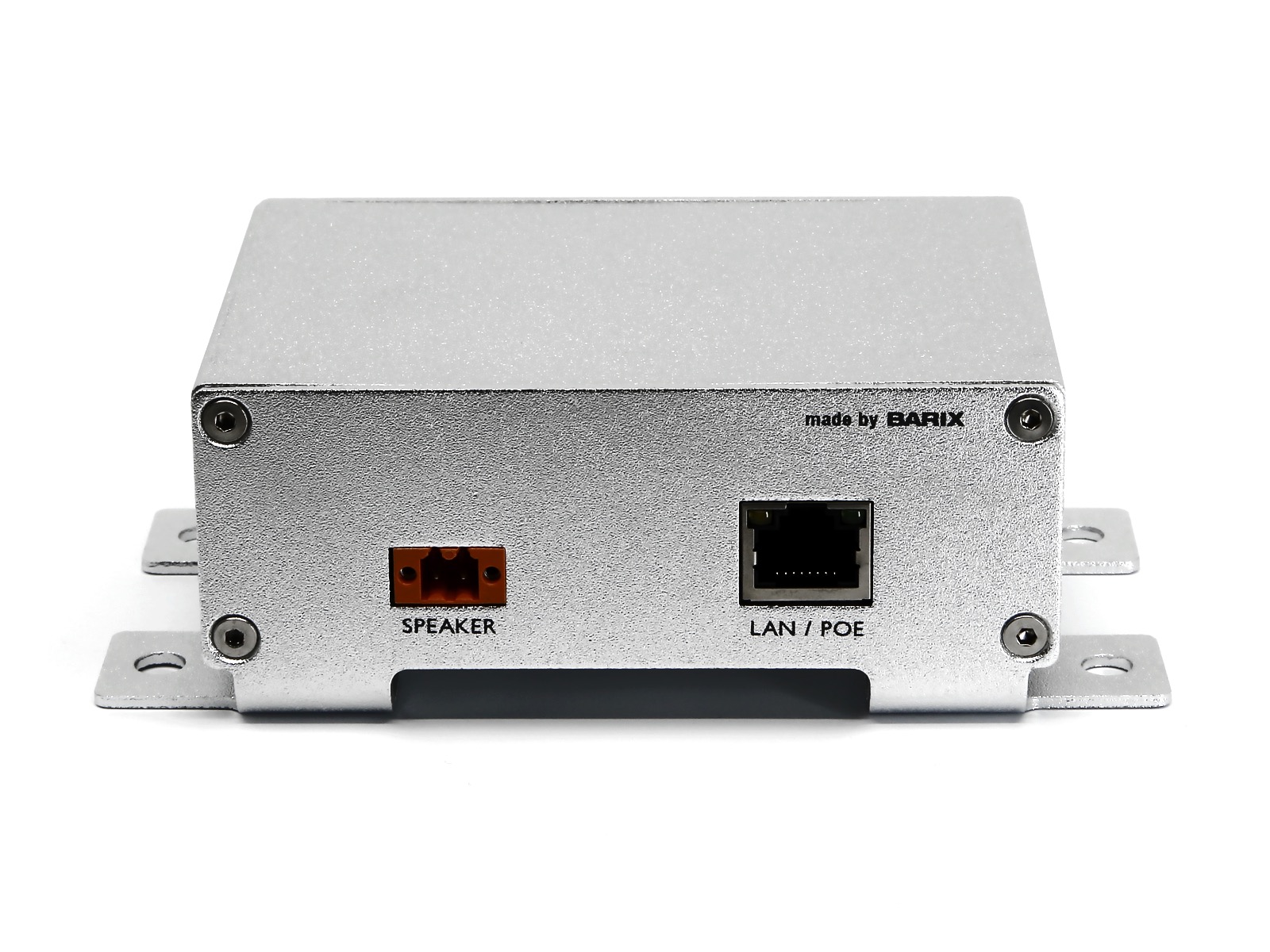

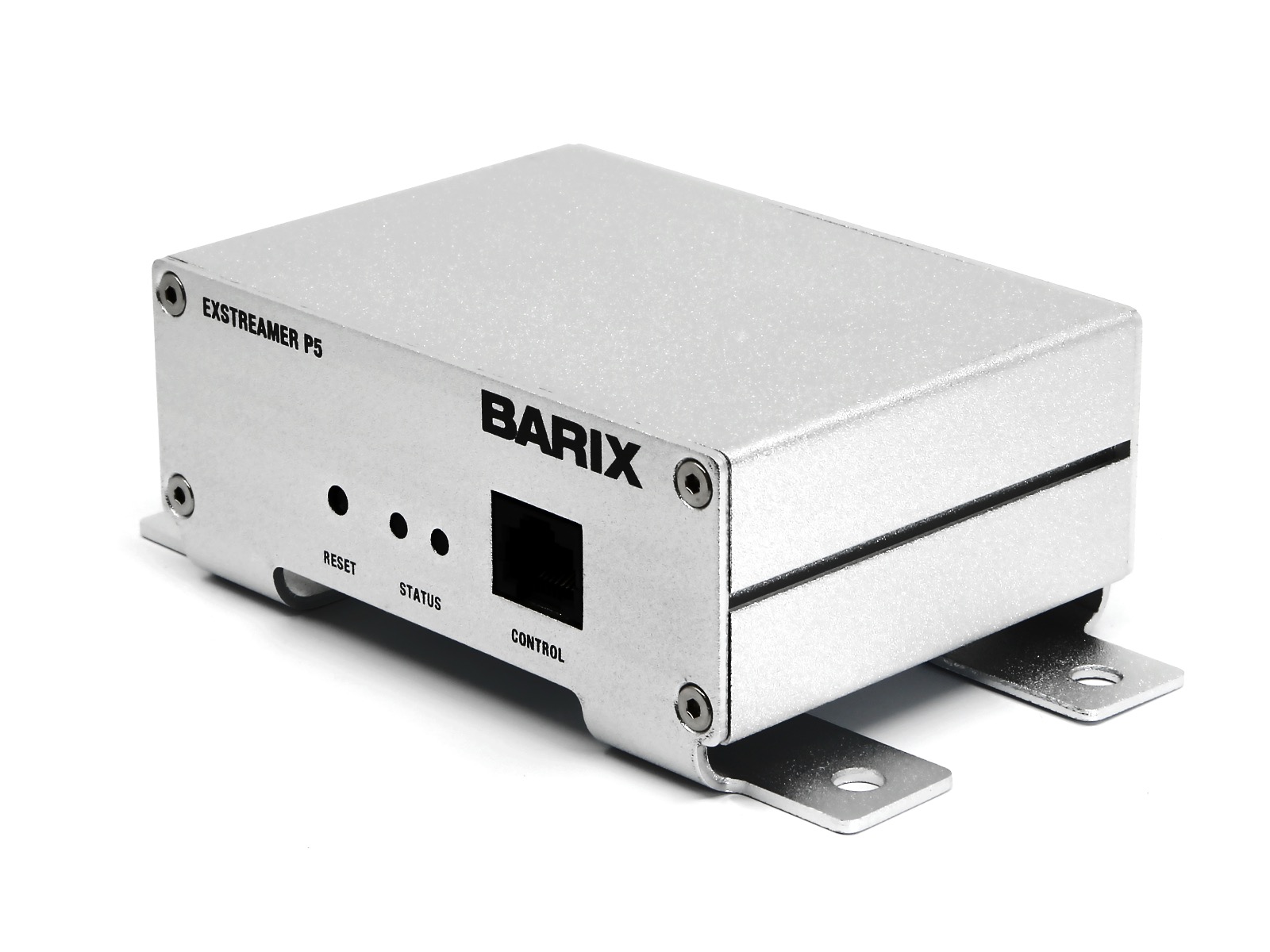

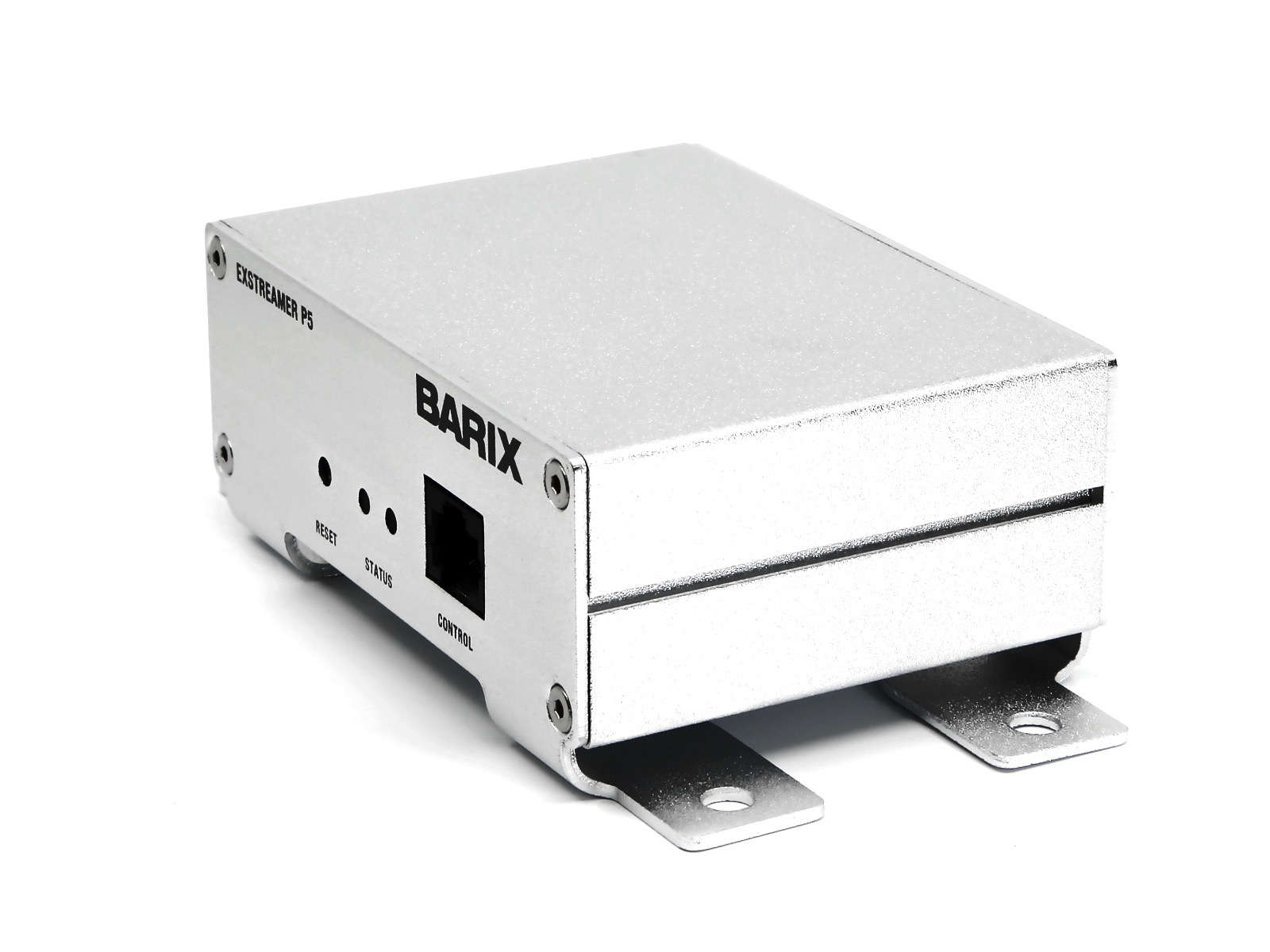

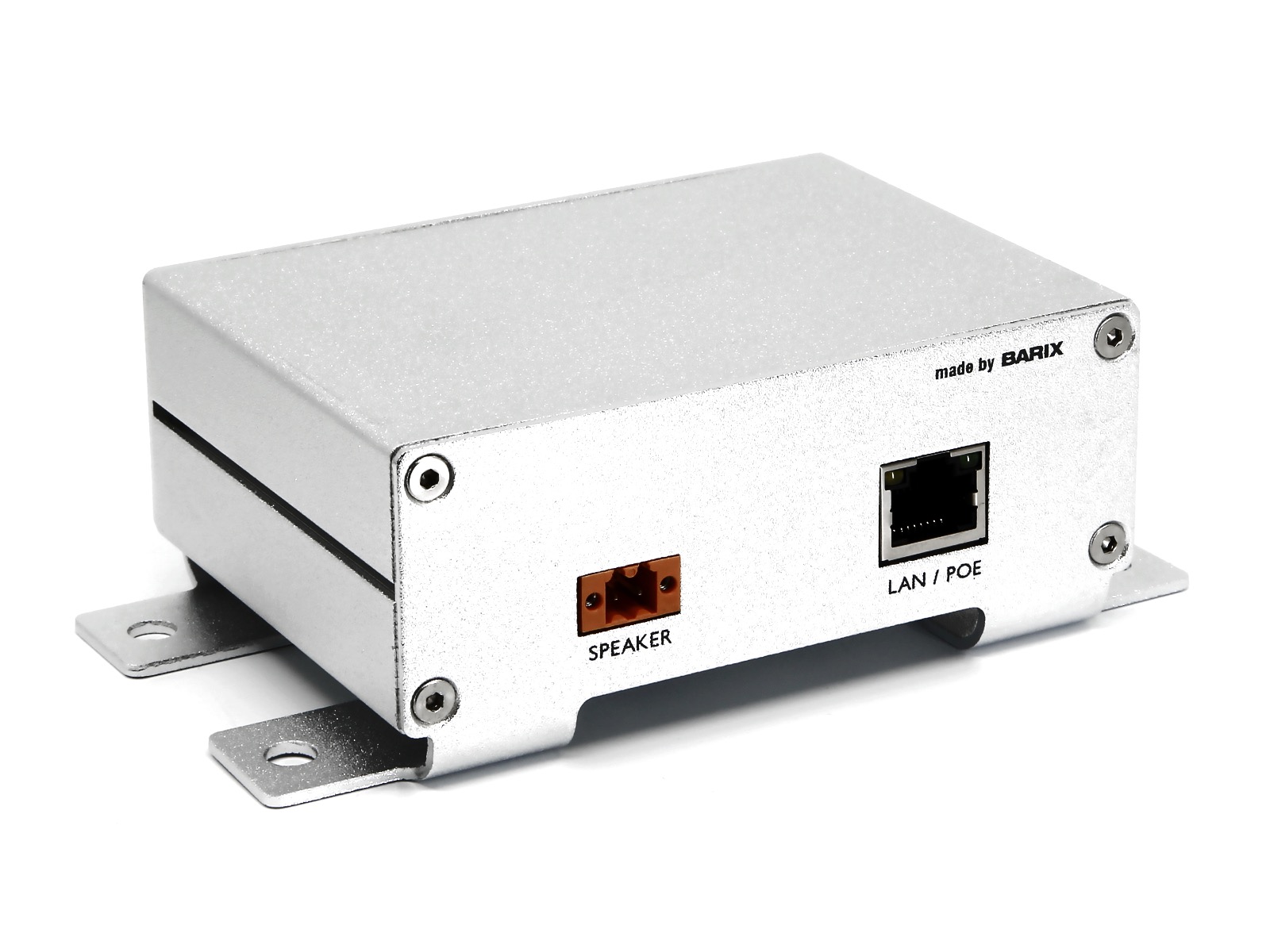

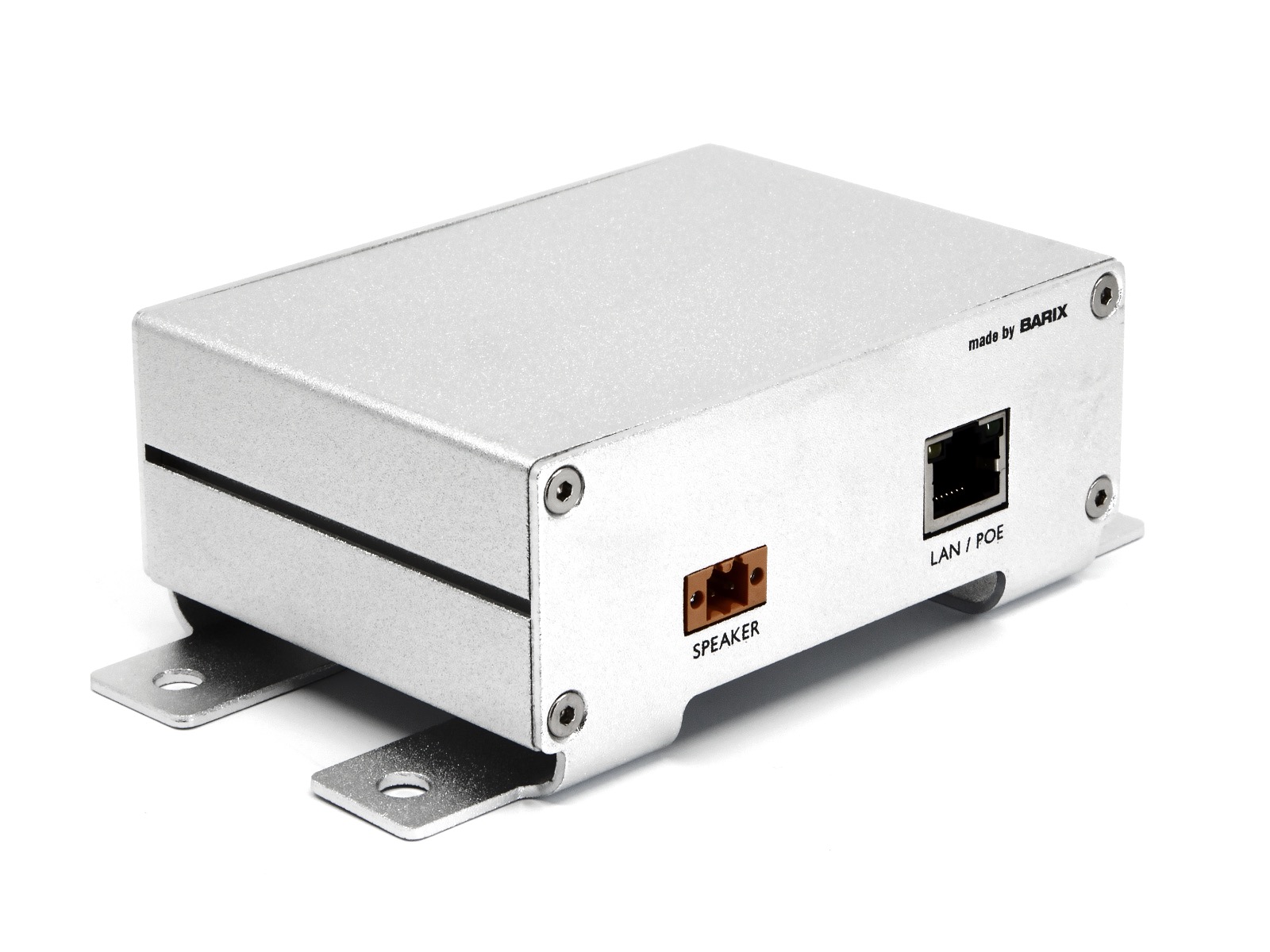

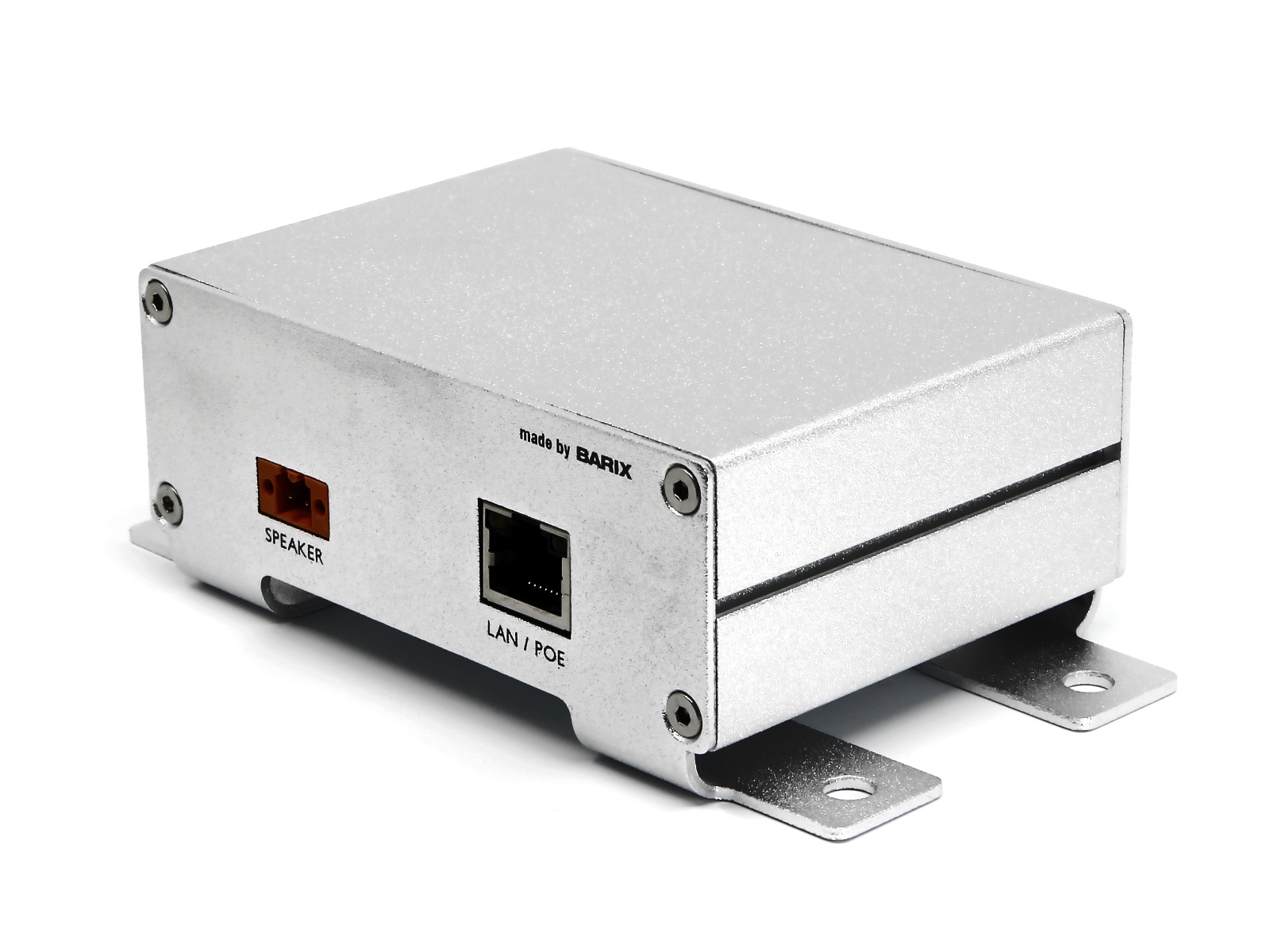

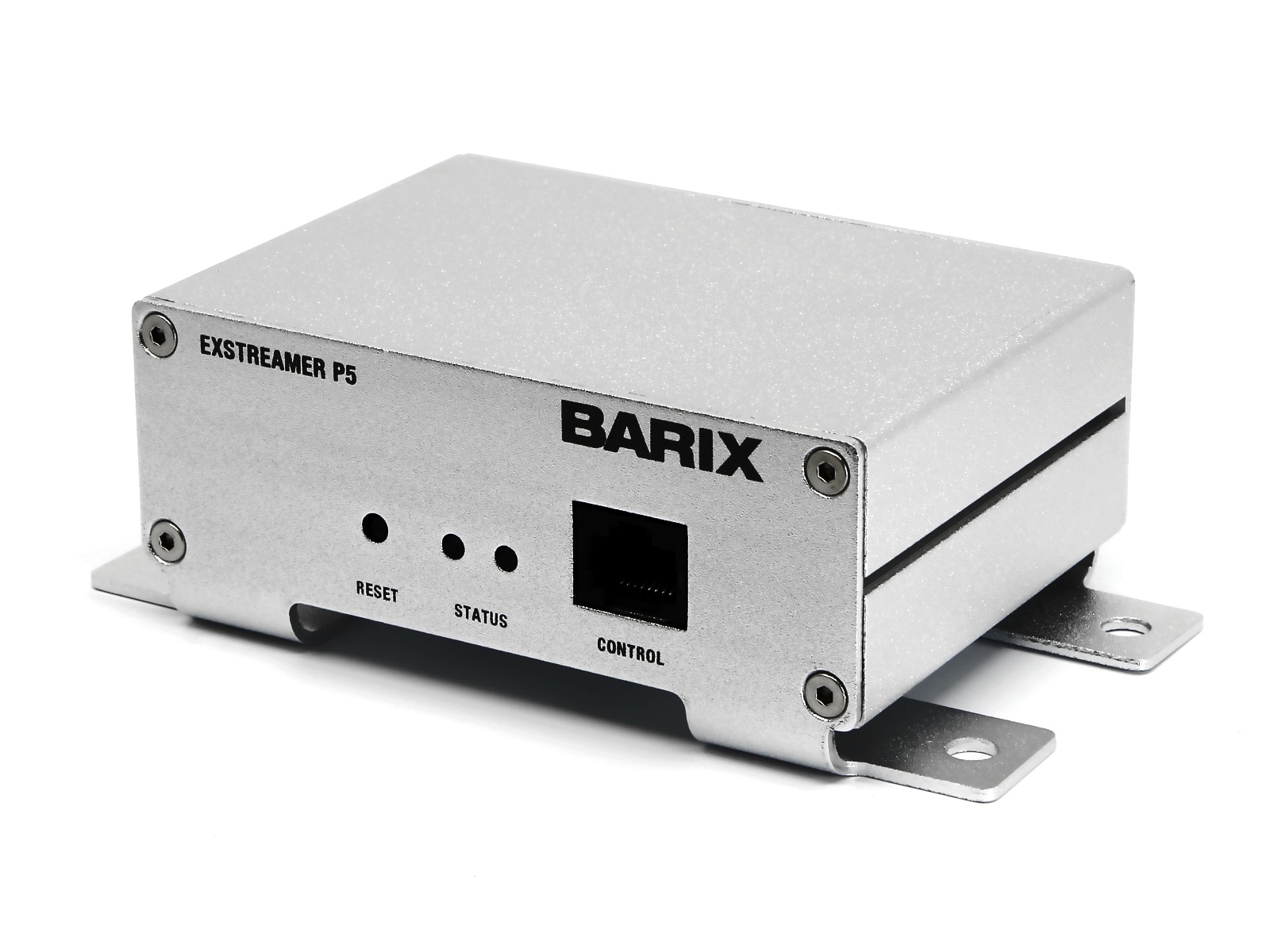

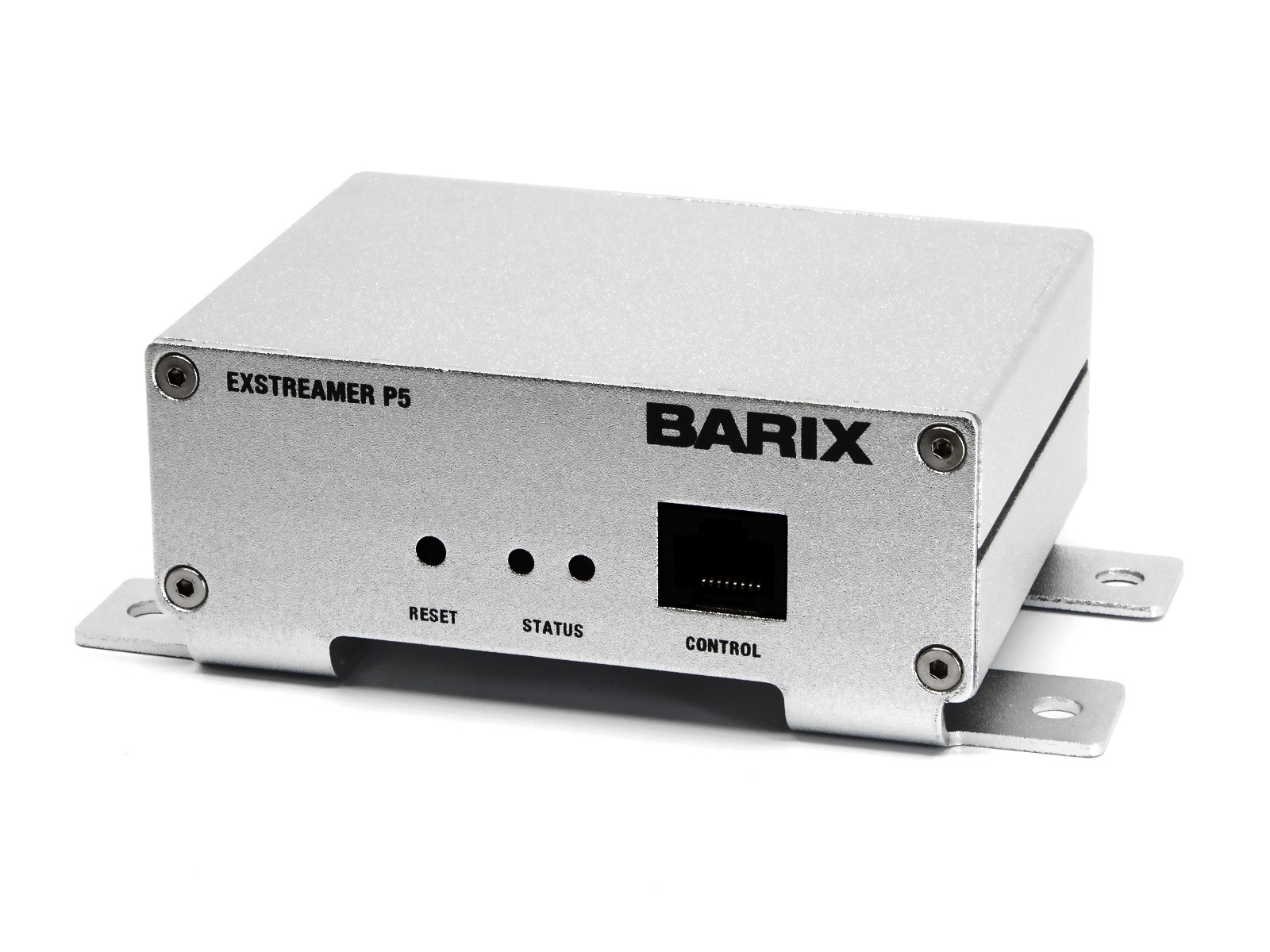

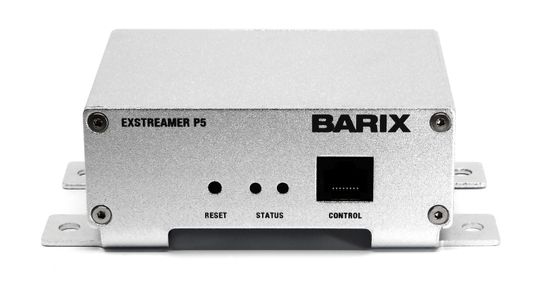

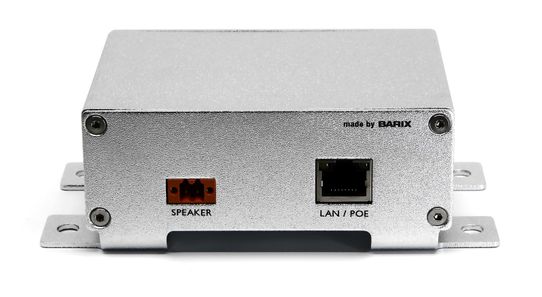

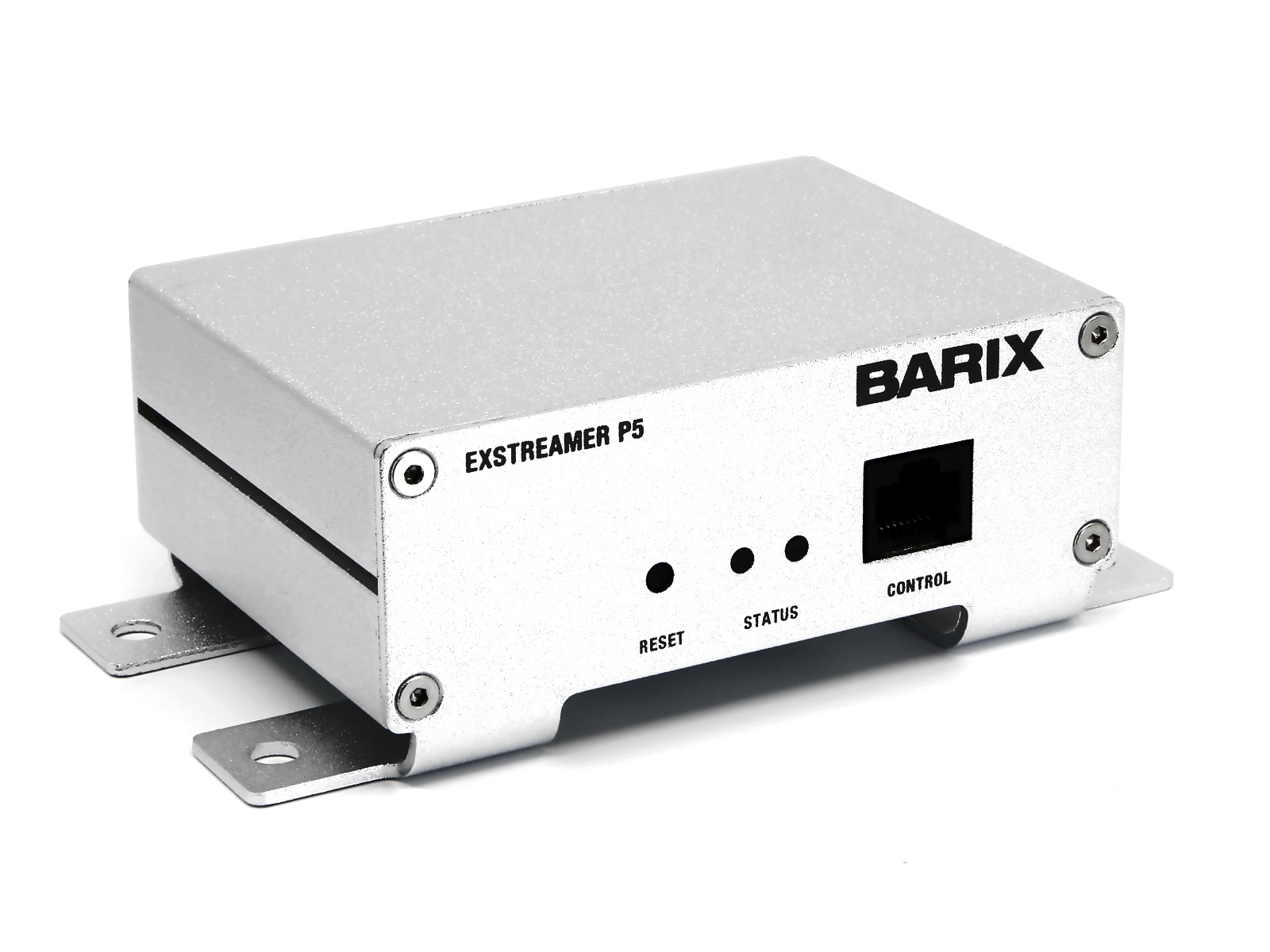

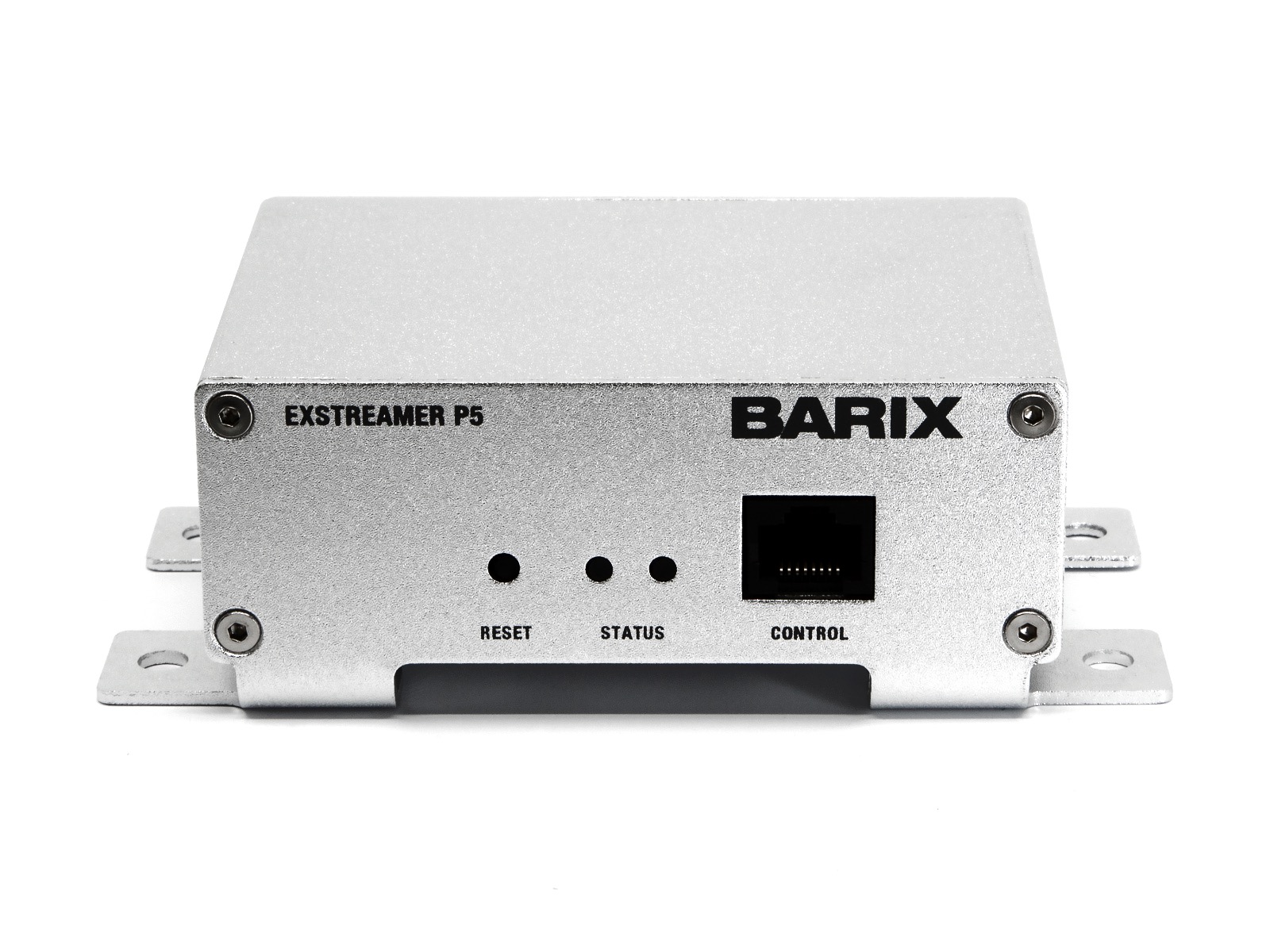

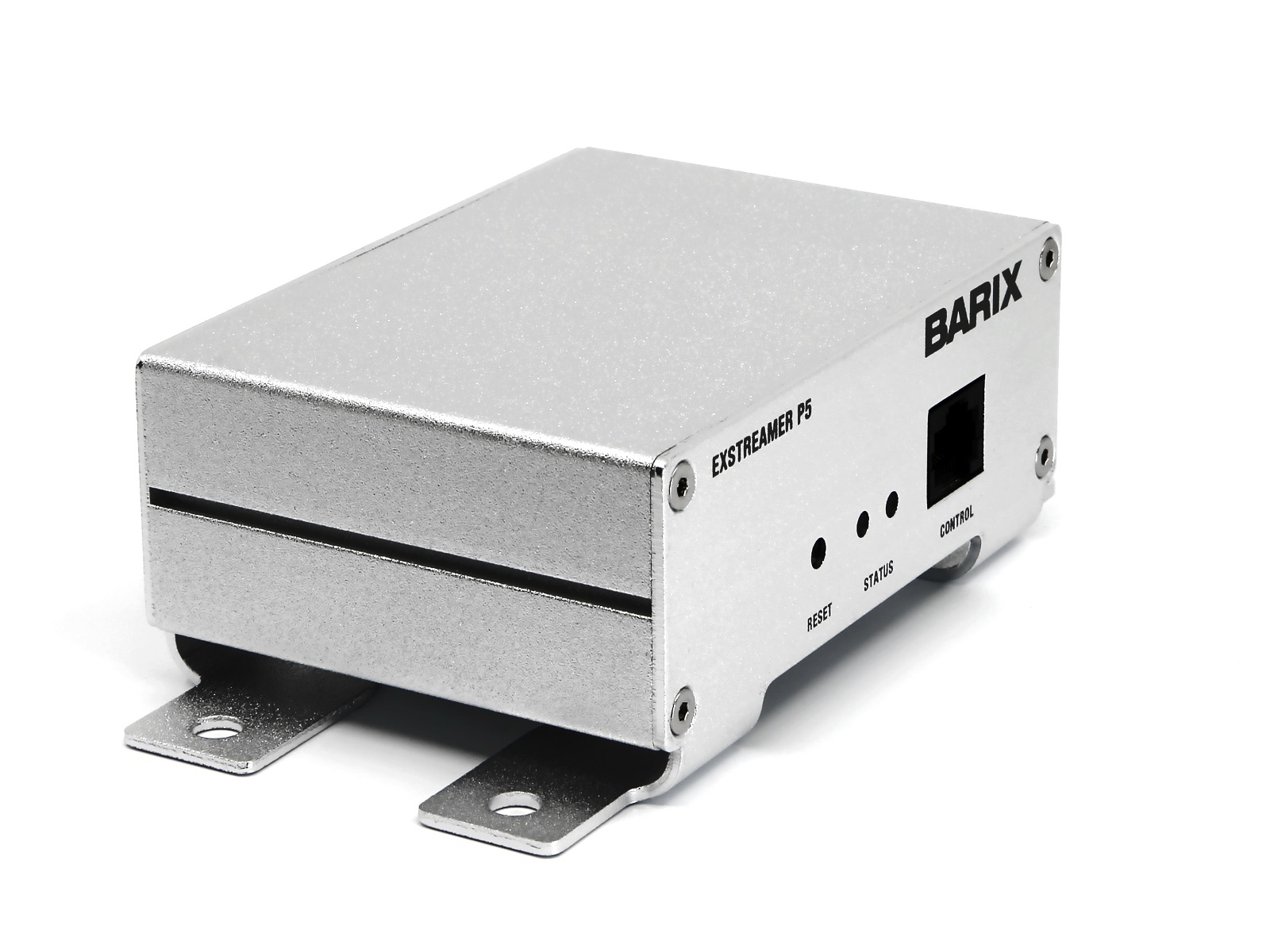

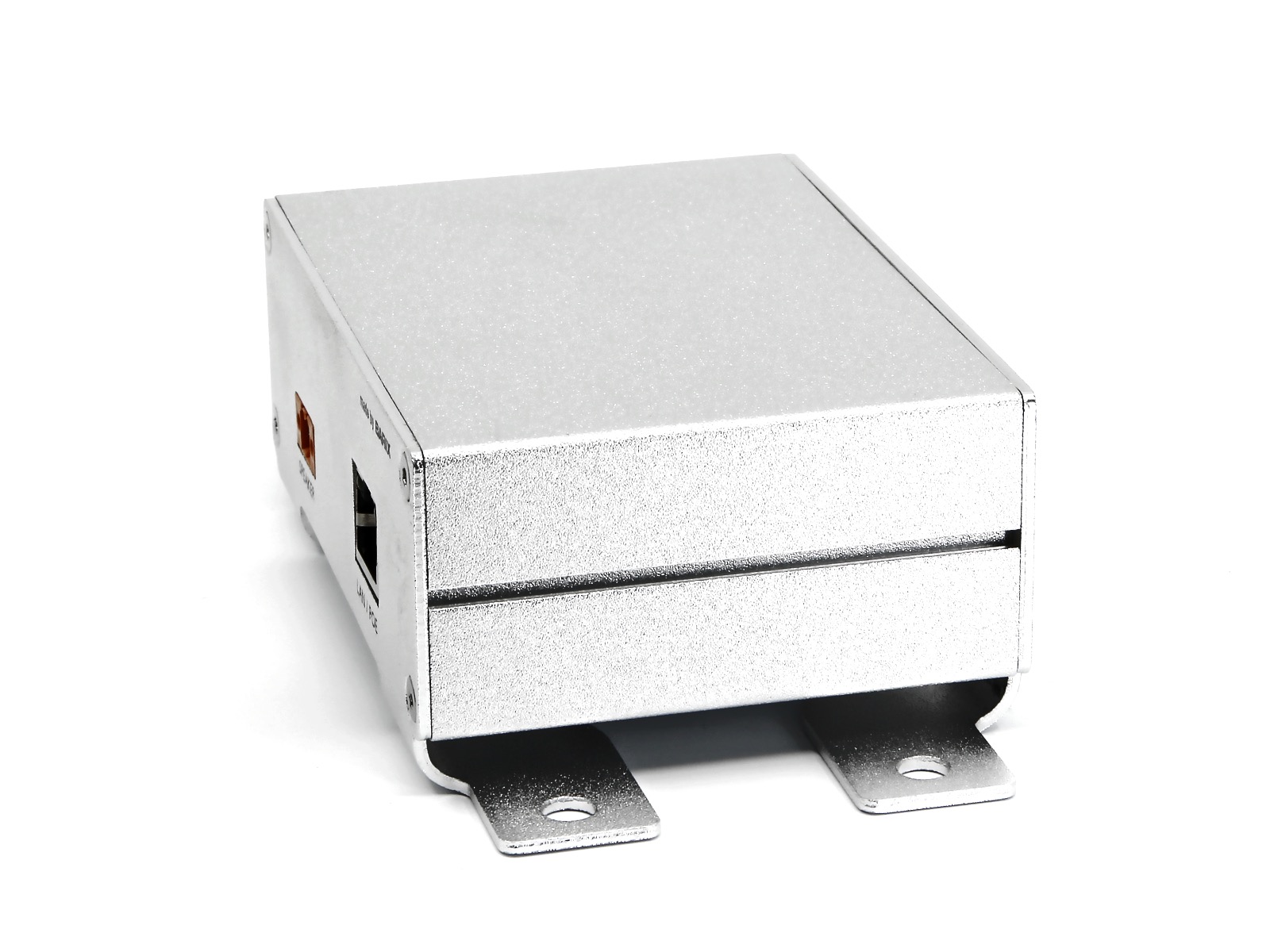

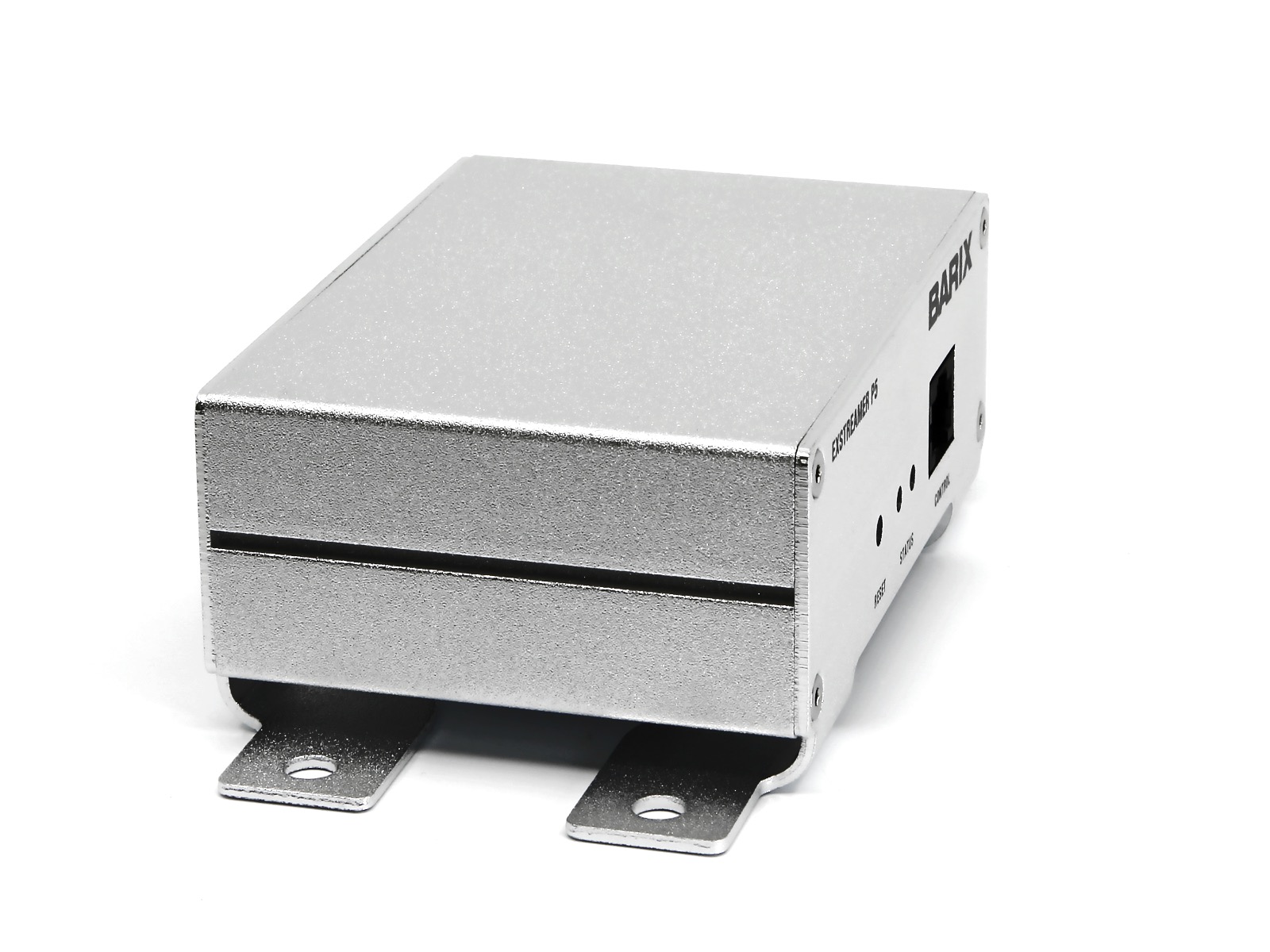

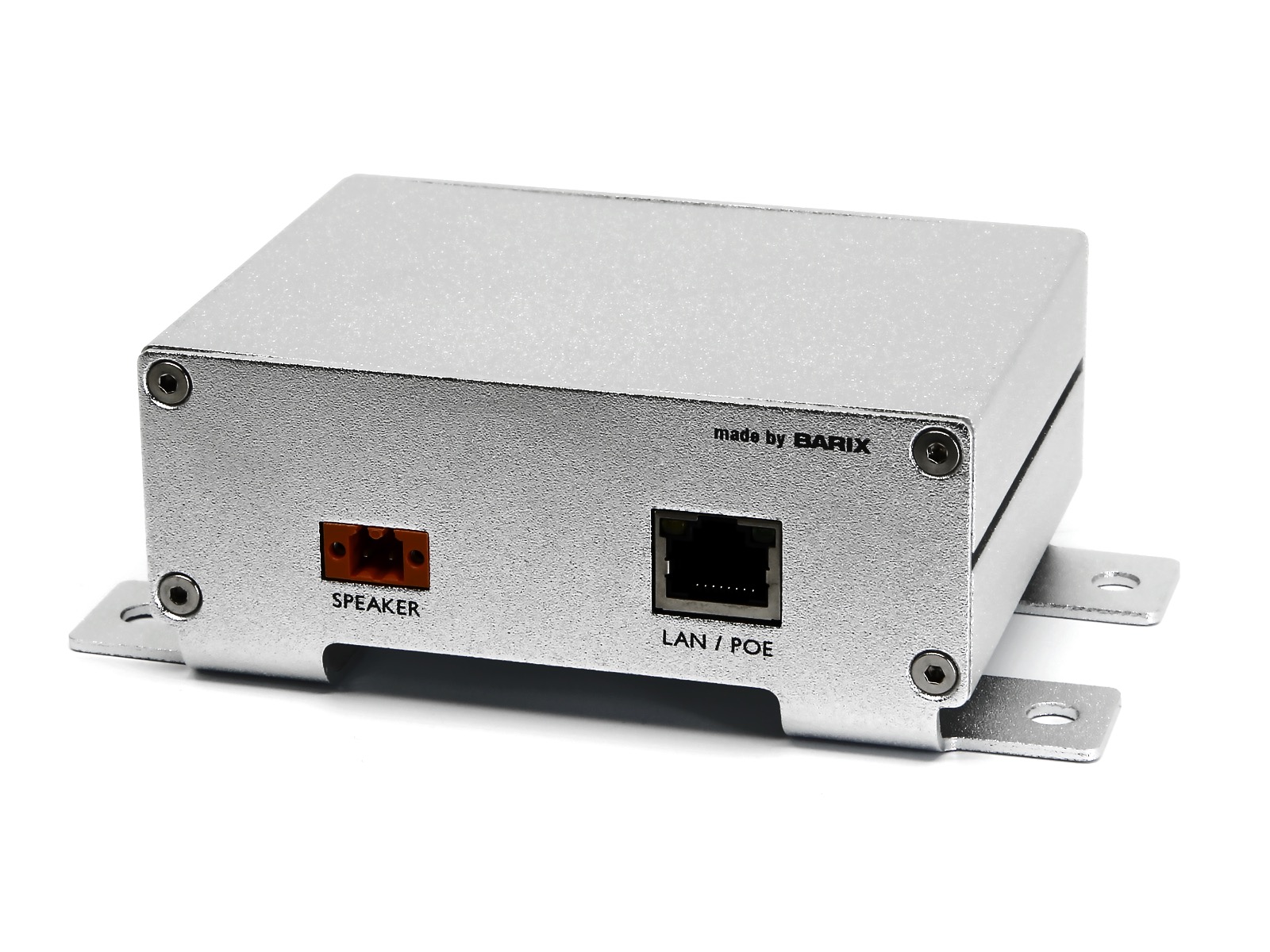

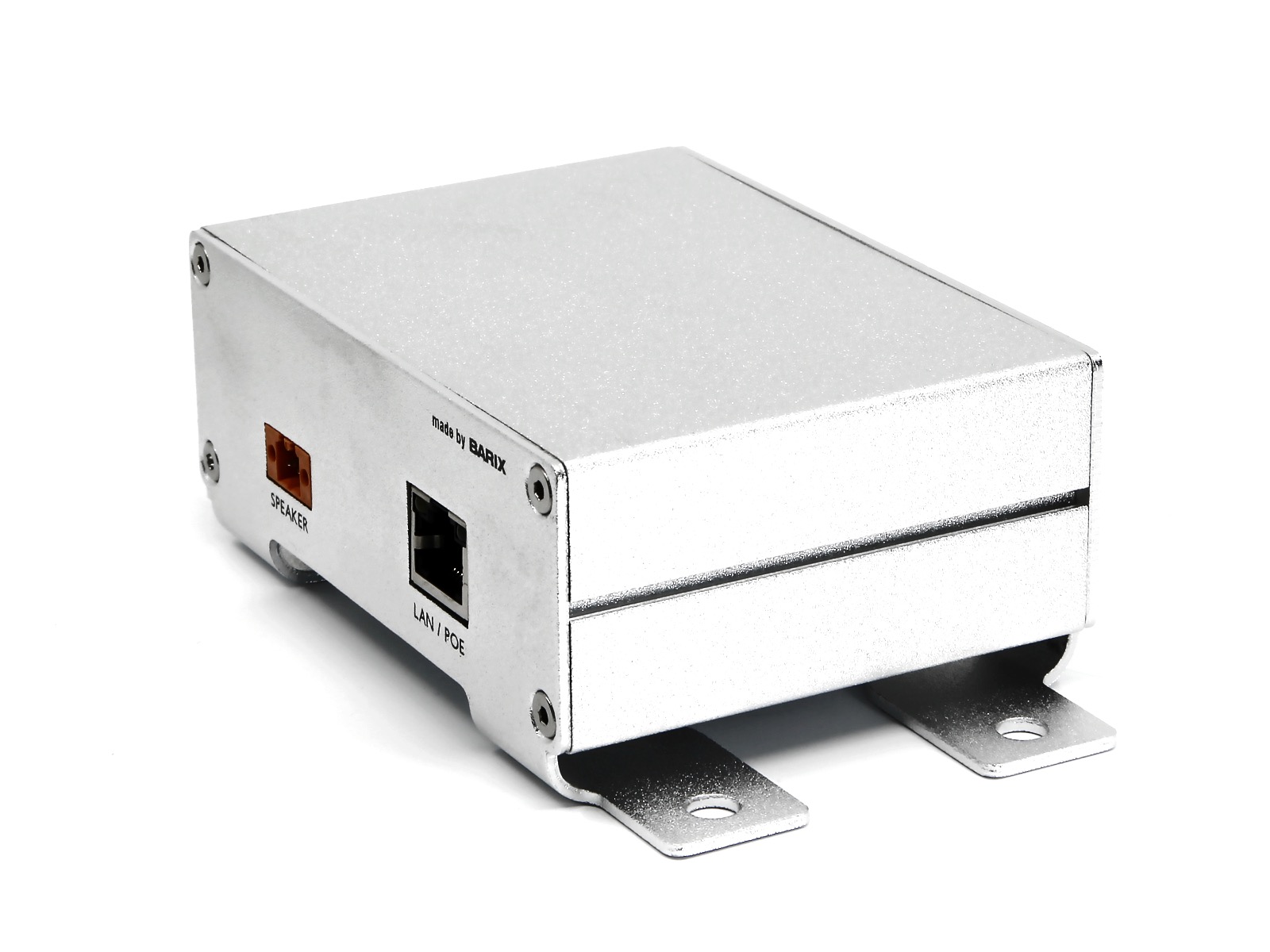

Exstreamer P5

Universal, Multiformat IP Audio Decoder with Amplifier, PoE powered

The IP Speaker without the Speaker ! The PoE powered Exstreamer P5 turns any 8 Ohm Speaker into an IP Speaker with 5W output power. An RS-485 and IR port can be used for local control.

Electrical

Power supply via 802.3af (PoE) Ethernet, 15 Watt max.

10V supply output to in-room control



Ethernet

10/100Mbps auto, 802.3af

RJ-45 connector with integrated Link/Activity LED

Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast capable

ES-100/spkr (Ethersound, output, no daisy-chain) support



Analog Output

Amplified output, short circuit and overload protected

Output power: 5WRMS (8 Ohm), 2,5WRMS (16 Ohm)

Frequency response (-3dB): 20Hz ..12kHz (8 Ohm),

25Hz ..20kHz (16 Ohm) *

SNR (-3dBFS): -90 dB (8 Ohm), -75 dB (16 Ohm)

THD <0.7% (8 Ohm), <0.3% (16 Ohm)

Audio formats

MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.

AAC, AAC plus, AAC-HE (AAC plus V2)

WMA (up to version 9), Ogg Vorbis

PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz

G.711, uLaw, aLaw (sample rates same as PCM)

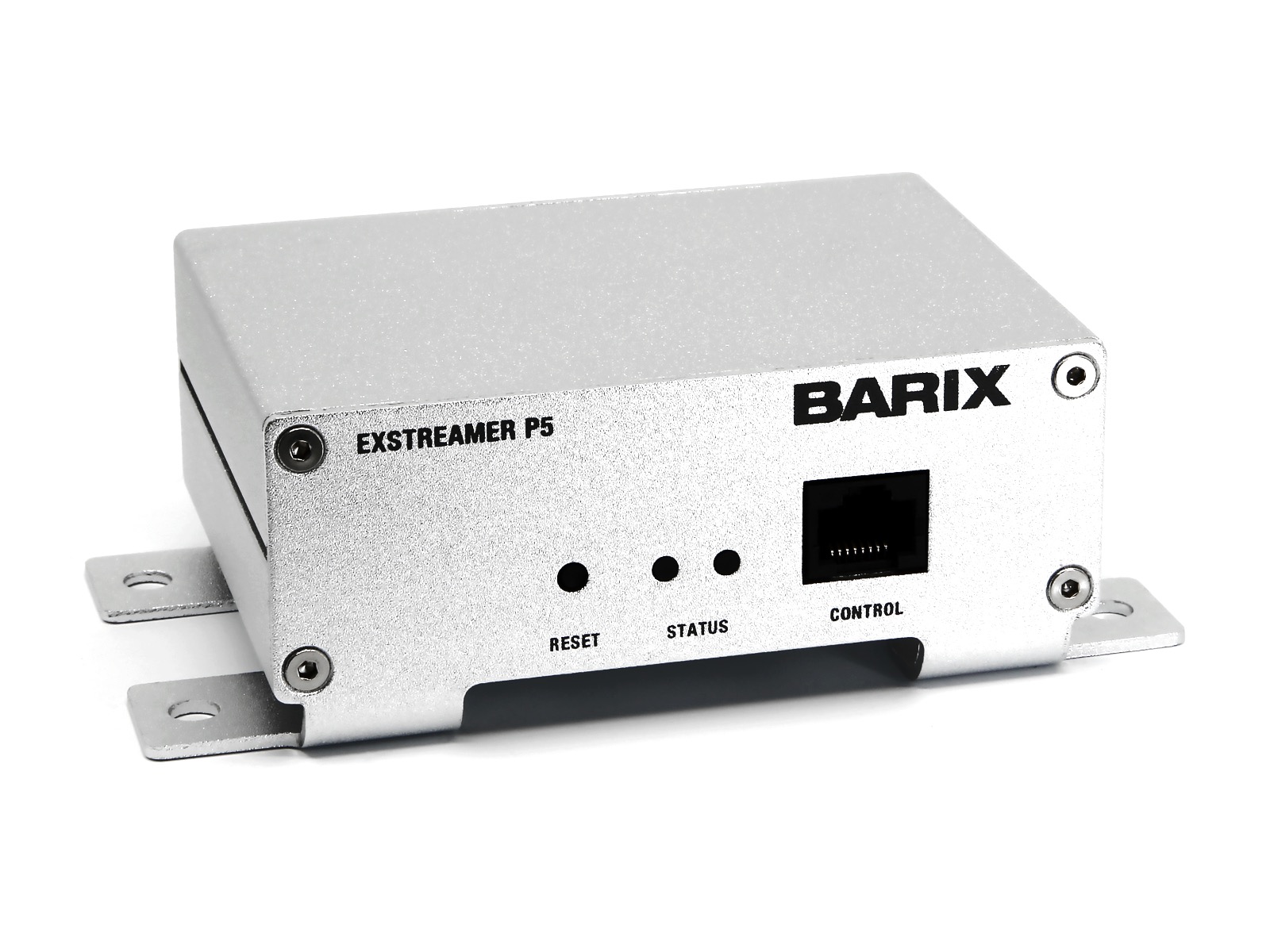

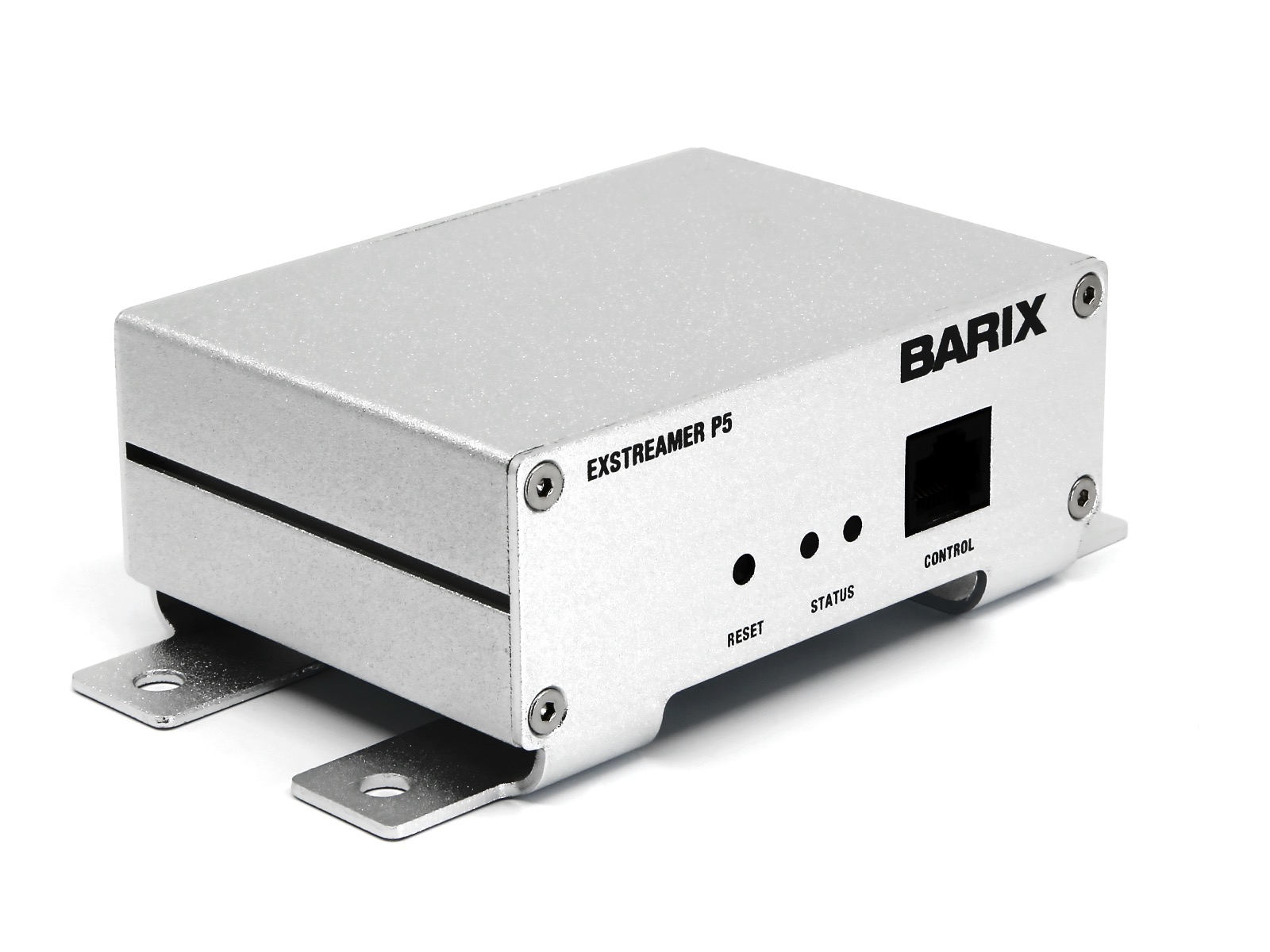

Control Interface (RJ-45)

Direct support for Barix VSC (Volume Source Control)

RS-485, 300..230‘400 Baud asynchronous

IR input on separate line

10V supply output for in-room control



IR Interface

Supports Barix IR receiver (with adapter) and VSC

Mechanical

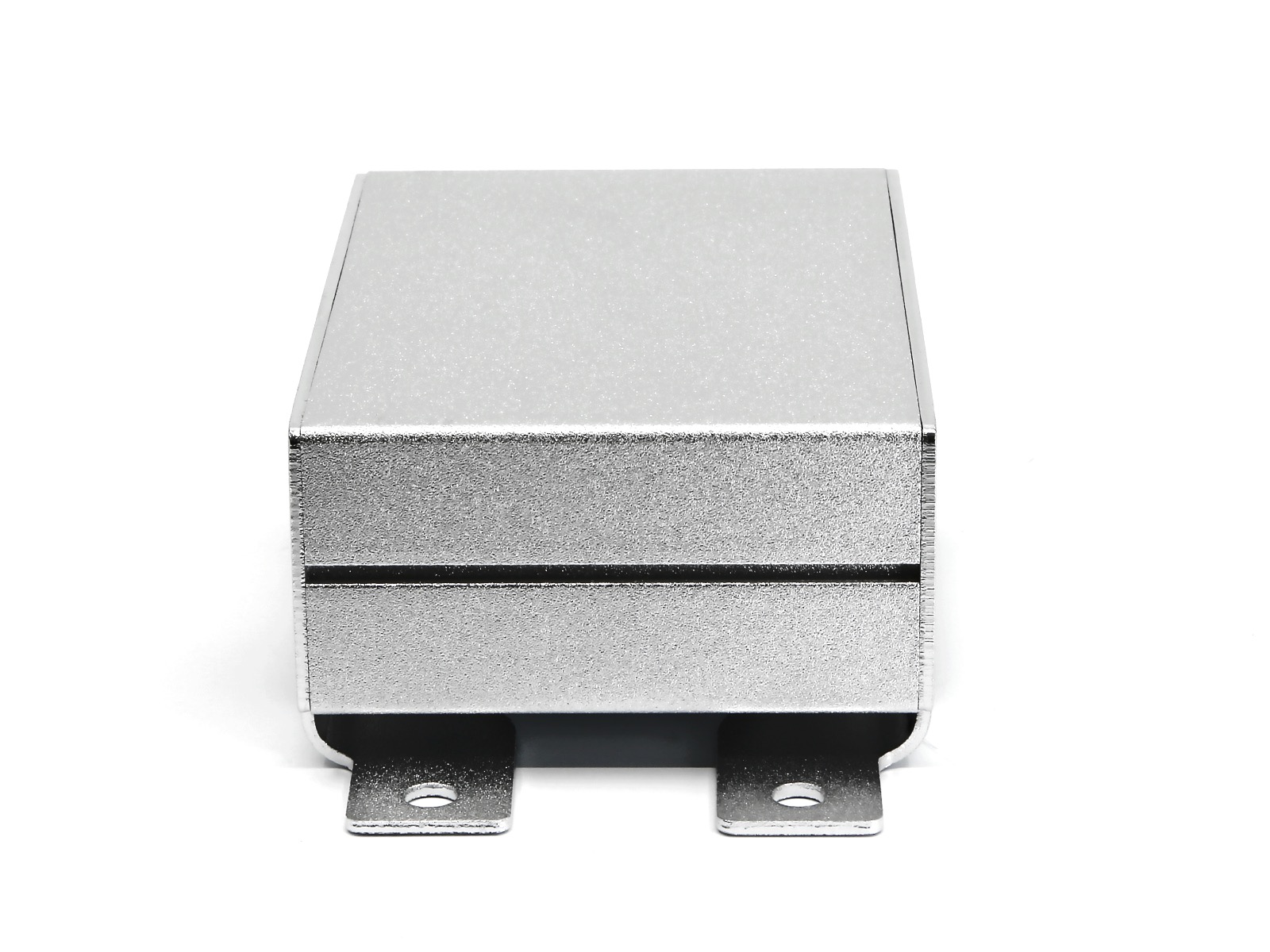

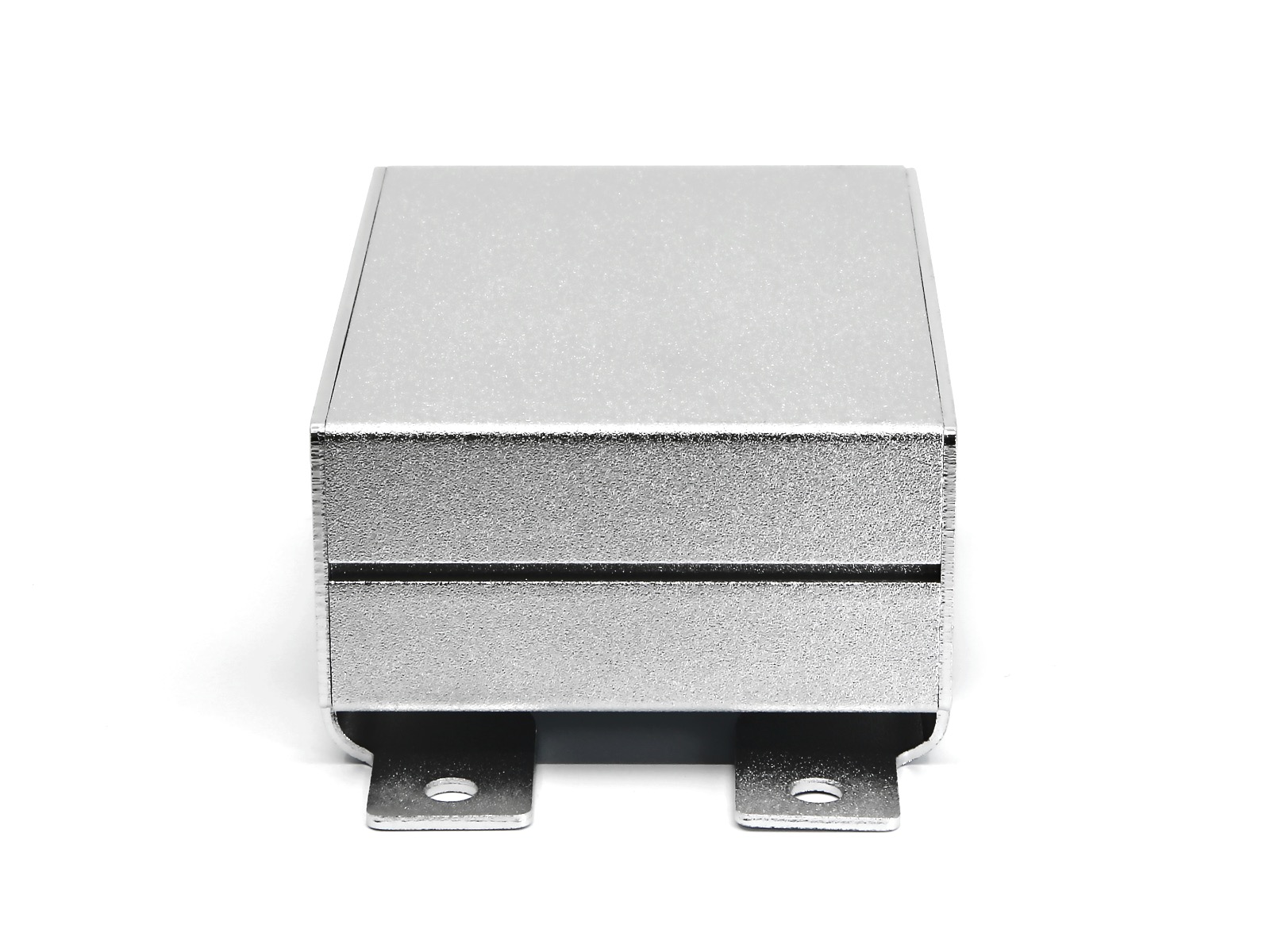

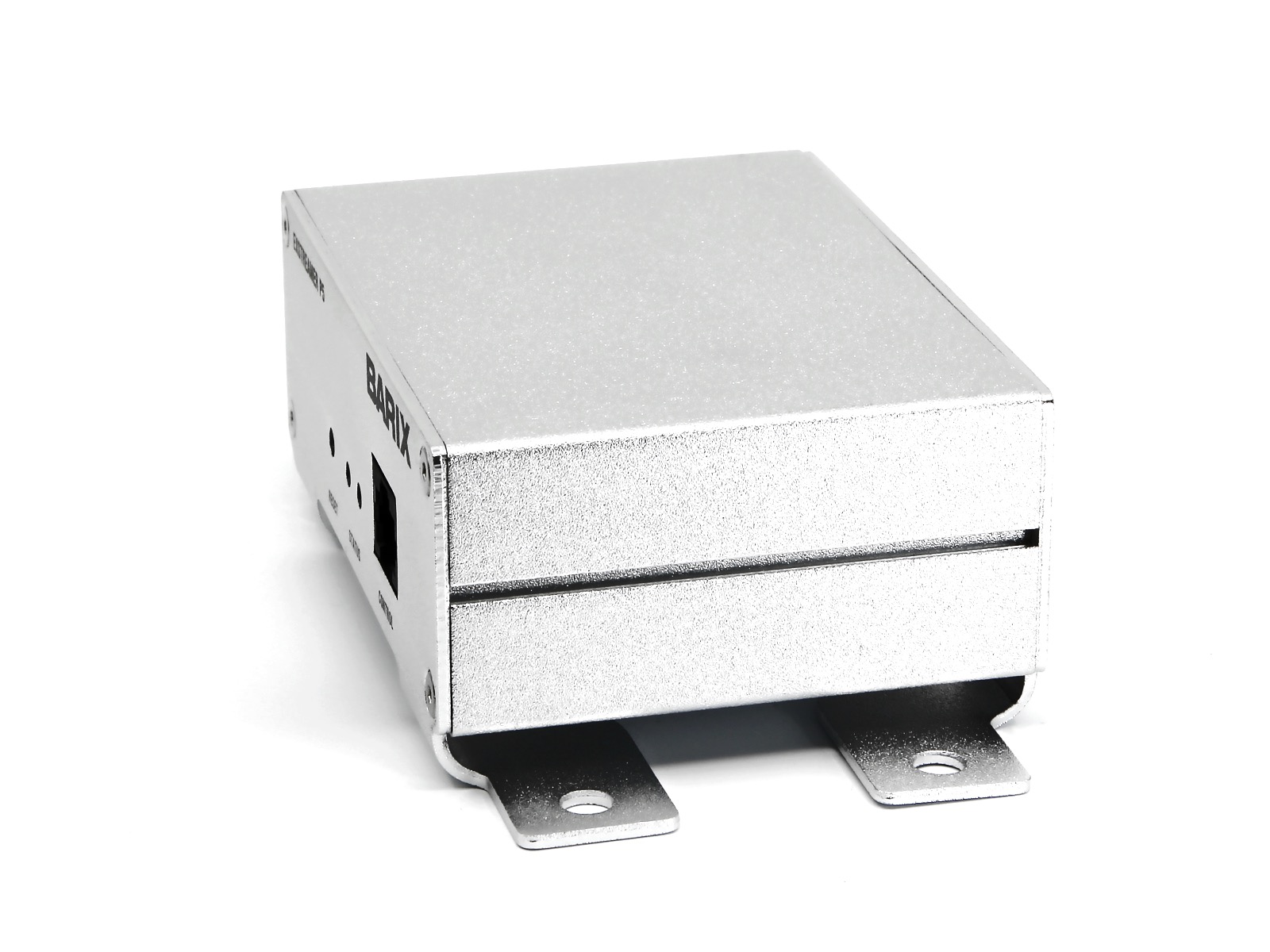

Aluminum case, 300g, with mounting wings for direct wall mounting



Dimensions (W x H x D)

108x38x78.7mm (4.25×1.5×3.1 inch) plus mounting wings



Supported Audio formats

PCM, G.711, G.722, MP3 decode

AAC+ decode

PCM 16 bit and 8 bit (uLaw, aLaw) @ 8..48 kHz



Other Models available

Extreamer 100,110,120 Universal IP Audio decoders with line level output

Extreamer 500, 1000 Professional IP Audio encoders/decoders with balanced audio interfaces and contact closures

Instreamer 100 IP Audio encoder with line level and S/PDIF interfaces

Annuncicom 100,155, 200 IP Audio encoder/decoder with microphone input and speaker output plus I/O

Annuncicom 1000 Professional IP Intercom/Paging device with balanced audio and supervised contact closure inputs and outputs

Annuncicom PS16

IP PA paging station with line keys desktop model



MTBF

Min. 440 000h

Calculated acc. to MIL217F at 25°C



*depends on used codec, best results @48kHz PCM

  • 2010.9104
    Exstreamer P5 PoE package
