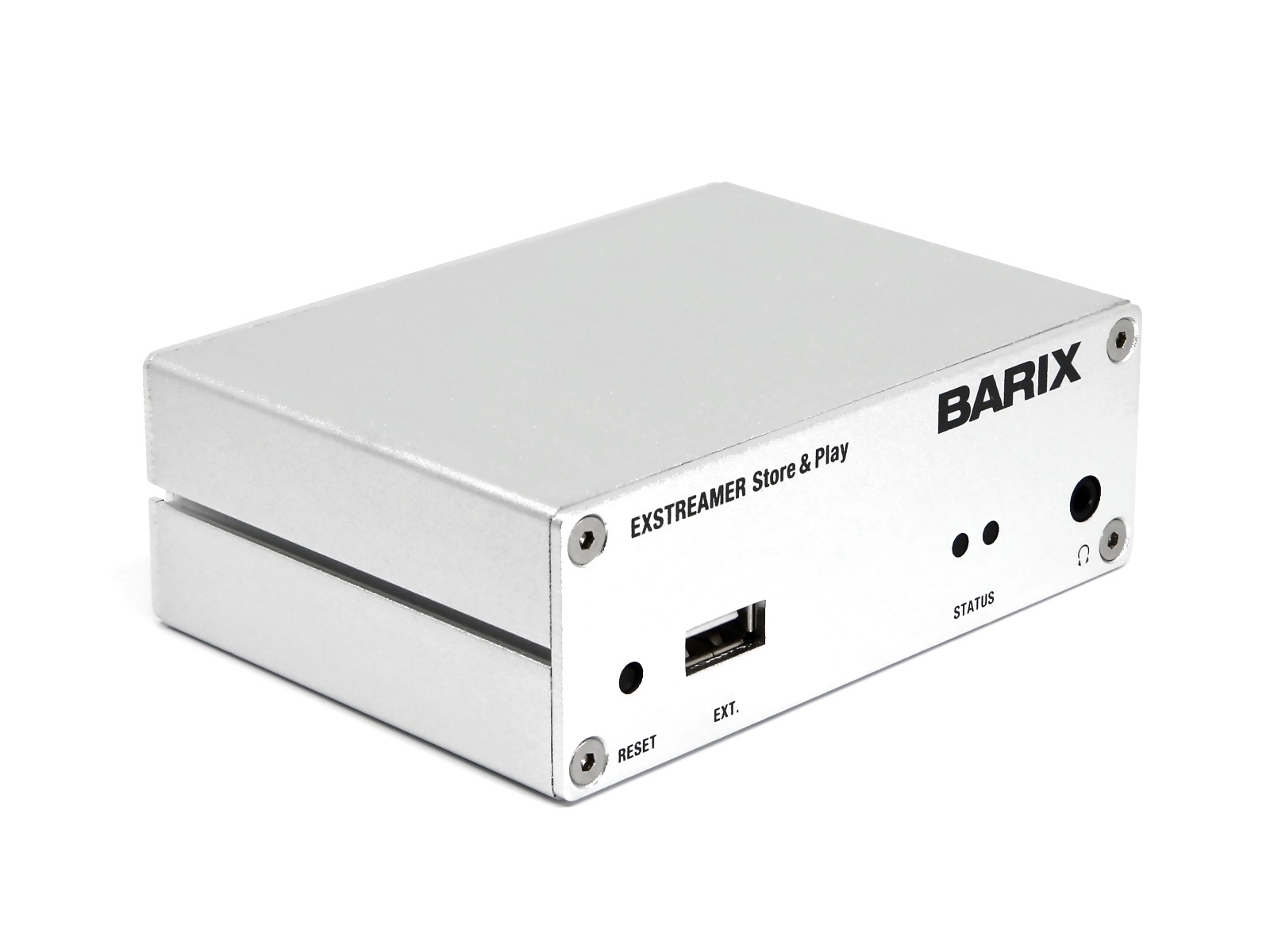

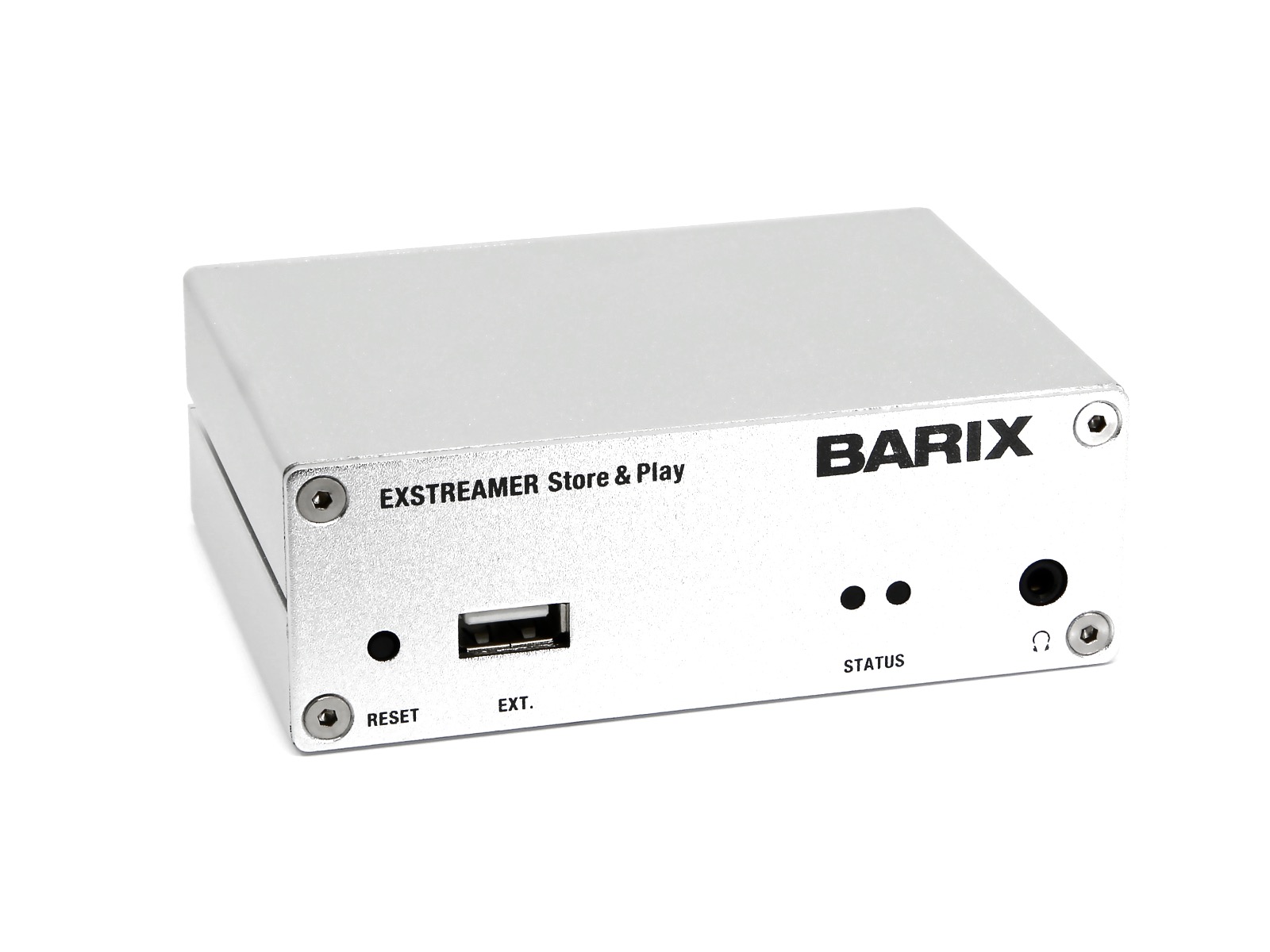

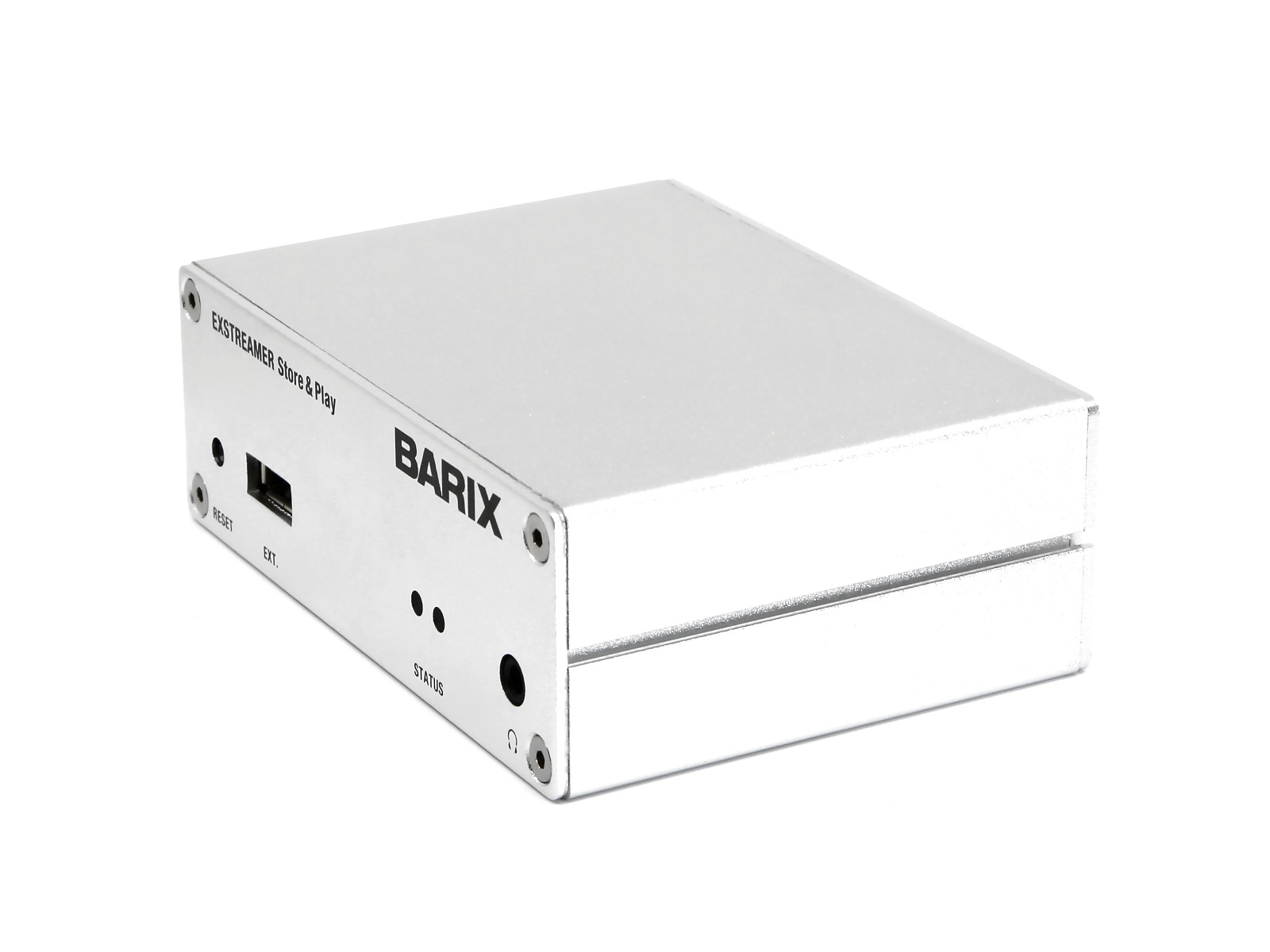

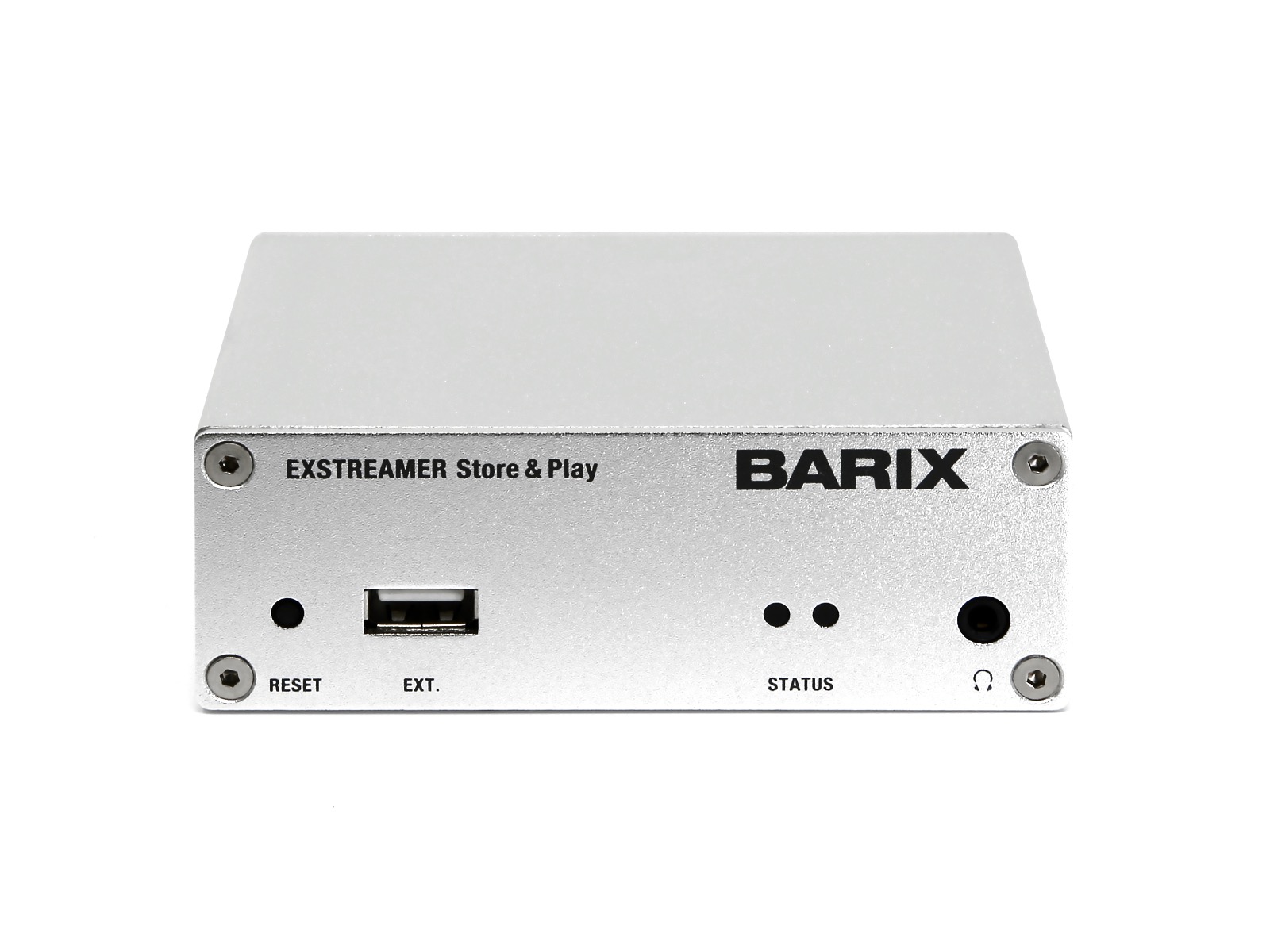

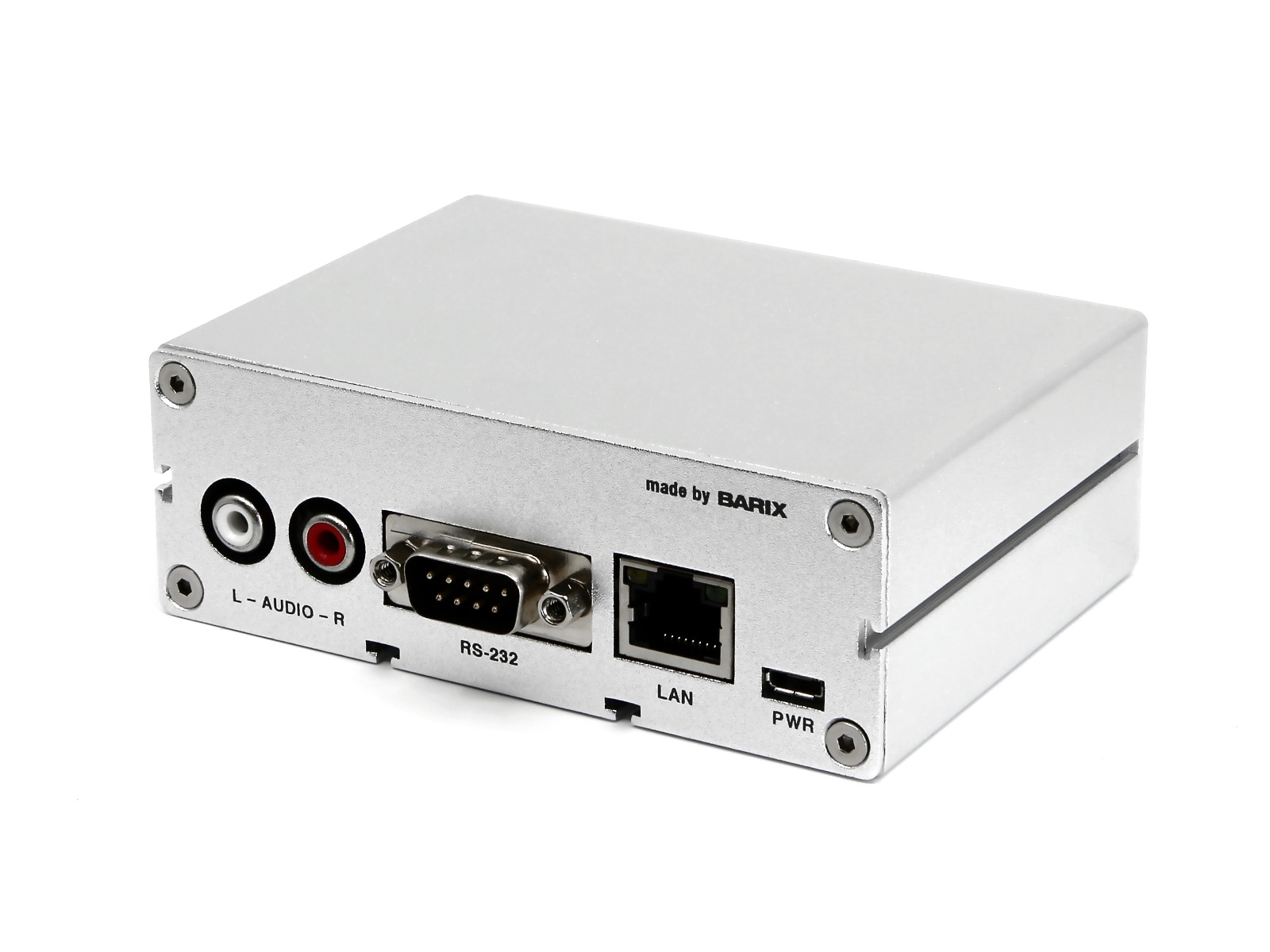

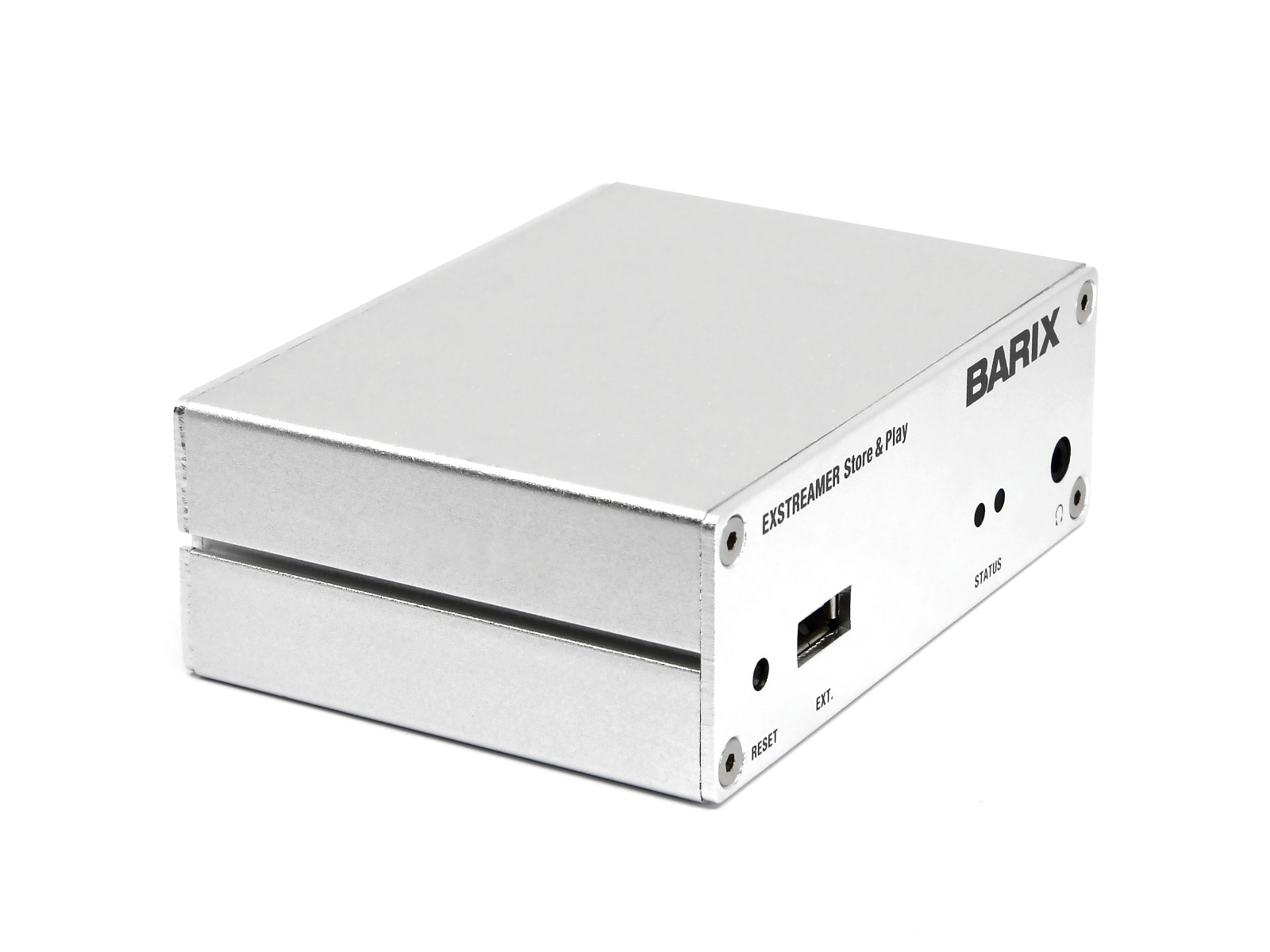

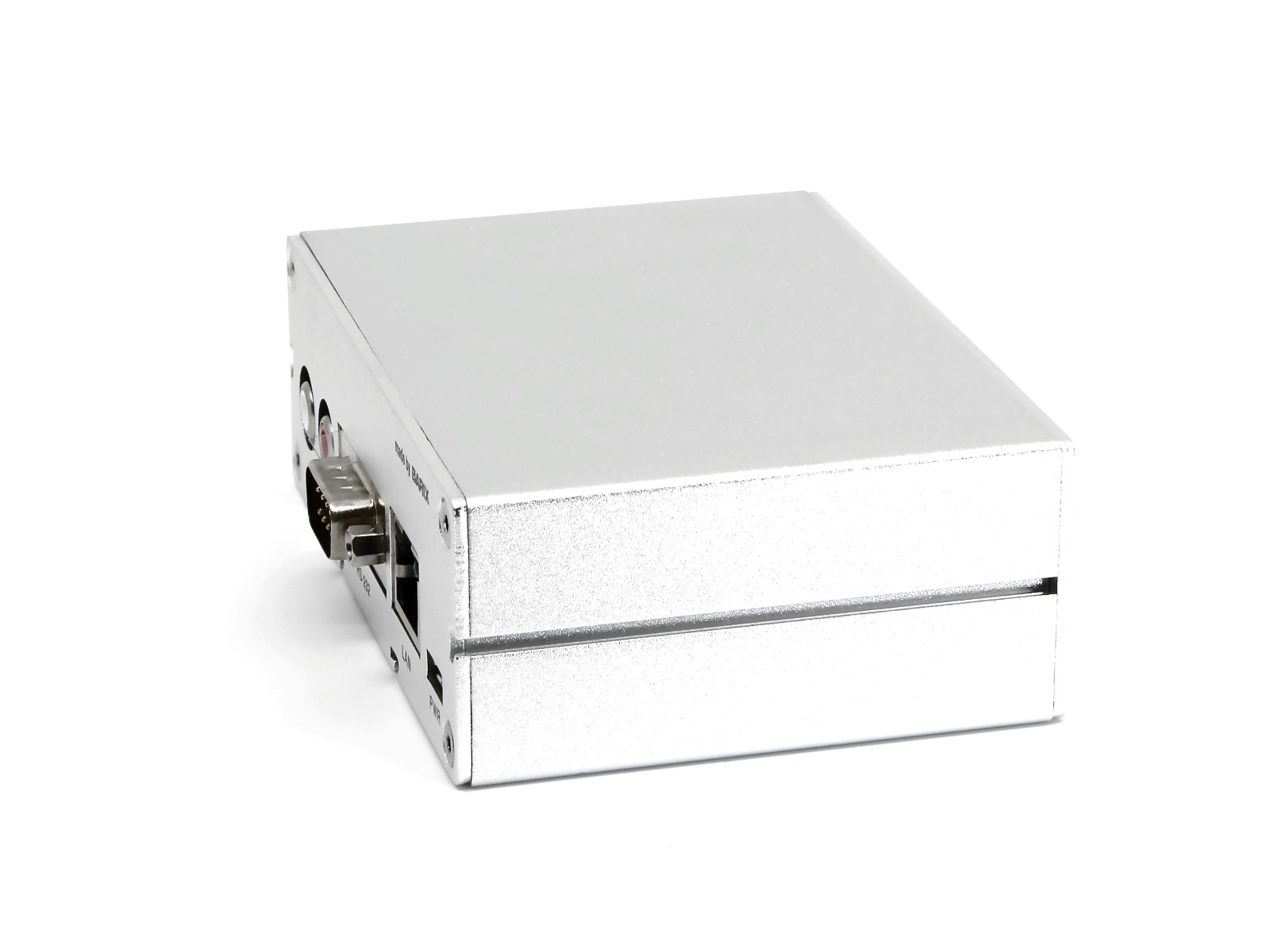

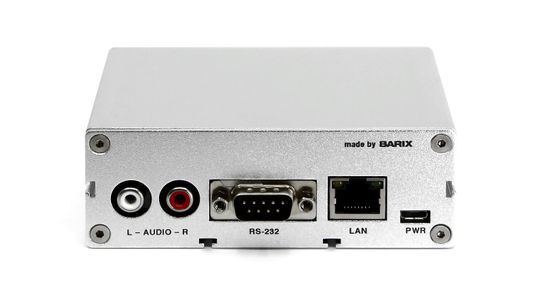

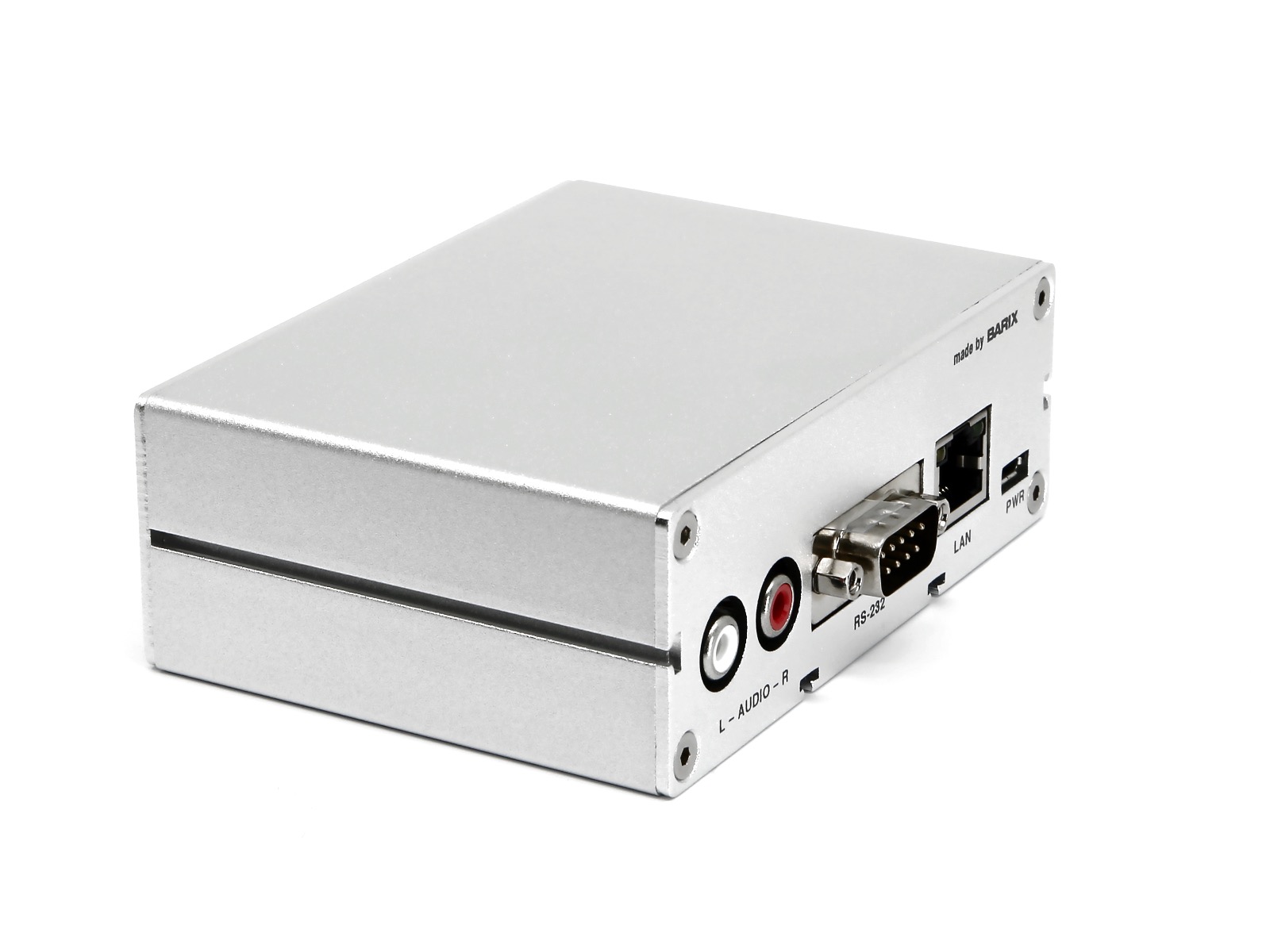

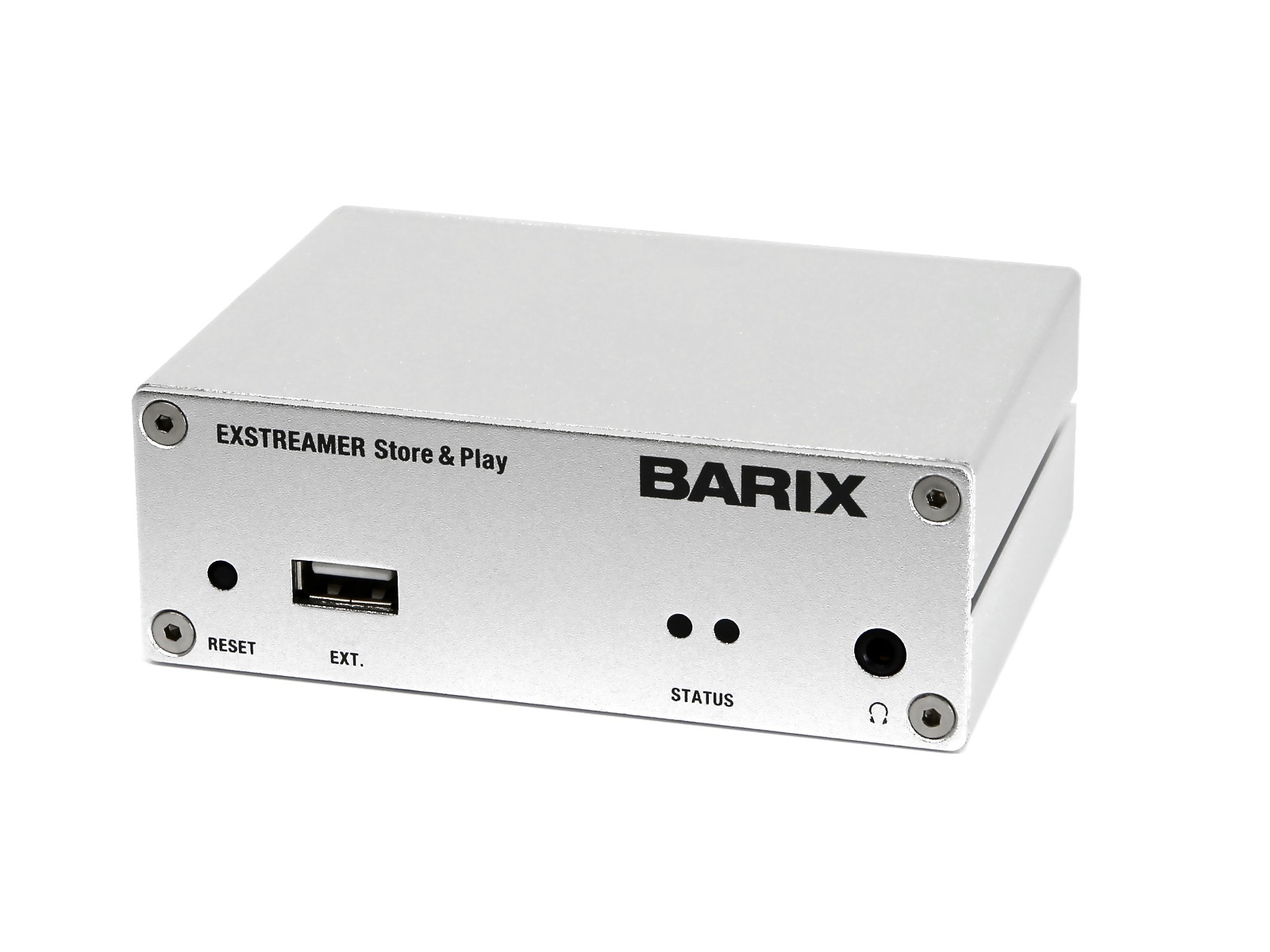

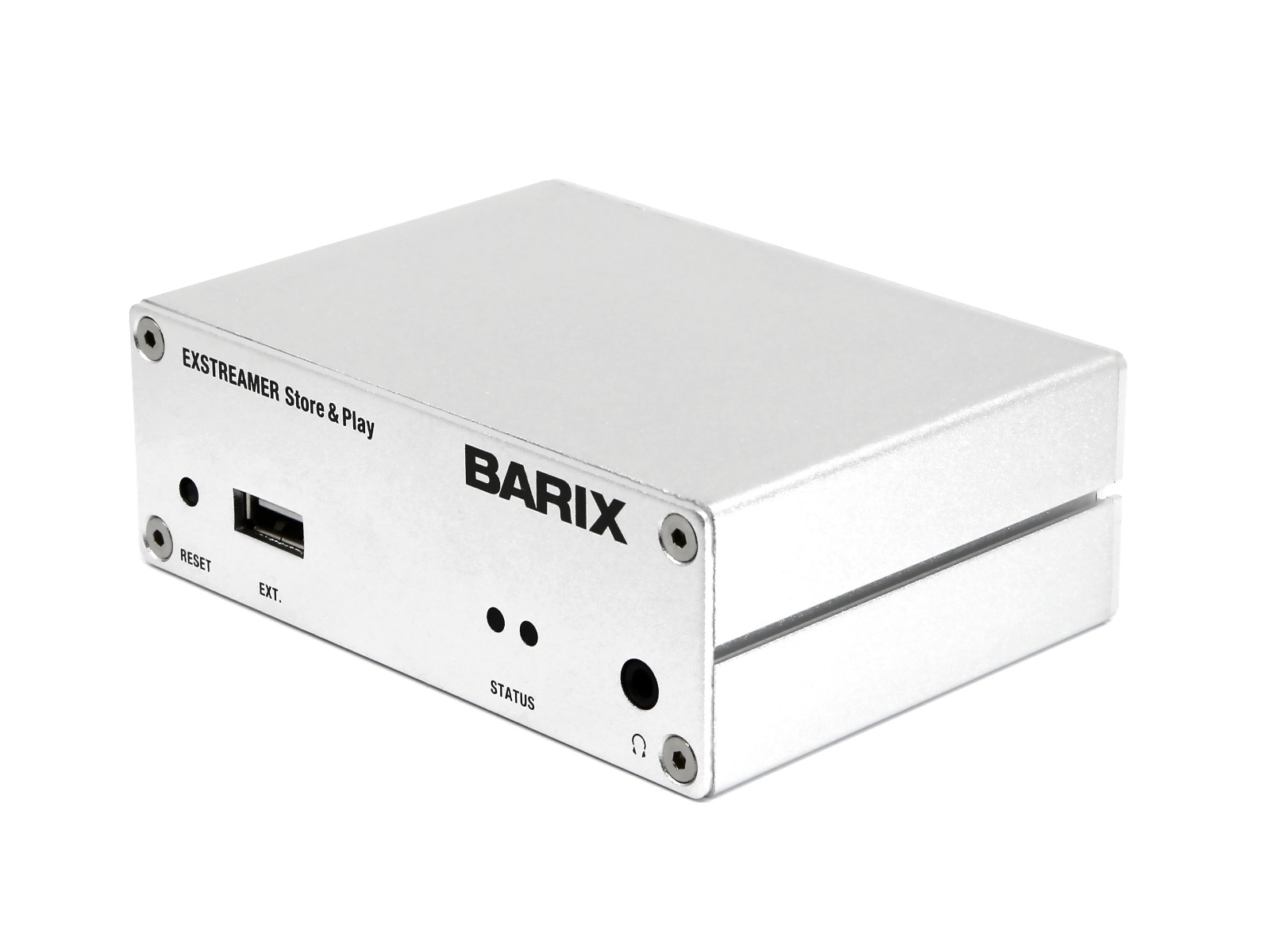

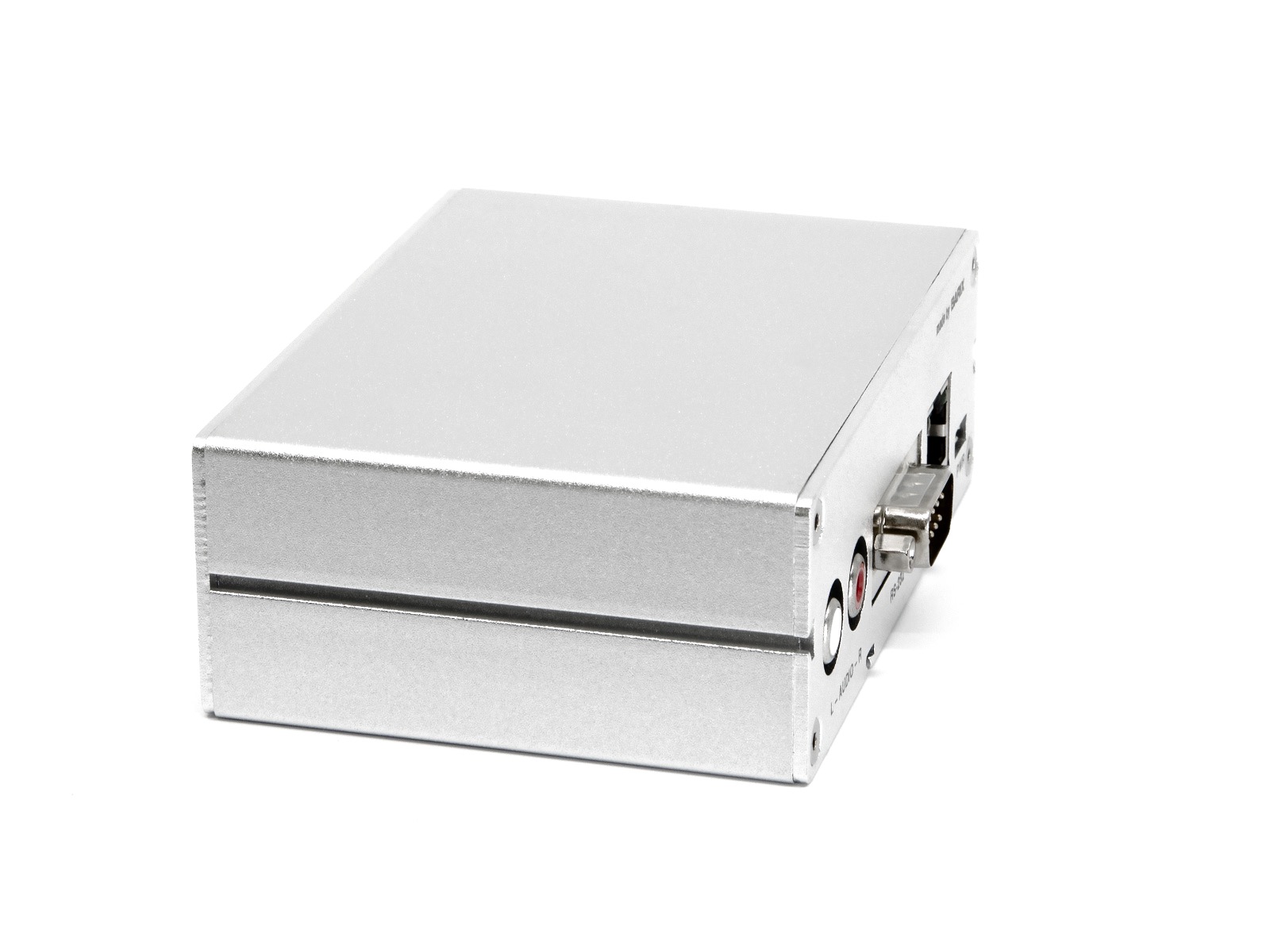

Exstreamer Store&Play

IP Audio decoder with USB and microSD storage interfaces

The Exstreamer Store&Play automatically downloads audio tracks and playlists via IP networks and schedules the playback of the received audio files. Supported by an application specific firmware, this product is designed to be used for In-Store background music and ad insertion, as well as for other use cases that require the playback of scheduled items without relying on a live Internet radio stream.

The device combines the traditional Store&Forward functionality with the ability of decoding live HTTP or RTP streams, taking advantage of both playback modes on a single device.

device-image

Electrical

Power Supply 5VDC, 2 Watt max.

Standard ‘Micro-B’ USB connector



Ethernet

10/100Mbps Auto-negotiation, Auto MDI-X

RJ-45 connector with integrated Link/Activity LED

Protocols: TCP/IP, FTP, HTTP, RTP, DHCP

Web User Interface for remote control, status and configuration

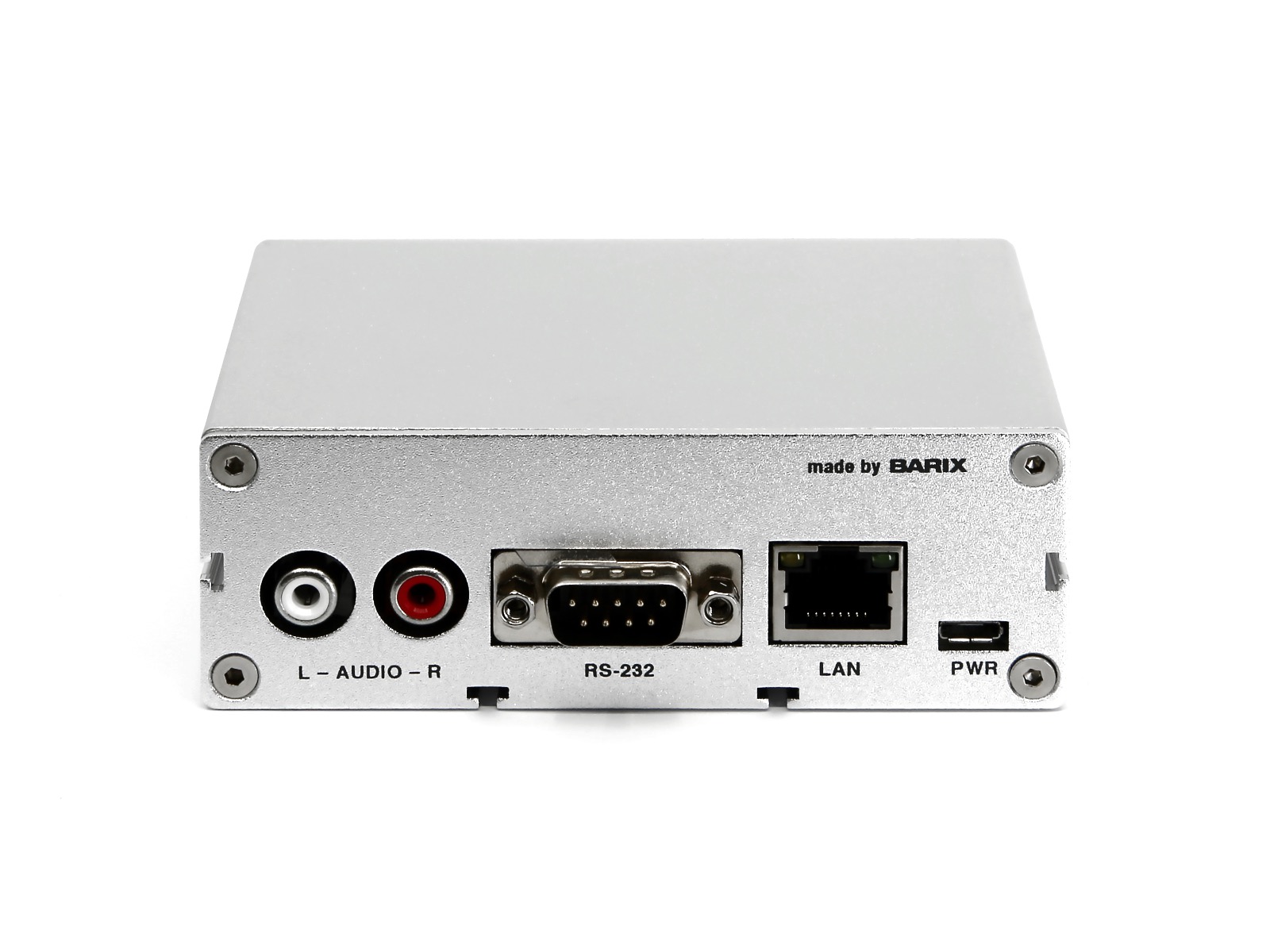

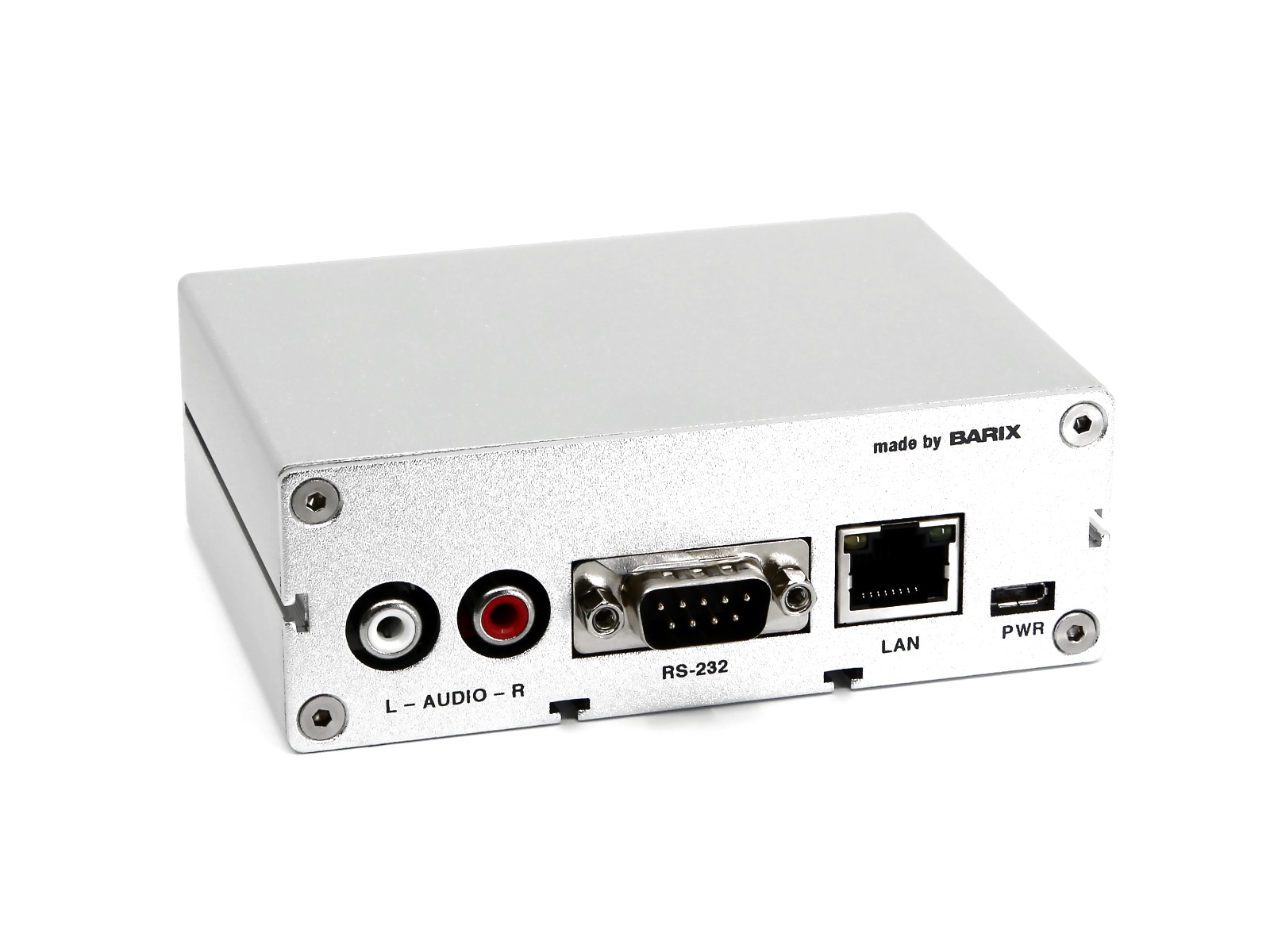

Analog Output

Line level output, 40..60 Ohm impedance on RCA and 1/8” headphone jack

Output level software controllable

Full scale output voltage: 5.6 dBu, 4 Vpp into 600 Ohm load

Frequency response (-3dB) 20Hz … 20kHz *

Signal to Noise Ratio -92 dB *

Total harmonic distrotion (THD) <0.01% *

Dynamic range 92dB *

Stereo crosstalk -91dB @ 1kHz *



Audio formats

MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.

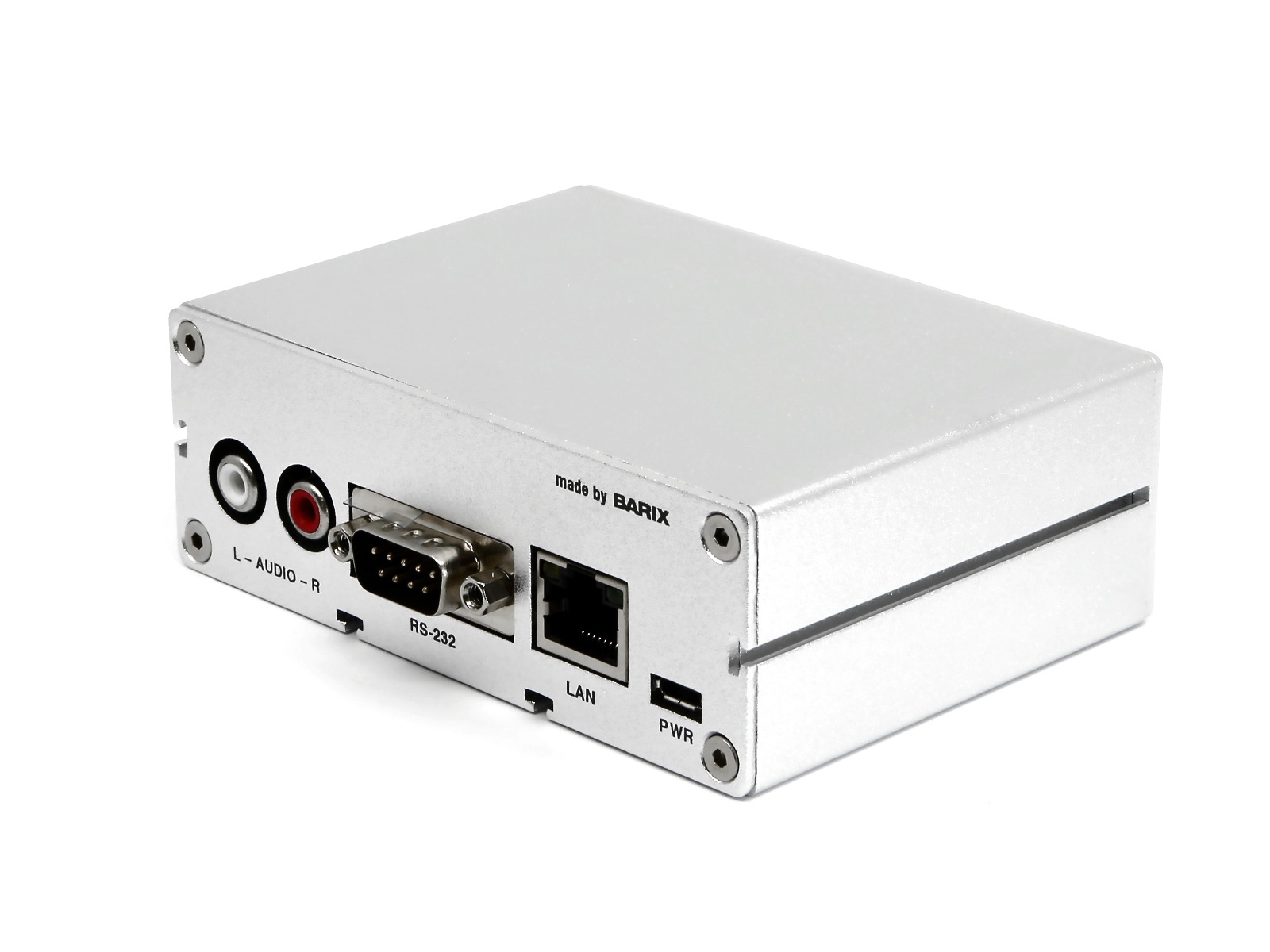

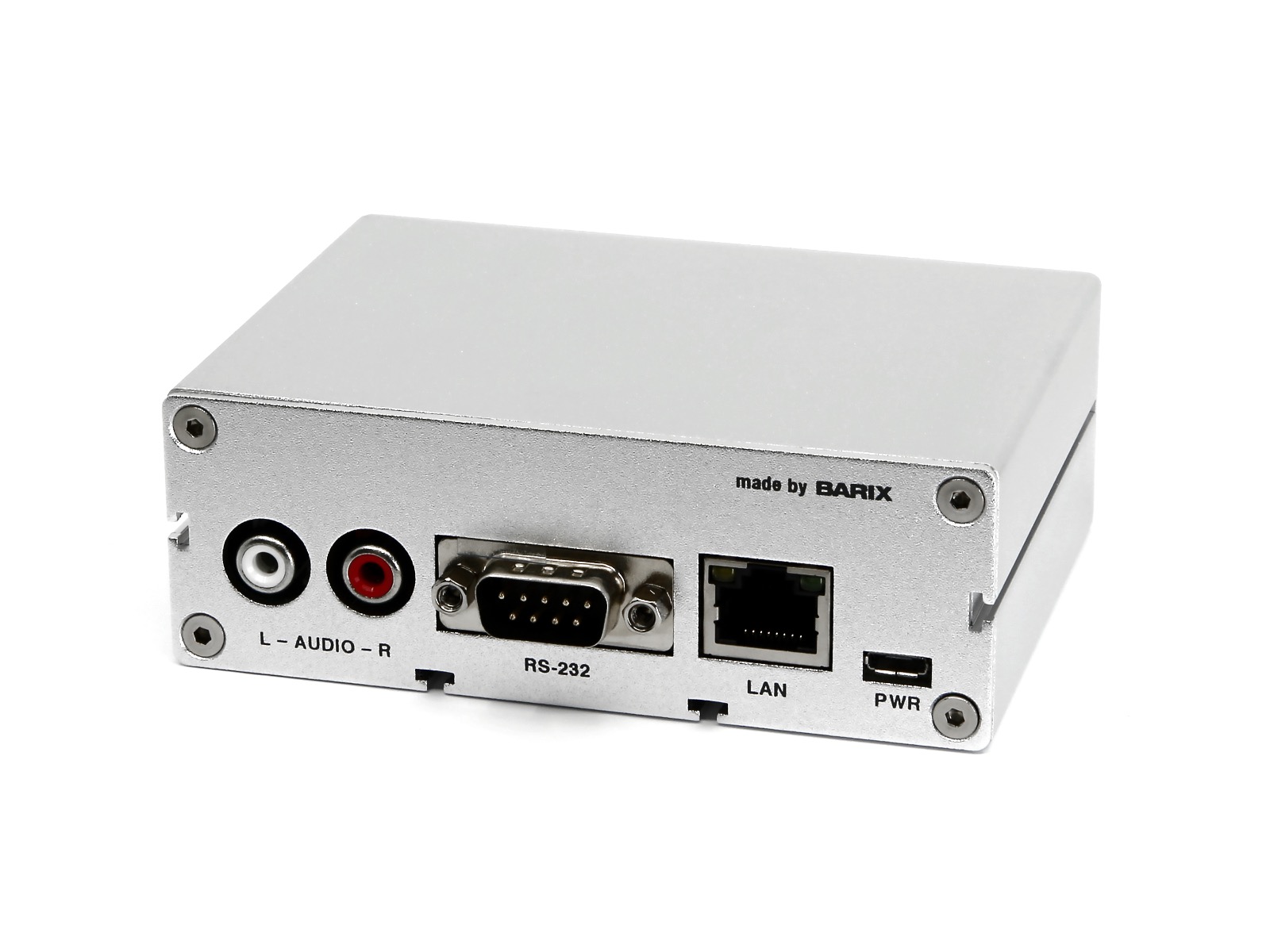

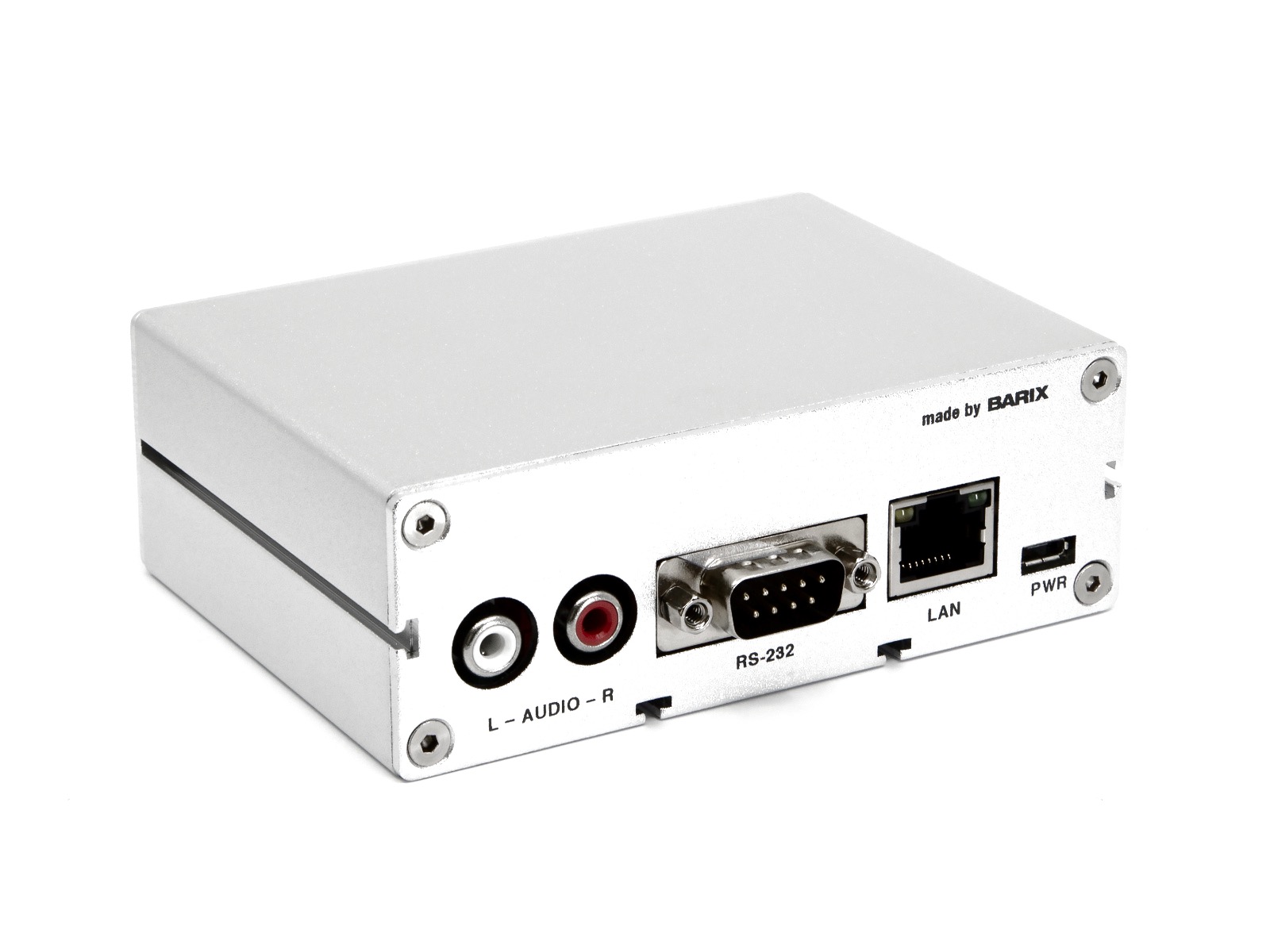

RS-232 Interface

Male 9-pin Sub-D connector

115‘200 Baud asynchronous

5 VDC supply output for external device (100 mA max.)

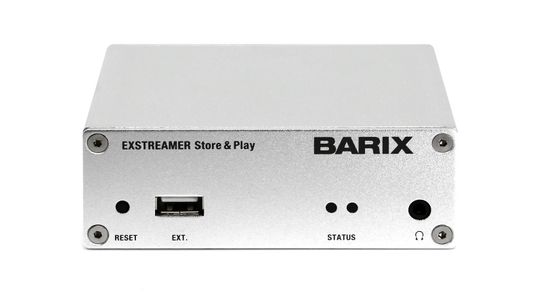

Miscellaneous

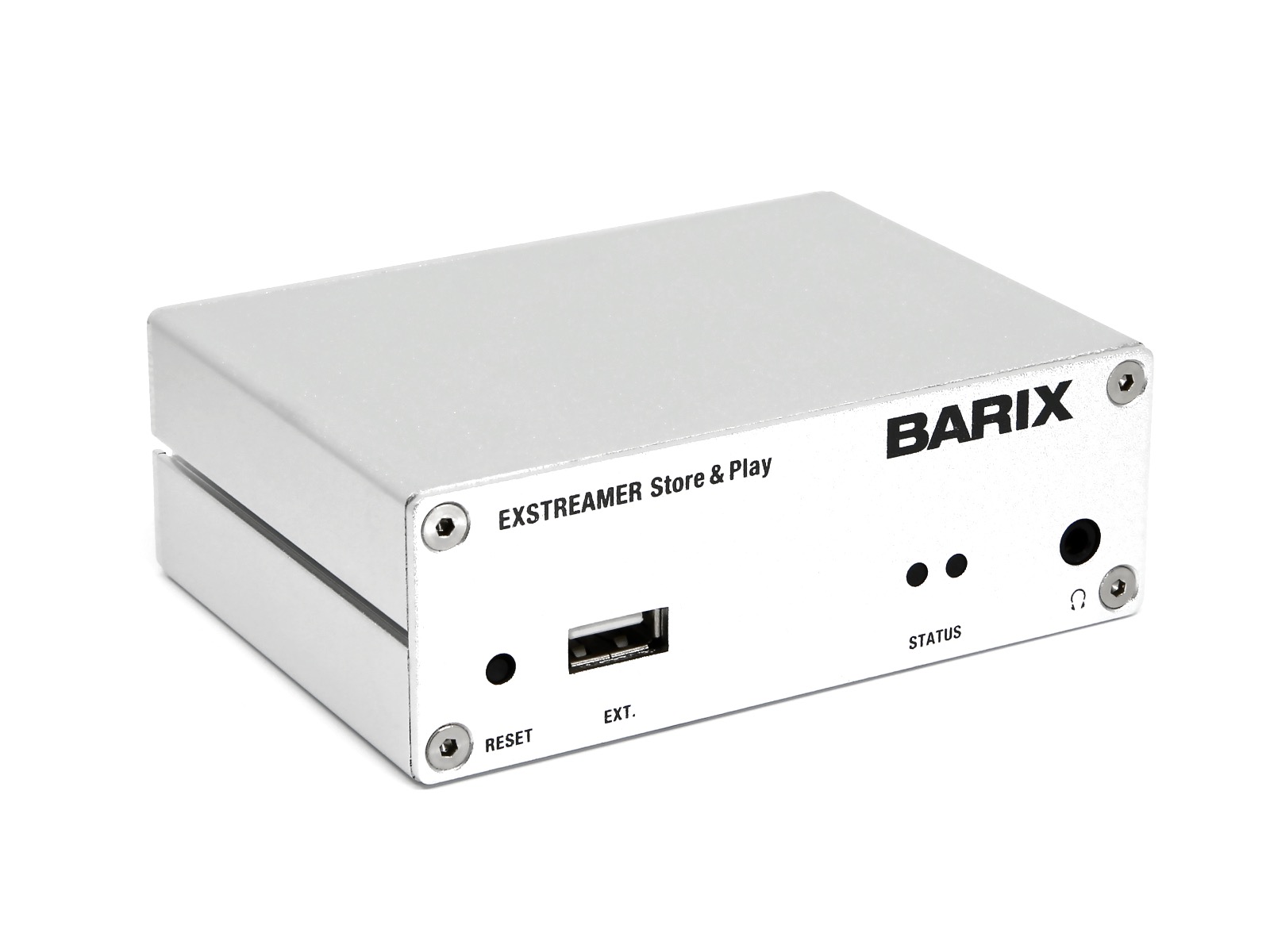

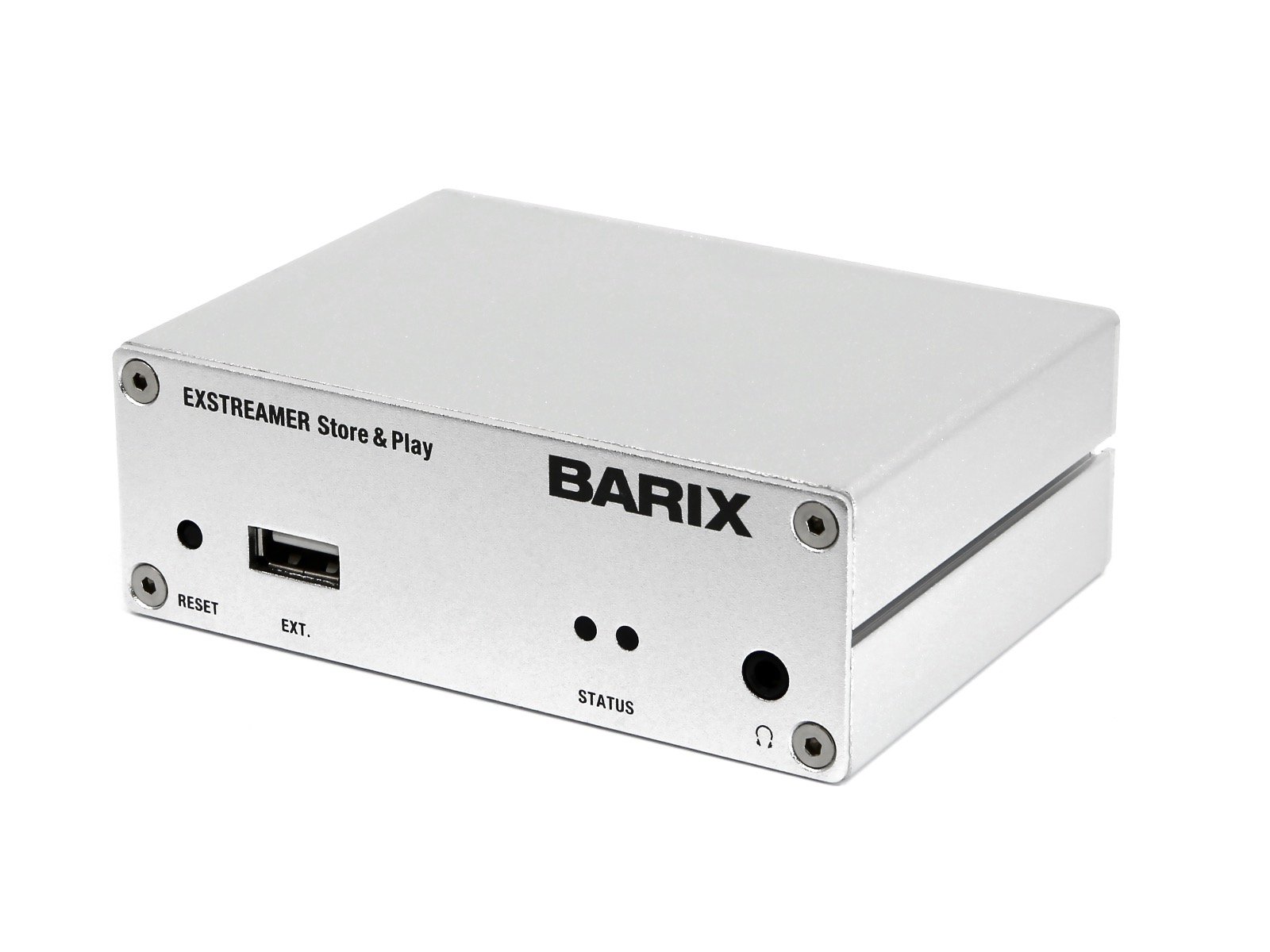

Green and red LED for status display

Button for reboot and reset factory defaults

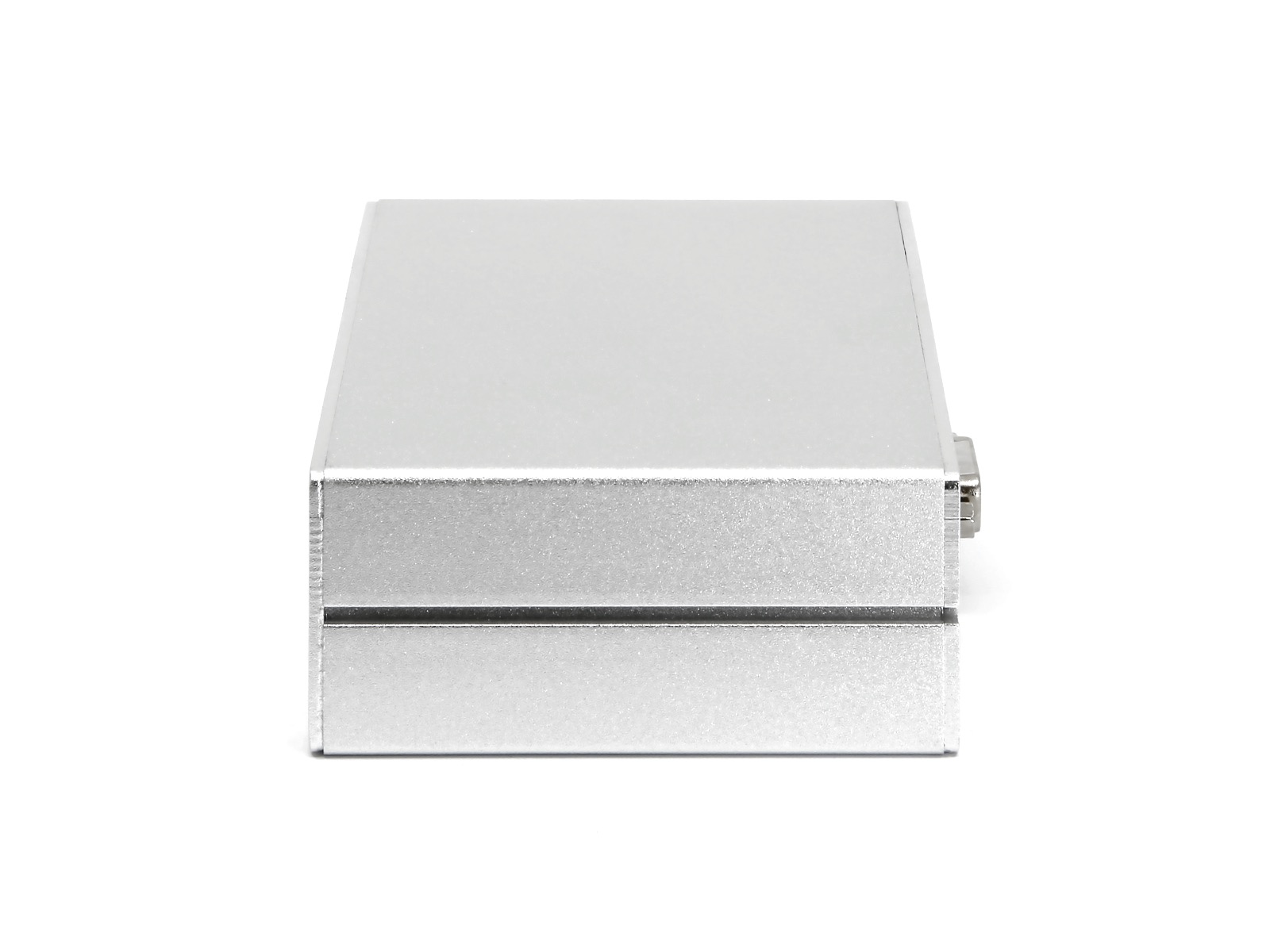

Mechanical

Aluminum case, 250g

Rack and wall mountable using accessories



Dimensions (W x H x D)

108x38x78.7mm (4.25×1.5×3.1 inch)



Declarations of conformity

RoHS, FCC, CE, C-Tick



MTBF

(Calculated acc. MIL217F at 25°C environment ground fix)

Exstreamer Store&Play : min. 500 000h



* using MP3 @48kHz sample rate, 320 kbps

  • 2014.9158
    Extreamer Store&Play 8 GB EU package
  • 2014.9159
    Extreamer Store&Play 8 GB US package
  • 2014.9160
    Extreamer Store&Play 8 GB UK package
  • 2014.9161
    Extreamer Store&Play 8 GB NoPSU package
  • 2014.9175
    Extreamer Store&Play S 8 GB EU package
  • 2015.9176
    Extreamer Store&Play S Streamalot 8 GB EU package
  • 2015.9177
    Extreamer Store&Play S 8 GB US package
  • 2015.9178
    Extreamer Store&Play S 8 GB UK package
  • 2015.9179
    Extreamer Store&Play S 8 GB NoPSU package
  • 2006.9072
    Wall Mounting Bracket
  • 2007.9082
    Barix 19″ Rack mount
  • 2006.9054
    Cable Set Audio
